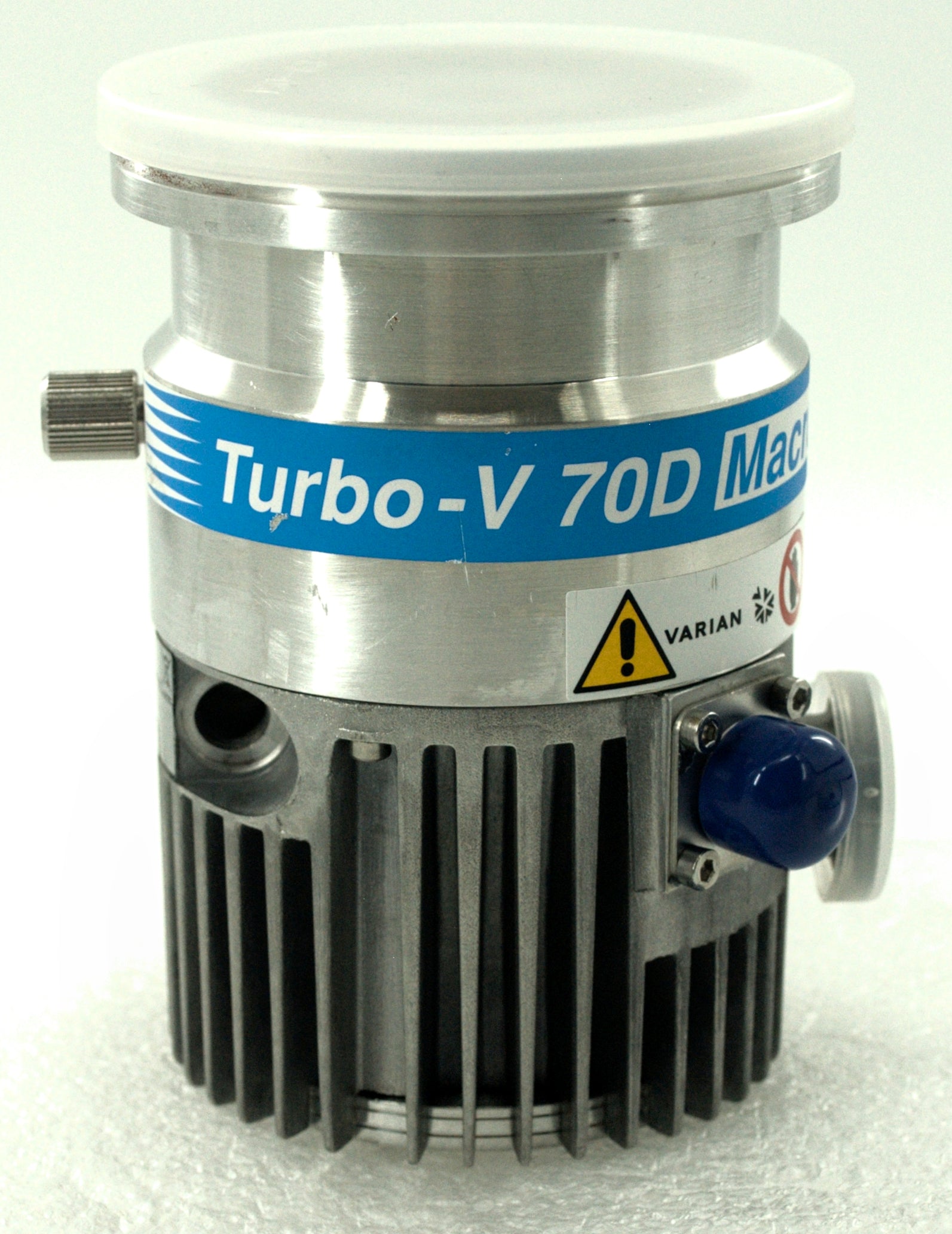

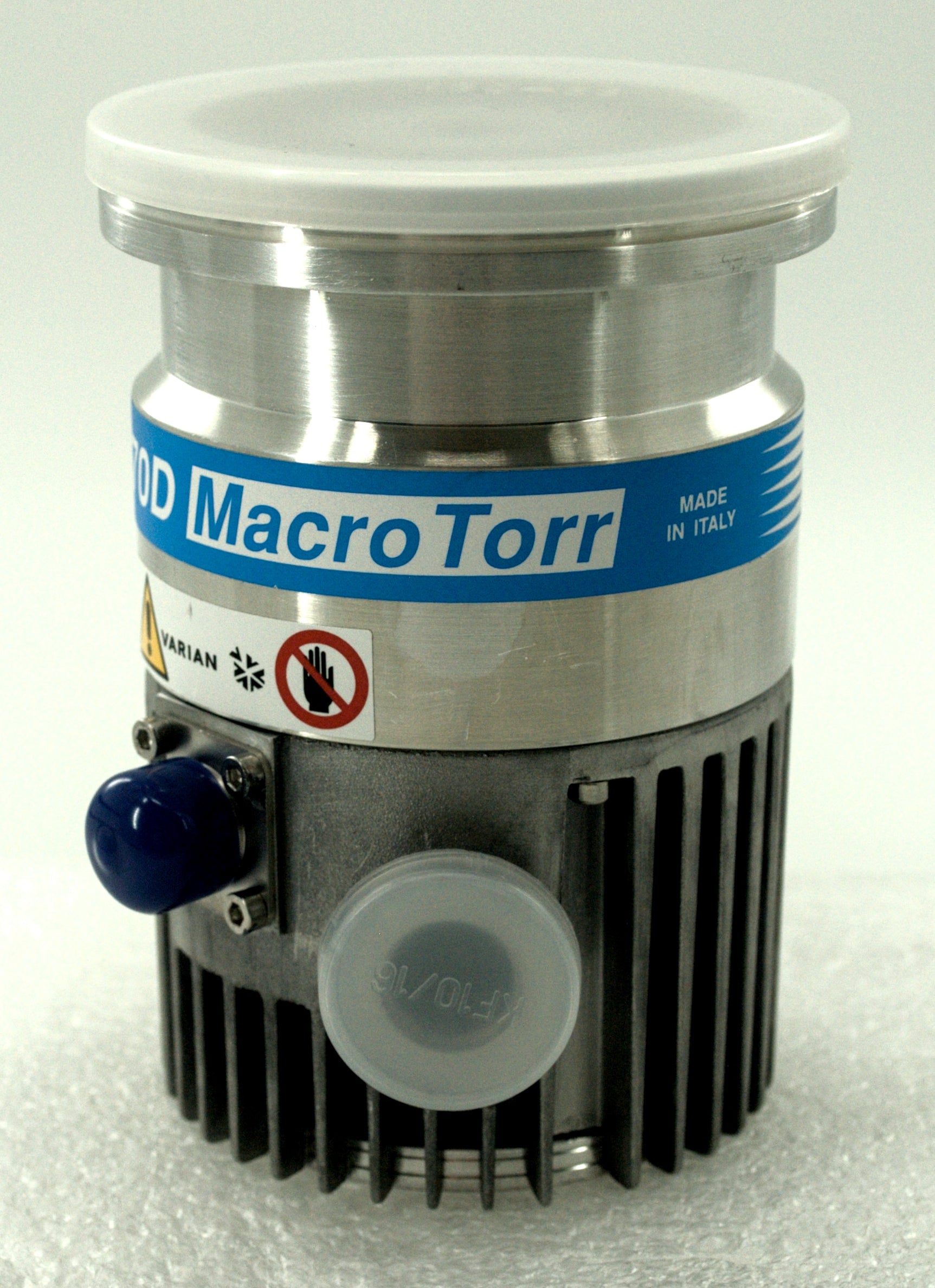

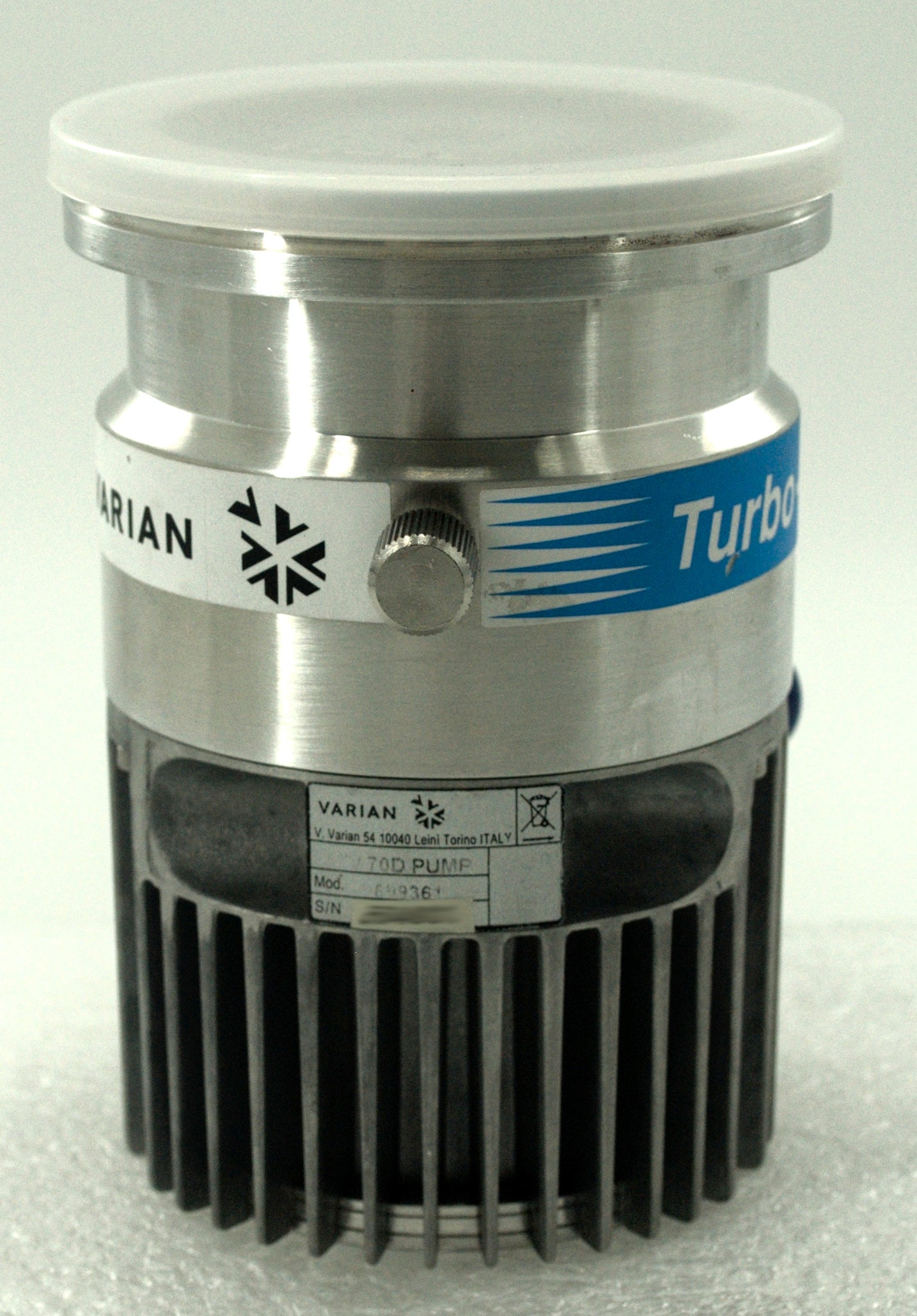

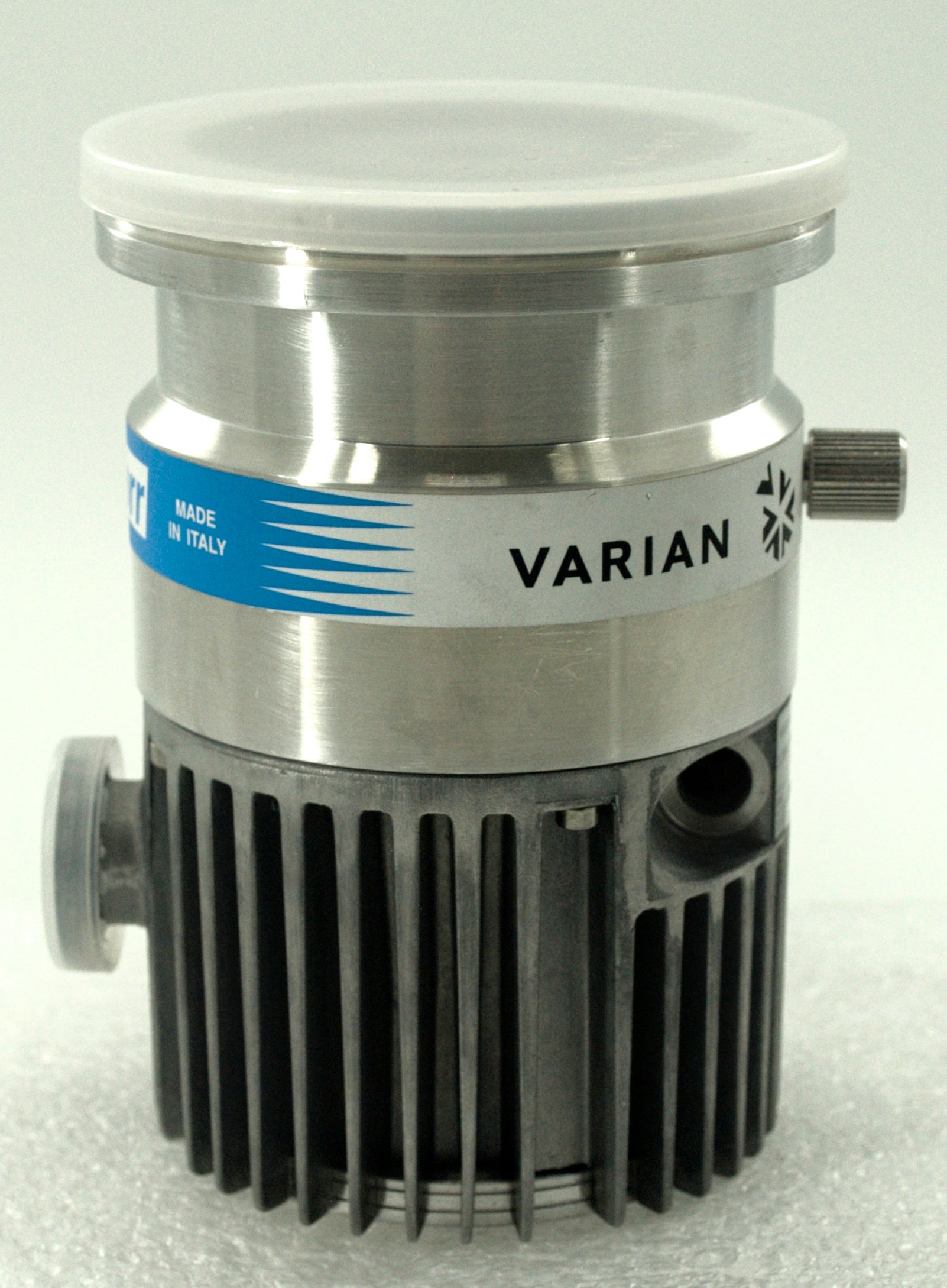

Varian Turbo-V 70D MacroTorr Turbomolecular Pump

Name: Varian Turbo-V 70D MacroTorr Turbomolecular Pump
Brand: Varian
Price: 3150.00 USD
Availability: InStock

Part Number: 9699361

Condition: Refurbished

In Stock

The Varian Turbo-V 70D MacroTorr is a highly reliable, compact turbomolecular vacuum pump engineered for clean, high-performance applications across precision laboratories, analytical instrumentation, and advanced research environments. Featuring Varian's proprietary MacroTorr dynamic staging architecture, the pump incorporates high-efficiency molecular drag stages directly onto the rotor assembly. This allows it to achieve industry-leading compression ratios for light gases and a high foreline pressure tolerance, enabling it to exhaust into compact, cost-effective roughing configurations.

This specific configuration, Part Number 9699361, features a standard KF40 high-vacuum inlet flange and an integrated thumbscrew vent valve. Utilizing maintenance-free dry ceramic ball bearings, the V70D guarantees completely oil-free, vibration-isolated operation in any mounting orientation.

Part Number (MPN): 9699361 / 969-9361
Model Line: Turbo-V 70D Series / MacroTorr

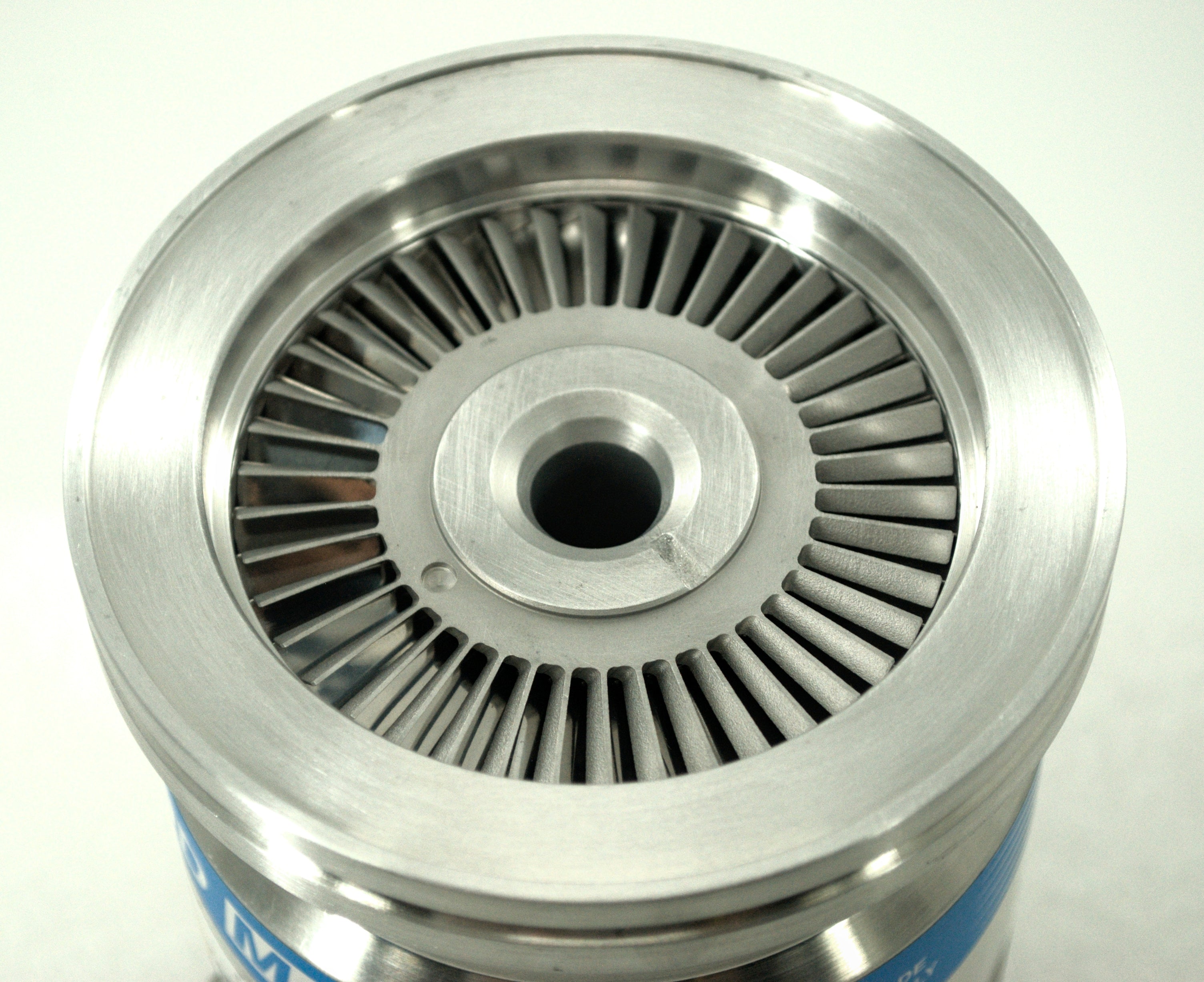

High Vacuum Inlet Flange: KF40 (NW40)
Fore-Vacuum / Exhaust Flange: KF16 (NW16)
Recommended Controller: Varian / Agilent TV-70 (Rack-mount or Brick configuration)

Key Features & Benefits

MacroTorr Drag Technology: Staged helix channels handle significantly higher backing pressure profiles without sacrificing critical high-vacuum throughput.
Maintenance-Free Bearings: Advanced ceramic ball bearings are lubricated with high-stability dry synthetic grease, eliminating oil-wick cartridges and the risk of hydrocarbon back-streaming.
Arbitrary Orientation: Lightweight design and specialized internal mechanical preload suspension allow the pump to operate at any angle.
High Pumping Efficiency: Optimized for immediate gas transport, reaching full operational frequency rapidly with minimum power draw.
Integrated Vent Facility: Features a factory-installed manual thumbscrew vent valve for simple system venting routines.

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_2$ )	60 l/s
Pumping Speed ( $He$ / $H_2$ )	50 l/s / 45 l/s
Nominal Rotational Speed	75,000 rpm
Ultimate Pressure	< $2 \times 10^{-7}$ mbar (< $1.5 \times 10^{-7}$ Torr)
Compression Ratio ( $N_2$ )	$5 \times 10^{7}$
Compression Ratio ( $He$ / $H_2$ )	$5 \times 10^{4}$ / $1 \times 10^{3}$
Max Fore-Vacuum Backing Pressure	8 mbar
Start-Up / Run-Up Time	< 60 seconds
Operating Voltage Requirement	54 V AC (supplied by controller)
Max Power Consumption	80 W
Cooling Profile	Natural Convection / Optional Forced Air
Weight	1.81 kg (4.0 lbs)

Typical Applications

The physical agility and high backing resilience of the Turbo-V 70D make it a vital component for a wide selection of systems:

Analytical Chemistry Platforms: Mass Spectrometry (GC-MS), Electron Microscopy, focused ion beam (FIB) systems, and surface analysis.
High-Energy Physics: Particle accelerators, vacuum transport lines, and fusion technology research.
Industrial Leak Detection: Mobile helium sniffing equipment and system integrity testing manifolds.
Compact Roughing Configurations: Backed perfectly by compact dry scroll pumps (e.g., Varian SH-100) or small rotary vane systems (e.g., Varian DS-102)
