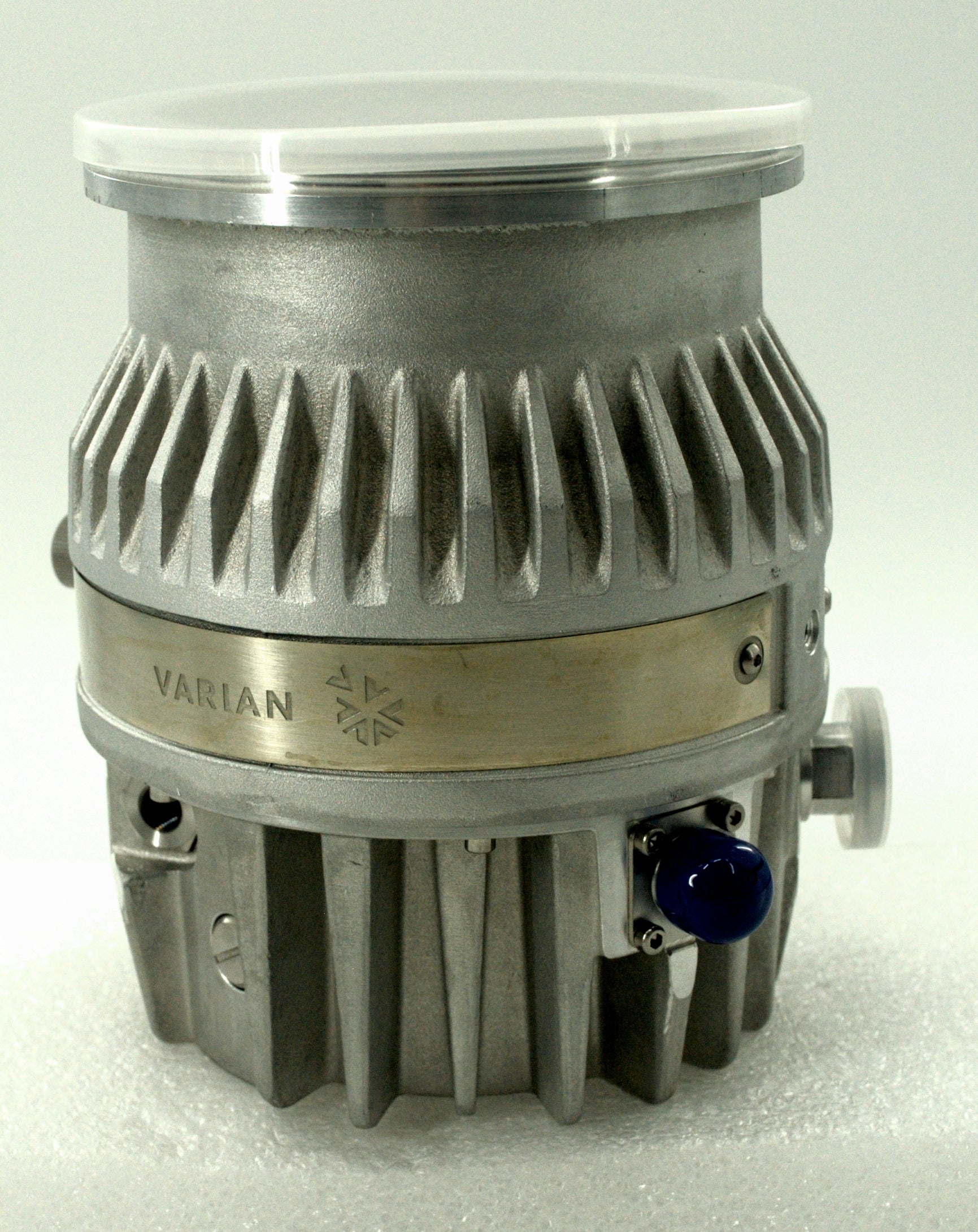

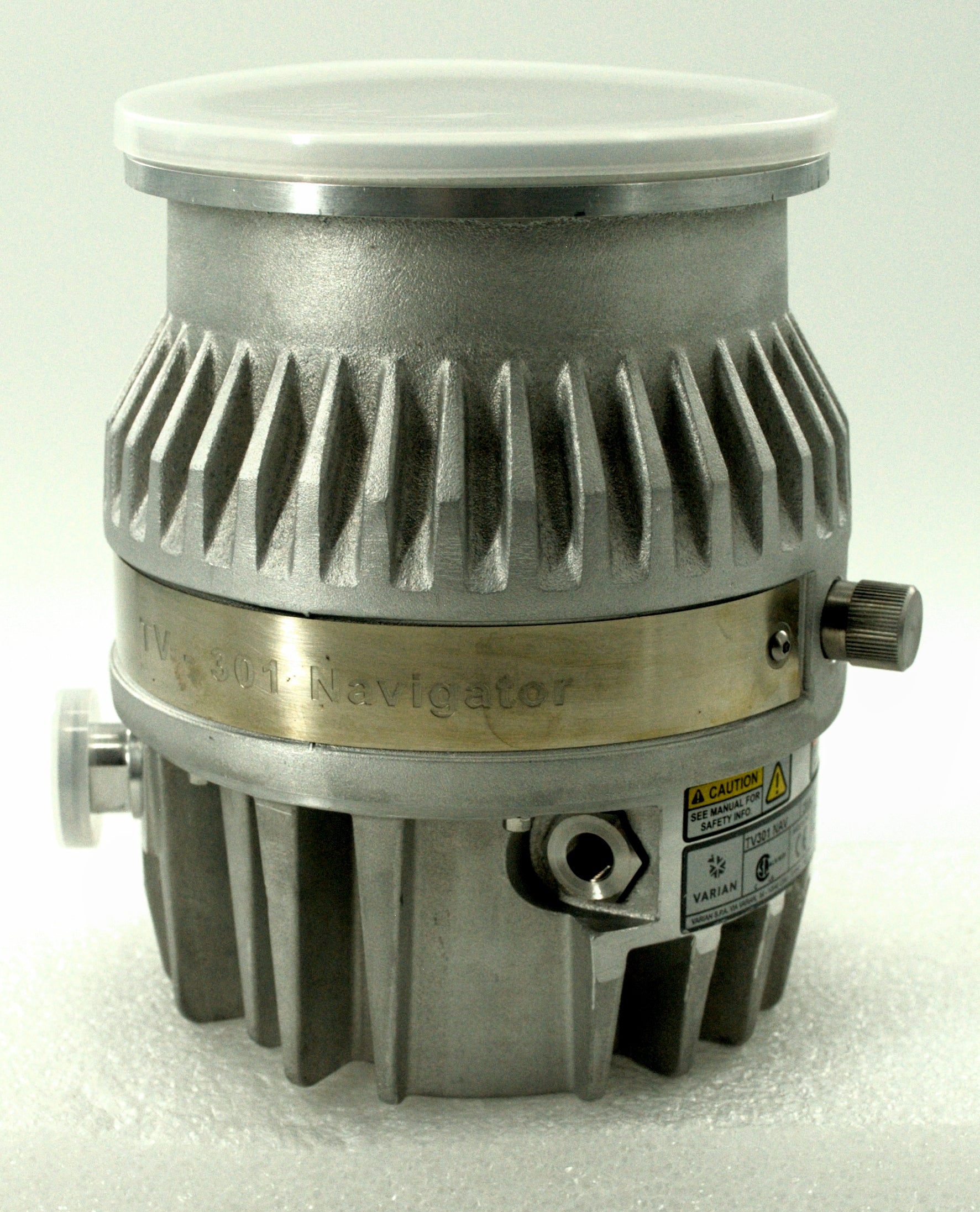

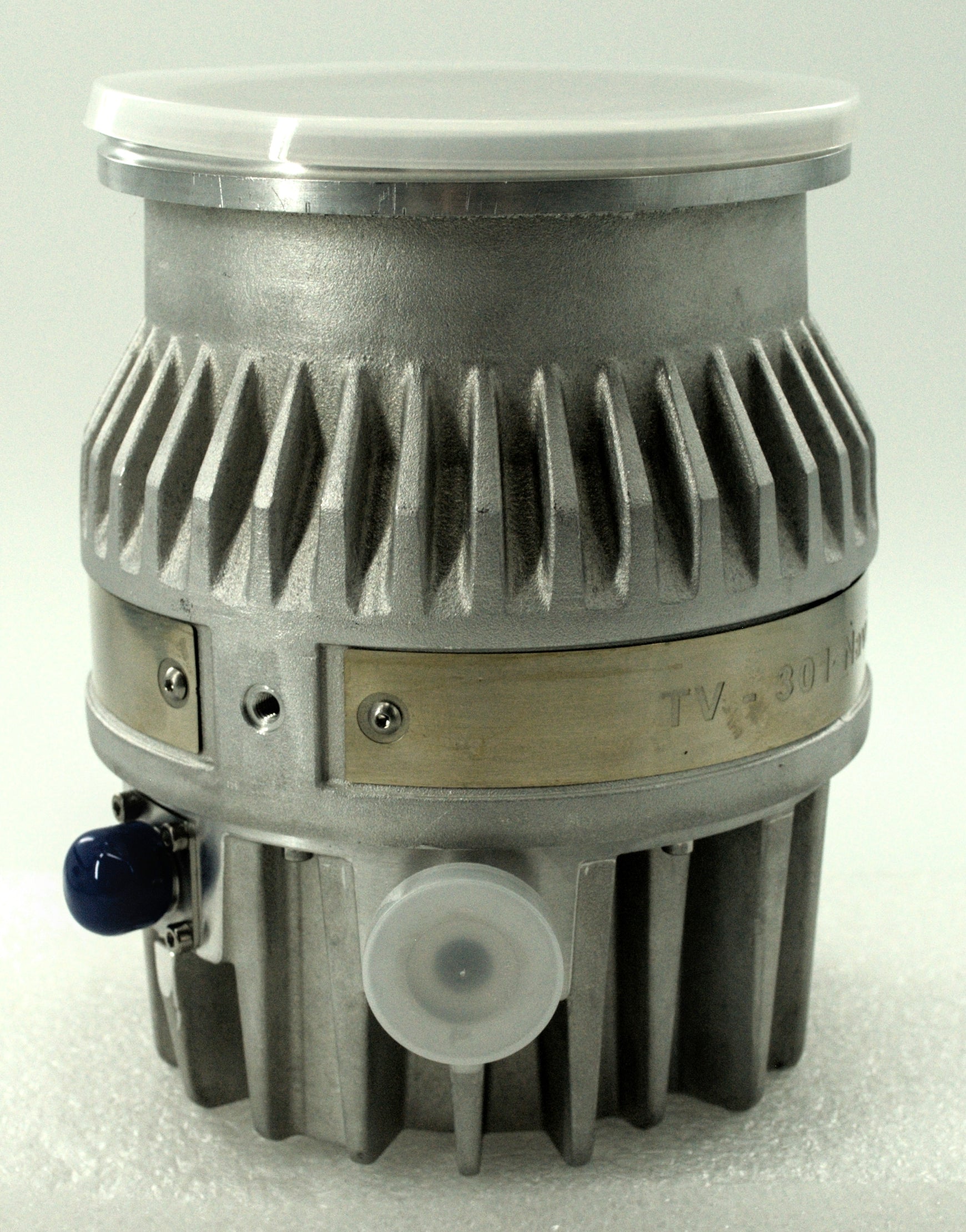

Varian Turbo-V 301 Navigator Turbomolecular Pump

Name: Varian Turbo-V 301 Navigator Turbomolecular Pump
Brand: Varian
Price: 5239.00 USD
Availability: InStock

Part Number: 9698918

Condition: Refurbished

In Stock

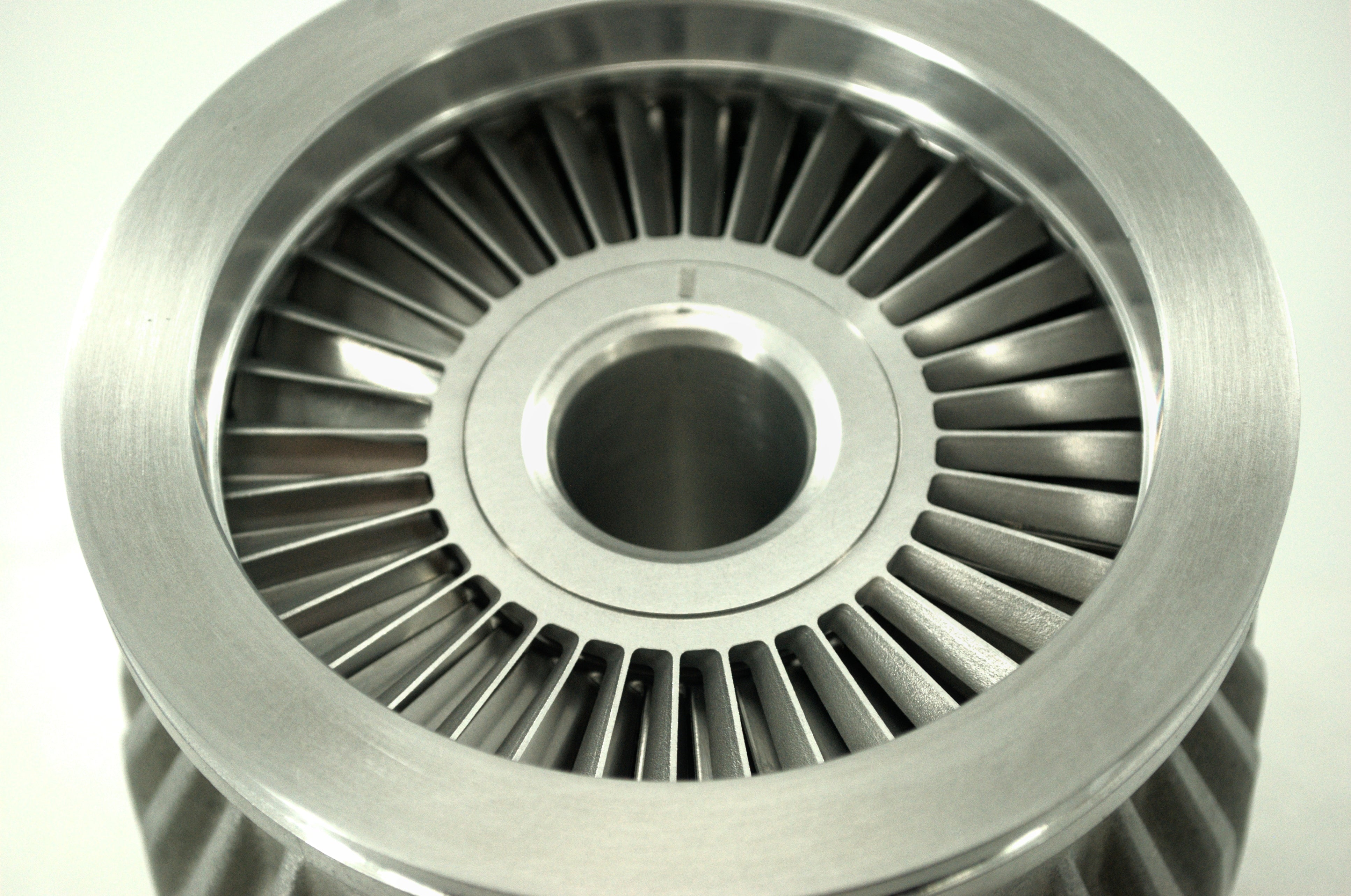

The Varian Turbo-V 301 Navigator is a highly efficient, mid-capacity turbomolecular pump engineered for clean, high-performance high and ultra-high vacuum (UHV) applications. It features Varian's proprietary MacroTorr dynamic staging—incorporating 8 bladed turbine stages followed by 3 specialized molecular drag discs machined from a single block of high-strength aluminum alloy. This unique staging design delivers industry-leading compression ratios for light gases and a high continuous foreline backing pressure tolerance up to 8 mbar.

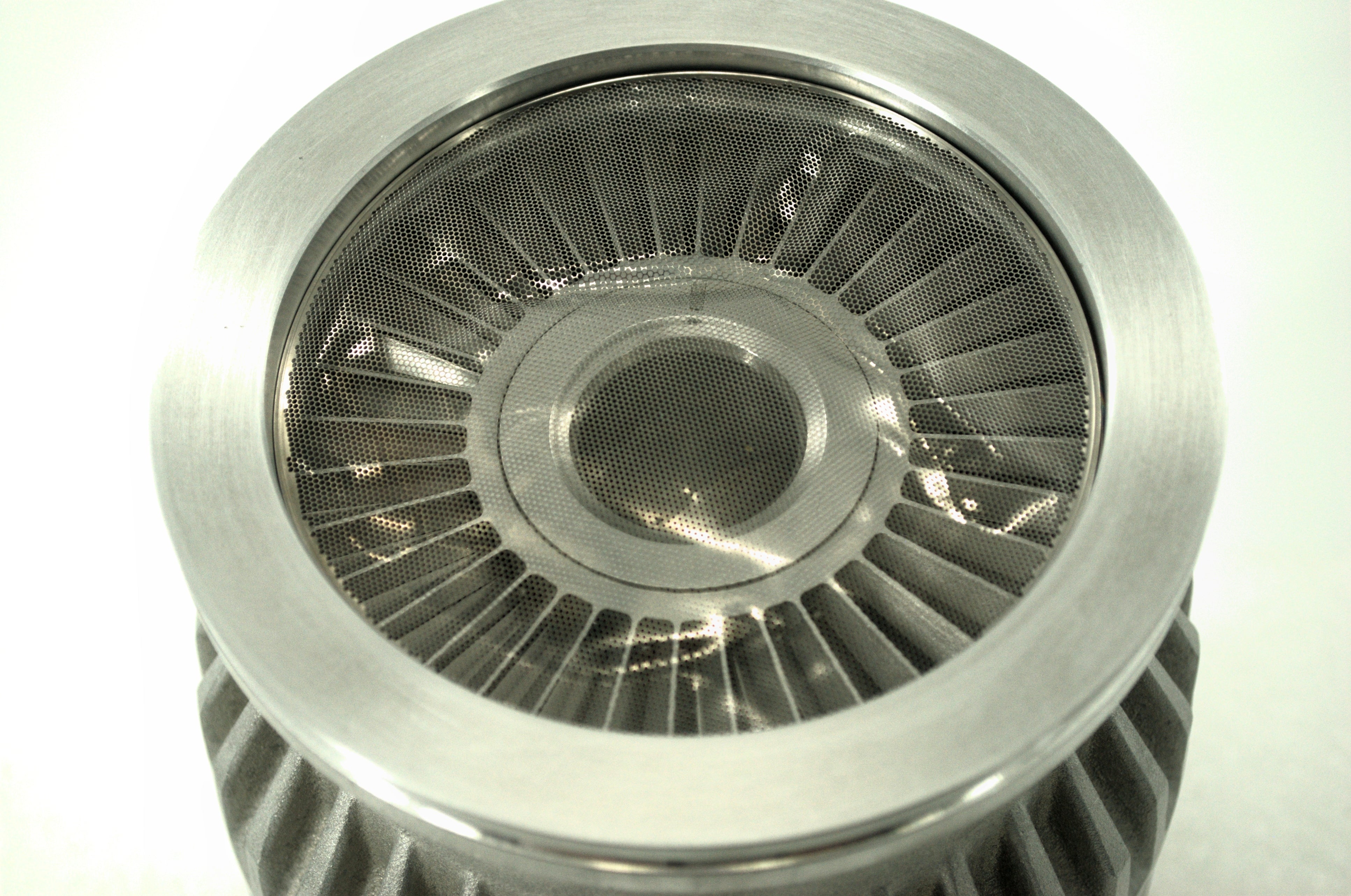

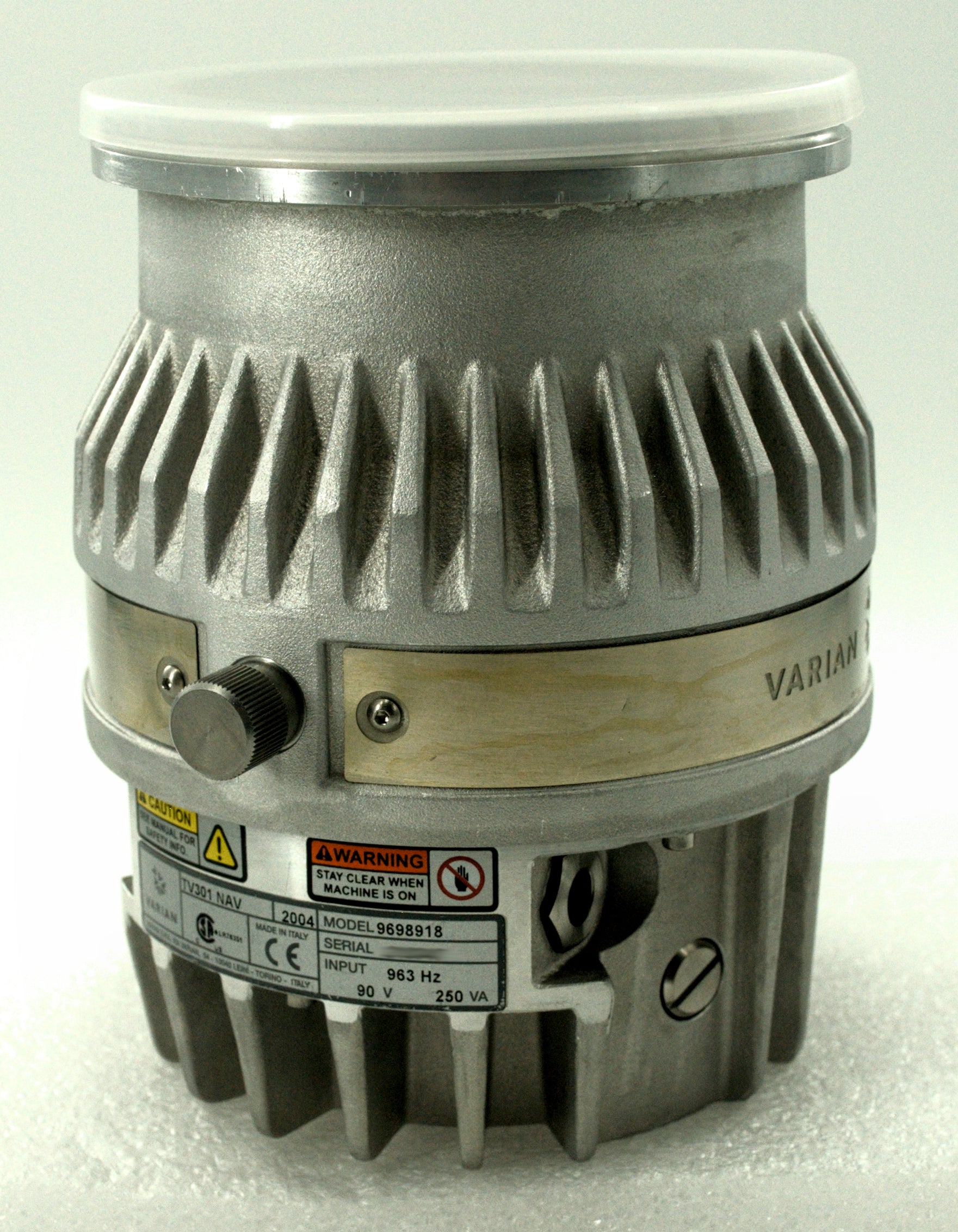

This exact part number (9698918) is configured with a DN 100 ISO-K high-vacuum inlet flange and a standard manual thumbscrew vent valve. Utilizing permanently lubricated, high-precision ceramic ball bearings installed strictly on the fore-vacuum side, the pump operates entirely free of hydrocarbon contaminating agents, making it ideal for contamination-sensitive analytical and semiconductor environments.

Part Number (MPN): 9698918 / 969-8918
Model Configuration: Turbo-V 301 Navigator (TV 301 NAV)
High Vacuum Inlet Flange: DN 100 ISO-K
Fore-Vacuum / Exhaust Flange: KF16 NW
Drive Electronics Profile: Designed for direct connection to Varian TV 301 Navigator onboard "brick" controllers or remote rack-mount units.

Key Features & Benefits

MacroTorr Drag Technology: Maximizes light gas transport, allowing the system to achieve deep UHV performance while exhausting into compact backing setups.
Maintenance-Free Ceramic Bearings: Features permanently lubricated high-precision ceramic ball bearings that eliminate oil reservoirs, wicks, and the risk of oil back-streaming.
Arbitrary Orientation Mounting: Excellent structural balancing and preloaded internal suspension allow the pump to be operated in any installation angle.
Low Vibration Execution: Rigorous automated factory balancing limits residual vibration displacement to less than 0.01 $\mu$ m at the inlet flange, protecting sensitive analytical detectors.
Thermal Safeguards: Equipped with an integrated thermistor sensor mounted adjacent to the upper bearing to actively protect against system overheating.

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_2$ )	250 l/s
Pumping Speed ( $He$ / $H_2$ )	220 l/s / 200 l/s
Nominal Rotation Speed	56,000 rpm
Ultimate Pressure (Mechanical Backed)	< $2 \times 10^{-10}$ mbar (< $1.5 \times 10^{-10}$ Torr)
Compression Ratio ( $N_2$ )	> $2 \times 10^{8}$ ( $8 \times 10^8$ nominal)
Compression Ratio ( $He$ / $H_2$ )	$1 \times 10^5$ / $2 \times 10^4$
Max Continuous Foreline Pressure	8.0 mbar
Ramp-Up / Start Time	< 3.0 minutes
Motor Driving Voltage	54 V AC (3-Phase, 933 Hz)
Cooling Profile	Natural Convection (Forced Air or Water optional)
Sound / Noise Level	$\le$ 45 dB(A) at 1 meter
Weight	4.5 kg (10.0 lbs)

Typical Applications

The 250 l/s capacity and clean background pressure of the TV 301 make it a standard choice across heavy industry and high-end core labs:

Analytical Instrumentation: High-vacuum stages for LC-MS, GC-MS, Electron Microscopy (SEM/TEM), and Focused Ion Beam (FIB) tools.
Semiconductor & Thin Film: R&D deposition, surface analysis systems, plasma monitoring windows, and load lock chambers.
High-Energy Physics: Particle accelerators, UHV transfer lines, and beamline instrumentation loops.
