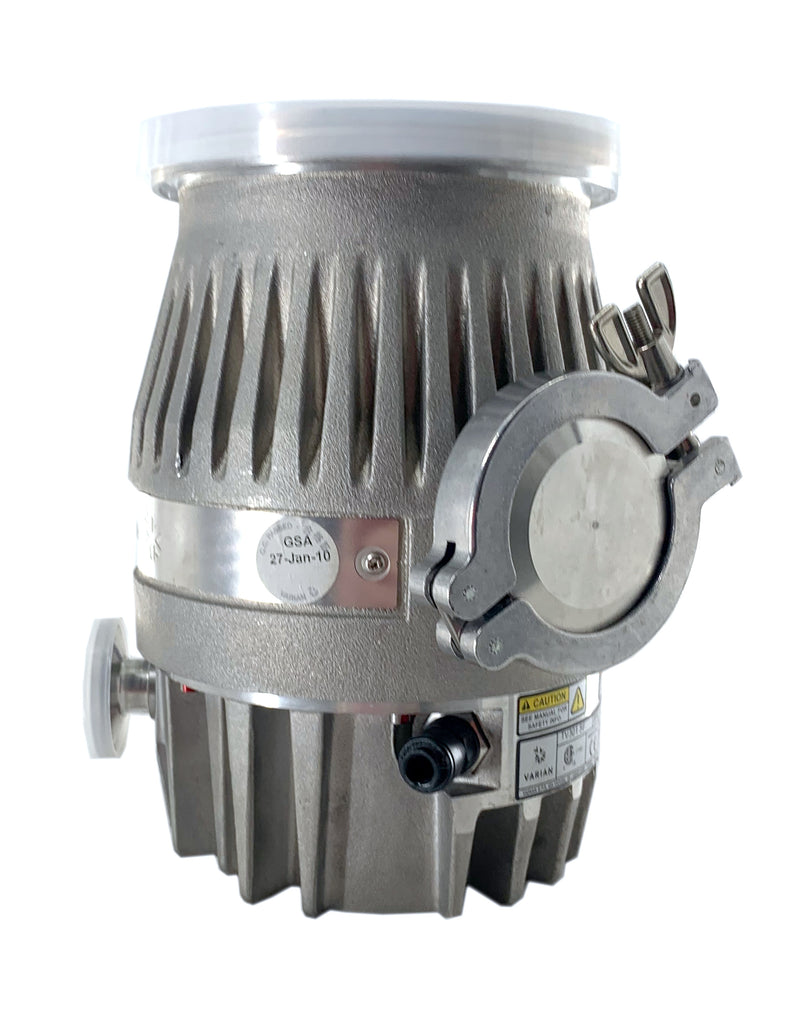

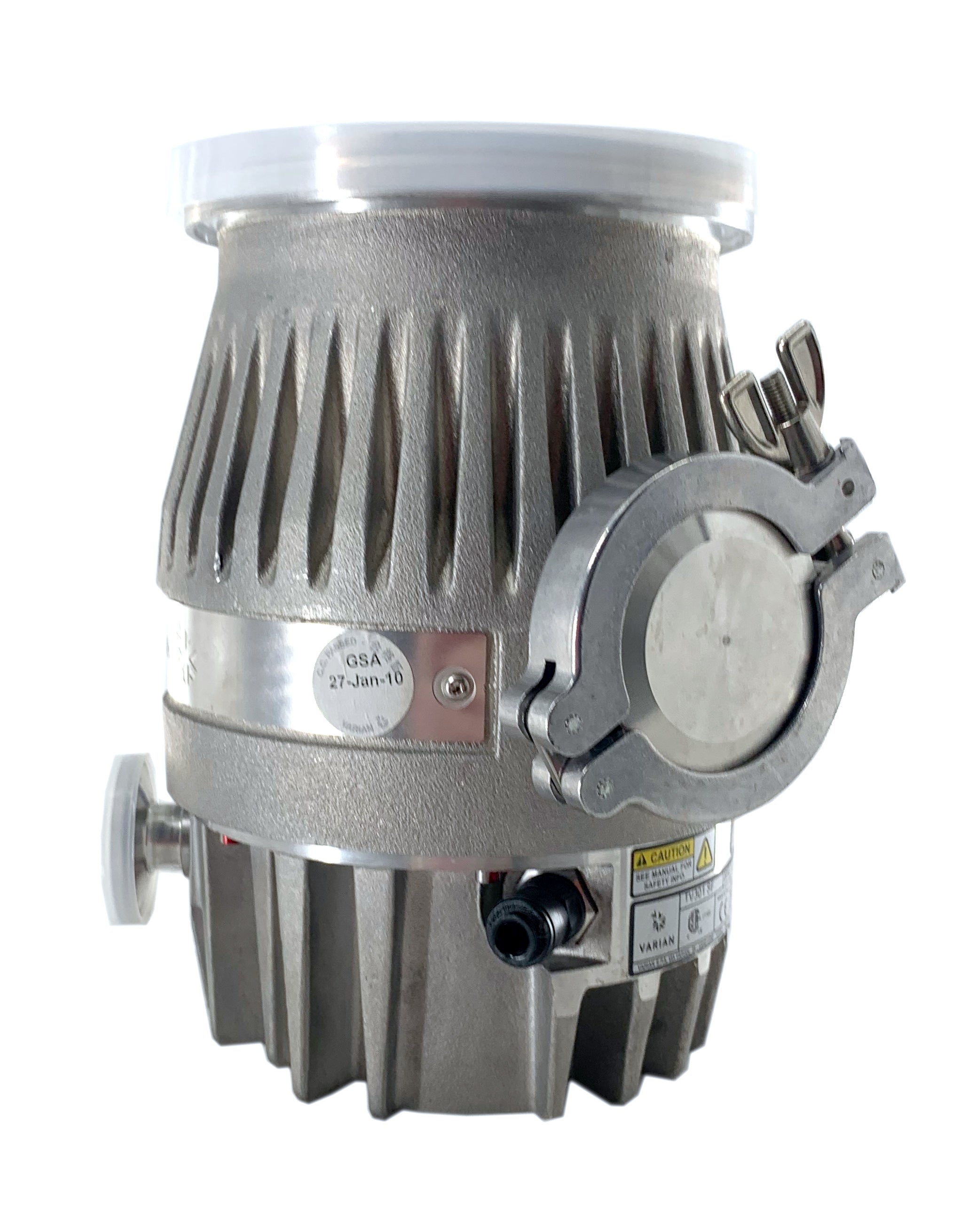

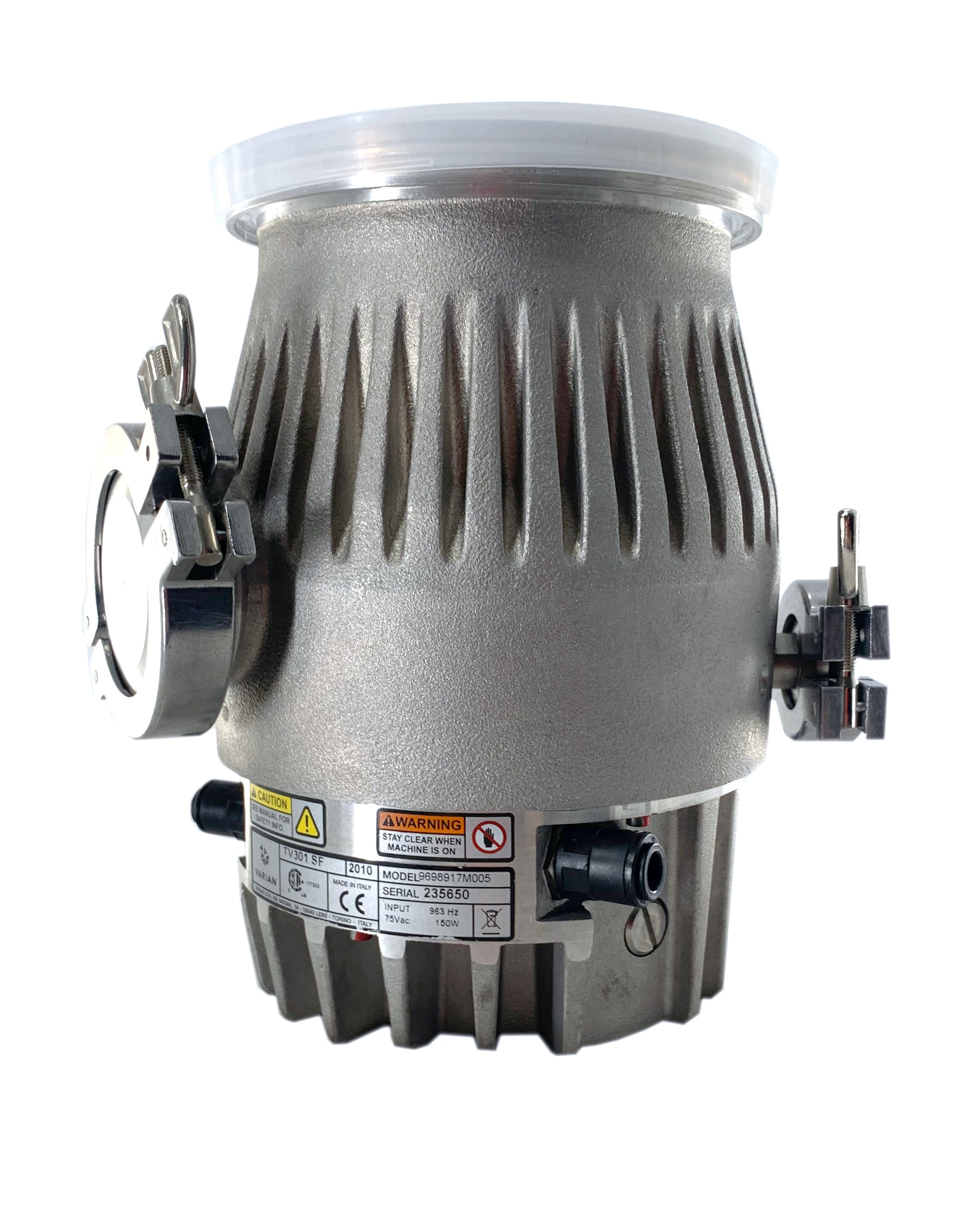

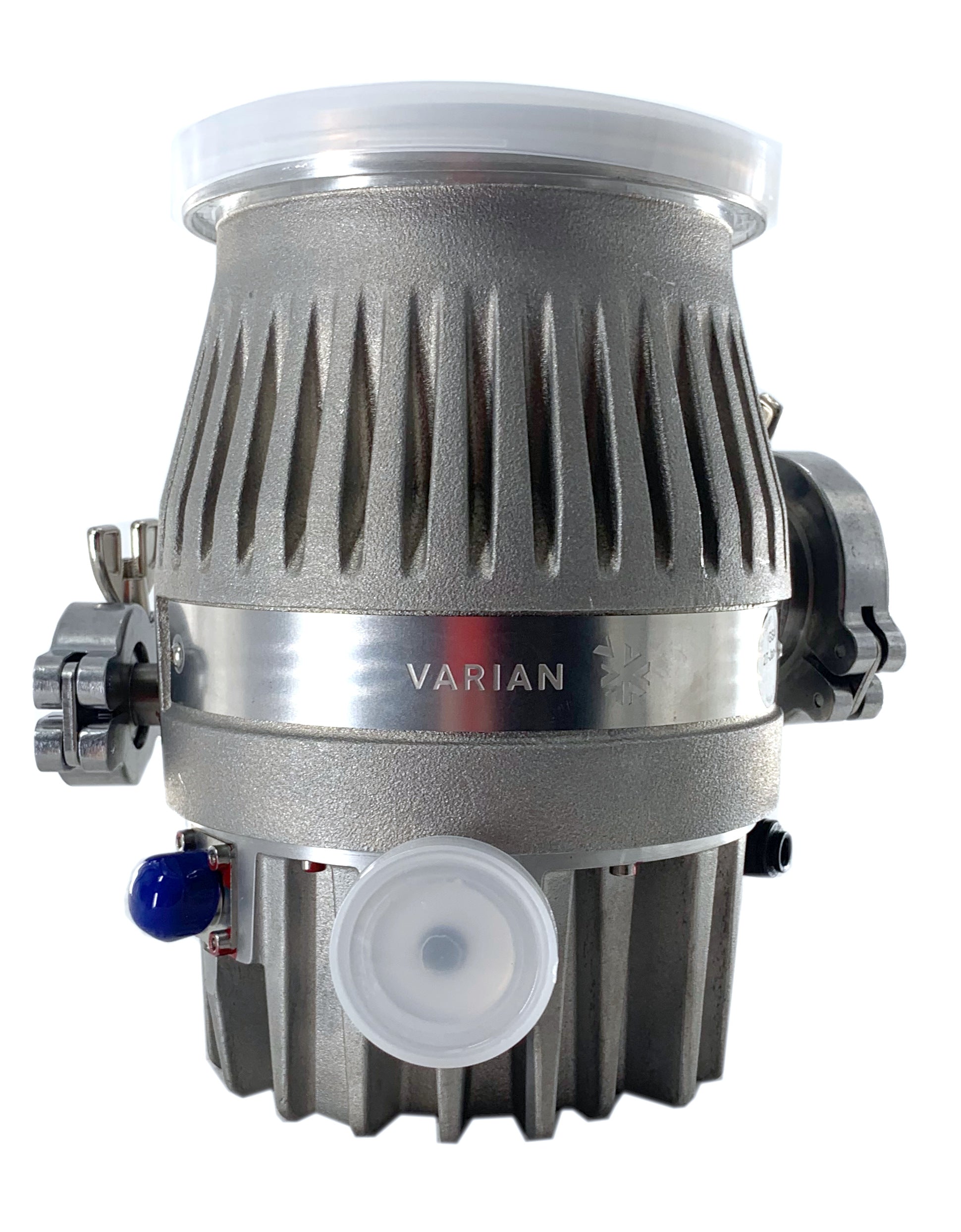

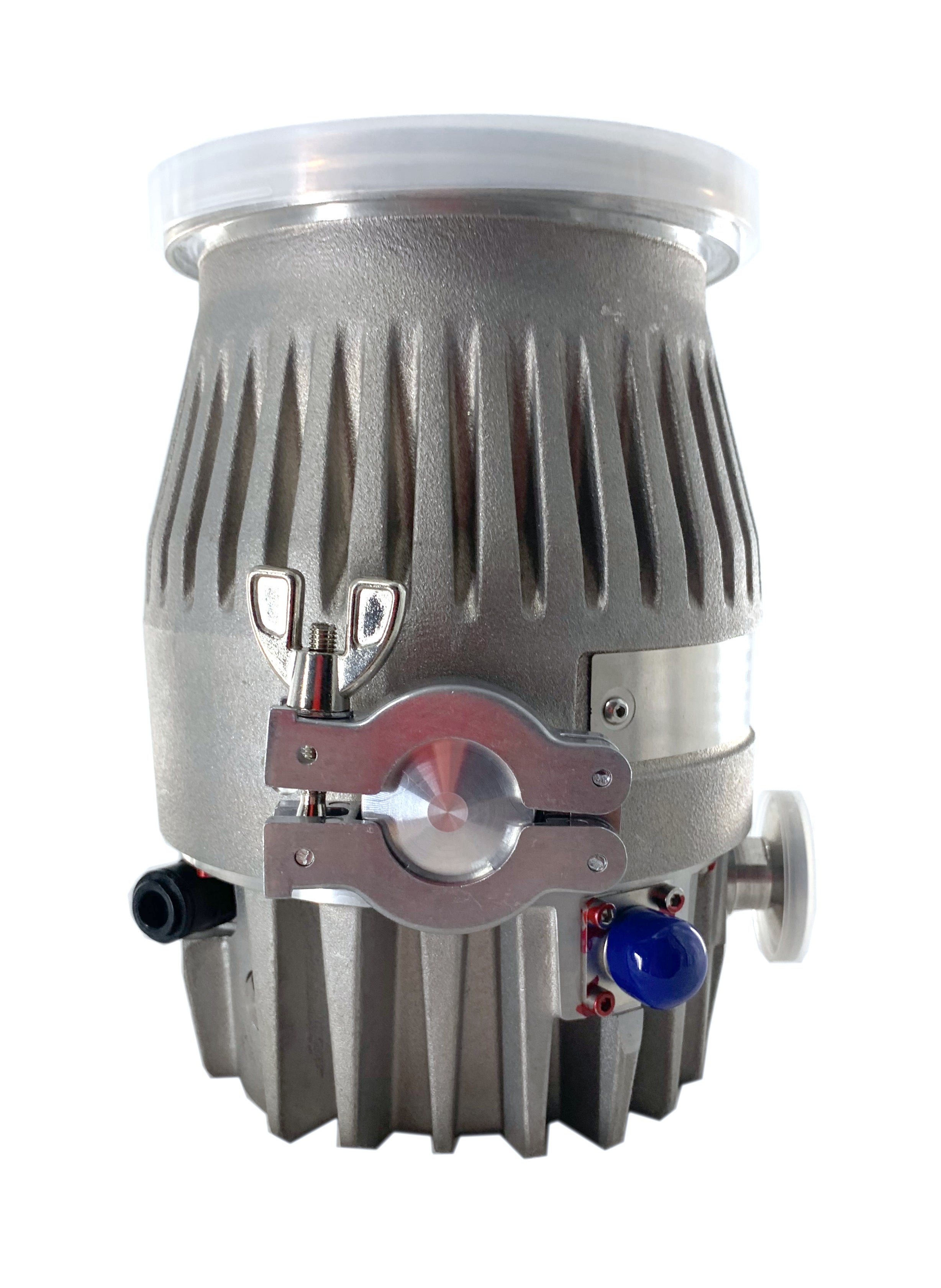

Varian / Agilent TV 301 SF Turbomolecular Vacuum Pump

Name: Varian / Agilent TV 301 SF Turbomolecular Vacuum Pump
Brand: Varian
Price: 4159.00 USD
Availability: InStock

Part Number: 9698917M0005

Condition: Refurbished

In Stock

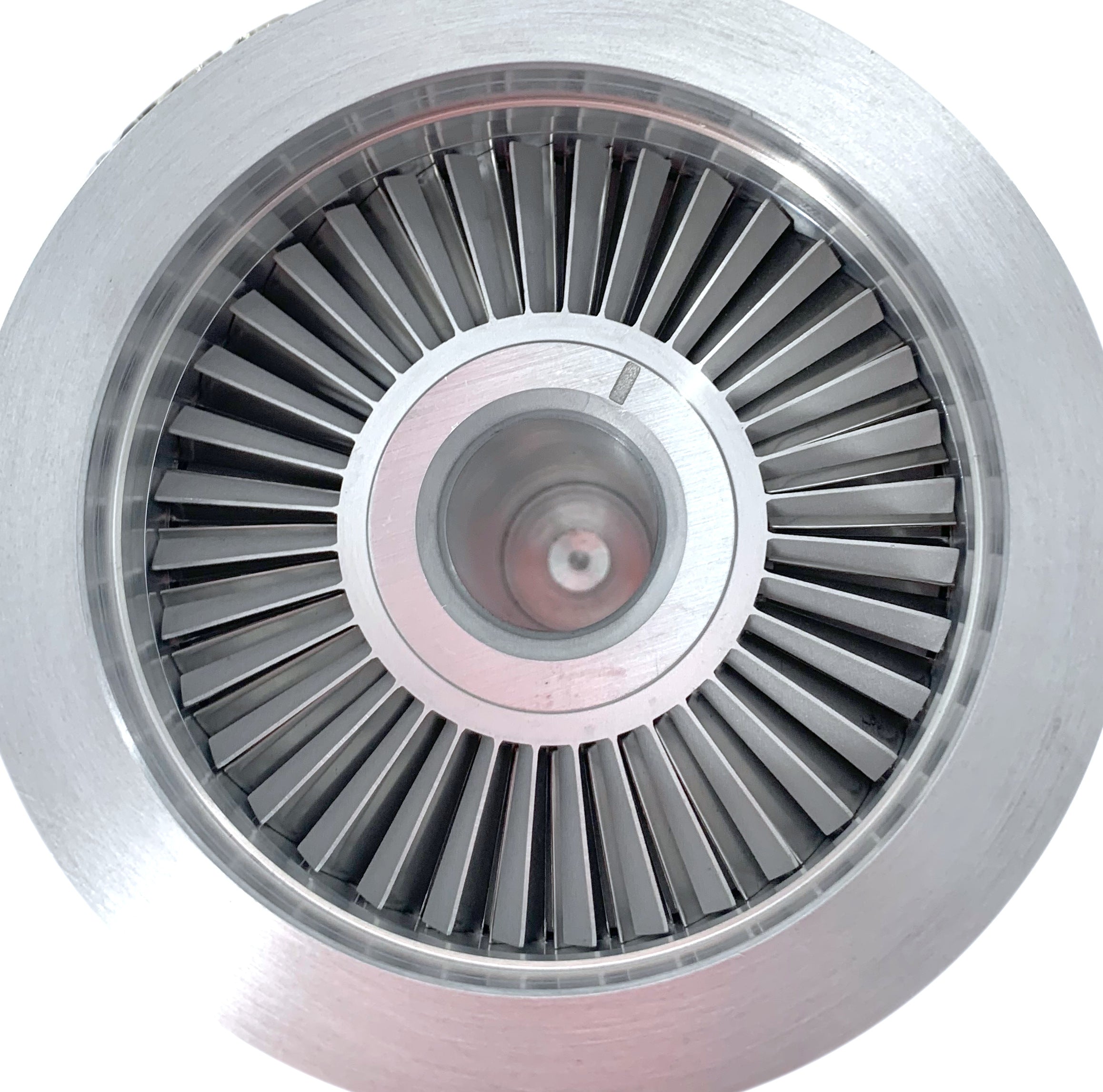

The Varian / Agilent Turbo-V 301 SF (Part Number: 9698917M0005) is a compact, high-performance turbomolecular vacuum pump engineered for high- and ultra-high vacuum (UHV) applications. Combining an eight-stage bladed aluminum turbine rotor with three integral Macrotorr molecular drag stages, the TV 301 SF achieves high compression ratios for light gases and high foreline tolerance.

The "SF" designation specifies the flange and body geometry within the Turbo-V 301 Navigator series. The pump utilizes permanently lubricated, high-precision ceramic ball bearings located on the clean forevacuum side, eliminating oil backstreaming risks and allowing installation in any mounting orientation. It can be powered via an onboard Navigator controller attached directly to the pump base or operated with a remote rack-mounted drive unit.

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_{2}$ )	250 L/s (ISO 100 / CFF 6")
Pumping Speed ( $He$ )	220 L/s
Pumping Speed ( $H_{2}$ )	200 L/s
Compression Ratio ( $N_{2}$ )	$> 2 \times 1 0^{8}$
Compression Ratio ( $He$ )	$1 \times 1 0^{5}$
Compression Ratio ( $H_{2}$ )	$2 \times 1 0^{4}$
Ultimate Pressure	$< 2 \times 1 0^{-10} mbar$ ( $< 1.5 \times 1 0^{-10} Torr$ )
Rated Rotational Speed	56,000 RPM
Bearing Type	Permanently lubricated ceramic ball bearings
Inlet Flange	ISO 100 / CFF 6" O.D.
Foreline Flange	KF16 NW
Start-Up Time	$< 3 minutes$
Cooling Options	Convection air, forced air cooling, or water cooling
Weight	~4.5 kg (10 lbs)
Compatible Controller	Integrated Navigator Drive Unit / Turbo-V 301 Rack Controller

Key Features & Lab Benefits

Macrotorr Drag Stage Technology: Integrated molecular drag discs boost foreline pressure tolerance, allowing the pump to operate efficiently with smaller backing pumps.
Maintenance-Free Ceramic Bearings: Permanently lubricated ceramic ball bearings placed on the exhaust side ensure clean, hydrocarbon-free vacuum without oil reservoir maintenance.
Omnidirectional Operation: Dynamic rotor balancing and robust bearing design allow operation in any mounting position (vertical, horizontal, or inverted).
Compact Footprint: Lightweight aluminum construction allows direct mounting onto vacuum chamber ports without external structural supports.
