Pfeiffer

RENTAL - Pfeiffer ASM 380 | Portable Helium Leak Detector - RENTAL

Condition: Rental
In Stock

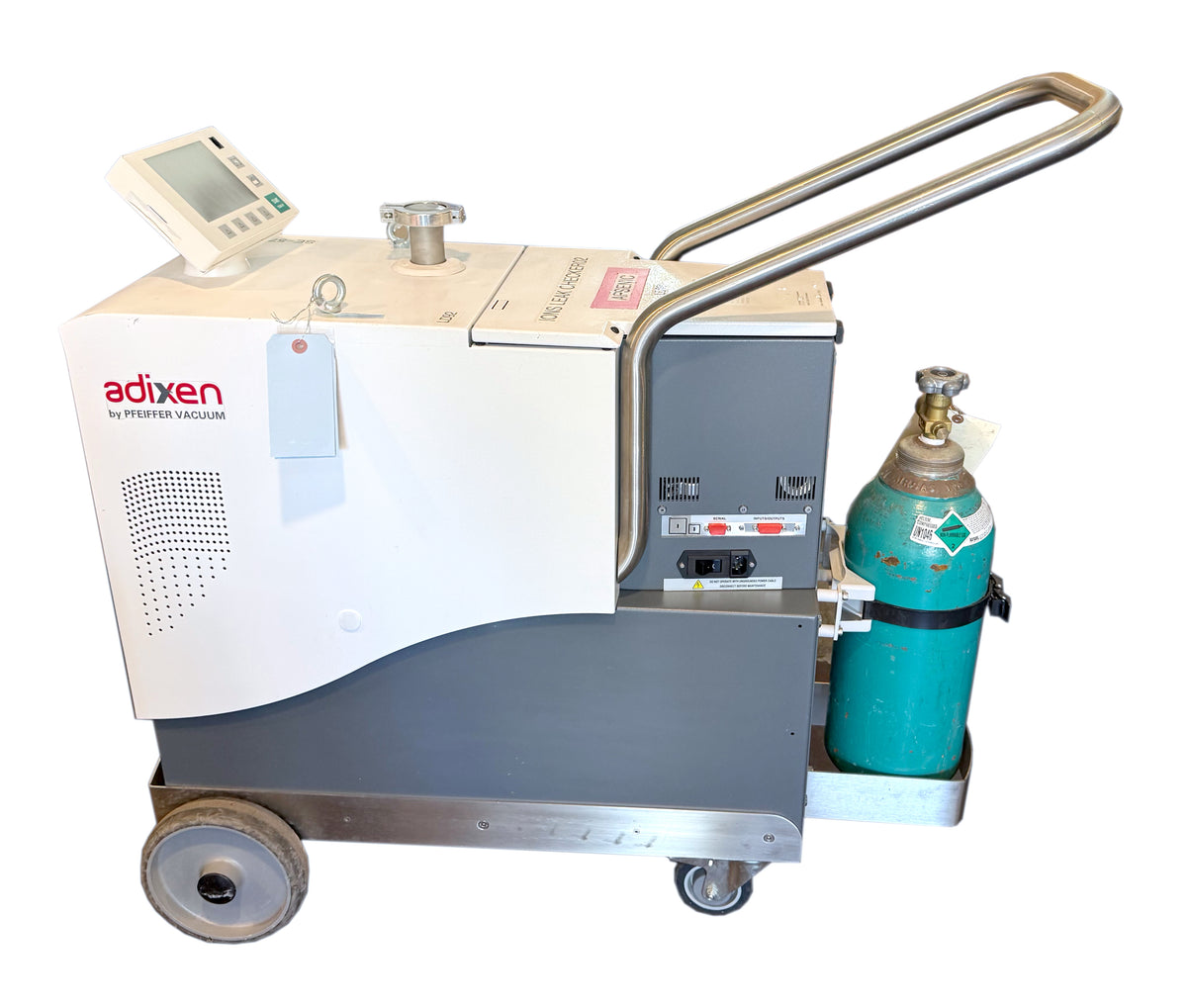

The Pfeiffer / Adixen ASM 380 is a high-performance, mobile helium leak detector engineered for rapid response testing in cleanrooms, semiconductor fabs, and industrial vacuum plants. Featuring a dry, oil-free primary pump and an optimized high-vacuum architecture, it delivers clean testing with no risk of hydrocarbon backstreaming or cross-contamination. Built into a slim, ergonomic cart with large non-marking wheels and a foldable color touchscreen interface, the ASM 380 is specifically designed for high-sensitivity field service, chamber testing, and industrial leak location.

Technical Specifications

Parameter Specification Details
Model ASM 380 Mobile Helium Leak Detector
Manufacturer Pfeiffer Vacuum / Adixen
Primary Backing Pump Fully Dry / Oil-Free Scroll Pump (35 m³/h class)
Pumping Speed for He 7 L/s
Minimum Detectable Leak Rate (Vacuum Mode) 1×10−12 mbar·L/s (1×10−12 atm·cc/s)
Minimum Detectable Leak Rate (Sniffer Mode) 1×10−8 mbar·L/s (1×10−8 atm·cc/s)
Inlet Port Connection DN 40 ISO-KF (KF40)
Display & Control Detachable / Foldable Color Touchscreen Interface
Operating Voltage 100–240 VAC, 50/60 Hz (Universal Auto-Sensing)
Dimensions / Weight Approx. 41.3" H x 18.5" W x 20.8" D / ~156 lbs (71 kg)

Target Applications

  • Semiconductor Fab Vacuum Line & Chamber Leak Verification

  • UHV Analytical & Accelerator System Diagnostics

  • Industrial Heat Exchanger & Double-Wall Piping Integrity Testing

  • Cleanroom Instrument & Tool Commissioning

  • On-Site Field Service & Emergency Troubleshooting
