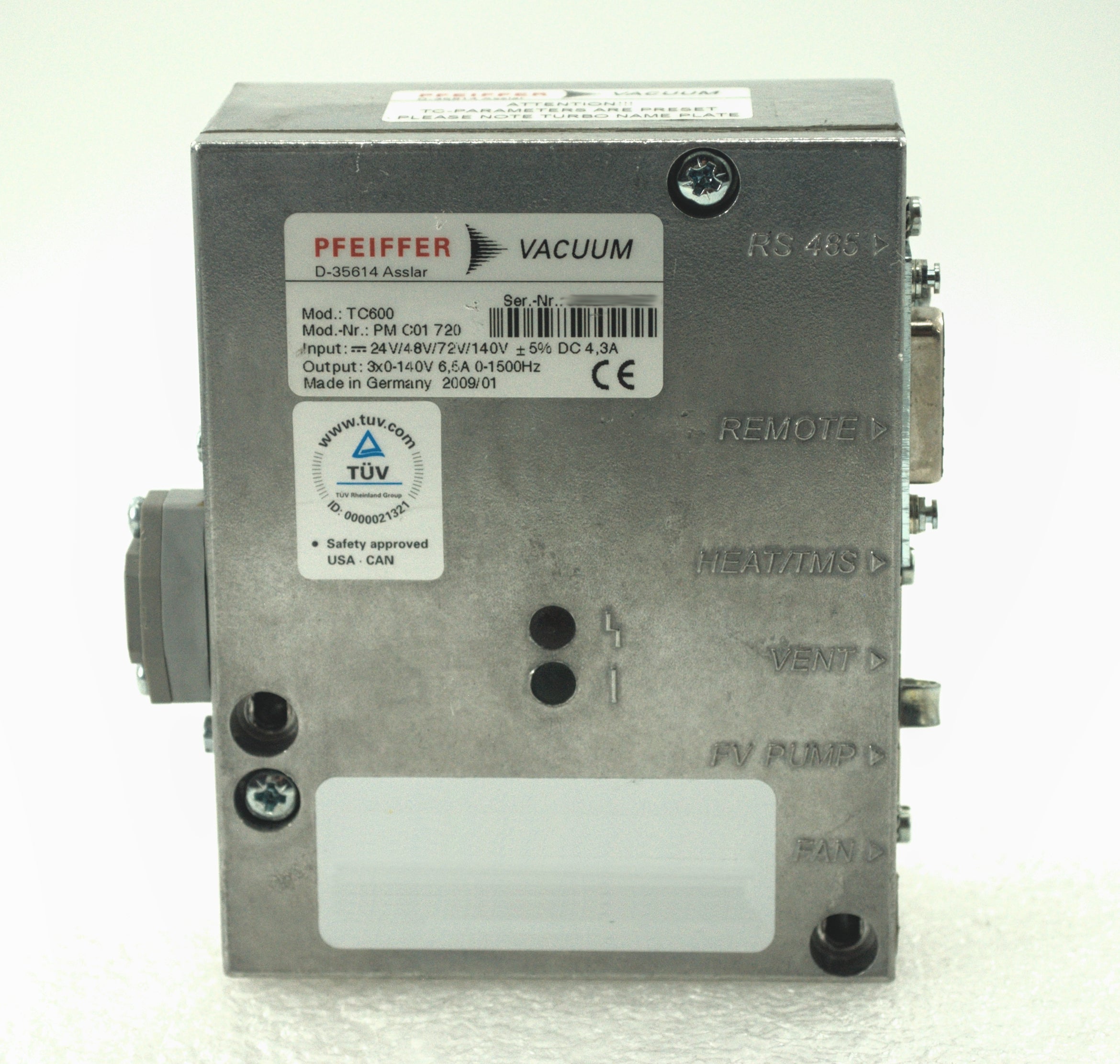

Pfeiffer Vacuum TC 600 Electronic Drive Unit / Turbo Pump Controller

The Pfeiffer TC 600 is a highly reliable, vintage micro-processor-controlled electronic drive unit designed to power, monitor, and regulate Pfeiffer standard and Compact TurboDrag™ molecular vacuum pumps (such as the TMH/TMU 261, 330, and 521 series).

The TC 600 serves as the smart brain of the pumping system, managing complex operating sequences including dynamic rotor acceleration, automatic venting control, system heating, and sealing gas valve regulation. Equipped with integrated RS-485 serial communication, it provides high-precision data readouts for operating parameters, run-time data, and comprehensive fault diagnostics, making it an essential component for automated industrial, coating, and laboratory vacuum systems.

• Common Manufacturer Part Numbers: PM C01 720 / PMC01720

• Alternative Core Variants: PM C01 690 / PMC01690 (including "A" and "C" variants)

• Product Type: Turbomolecular Pump Controller / Electronic Drive Unit

Key Features & Benefits

• Multi-Voltage Adaptability: Flexible DC voltage input range capable of operating across 24V, 48V, 72V, or 140V settings to fit varying power infrastructure designs.

• Dynamic Speed & Frequency Regulation: Delivers high-frequency AC output up to 1,500 Hz to drive the pump rotor precisely to its nominal operational velocities.

• Robust Diagnostic Monitoring: Real-time tracking of current consumption, motor temperature, and rotation speed to automatically protect the turbopump from over-current or thermal damage.

• System Automation Control: Direct integrated output connections to automate accessory components including venting valves, backing pump relays, air-cooling fans, or heating jackets.

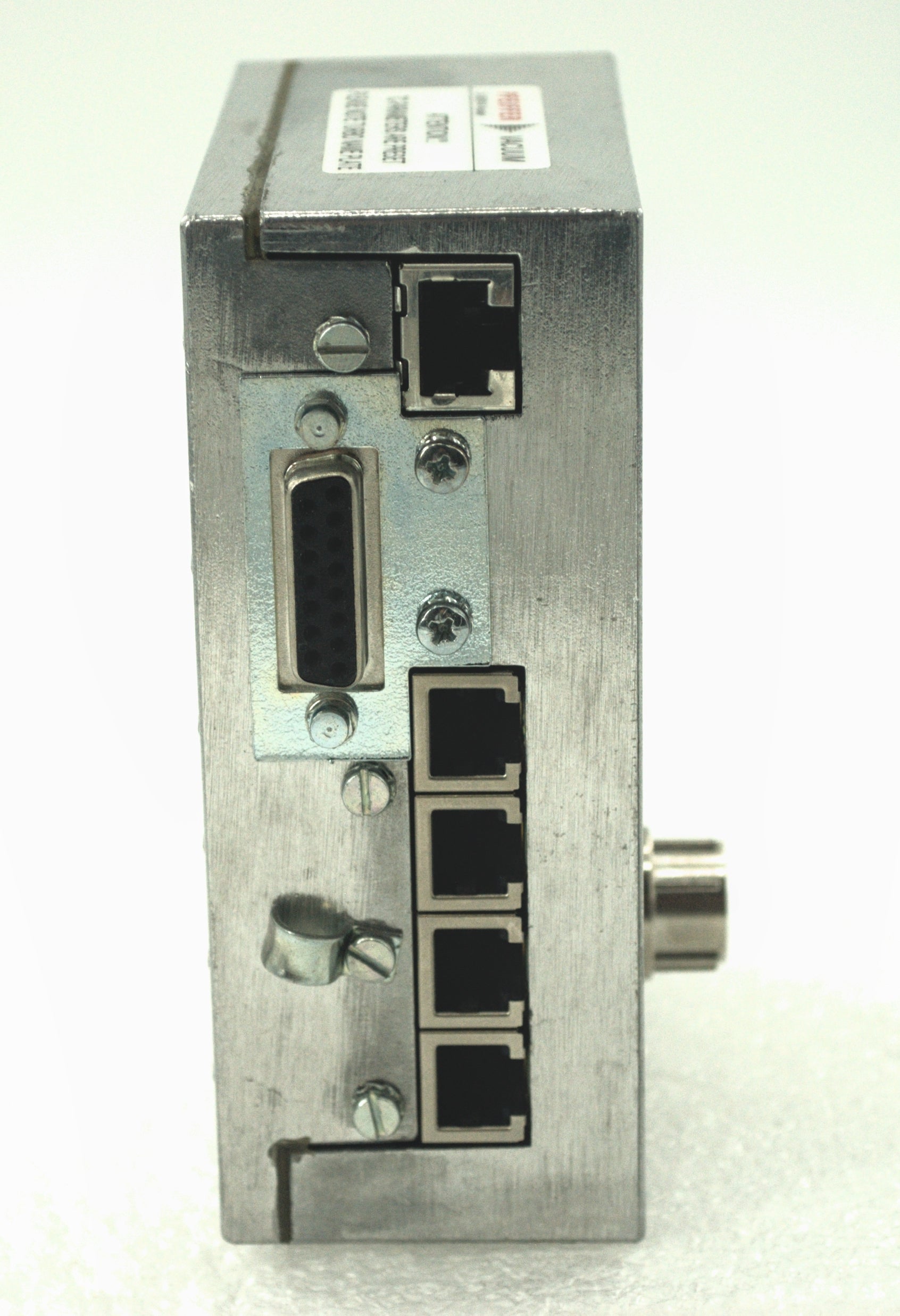

• Remote Interface Capability: Features standard RS-485 connectivity alongside classic analog/remote I/O ports for seamless integration with PLCs, master PCs, or handheld control units.

Technical Specifications

Compatible Turbomolecular Pumps

The TC 600 controller is typically paired with Pfeiffer's classic medium-to-high capacity turbomolecular pumps:

• TMH Series / TMU Series: TMH 261 / TMU 261, TMH 262, TMH 330, TMH 521

• SplitFlow Series: Specific multi-inlet customized OEM turbopumps.
