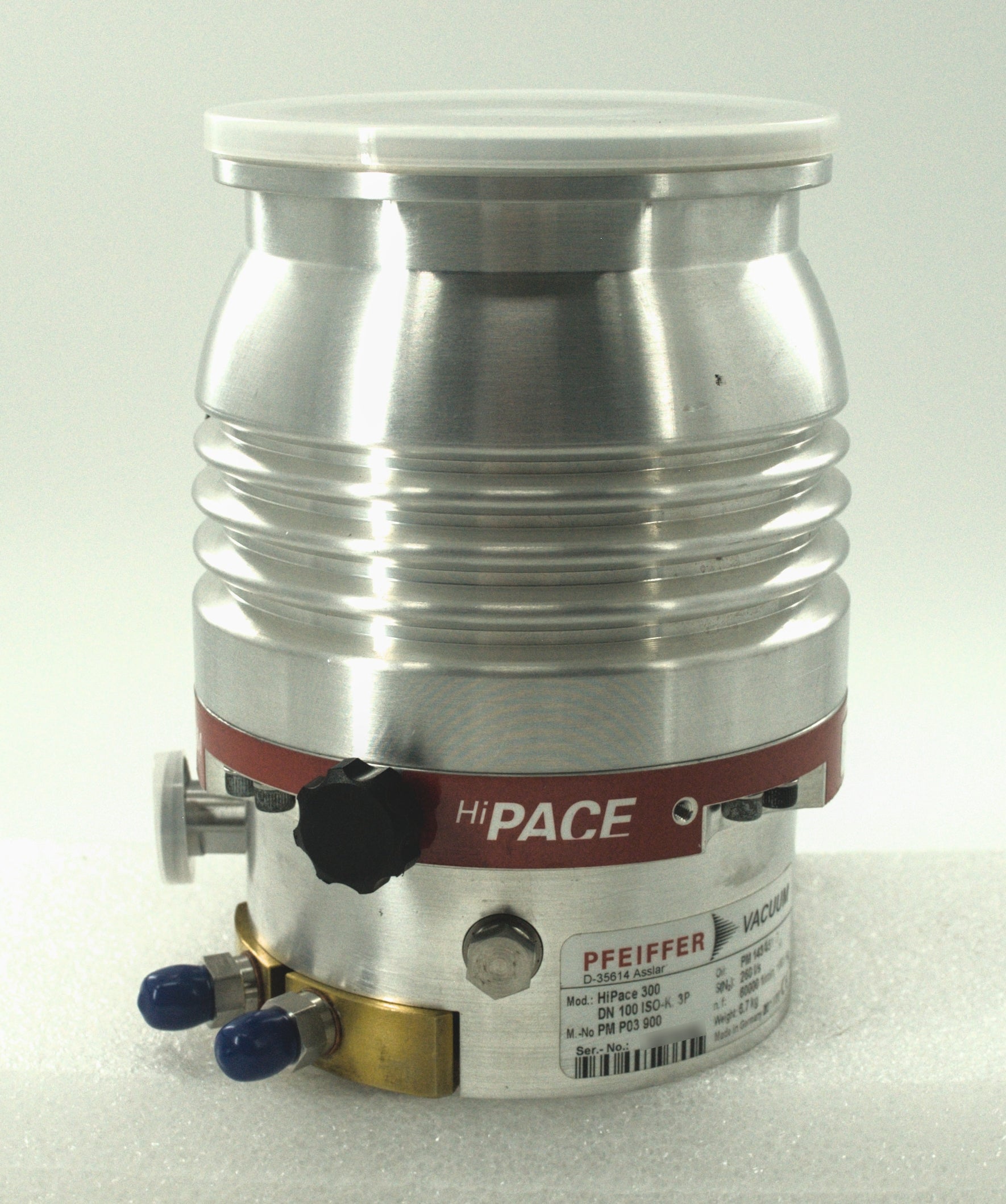

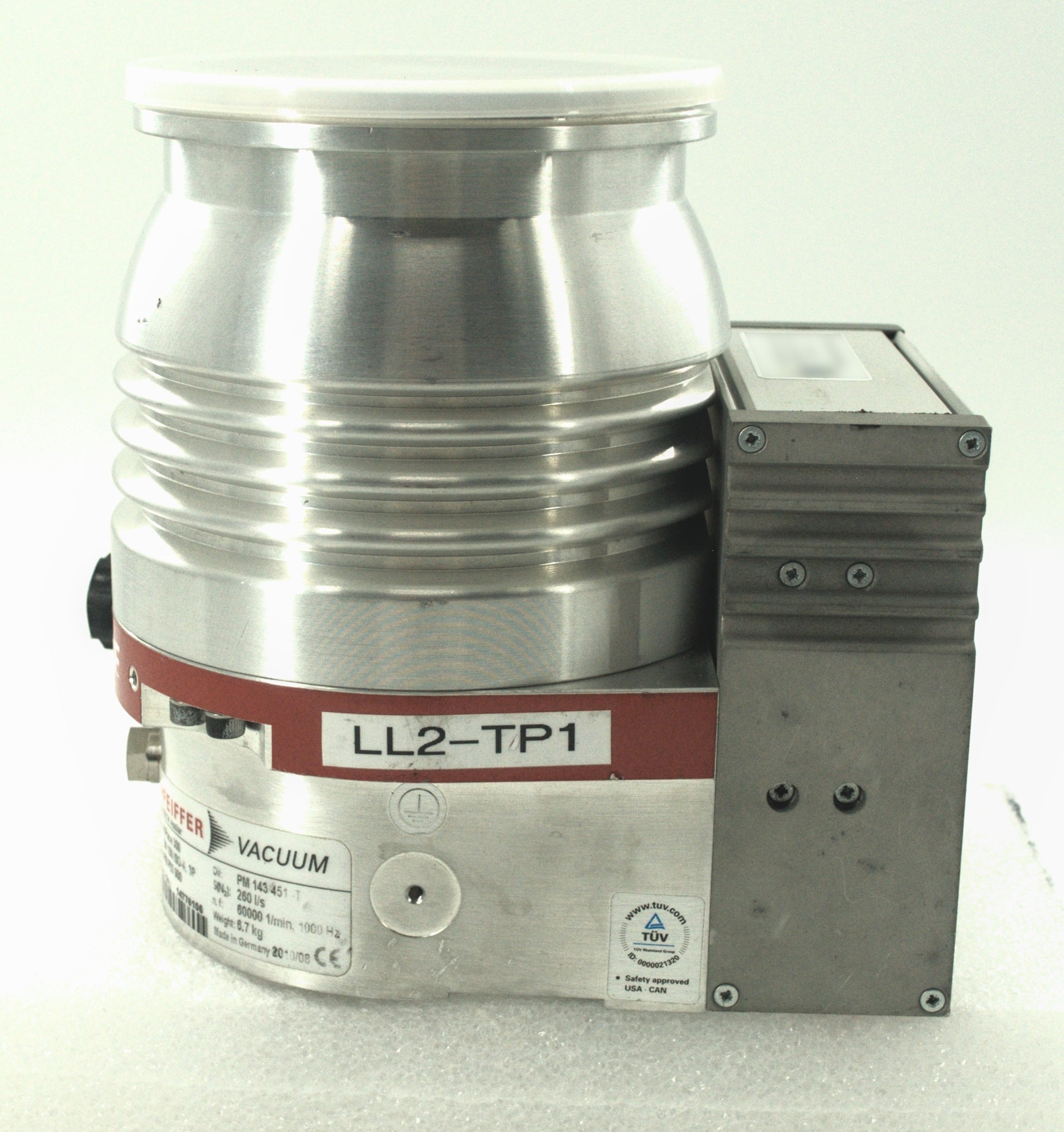

Pfeiffer Vacuum HiPace 300 Turbomolecular Pump

Name: Pfeiffer Vacuum HiPace 300 Turbomolecular Pump
Brand: Pfeiffer
Price: 7395.00 USD
Availability: InStock

Part Number: PMP03900

Condition: Refurbished

In Stock

The Pfeiffer HiPace 300 is a compact, high-performance turbomolecular drag pump designed for demanding industrial and analytical high-vacuum applications. Featuring an integrated TC 400 electronic drive unit, this model operates on a standard 24 V DC input and delivers an exceptional balance of fast run-up times, cost-efficiency, and rugged reliability.

Equipped with Pfeiffer's proven hybrid bearing technology (a ceramic ball bearing on the fore-vacuum side paired with a permanent magnetic radial bearing on the high-vacuum side), the pump minimizes wear, lowers vibration, and extends service intervals up to approximately 4 years. Its innovative rotor geometry ensures industry-leading compression ratios for light gases and high gas throughput capacity.

Part Number: PM P03 900

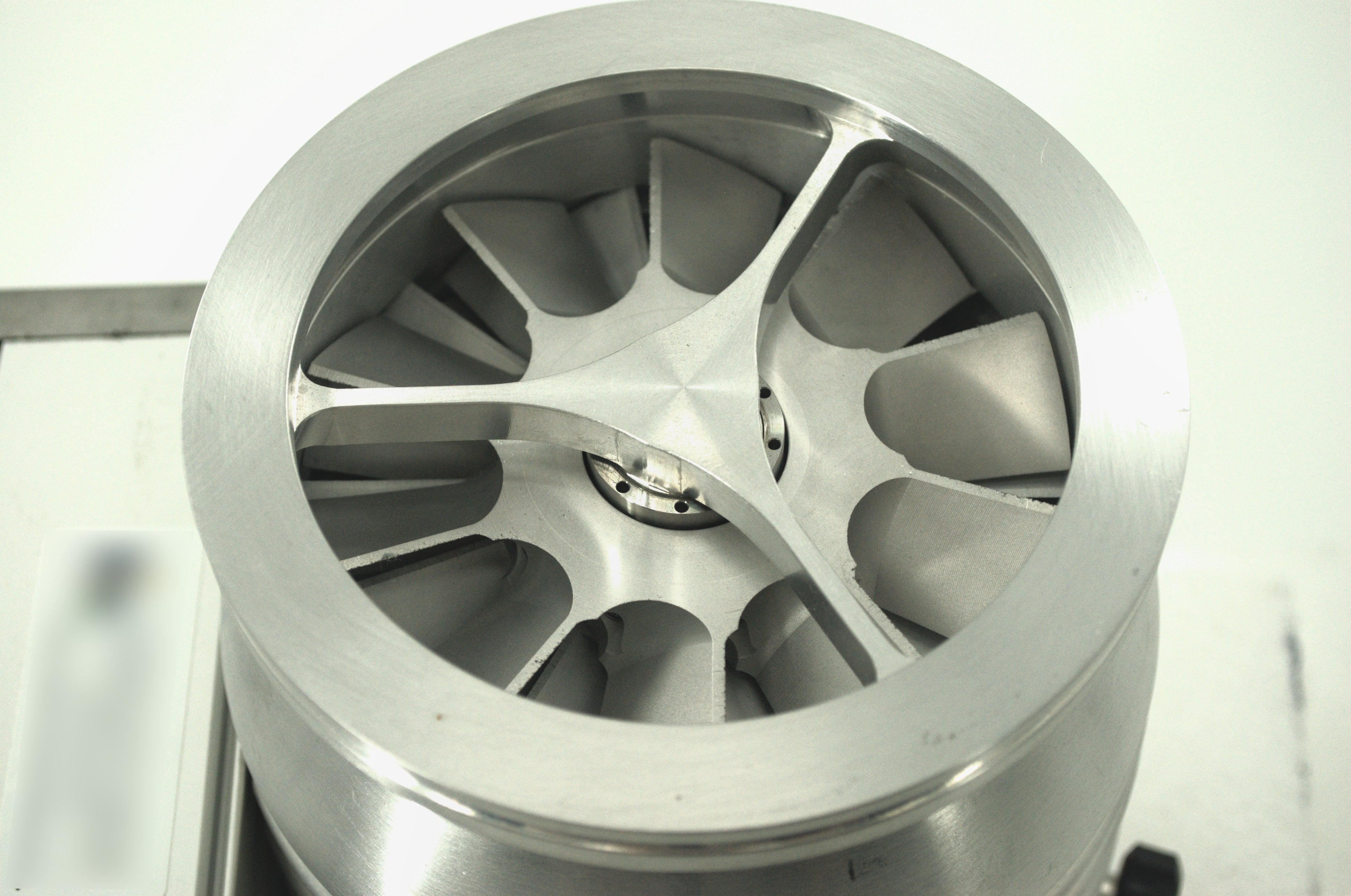

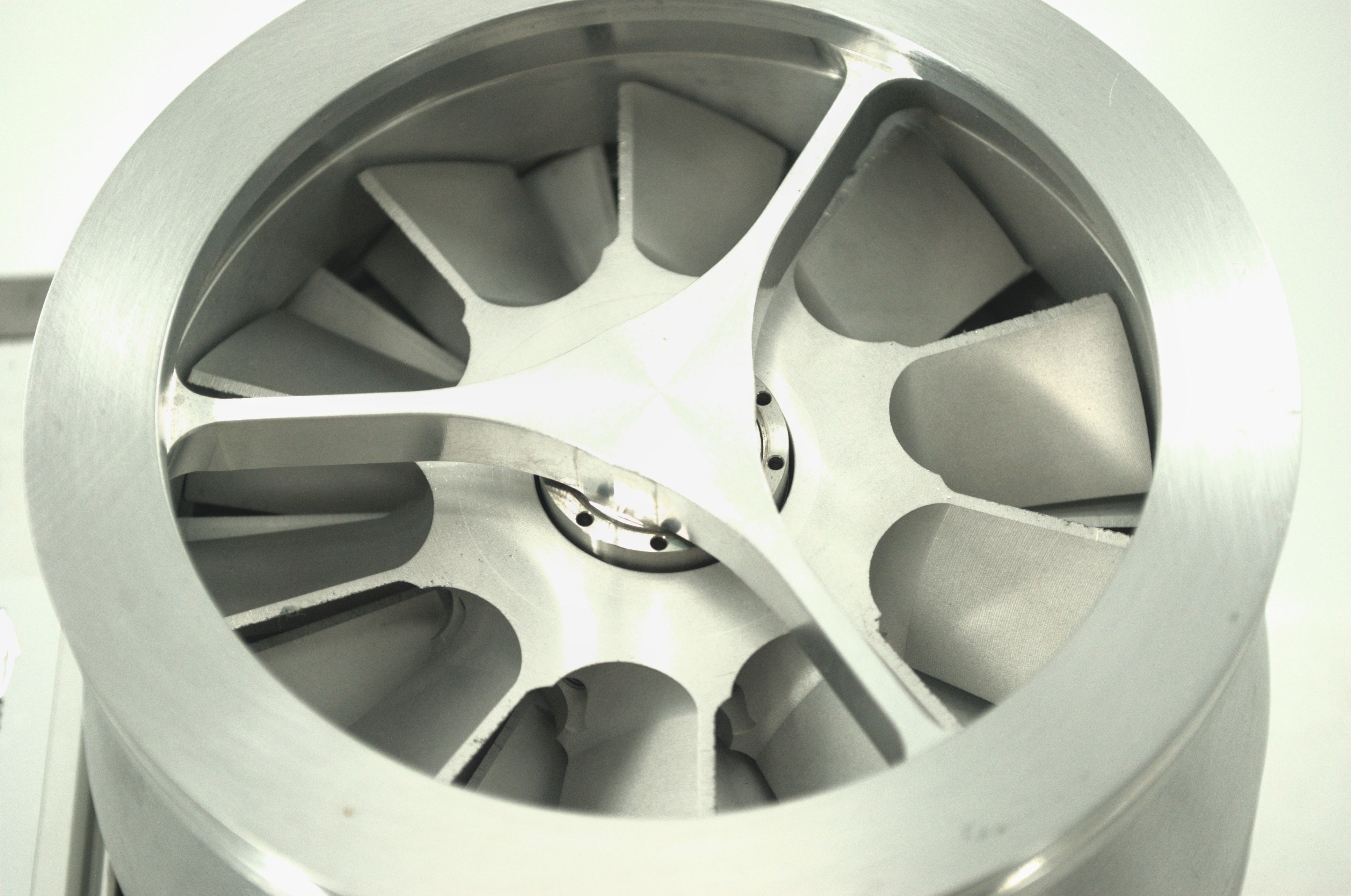

High Vacuum Flange: DN 100 ISO-K
Fore-Vacuum Flange: DN 16 ISO-KF / G 1/4"

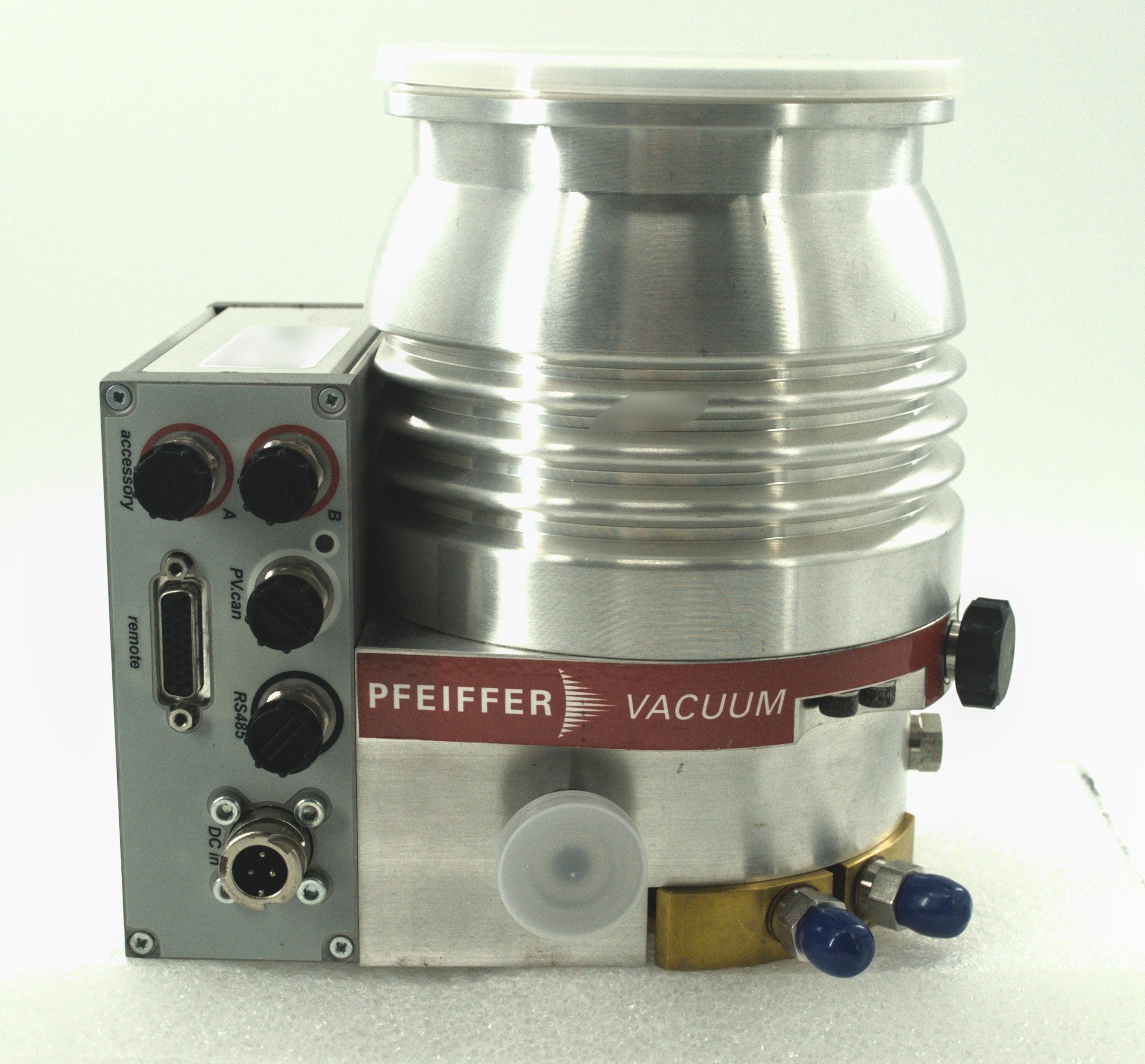

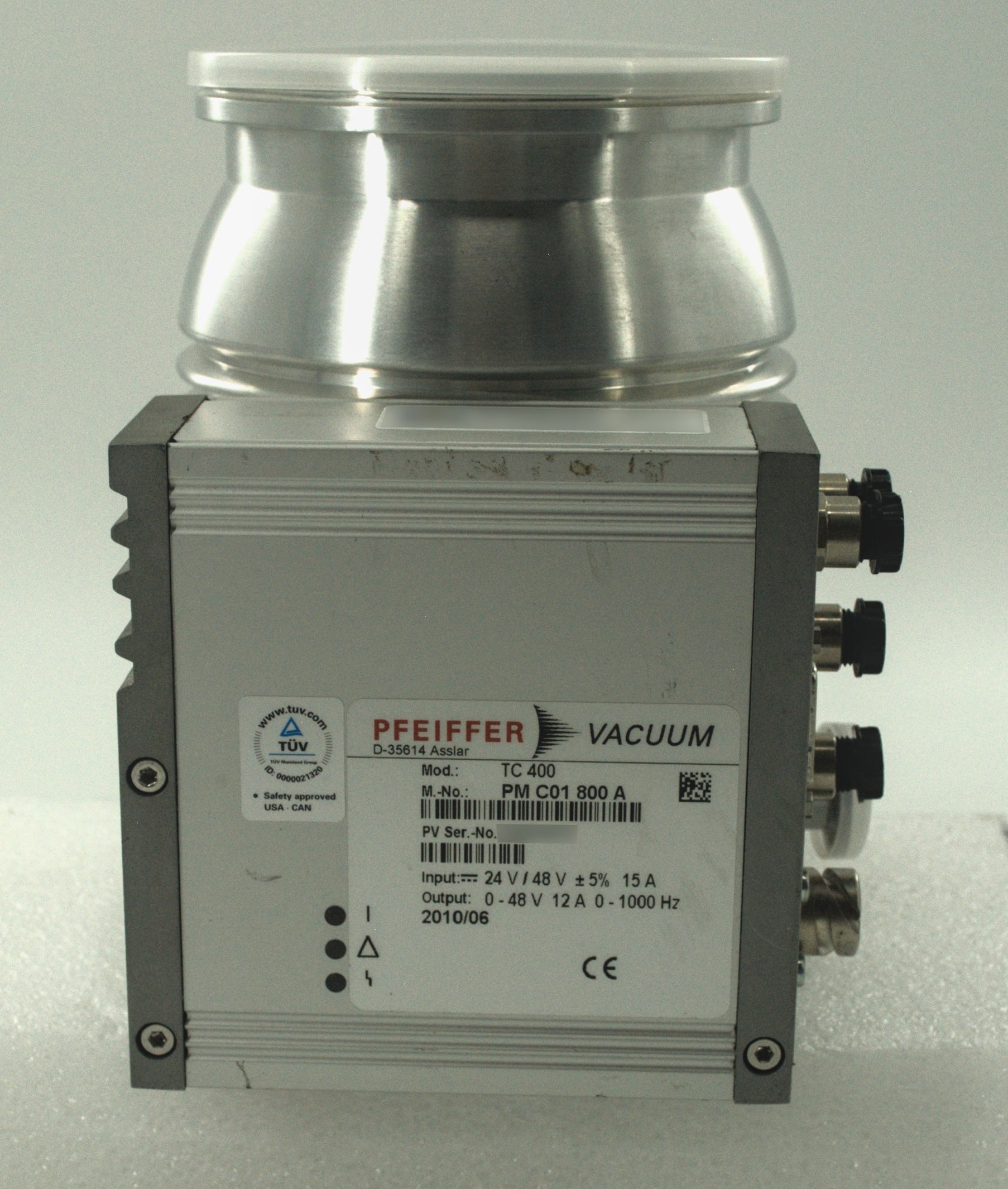

Drive Electronics: Integrated TC 400 Drive Unit

Key Features & Benefits

High Pumping Performance: Delivers pumping speeds of up to 260 l/s for Nitrogen ( $N_2$ ).
Flexible Installation: Engineered for arbitrary mounting orientation, allowing it to fit into space-constrained or complex system configurations.
Advanced Thermal Management: Features standard integrated water cooling for maximum gas throughput, with an option for forced-convection air cooling.
Rapid Cycle Times: Reaches full rotational operating velocity in just 1.8 minutes, maximizing process uptime.
Smart Automation & Connectivity: Equipped with standard RS-485 and Remote I/O interfaces, with expansion slots supporting Profibus, DeviceNet, and E74 compliance protocols.
Industrial Durability: Fully enclosed system meeting Protection Class IP54 / Type 12 standards, making it highly resilient against industrial environments.

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_2$ )	260 l/s
Pumping Speed ( $He$ / $Ar$ )	255 l/s / 255 l/s
Pumping Speed ( $H_2$ )	220 l/s
Ultimate Pressure	< $1 \times 10^{-7}$ hPa ( $7.5 \times 10^{-8}$ Torr)
Compression Ratio ( $N_2$ / $Ar$ )	> $1 \times 10^{11}$
Compression Ratio ( $H_2$ )	$9 \times 10^5$
Max Fore-Vacuum Pressure ( $N_2$ )	20 hPa (15 Torr / 20 mbar)
Nominal Rotation Speed	60,000 rpm ( $\pm$ 2%)
Run-Up Time	1.8 minutes
Operating Voltage	24 V DC ( $\pm$ 5%)
Max Power Consumption	300 W
Cooling Method	Water (Standard) / Air (Optional)
Sound Pressure Level	$\le$ 50 dB(A)
Venting Connection	G 1/8"
Weight	6.7 kg (14.77 lbs)

Typical Applications

The robust engineering and high-throughput capabilities of the HiPace 300 make it the system of choice across diverse technical fields:

Analytical Instrumentation: Mass Spectrometry (LC-MS, GC-MS), Surface Analysis, and Leak Detection systems.
Industrial Vacuum Processes: Vacuum brazing, electron-beam welding, and specialized heat treatment setups.
Advanced Manufacturing: 3D Printing (additive manufacturing vacuum chambers) and thin-film coating operations.
Research & Development: High Energy Physics, Space Simulation chambers, and general Laboratory UHV environments.
