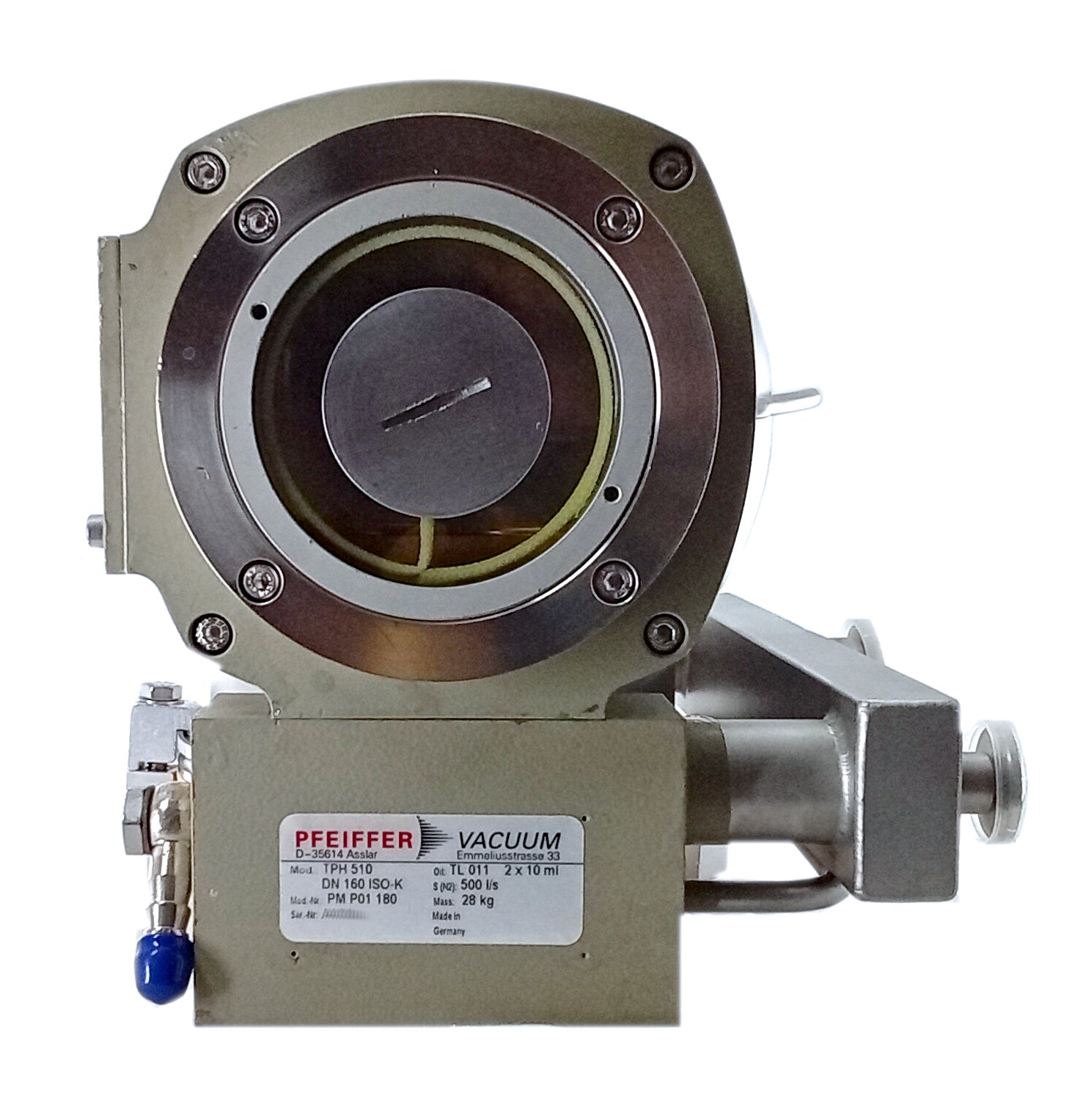

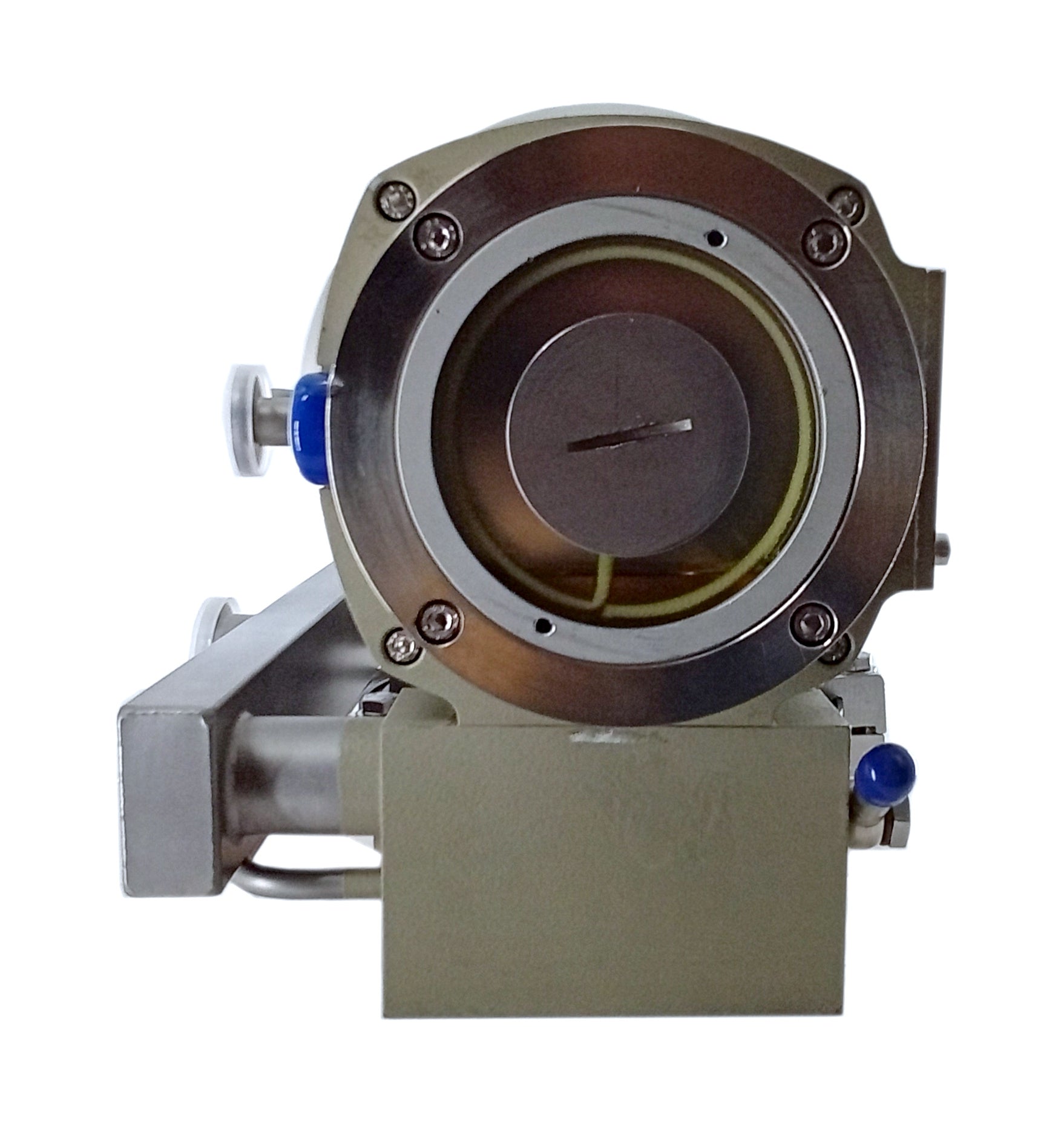

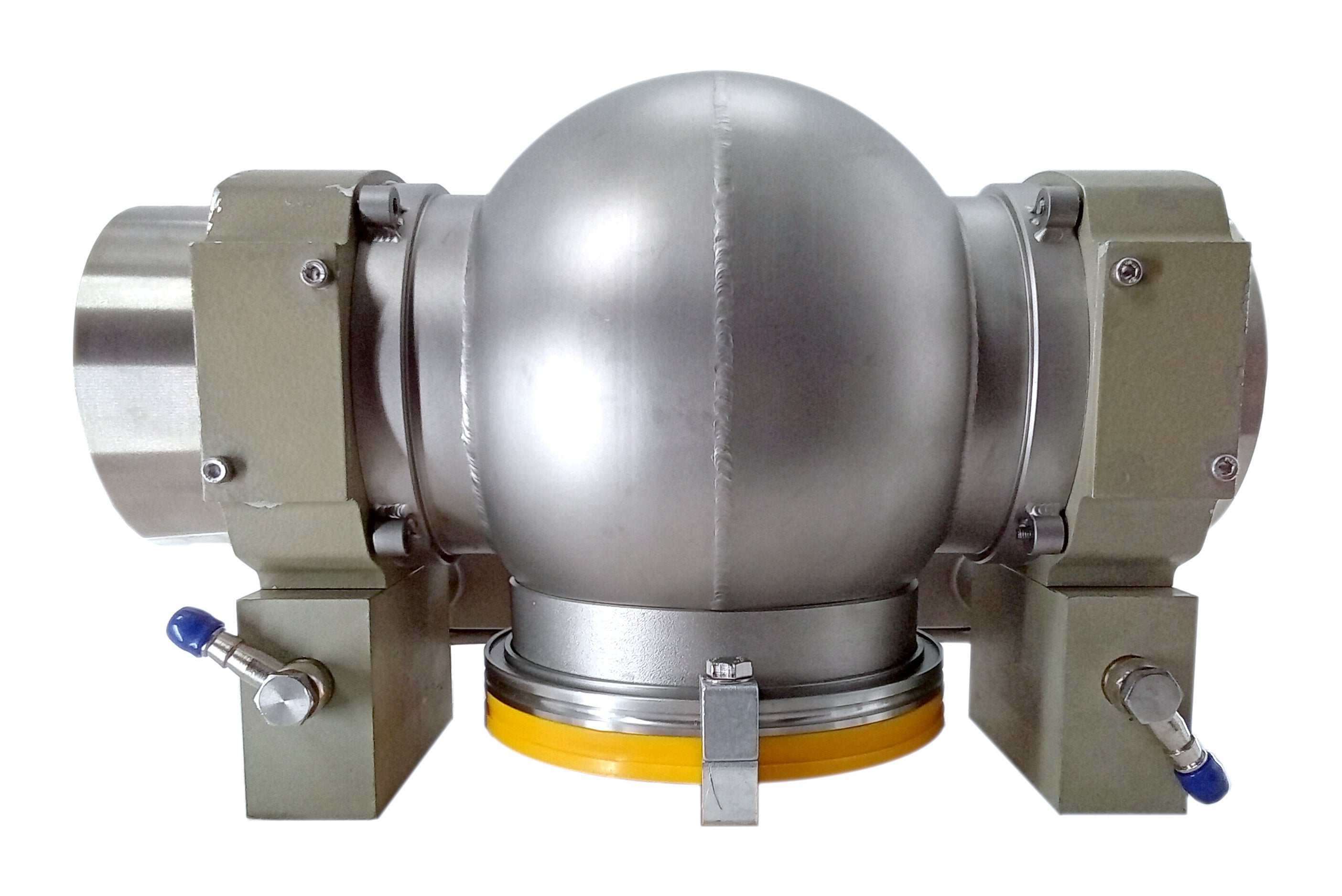

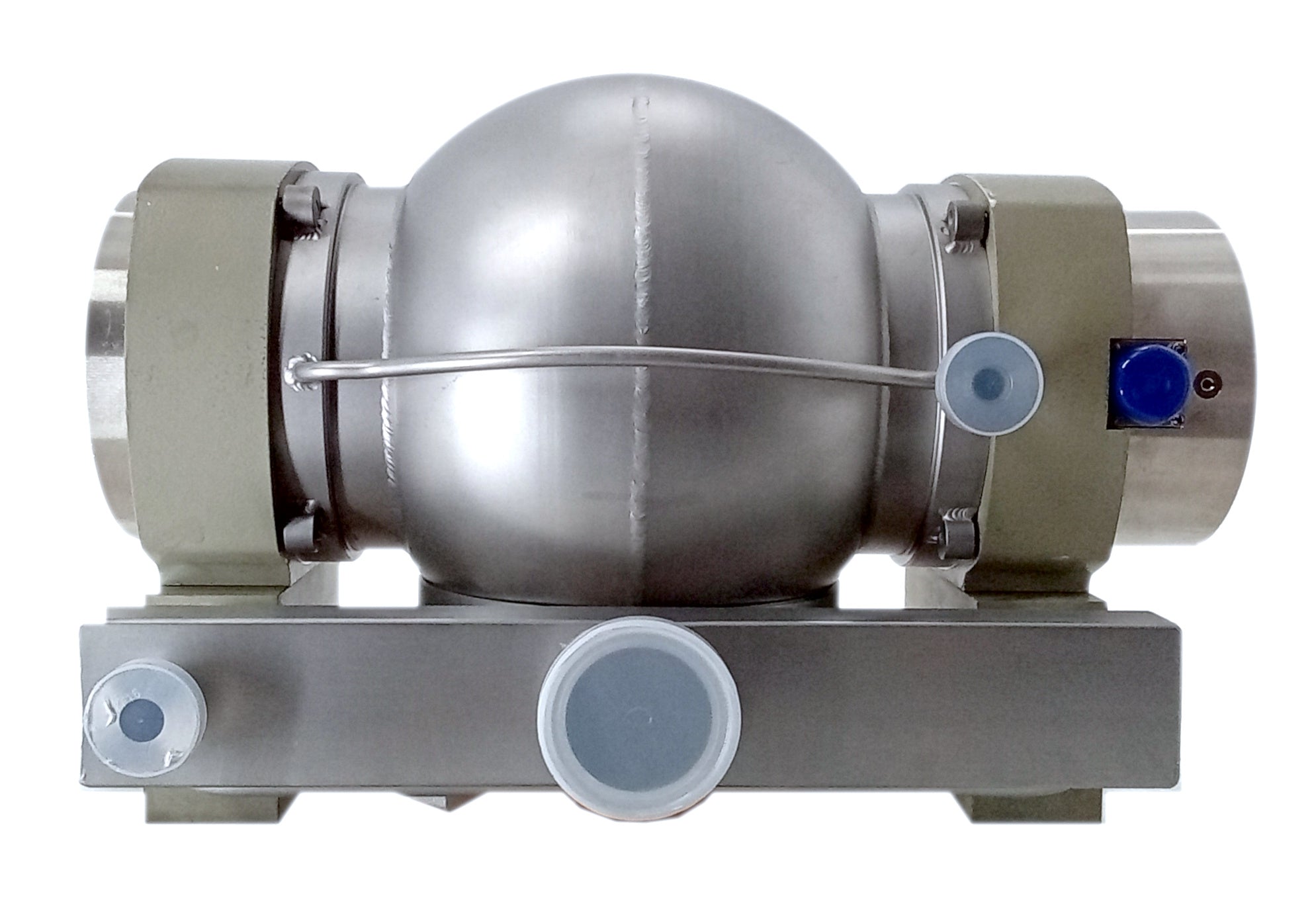

Pfeiffer TPH 510 U Turbomolecular Pump

Part Number: PMP01180
Condition: Refurbished
In Stock

The Pfeiffer Vacuum TPH 510 U is a reliable, high-vacuum turbomolecular pump designed for analytical instruments, high-vacuum process equipment, and research applications. Featuring robust mechanical ceramic ball bearings and precision-engineered rotor stages, it provides clean, hydrocarbon-free vacuum performance with exceptional compression ratios for light gases. Its air- or water-cooled design, paired with standard ISO inlet flange options, ensures simple integration into industrial leak detection systems, mass spectrometry instruments, and general vacuum chambers.

Technical Specifications

Parameter Specification Details
Part Number PM P01 180
Inlet Flange DN 160 ISO-K / DN 160 CF
Outlet Flange DN 25 ISO-KF (KF25)
Pumping Speed (N2) ~500 L/s
Pumping Speed (Ar) ~500 L/s
Pumping Speed (H2) ~490 L/s
Bearing System Hybrid Ceramic Ball Bearing
Cooling Method Air Cooled / Water Cooled
Compatible Controller Pfeiffer TCP 380 / TCP 600 Series Drive Units
Dimensions Approx. 11.5" H x 9.8" Outer Diameter (292 mm x 250 mm)
Weight 61.7 lbs (28 kg)

Target Applications

  • Mass Spectrometry & Analytical Instrumentation

  • Industrial Helium Leak Detection Systems

  • Vacuum Furnace Operations & Metallurgy

  • Thin-Film Deposition & Surface Analysis

  • High-Vacuum Research & University Laboratories

$4,349.00
$4,349.00
Shipping calculated at checkout.
