Pfeiffer TMH 262 X S Turbomolecular Pump

Name: Pfeiffer TMH 262 X S Turbomolecular Pump
Brand: Pfeiffer
Price: 3899.00 USD
Availability: InStock

Part Number: PMP03113

Condition: Refurbished

In Stock

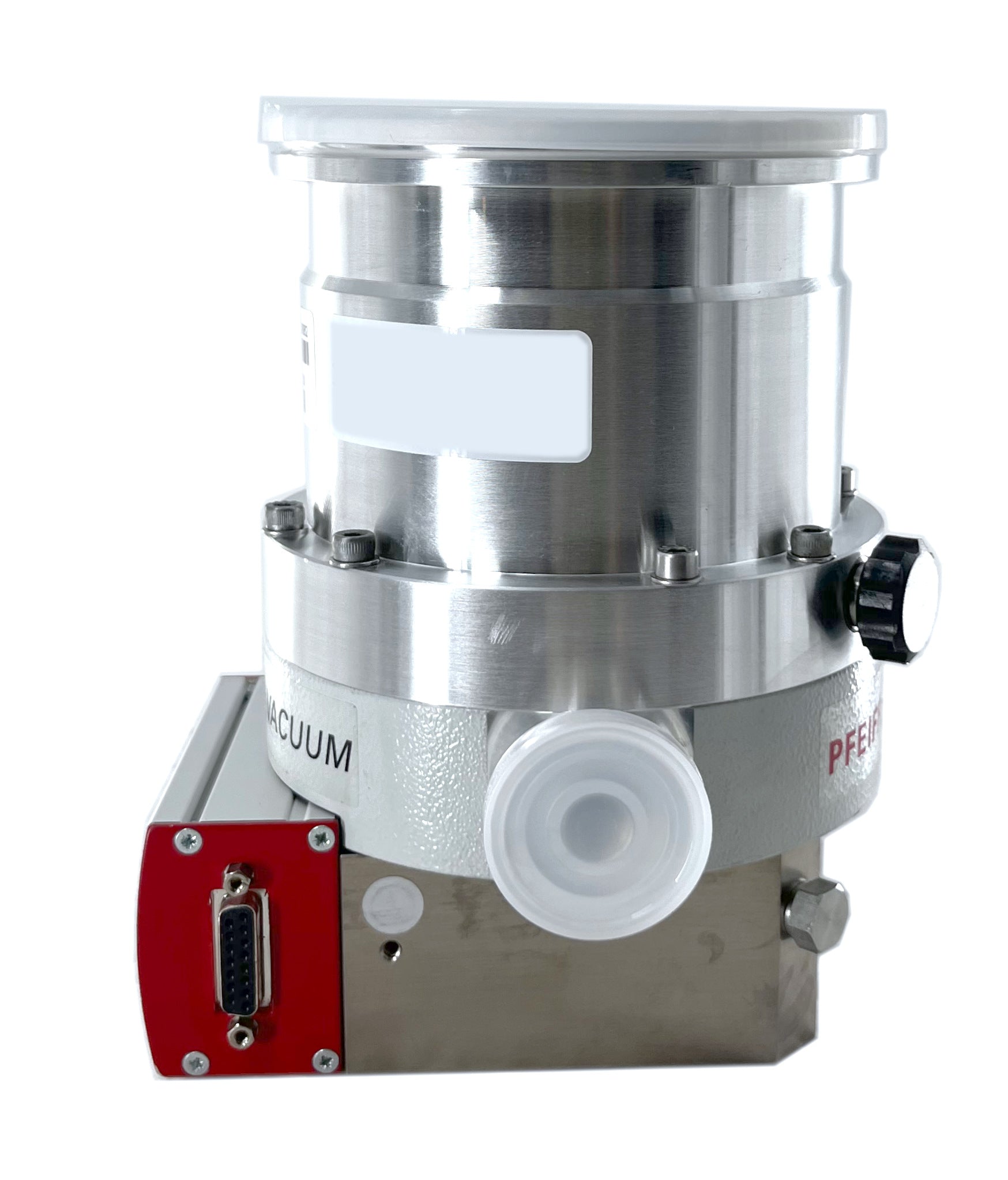

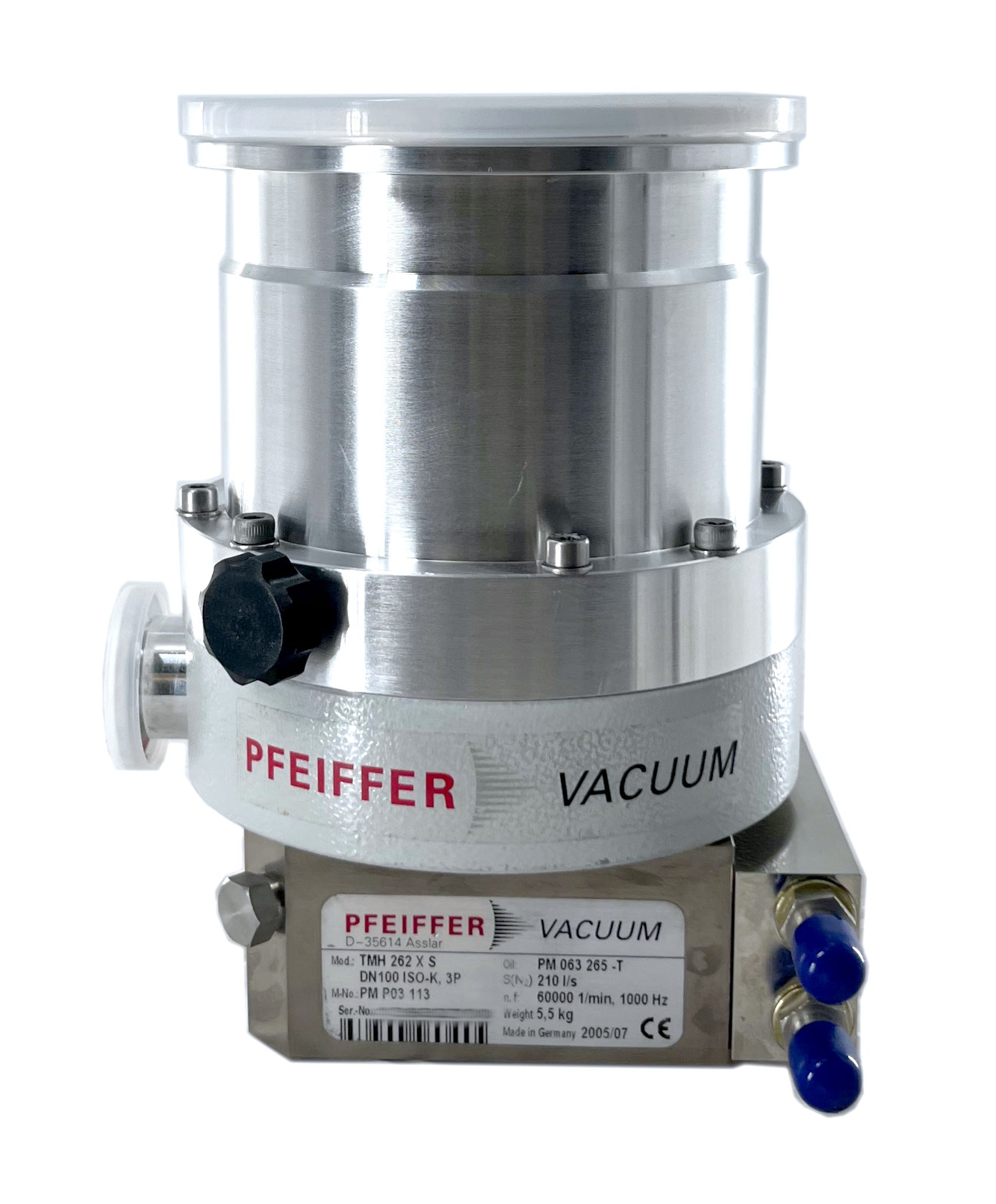

The Pfeiffer TMH 262 X S (Part Number PM P03 113) is a high-performance, compact turbomolecular pump designed for continuous generation of high to ultra-high vacuum (UHV).

Engineered with a DN 100 ISO-K inlet flange and a hybrid bearing system, this unit features a permanent magnetic bearing on the high-vacuum side and an oil-lubricated ceramic ball bearing on the fore-vacuum side. This combination provides low-vibration operation, minimal wear, and long-term reliability.

The PMP03113 configuration is widely deployed as the direct OEM replacement turbo pump for Agilent 5975 Series (5975A, 5975B, 5975C) GC/MS systems.

Key Features & Benefits

High Pumping Speed: Reaches up to 210 L/s ( $N_2$ ) for rapid evacuation.
Hybrid Bearing Technology: Maintenance-free magnetic top bearing + durable ceramic bottom bearing.
OEM Compatibility: Direct fit for Agilent 5975 Mass Spectrometers (Agilent P/N G3170-80062).

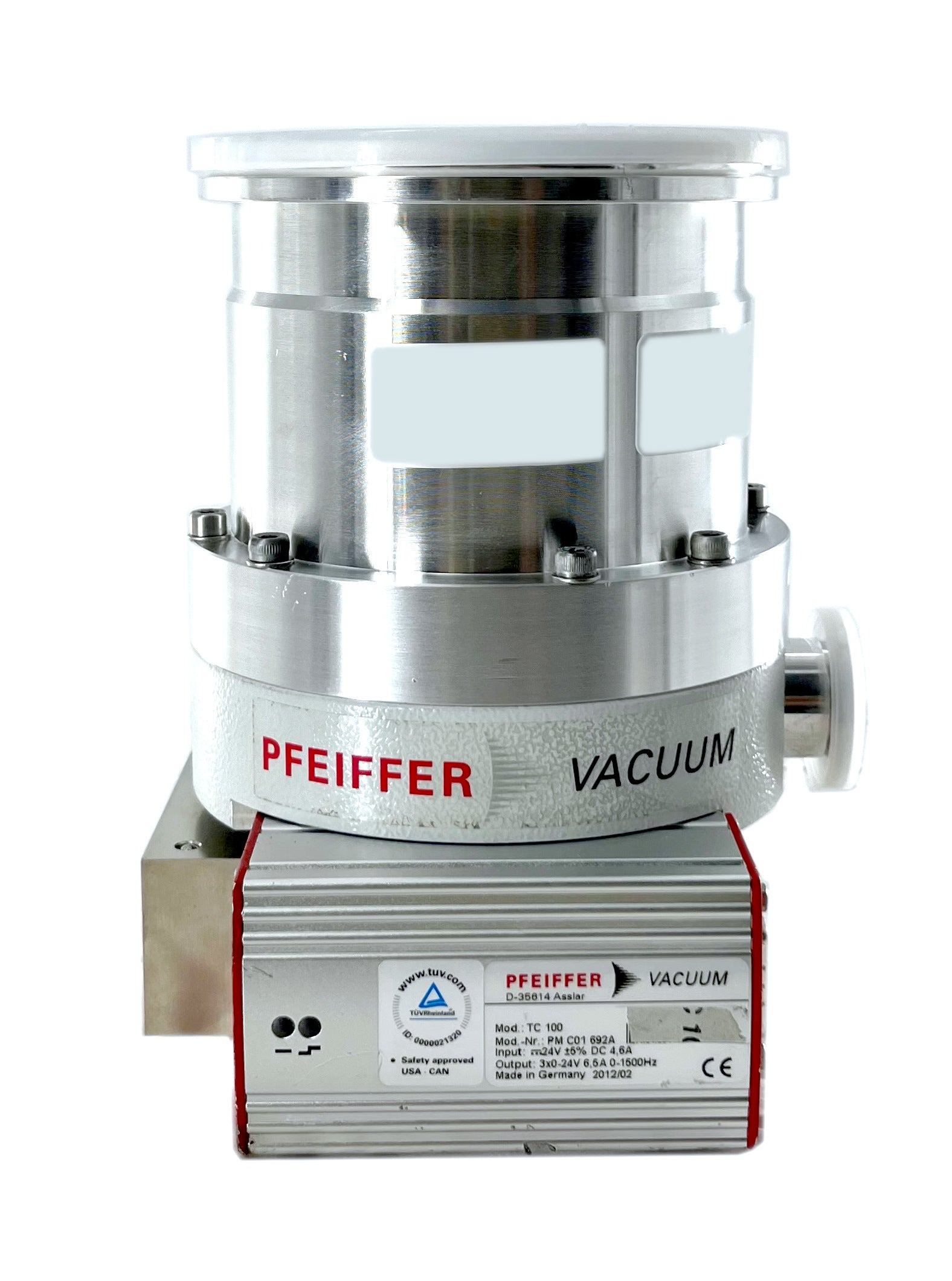

Flexible Controller Drive: Integrates with the Pfeiffer TC 100 drive unit.
Compact & Lightweight: Weighs just 4.8 kg (11 lbs) for easy integration.

Technical Specifications

Parameter	Specification
Manufacturer Part Number	PMP03113
Pumping Speed ( $N_2$ )	210 L/s
Pumping Speed ( $He$ )	220 L/s
Pumping Speed ( $H_2$ )	190 L/s
Ultimate Pressure	$< 5 \times 10^{-10}\text{ mbar}$ (with rotary vane backing pump)
Compression Ratio ( $N_2$ )	$> 1 \times 10^{9}$

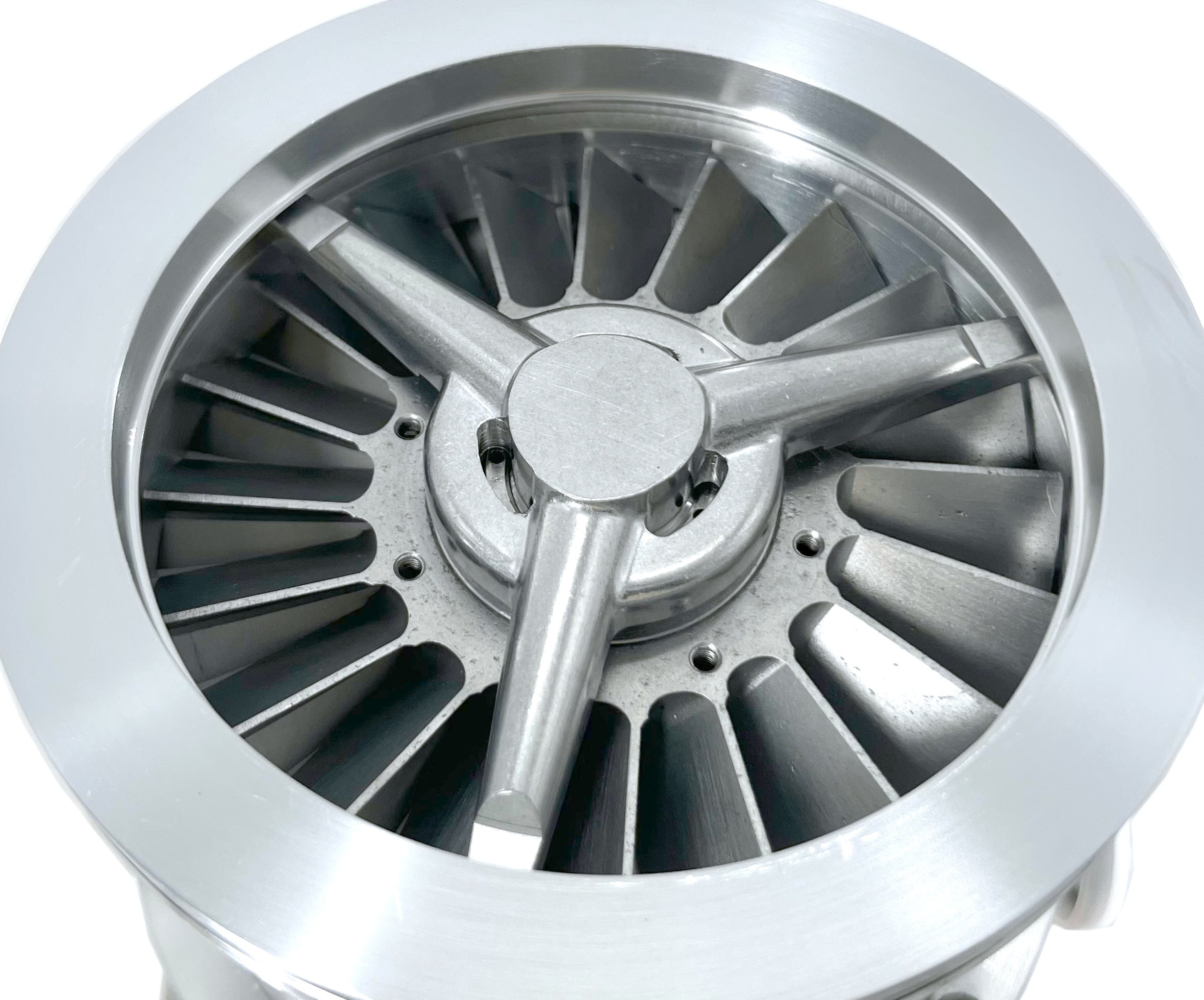

Inlet Flange	DN 100 ISO-K
Fore-Vacuum Flange	DN 25 ISO-KF / G 1/4"
Venting Connection	G 1/8"
Rotational Speed	60,000 RPM

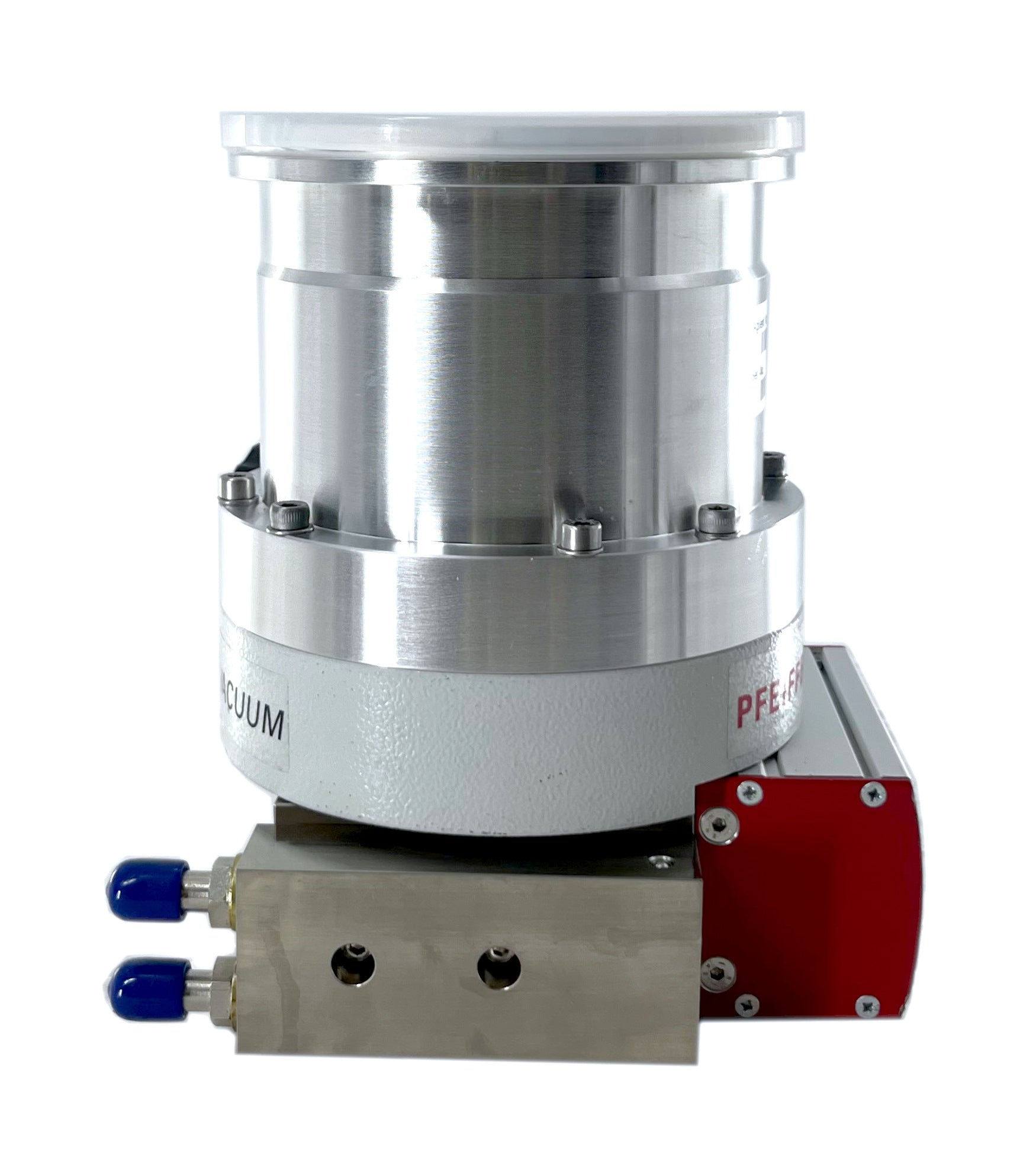

Cooling Options	Air or Water-cooled
Weight	4.8 kg / 11 lbs
