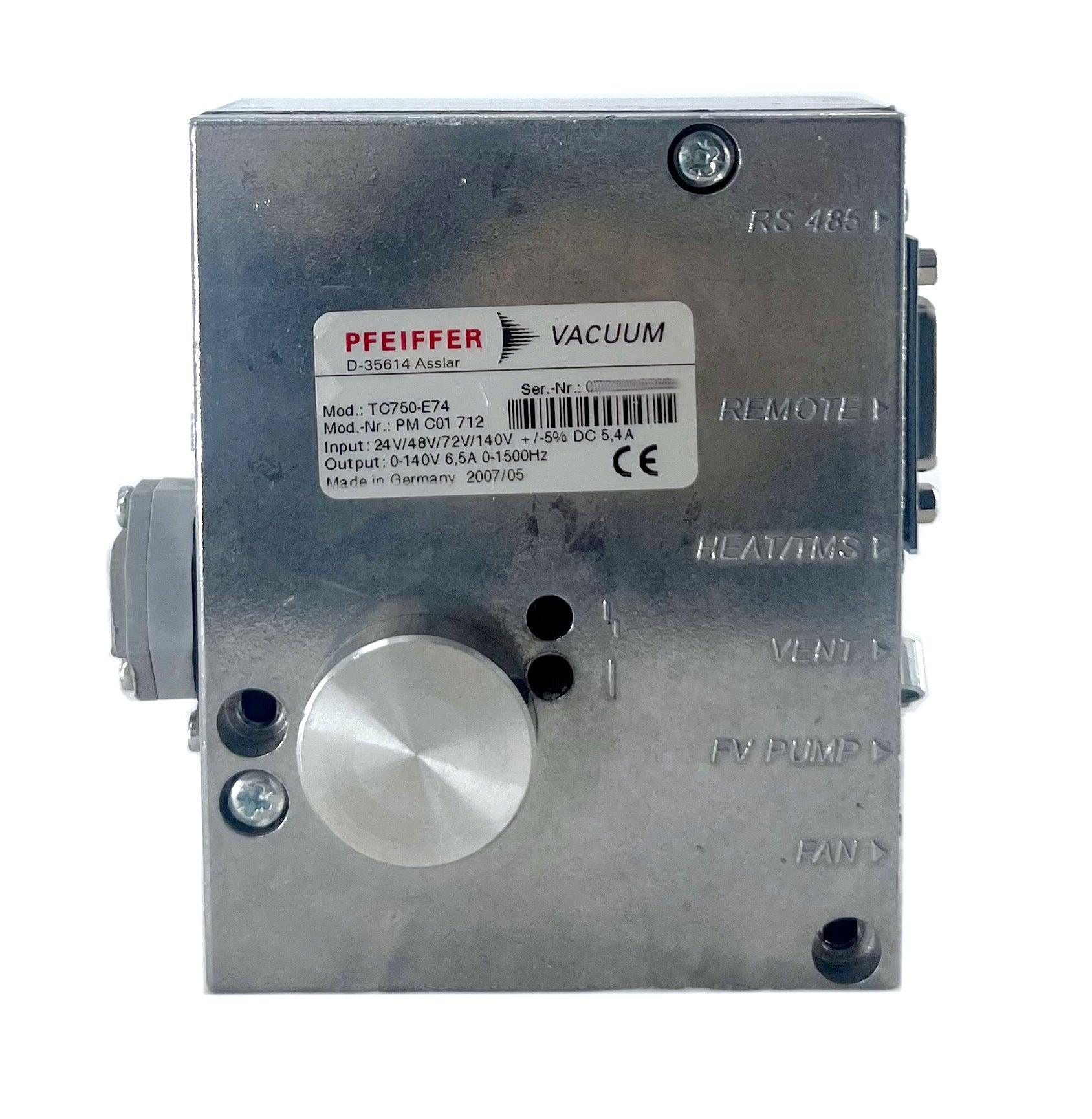

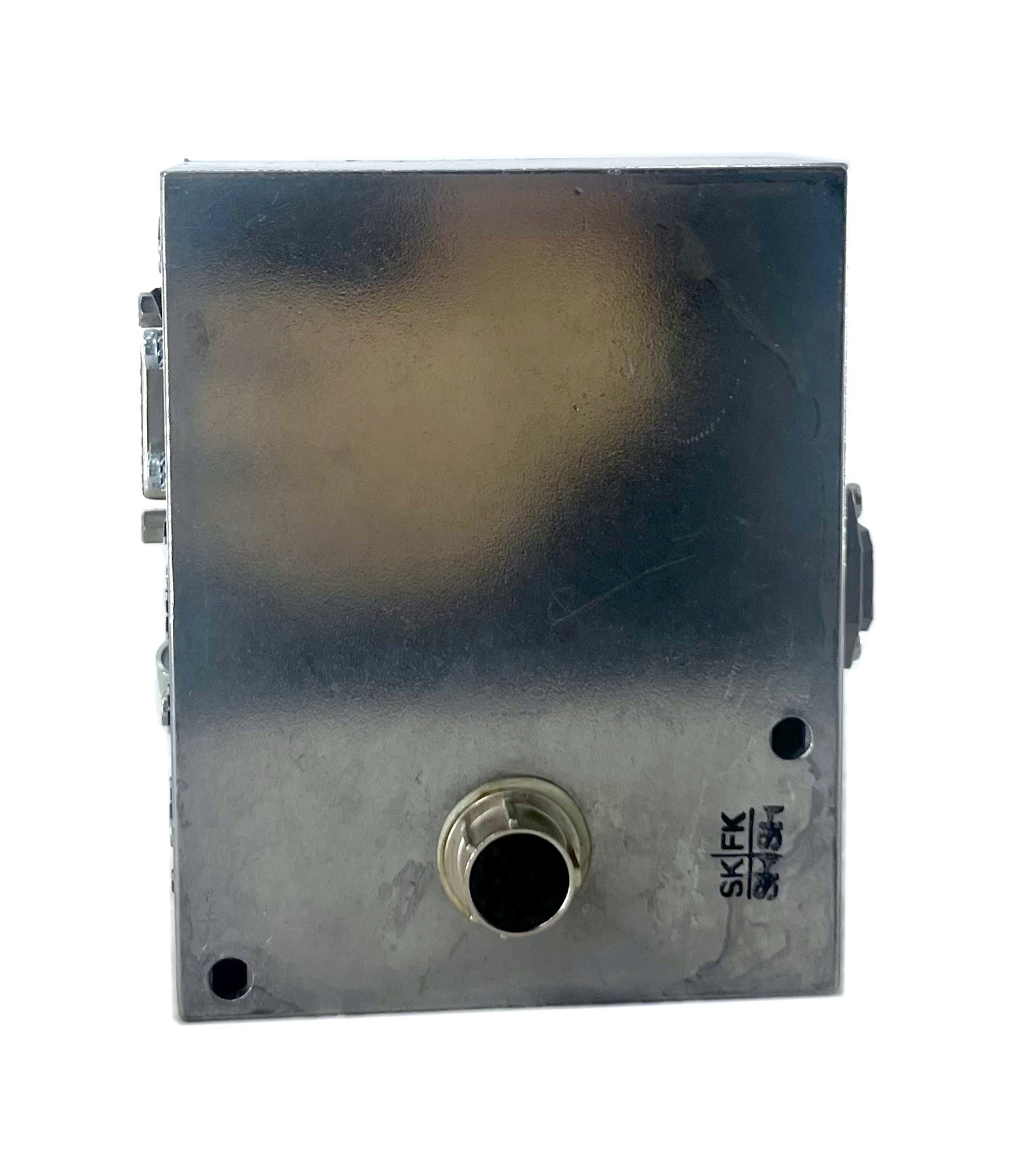

Pfeiffer TC750-E74 Electronic Drive Unit / Controller

The Pfeiffer TC750-E74 (Part Number: PM C01 712) is an electronic drive unit designed for direct attachment to mid-size and large Pfeiffer turbomolecular vacuum pumps. Operating as an integrated controller, the TC750-E74 regulates operational frequency, manages ramp-up profiles, monitors motor coil temperatures, and provides interlock protection.

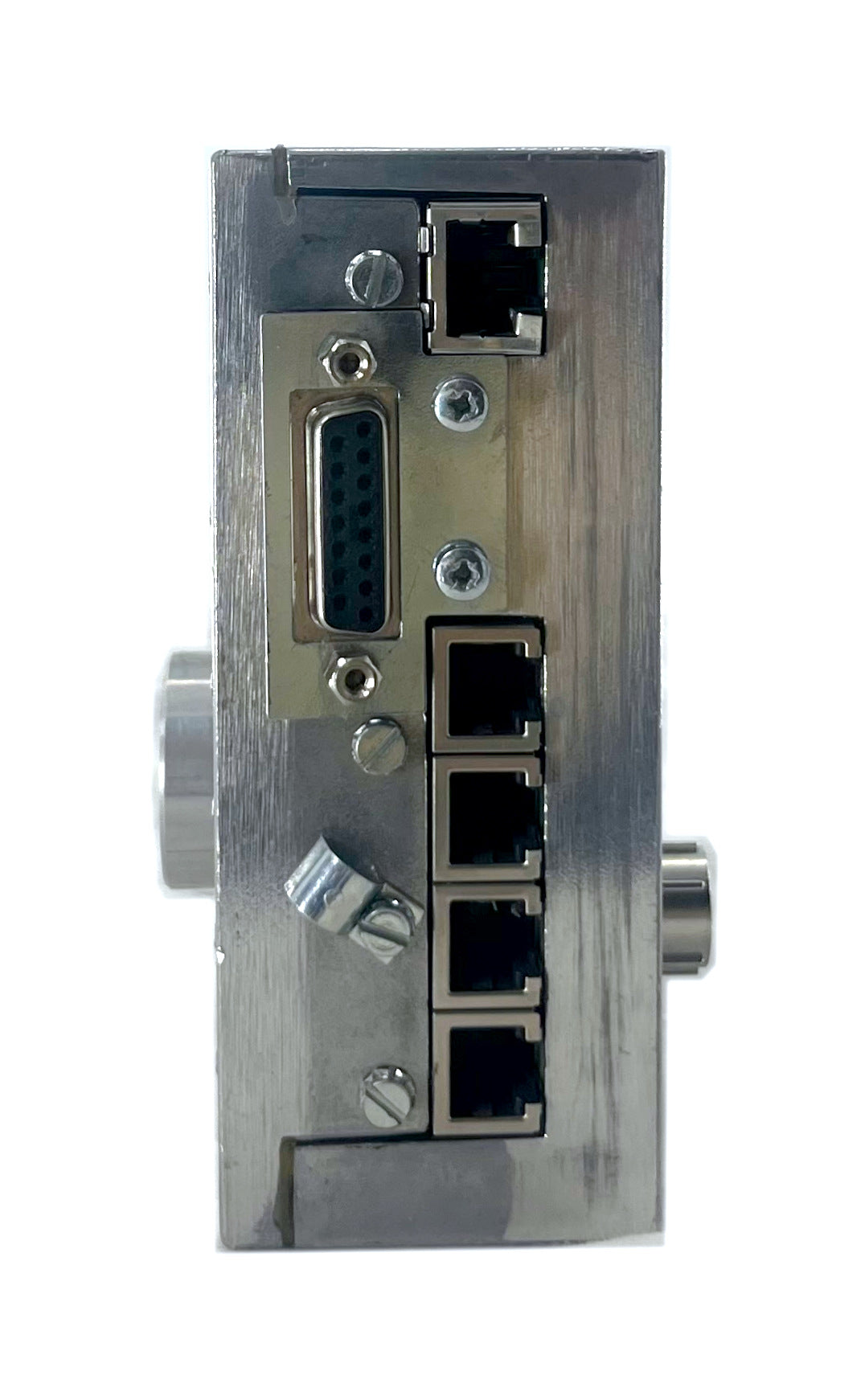

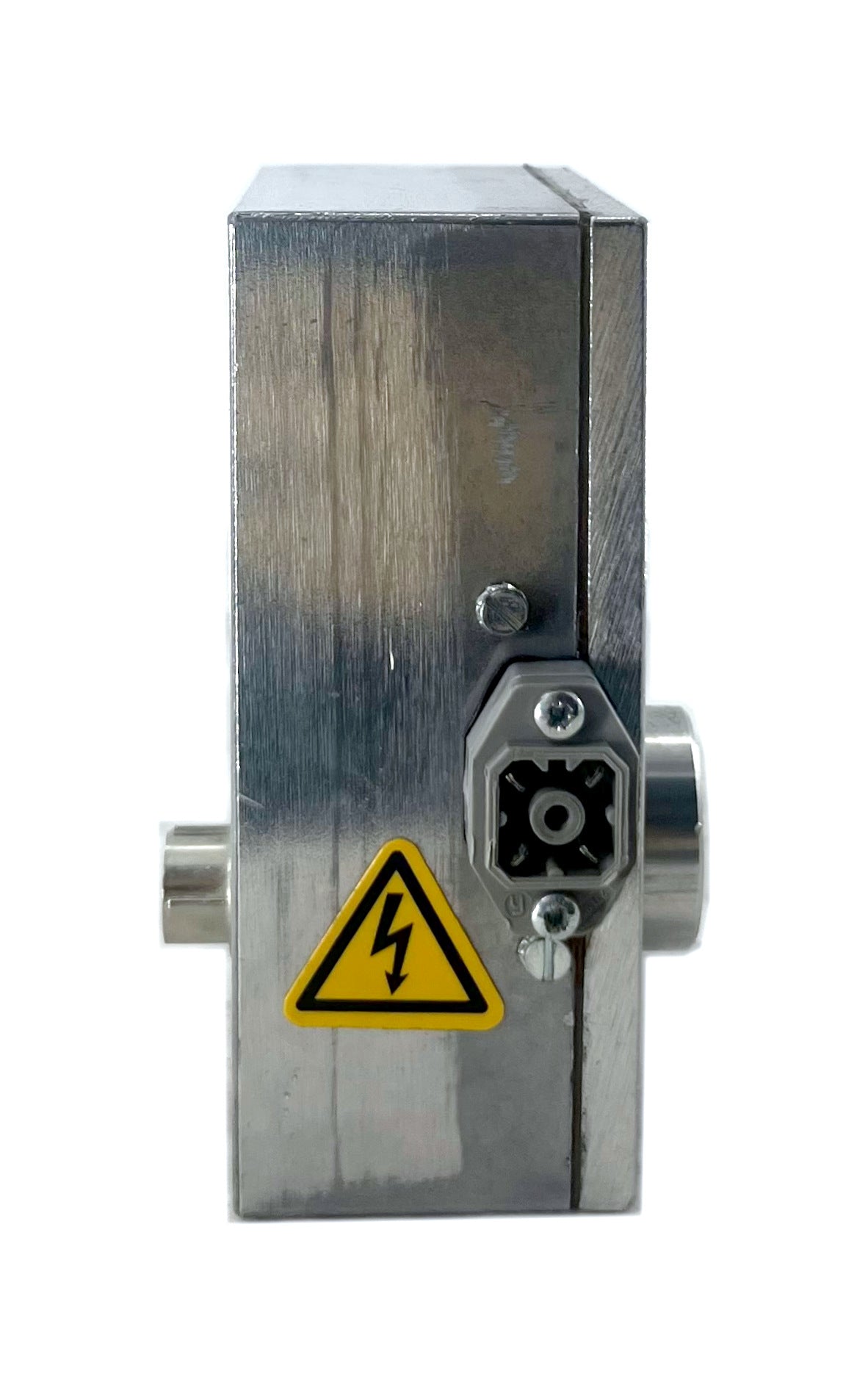

The "E74" configuration variant includes integrated RS-485 serial communication, accessory connection outputs (for cooling fans or venting valves), and standard remote I/O control for seamless tool integration.

Technical Specifications

Compatible Turbo Pump Series

The TC750-E74 (PM C01 712) drive unit mounts directly to or controls several popular Pfeiffer turbomolecular pump lines, including:

• TMH / TMU Series: TMH 261, TMH 521, TMH 521 YP, TMU 521P, TMH 1001P

• TPH / TPU Series: TPH 1201, TPH 2101, TPH 2301, TPU 1501

• HiPace Series: Select HiPace 700 / 800 configurations utilizing 750W drive modules

Key Features & Lab Benefits

• Integrated Pump Control: Mounts directly to the pump casing to save rack space and eliminate high-frequency drive cable noise.

• Smart Thermal & Load Monitoring: Continuously monitors drive current and pump stator temperatures, automatically adjusting frequency under heavy gas loads to prevent thermal trips.

• Standard RS-485 Networking: Enables daisy-chained remote control and diagnostic monitoring via standard Pfeiffer ASCII protocol.

• Auxiliary Control Ports: Directly powers and controls automated venting valves, sealing gas valves, and air-cooling units based on pump status (e.g., speed reached, error states).
