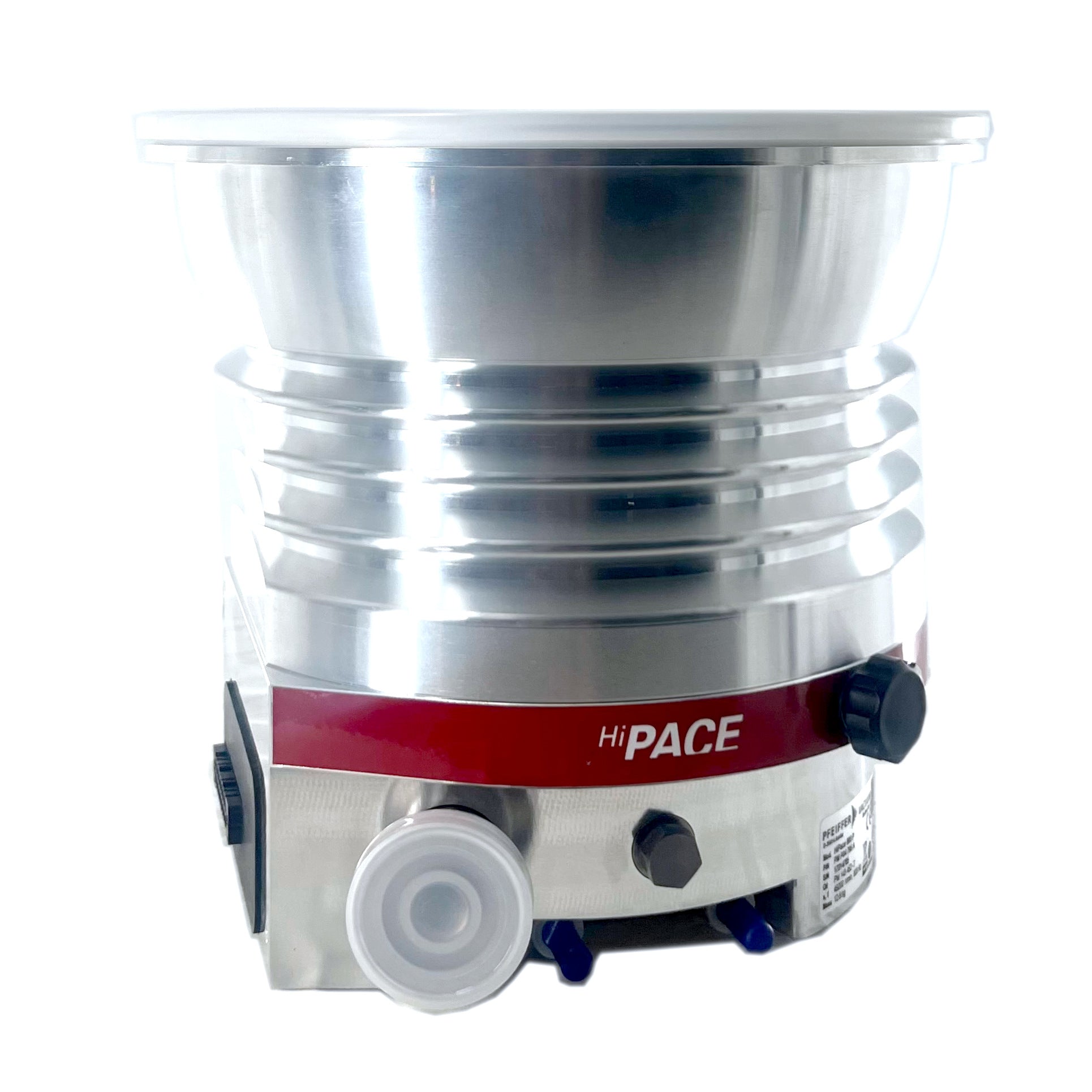

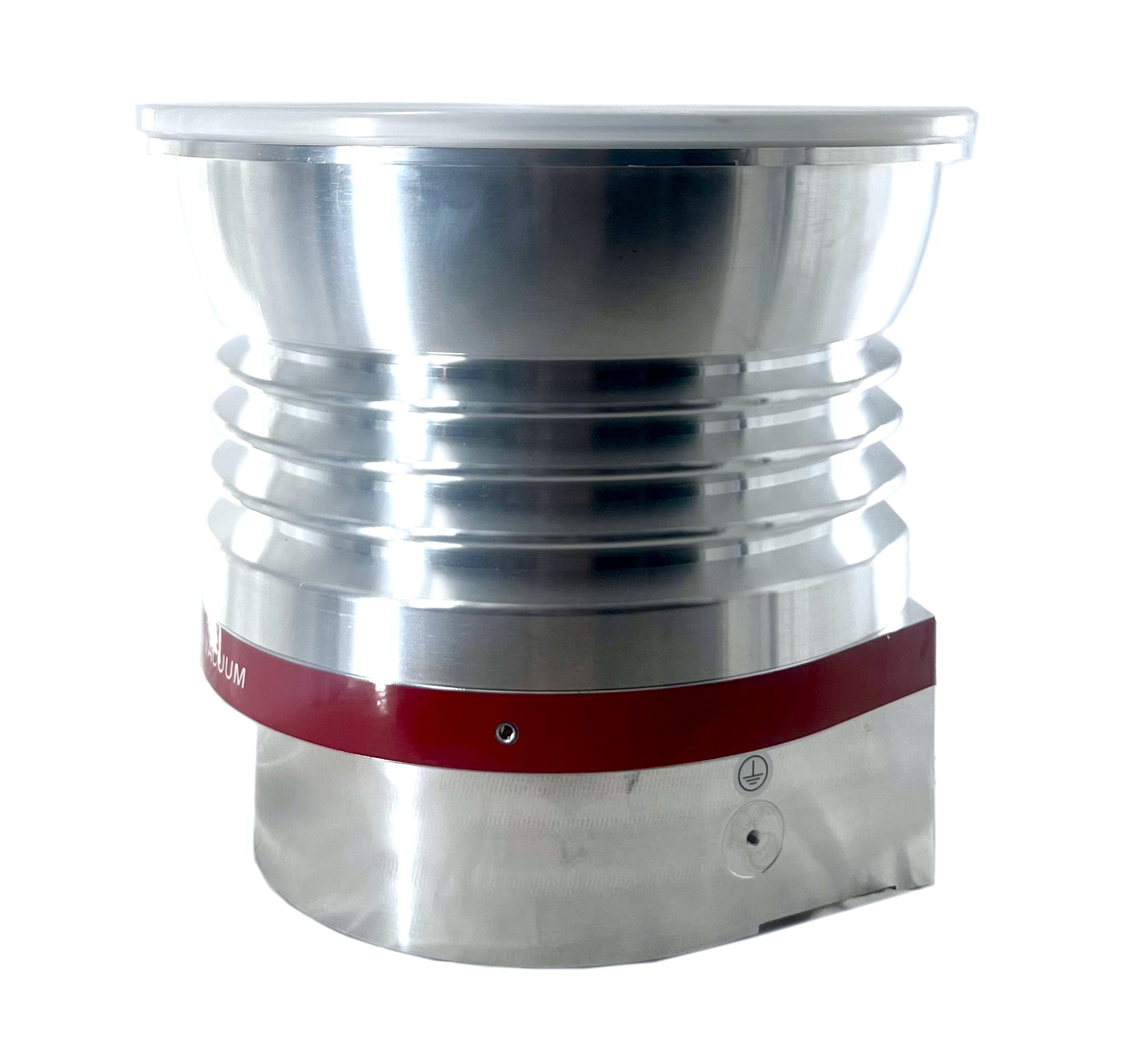

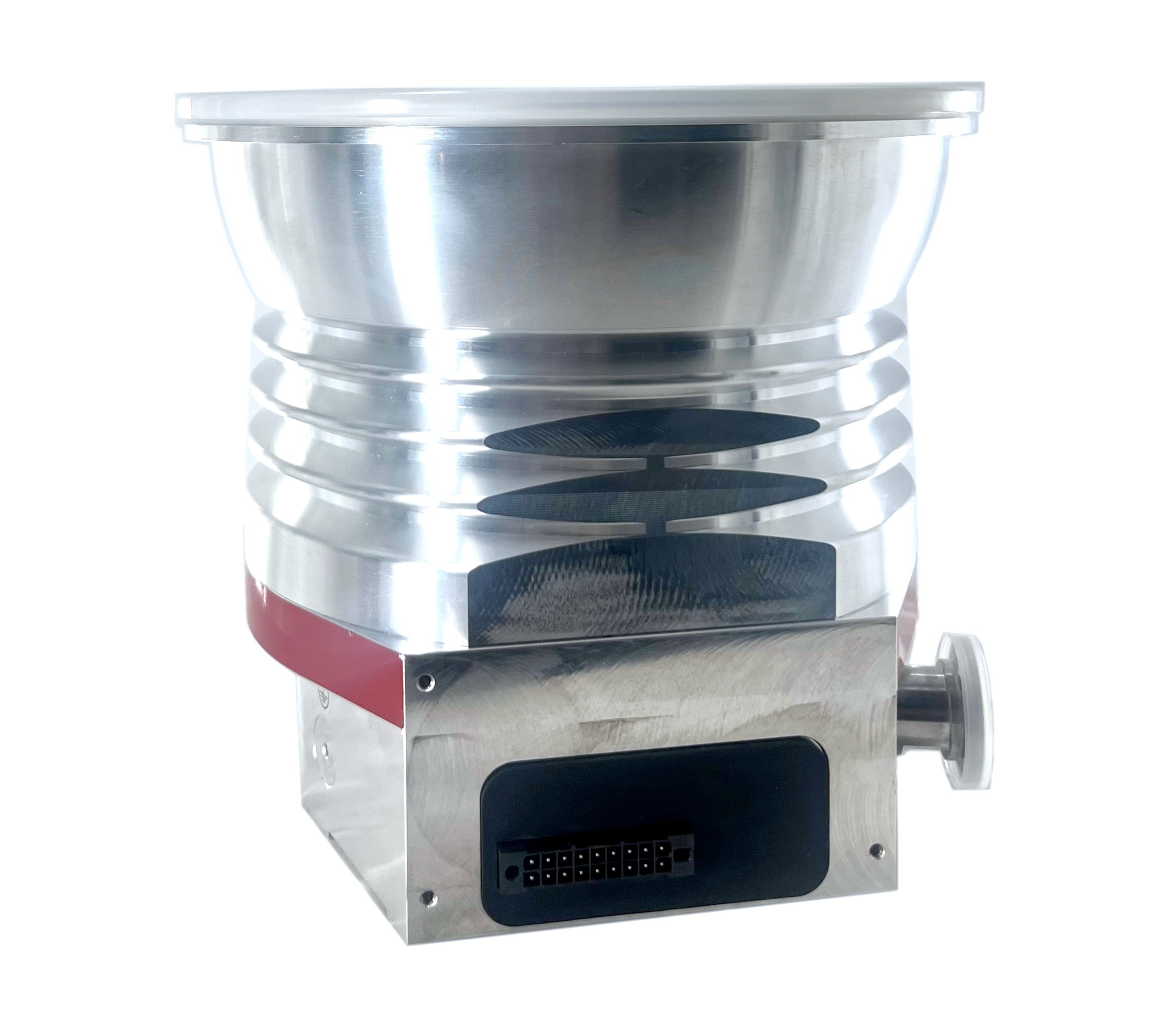

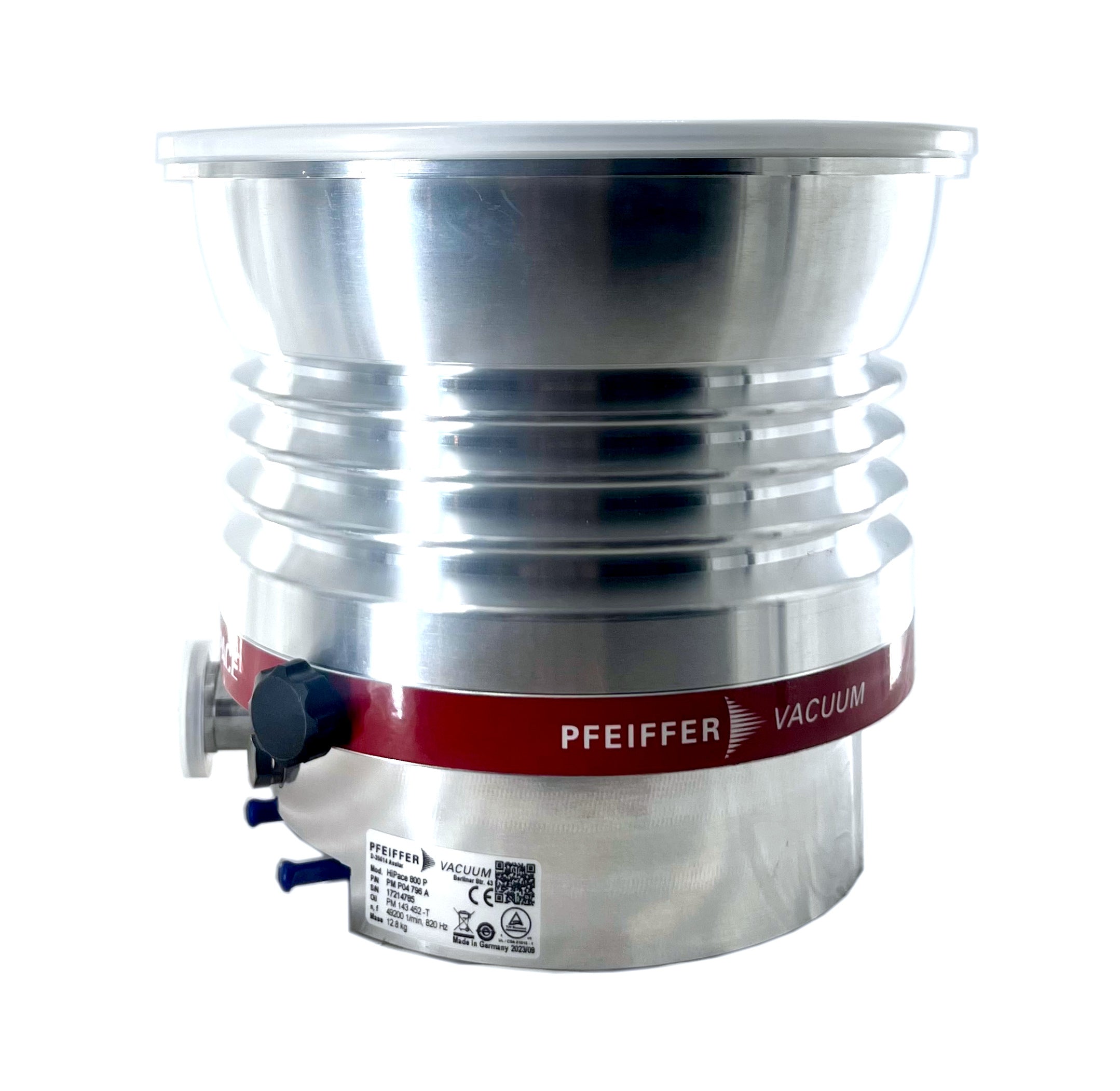

Pfeiffer HiPace 800 P Turbomolecular Pump

Name: Pfeiffer HiPace 800 P Turbomolecular Pump
Brand: Pfeiffer
Price: 16495.00 USD
Availability: InStock

Part Number: PMP04796A

Condition: Refurbished

In Stock

The Pfeiffer HiPace 800 P (Part Number: PM P04 796 A) is a high-performance, compact turbomolecular vacuum pump engineered for demanding industrial, semiconductor, analytical, and R&D applications. Designed with Pfeiffer Vacuum's hybrid bearing technology, the HiPace 800 P combines a ceramic ball bearing on the fore-vacuum side with a permanent magnetic radial bearing on the high-vacuum side, providing long maintenance intervals, low noise, and minimal vibration.

The "P" designation denotes an optimized process configuration with enhanced gas load handling, exceptional light gas compression (such as $H_{2}$ and $He$ ), and broad compatibility with modern integrated electronic drive units (such as the Pfeiffer TC 400 or TCP 350).

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_{2}$ )	790 L/s
Pumping Speed ( $He$ )	700 L/s
Pumping Speed ( $H_{2}$ )	580 L/s
Pumping Speed ( $A r$ )	780 L/s
Ultimate Pressure	$< 1 \times 1 0^{-7} hPa$ ( $< 7.5 \times 1 0^{-8} Torr$ )
Compression Ratio ( $N_{2}$ )	$> 1 \times 1 0^{11}$
Compression Ratio ( $H_{2}$ )	$4 \times 1 0^{5}$
Bearing Type	Hybrid (Ceramic Ball / Permanent Magnetic)
Inlet Flange	DN 200 ISO-K / ISO-F / CF-F options
Fore-Vacuum Flange	DN 25 ISO-KF / G 1/4"
Max Foreline Pressure ( $N_{2}$ )	11 hPa (8.25 Torr)
Cooling Method	Water-Cooled (Optional Forced Air)
Run-Up Time	~2 minutes
Electronic Drive Unit	Compatible with TC 400 / TCP 350 / TM 700
Protection Class	IP54
Weight	~12.8 kg to 21.6 kg (depending on flange/TC module)

Key Features & Lab Benefits

Proven Hybrid Bearing System: Combines oil-lubricated ceramic bearings on the foreline side with passive magnetic bearings on the UHV side to eliminate rotor contact, lower wear, and drastically reduce vibration profiles.

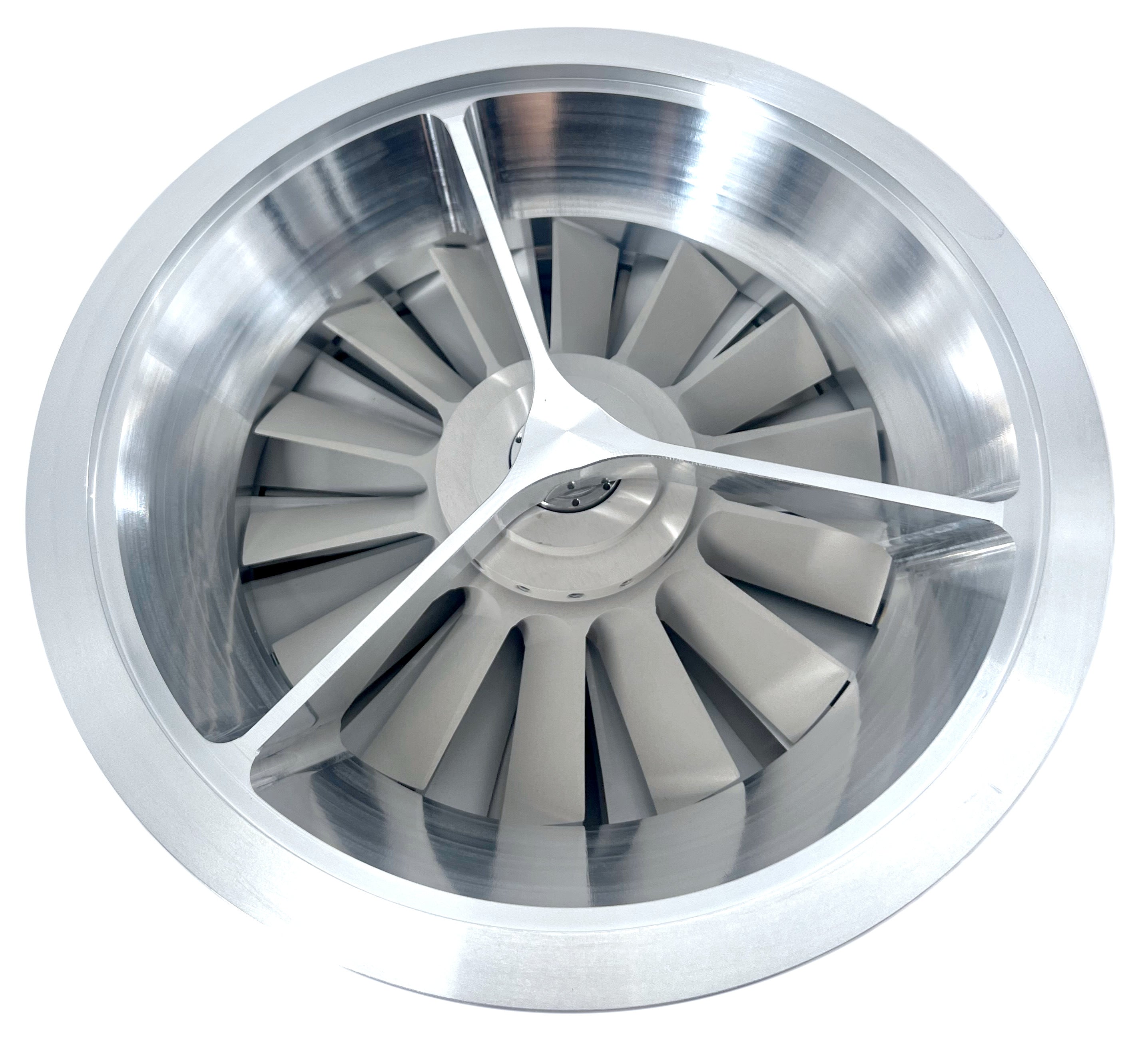

High Gas Load Handling: Specially designed rotor geometry delivers continuous process gas throughput ( $N_{2}$ , $A r$ , $He$ ) without compromising pump rotational speed.
Flexible Drive Integration: Accepts integrated TC 400 electronics or remote rack controllers via RS-485 or optional Profibus/Profinet/EtherCAT fieldbus protocols.
Rapid Maintenance Cycles: The fore-vacuum ceramic bearing and operating fluid reservoir can be serviced directly on-site in under 30 minutes, minimizing tool downtime.
