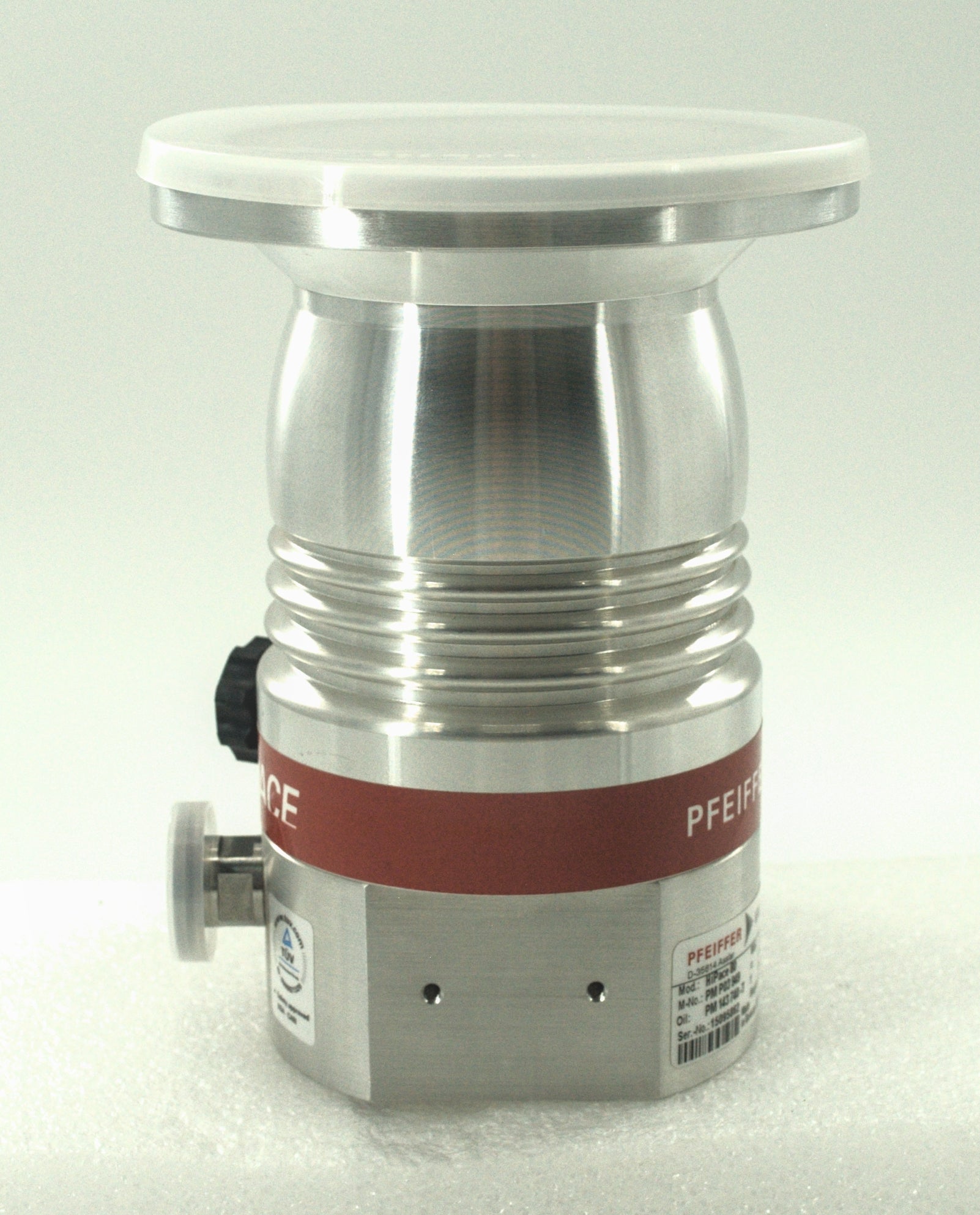

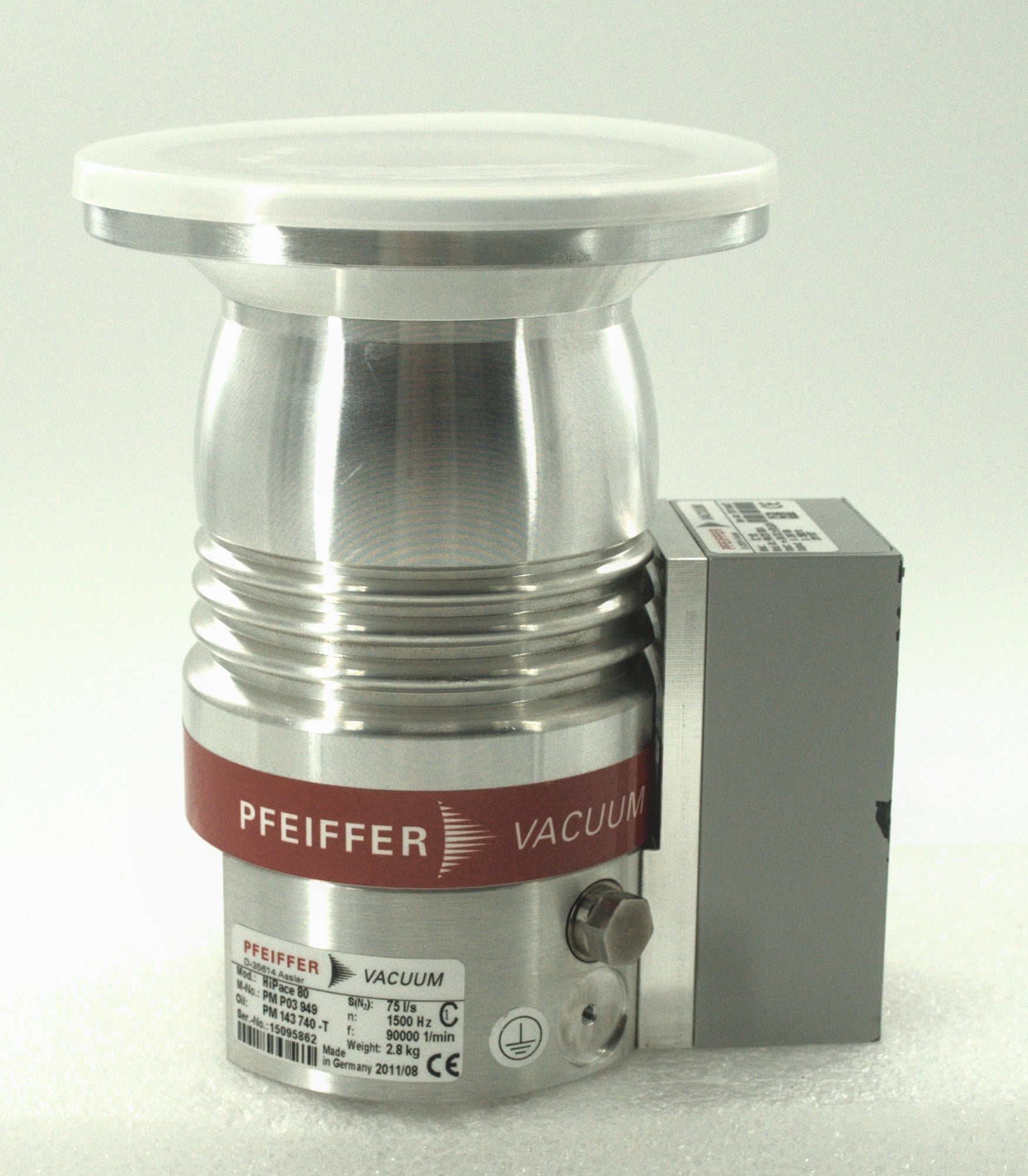

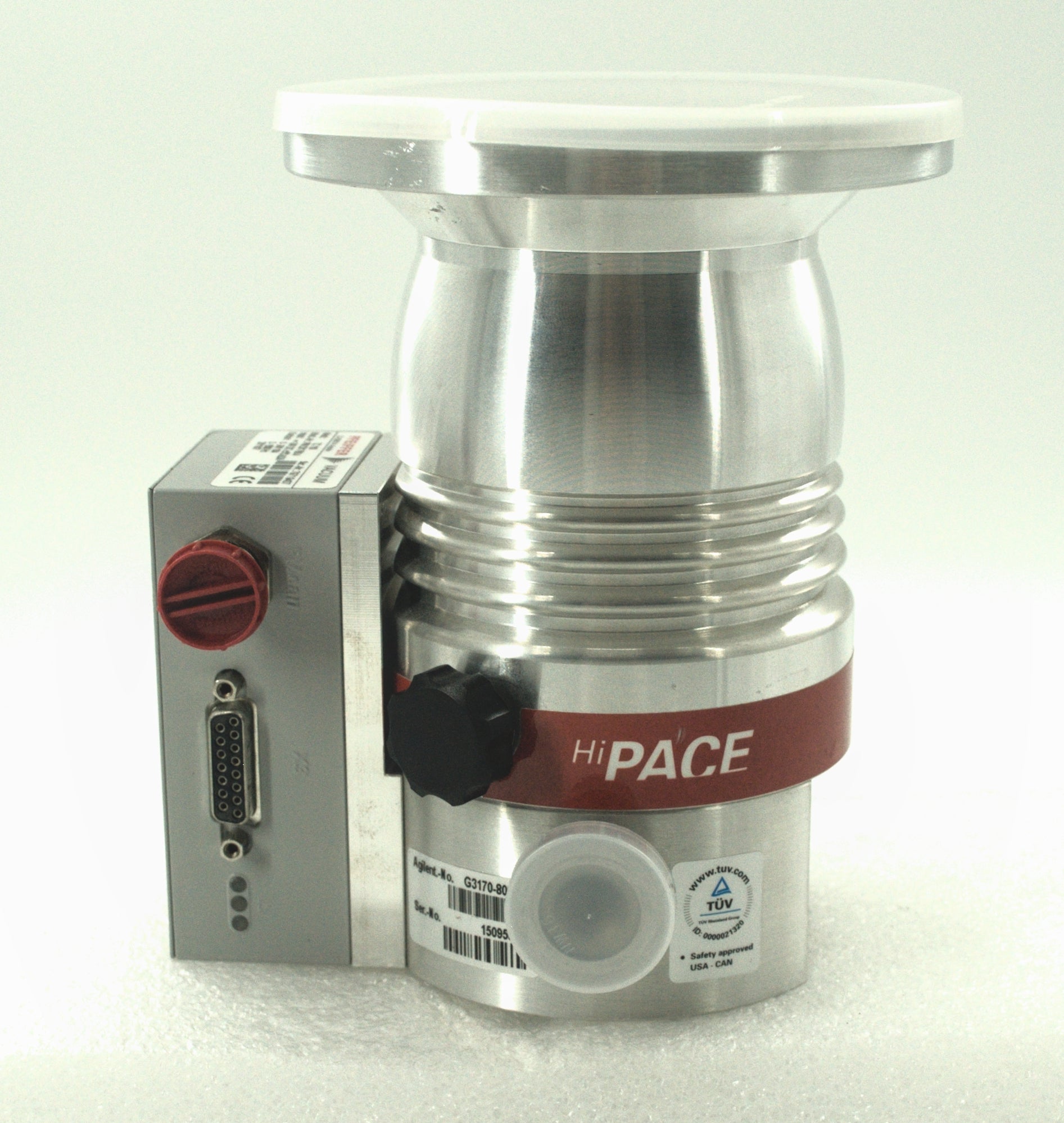

Pfeiffer HiPace 80 Turbomolecular Vacuum Pump with Integrated TC 110

Name: Pfeiffer HiPace 80 Turbomolecular Vacuum Pump with Integrated TC 110
Brand: Pfeiffer
Price: 5125.00 USD
Availability: InStock

Part Number: PMP03949

Condition: Refurbished

In Stock

The Pfeiffer HiPace 80 Package is a high-performance, plug-and-play turbo pumping assembly designed for seamless integration into advanced analytical, laboratory, and industrial systems. This specific configuration (PM P03 949) features a compact DN 63 ISO-K high-vacuum inlet flange and comes fully equipped with the factory-integrated, side-mounted TC 110 electronic drive unit.

By placing the controller directly on the pump body, this package eliminates complex high-frequency cable runs, minimizes the total physical footprint, and provides robust system diagnostics over digital interfaces. Utilizing a hybrid rotor design with a wear-free permanent magnetic bearing at the high-vacuum side and an ultra-precise ceramic ball bearing on the forevacuum side, this integrated assembly delivers rapid run-up times, superior light-gas compression ratios, and hydrocarbon-free vacuum performance down to the $< 1 \times 10^{-7}$ mbar range.

Key Features & Benefits

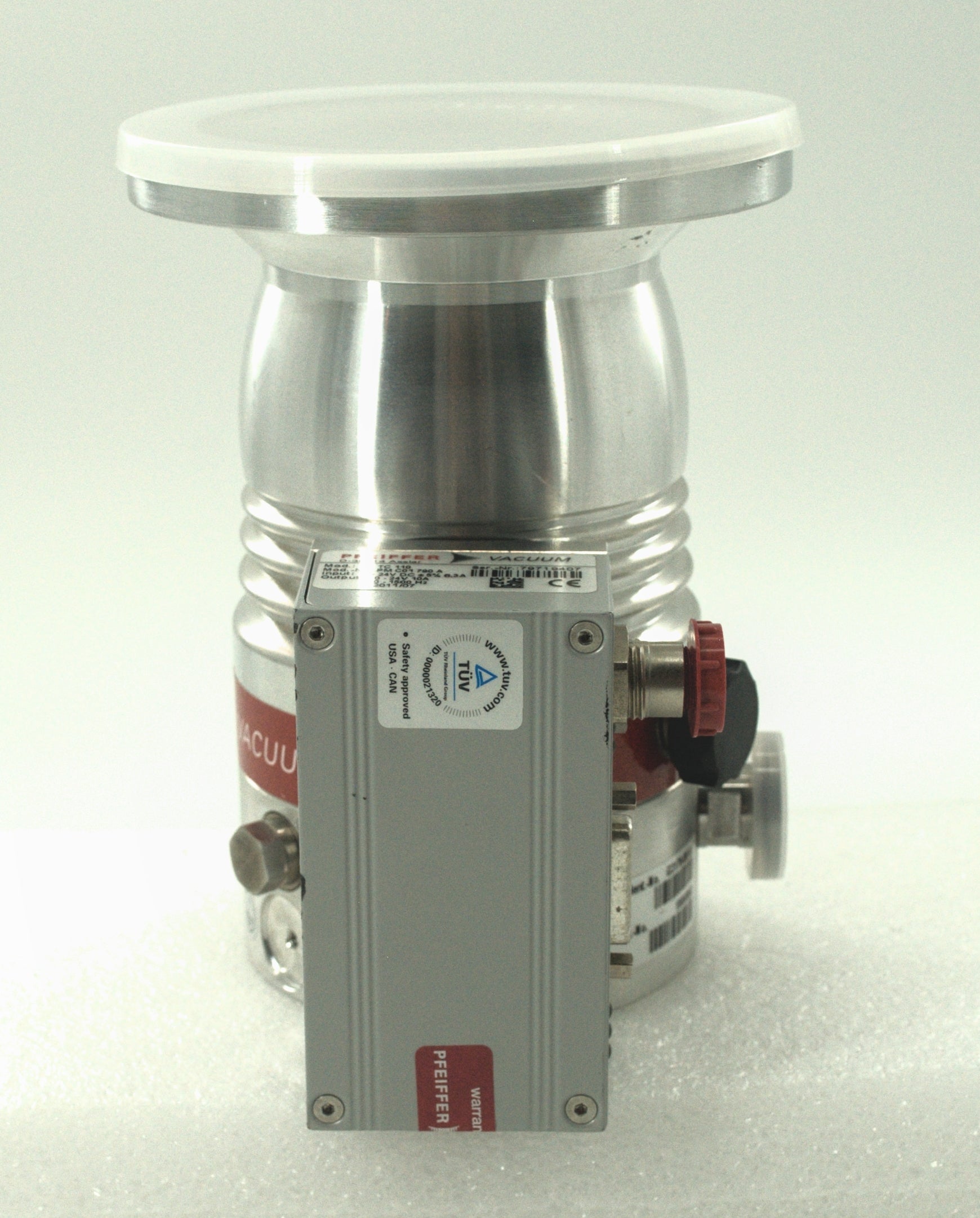

Factory-Integrated TC 110 Controller: Minimizes control cabinet space and wiring complexity. The mounted TC 110 directly regulates motor speed, monitors operating parameters, and runs automated startup/shutdown cycles.
Smart Communication Interfaces: Equipped with RS-485 serial communication and configurable remote I/O channels for seamless data logging, automated PLC system integration, and advanced fault diagnostics.

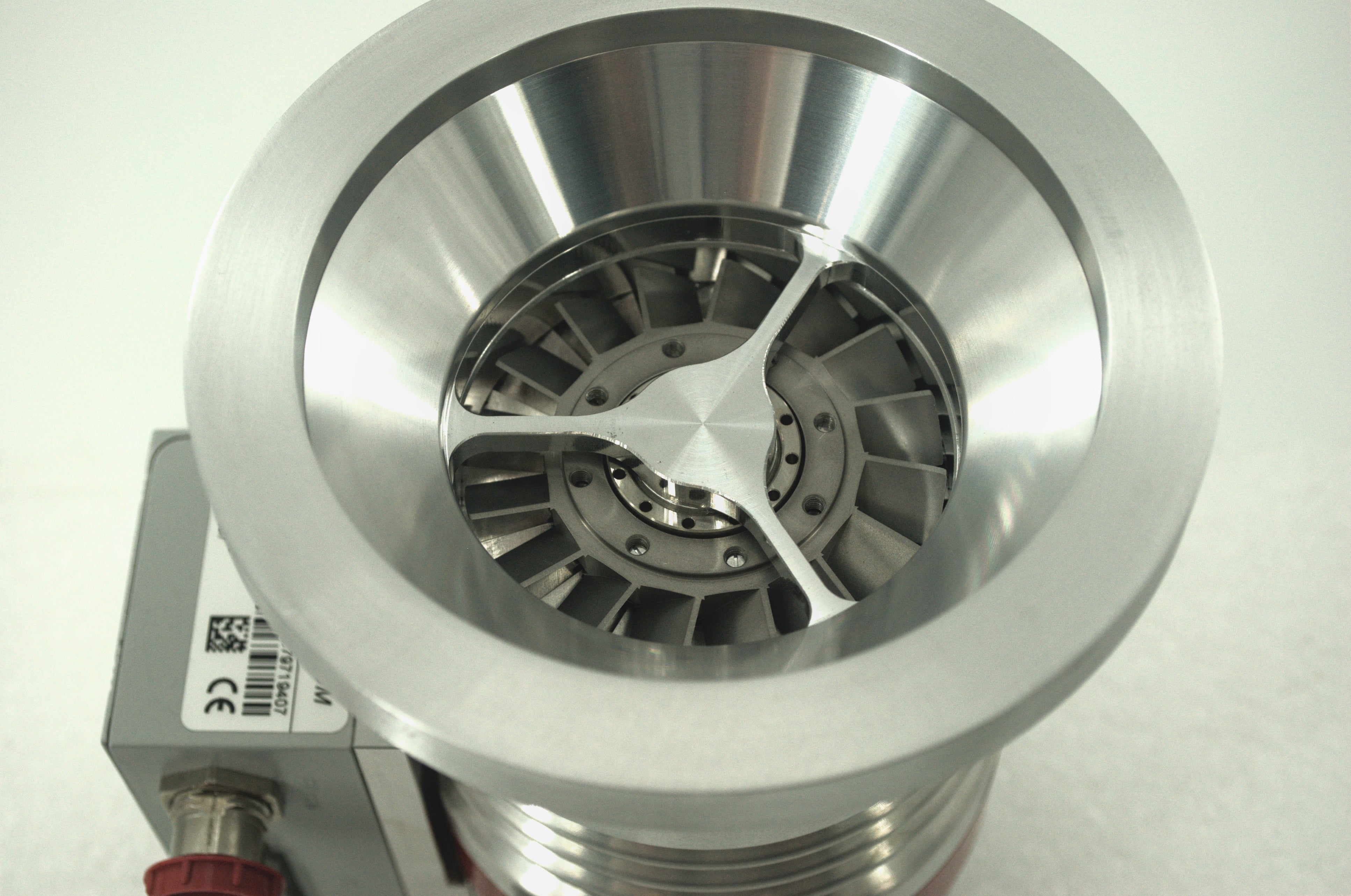

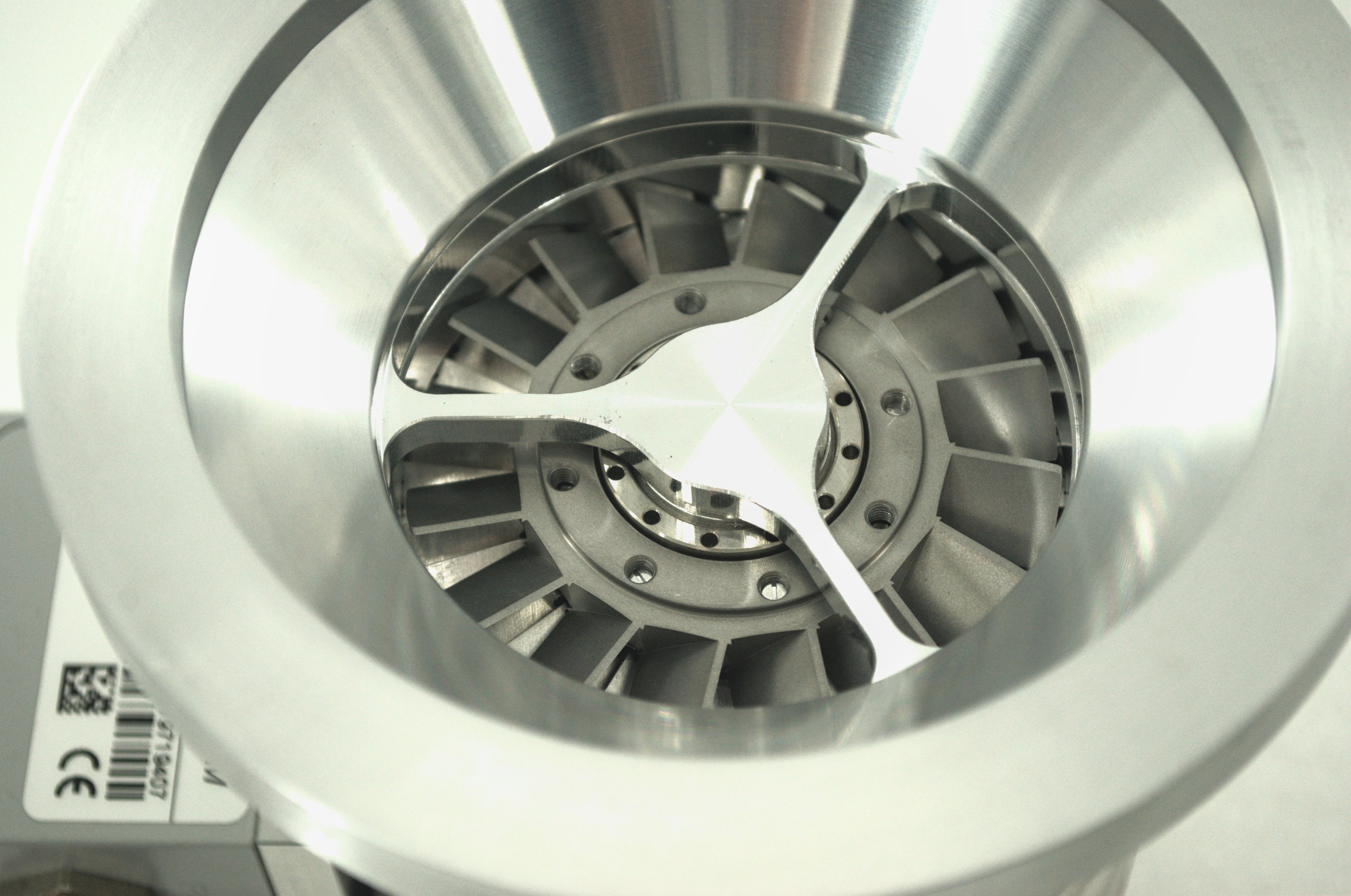

Proven Hybrid Bearings: Uses a contact-free, wear-free permanent magnetic top bearing paired with a rugged ceramic lower bearing, optimizing rotational stability while keeping vibration profiles extremely low.
Optimized High Compression: Advanced rotor blade profiles deliver exceptional compression factors for Helium ( $He$ ) and Hydrogen ( $H_2$ ), ensuring clean, repeatable base pressures during sensitive analytical processes.
All-Angle Installation Flexibility: Engineered to function reliably in any mounting orientation, allowing total flexibility in tight or customized chamber configurations.

Technical Specifications

Parameter	Specification
Inlet Flange (High Vacuum)	DN 63 ISO-K
Outlet Flange (Forevacuum)	DN 16 ISO-KF (NW 16 KF)
Integrated Controller	TC 110 (Factory-mounted)
Input Operating Voltage	24 V DC ( $\pm$ 5%)
Control Interfaces	RS-485, Remote Analog/Digital I/O
Pumping Speed ( $N_2$ )	67 l/s
Pumping Speed ( $He$ / $H_2$ )	52 l/s / 48 l/s
Ultimate Pressure	$< 1 \times 10^{-7}$ mbar
Max Run-Up Time	Under 1.7 minutes
Assembly Weight	4.0 lbs (1.8 kg)
Country of Manufacture	Germany
