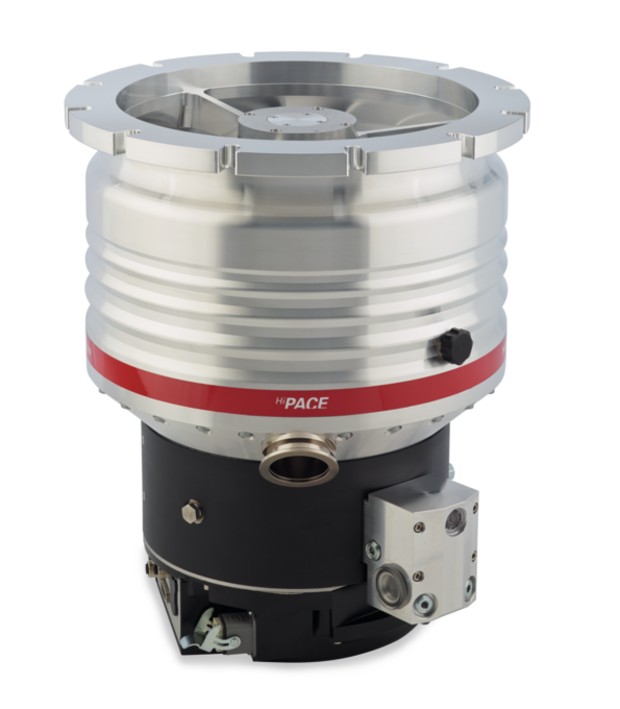

Pfeiffer HiPace 2300 Turbomolecular Pump with TC 1200
The Pfeiffer HiPace 2300 represents the pinnacle of turbomolecular pump technology, delivering exceptional performance for demanding high-vacuum applications. This powerful turbopump combines impressive pumping speeds with an integrated TC 1200 drive electronics system, making it ideal for semiconductor manufacturing, research facilities, and industrial coating processes. With its hybrid bearing design and water cooling system, the HiPace 2300 ensures reliable operation and maintains optimal temperature control even under challenging conditions.
|
Specification |
Details |
|
Pumping Speed |
N2: 1,900 l/s Ar: 1,800 l/s He: 2,000 l/s H2: 1,850 l/s |
|
Ultimate Pressure |
< 1 × 10⁻⁷ hPa |
|
Compression Ratio |
N2: > 1 × 10⁸ Ar: > 1 × 10⁸ He: 3 × 10⁵ H2: 2 × 10⁴ |
|
Rotation Speed |
31,500 rpm ± 2% |
|
Run-up Time |
4 minutes |
|
Cooling Method |
Water cooling |
|
Cooling Water Flow |
100 l/h |
|
Cooling Water Temperature |
15-35°C (59-95°F) |
|
Input Voltage |
200-240 VAC, 50/60 Hz |
|
Power Consumption |
Max 1,350 VA |
|
Connection Flanges |
Inlet: DN 250 ISO-F Outlet: DN 40 ISO-KF |
|
Bearing Type |
Hybrid |
|
Protection Class |
IP54 |
|
Sound Level |
≤ 50 dB(A) |
|
Weight |
36.8 kg (81.1 lbs) |
|
Mounting Orientation |
0° to 90° (standard) |
|
Permissible Magnetic Field |
Max 7 mT |
The HiPace 2300 features variable speed control from 50-100% and integrated sealing gas capability for process protection. Its sophisticated rotor design delivers excellent compression ratios and high gas throughput capacity, while the hybrid bearing system combines maintenance-free permanent magnetic bearings on the high vacuum side with robust ceramic ball bearings on the fore-vacuum side.
