Mitsubishi

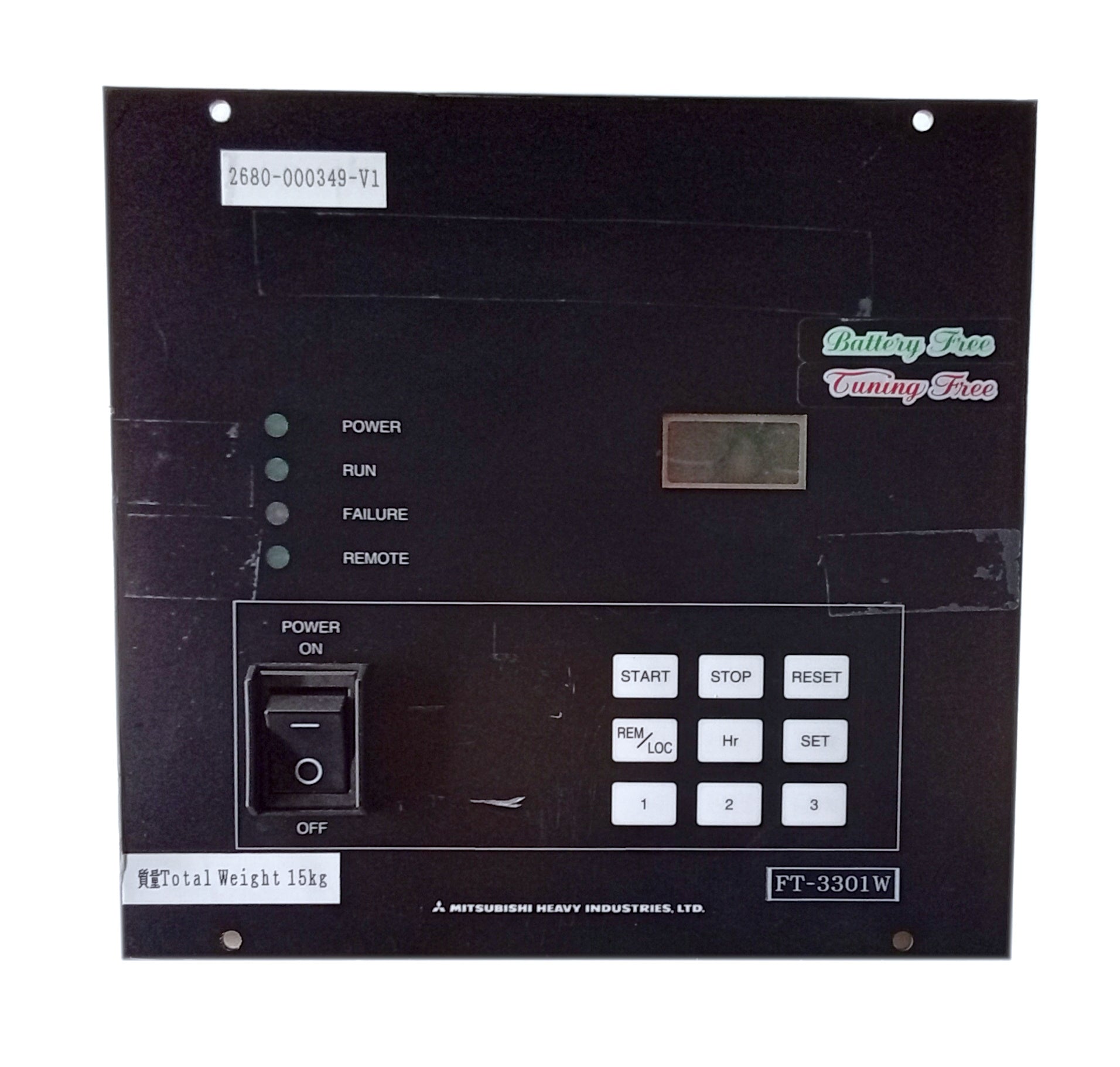

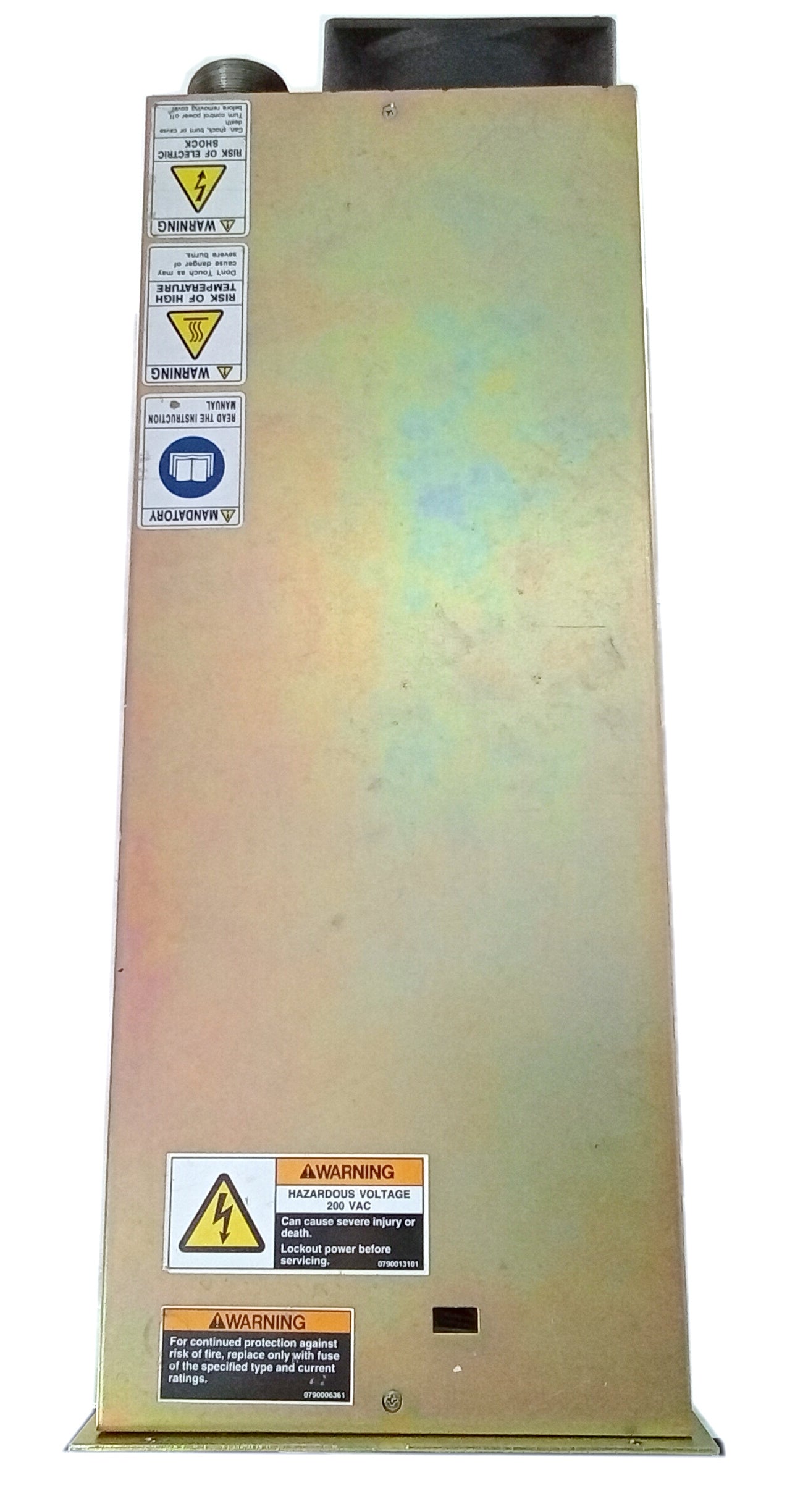

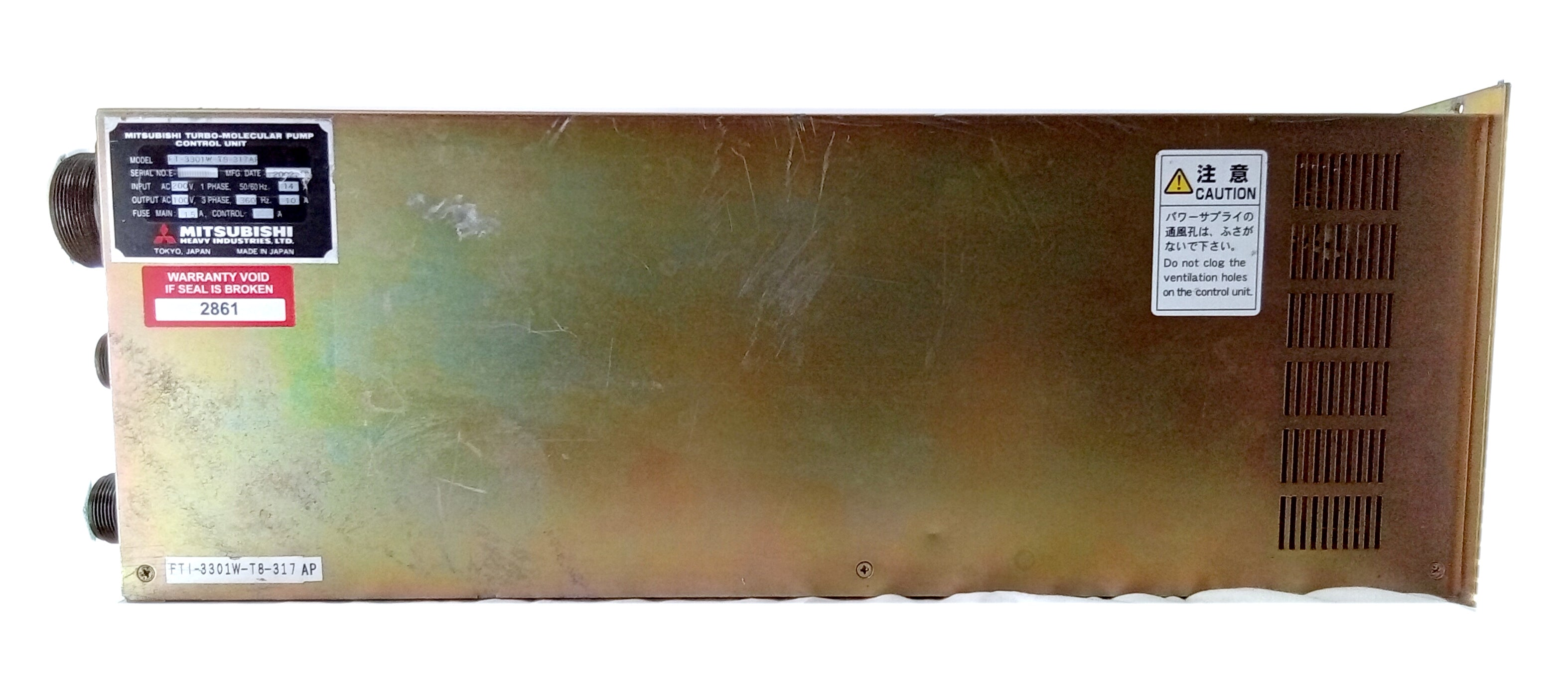

Mitsubishi FT-3301W-T8-3085A Turbomolecular Pump Controller

Part Number: FT3301WT83085A
Condition: Refurbished
In Stock

The Mitsubishi Heavy Industries FT-3301W-T8-3085A Controller is a specialized 5-axis magnetic bearing drive unit engineered to power, control, and levitate Mitsubishi FT-3301W series high-capacity turbomolecular pumps. It provides real-time digital levitation control, automated frequency acceleration, and advanced thermal/rotor status monitoring. Built for high-reliability semiconductor wafer manufacturing and large-scale industrial vacuum systems, the controller features robust protection against line fluctuations and process overload, ensuring continuous, vibration-free turbomolecular pump operation.

Technical Specifications

Parameter Specification Details
Model / Part Number FT-3301W-T8-3085A Controller
Compatible Pump Mitsubishi FT-3301W Series Turbomolecular Pumps
Control Architecture 5-Axis Active Magnetic Bearing Drive & Motor Inverter
Input Voltage 200–240 VAC, 3-Phase, 50/60 Hz
Output / Drive Capacity High-Frequency Inverter Drive Output (~3.3 kW Max Load)

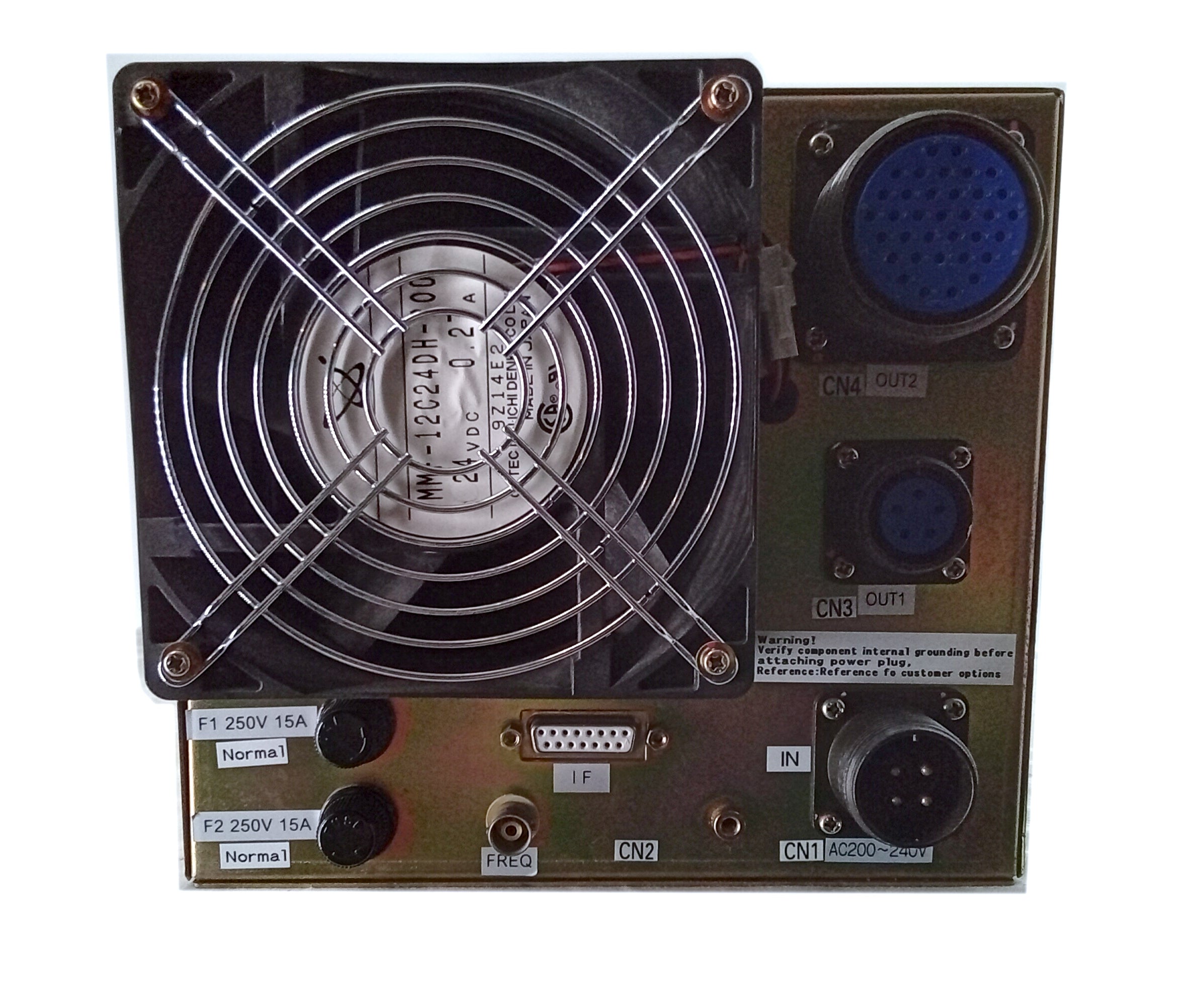

Interface Ports RS-232 / RS-485 Serial, Remote I/O Control, Status Relay Interlocks
Cooling Method Forced Air / Internal Fan Cooled
Mounting Format 19-inch Rack Mount / Benchtop Chassis
Dimensions Approx. 7.0" H x 19.0" W x 18.5" D (178 mm x 483 mm x 470 mm)
Weight ~48.5 lbs (22 kg)

Target Applications

  • Semiconductor Wafer Processing Systems (Etch, CVD, PVD)

  • Flat Panel Display (FPD) Vacuum Deposition Chambers

  • Solar & Photovoltaic Panel Manufacturing

  • Large Industrial High-Vacuum Research Systems

  • Direct OEM Tool Controller Replacement & Retrofitting

$8,499.00
$8,499.00
Shipping calculated at checkout.
