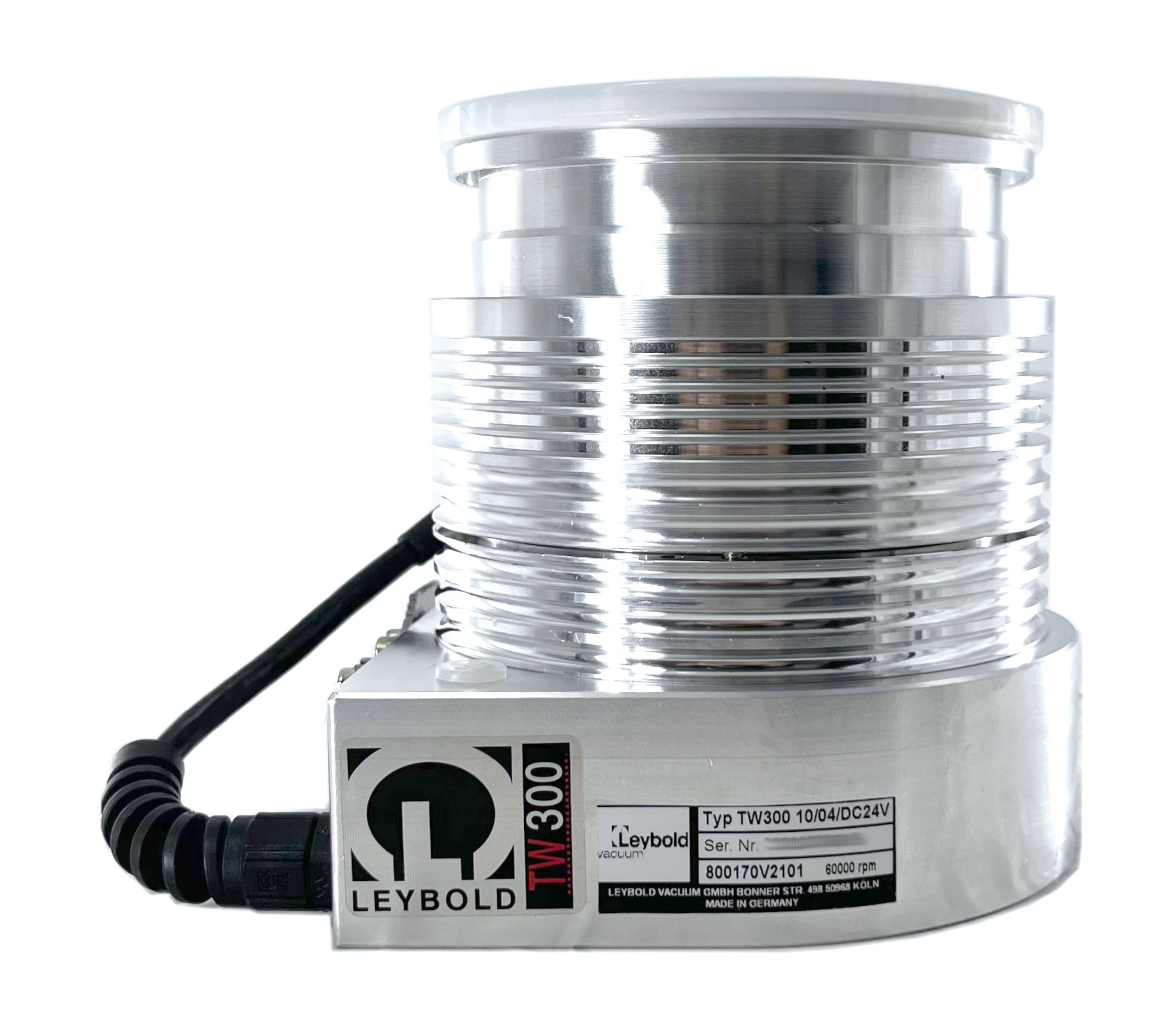

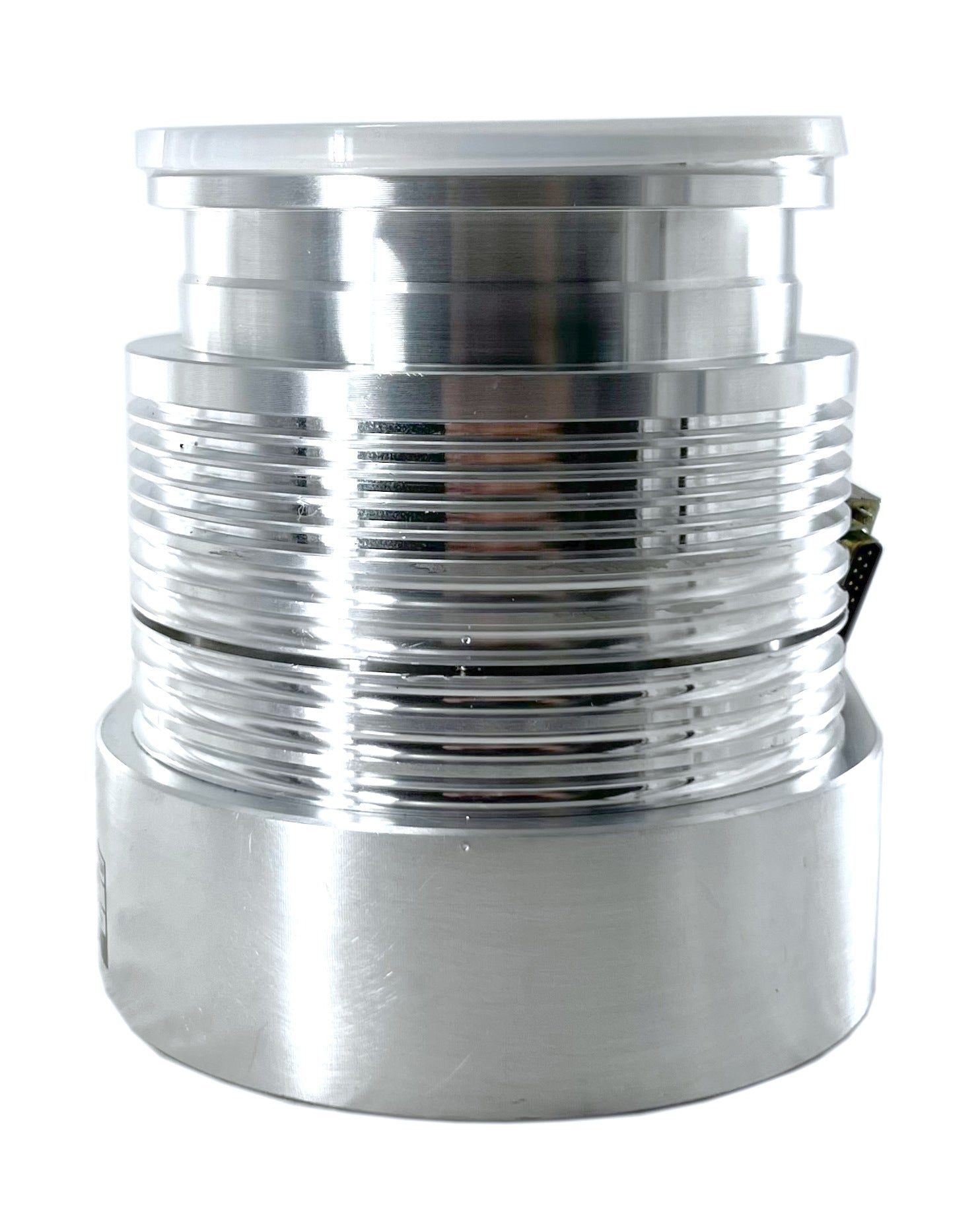

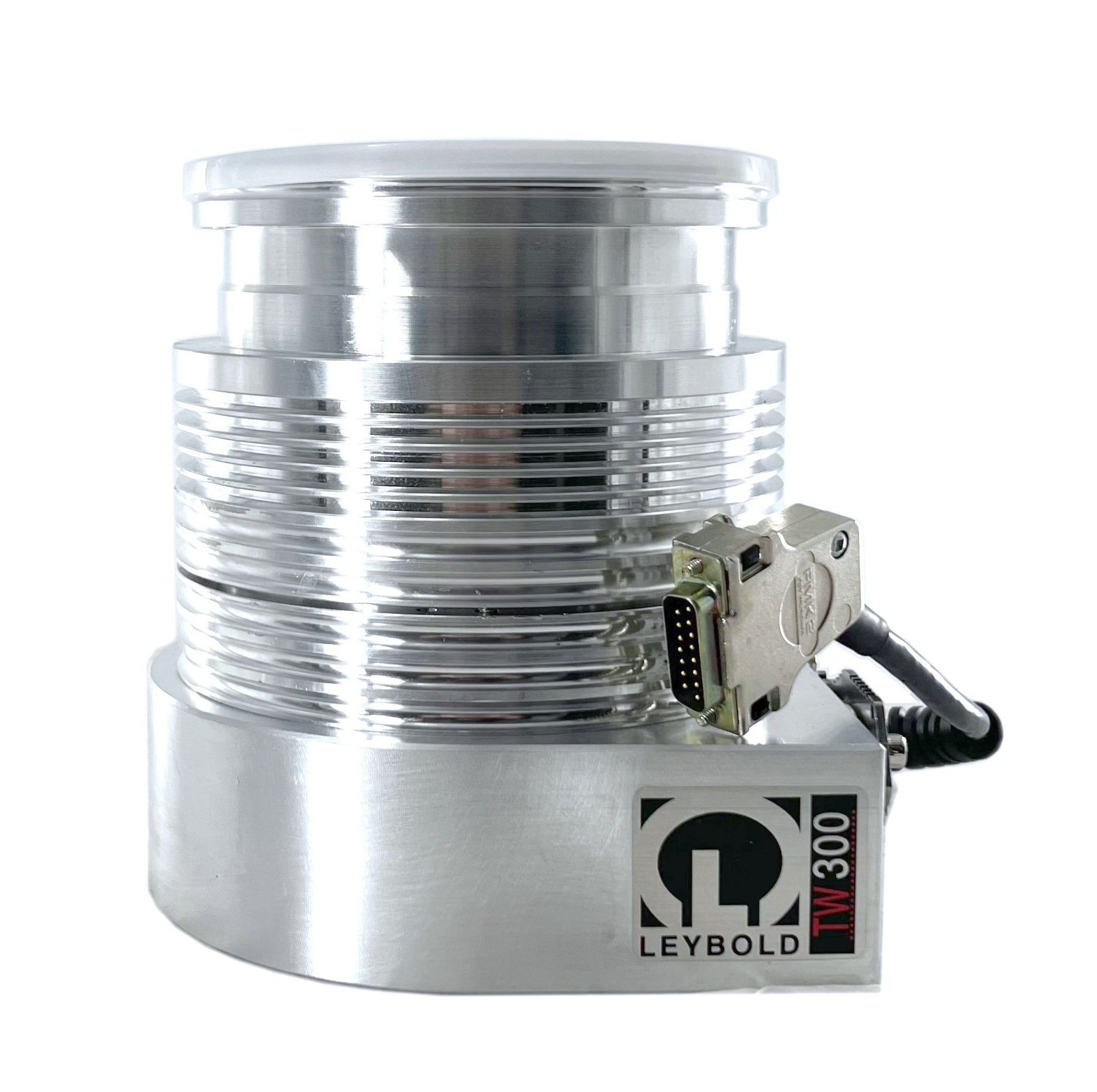

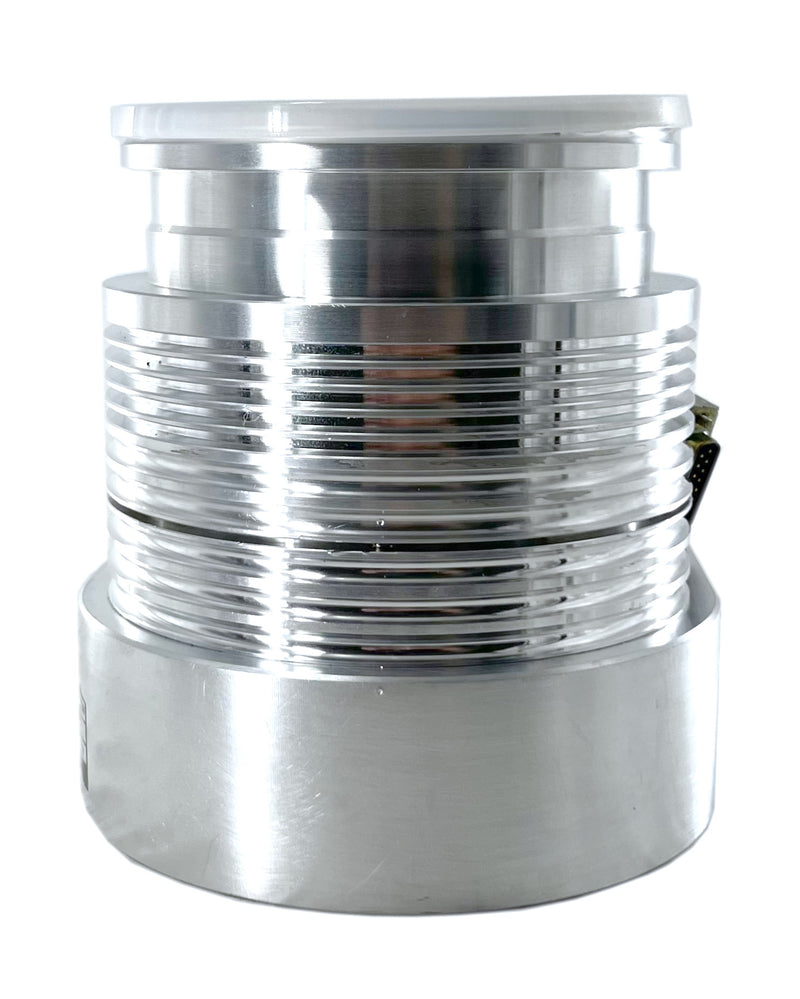

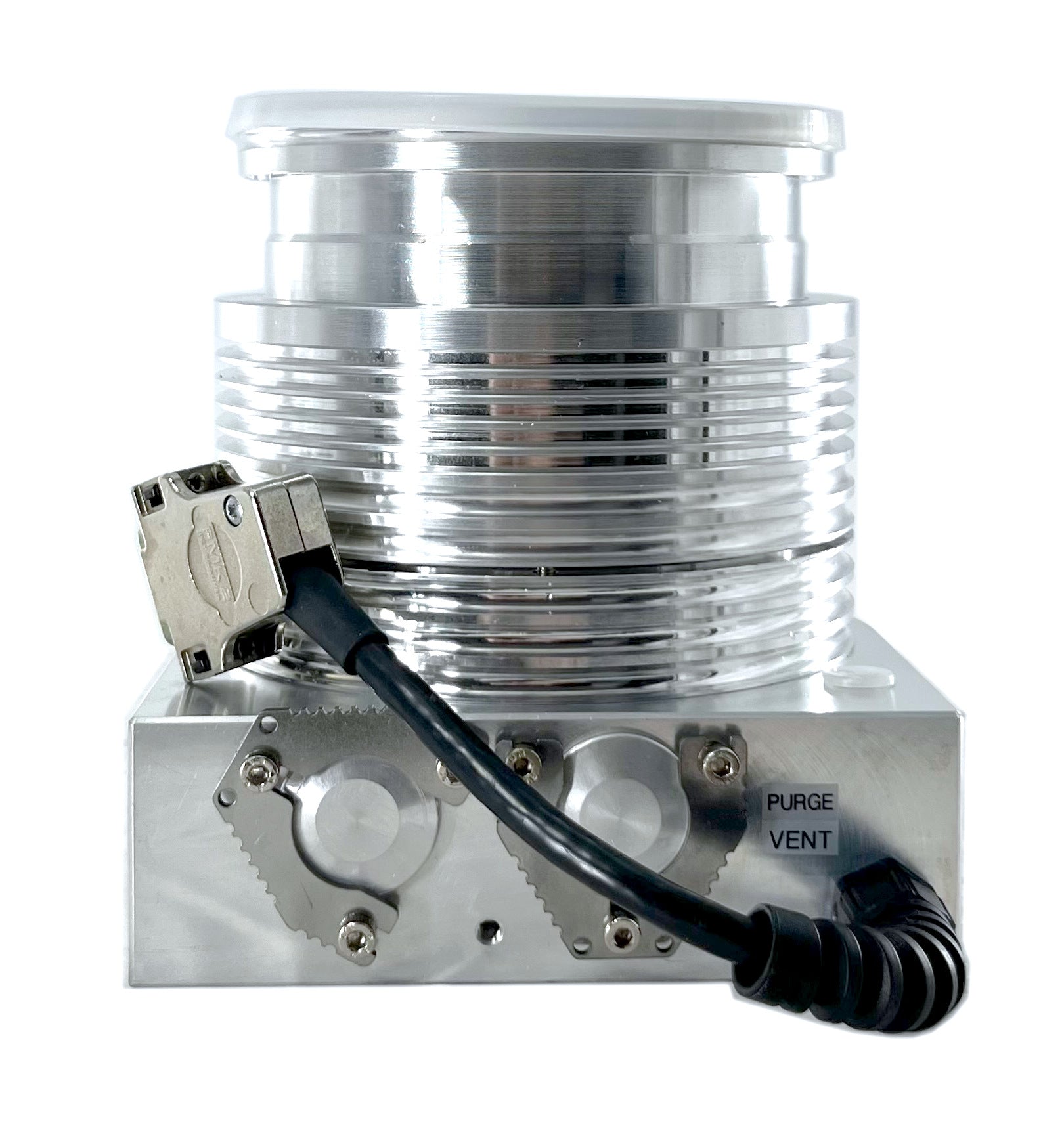

Leybold TURBOVAC TW 300 Turbomolecular Pump

Name: Leybold TURBOVAC TW 300 Turbomolecular Pump
Brand: Leybold
Price: 5295.00 USD
Availability: OutOfStock

Part Number: 800170V2101

Condition: Refurbished

The Leybold TURBOVAC TW 300 (P/N 800170V2101) is a high-performance, compound-stage turbomolecular pump designed for clean high-vacuum (HV) and ultra-high-vacuum (UHV) applications. Featuring a compact profile, grease-lubricated ceramic bearings, and robust foreline pressure tolerance, the TW 300 delivers exceptional reliability and low vibration for sensitive laboratory and analytical environments.

Equipped with a DN 100 ISO-K inlet flange, this unit is widely utilized across semiconductor processing, mass spectrometry, surface analysis, and general R&D vacuum systems.

Key Features & Benefits

High Pumping Efficiency: Delivers pumping speeds up to 240 l/s ( $N_{2}$ ) with high compression ratios for light gases ( $H_{2}$ , $He$ ).

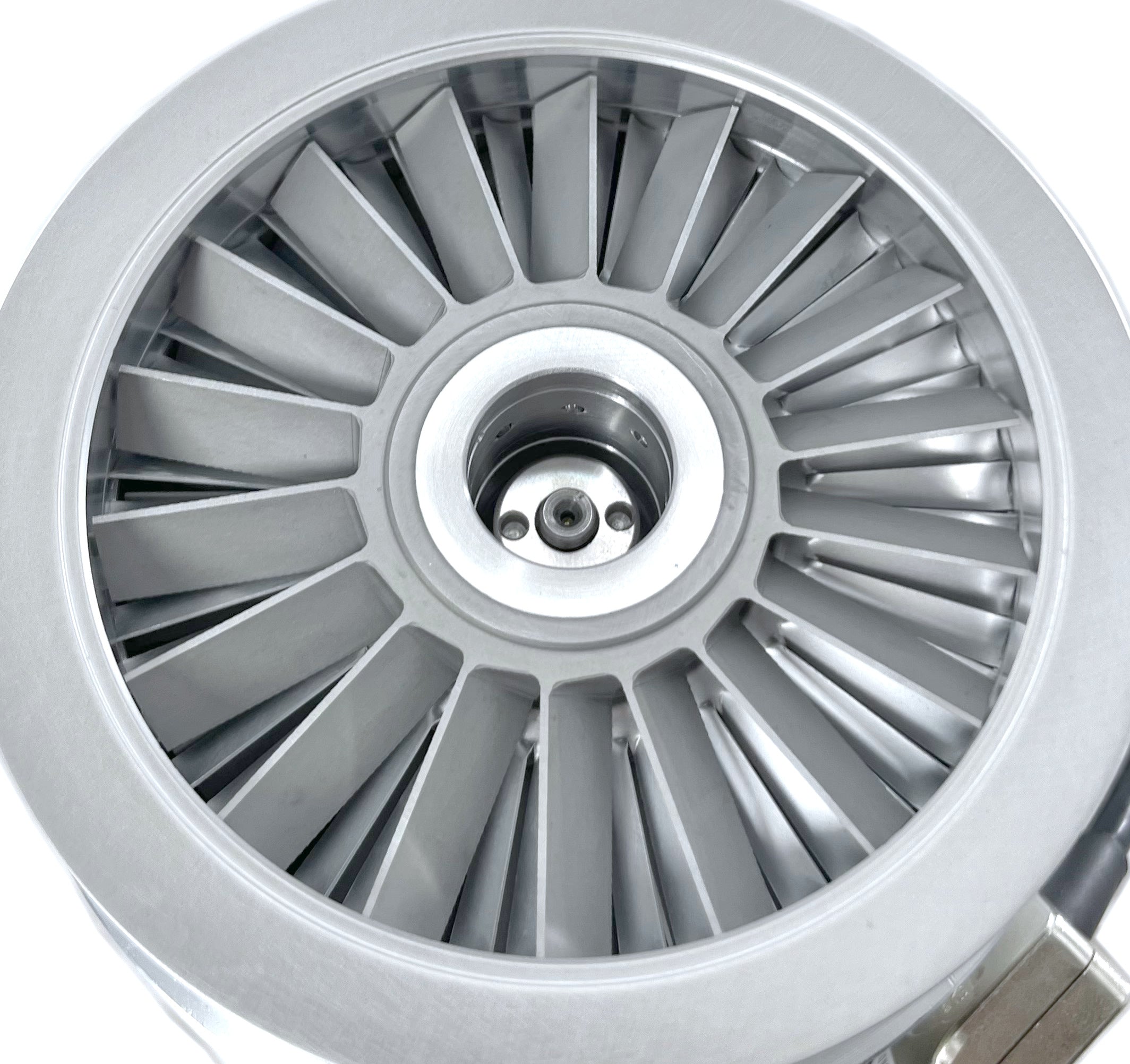

DN 100 ISO-K Inlet: Standard claw-clamp style high-vacuum connection for fast installation and integration.
High Foreline Tolerance: Allows pairing with downsized backing pumps (e.g., small rotary vane or dry diaphragm pumps).
Clean Hydrocarbon-Free Vacuum: Ideal for oil-sensitive analytical instruments and semiconductor process chambers.
Low Noise & Vibration: Precision-balanced rotor assembly ensures quiet operation ( $< 49 dB(A)$ ).

Technical Specifications

Feature / Metric	Specification
Manufacturer	Oerlikon Leybold Vacuum
Model	TURBOVAC TW 300
Part Number	`800170V2101`
High Vacuum Flange (Inlet)	DN 100 ISO-K
Forevacuum Flange (Exhaust)	DN 16 KF
Pumping Speed ( $N_{2}$ )	$240 l/s$
Pumping Speed ( $A r$ )	$230 l/s$
Pumping Speed ( $He$ )	$230 l/s$
Pumping Speed ( $H_{2}$ )	$140 l/s$
Ultimate Pressure	$< 2 \times 1 0^{-8} mbar$ (with 2-stage rotary vane backing)
Nominal Speed	$60, 000 RPM$
Run-up Time	$\sim 4 minutes$
Noise Level	$< 49 dB(A)$
Weight	$6.0 kg$ ( $13.2 lbs$ )
Recommended Backing Pump	Leybold TRIVAC D 2,5 E or ECODRY M15
