Leybold TURBOVAC SL 80 Turbomolecular Pump

Name: Leybold TURBOVAC SL 80 Turbomolecular Pump
Brand: Leybold
Price: 3985.00 USD
Availability: InStock

Part Number: 800002V3002

Condition: Refurbished

In Stock

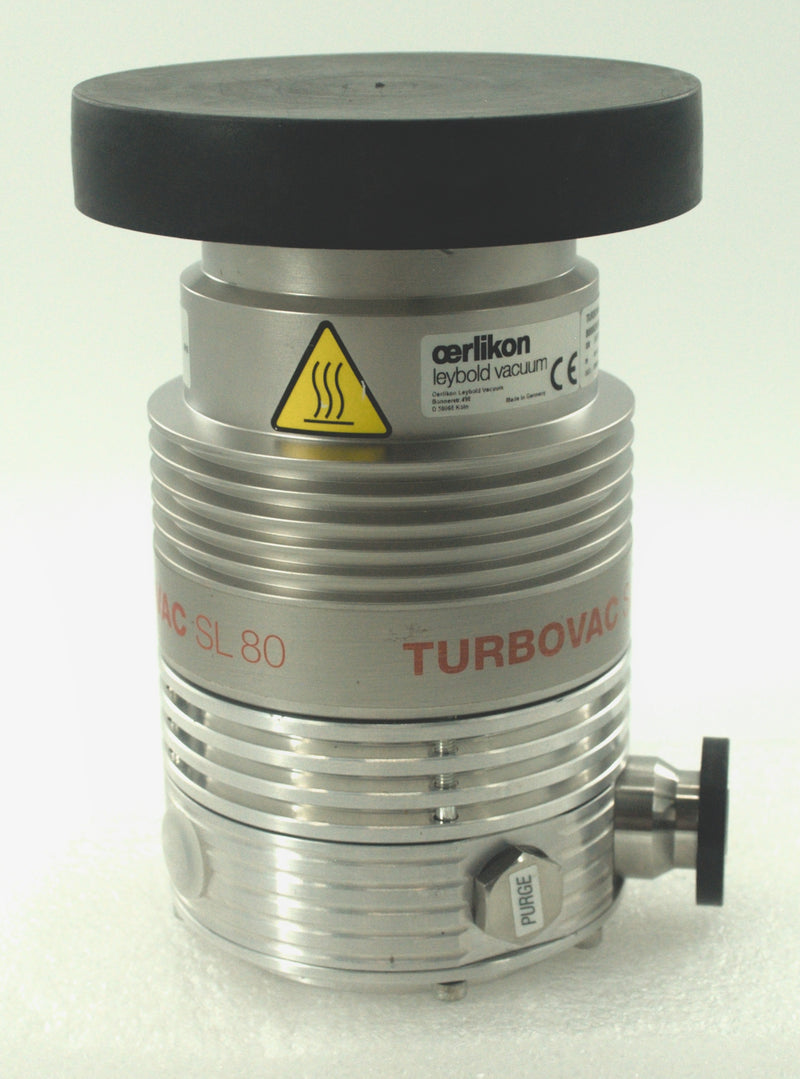

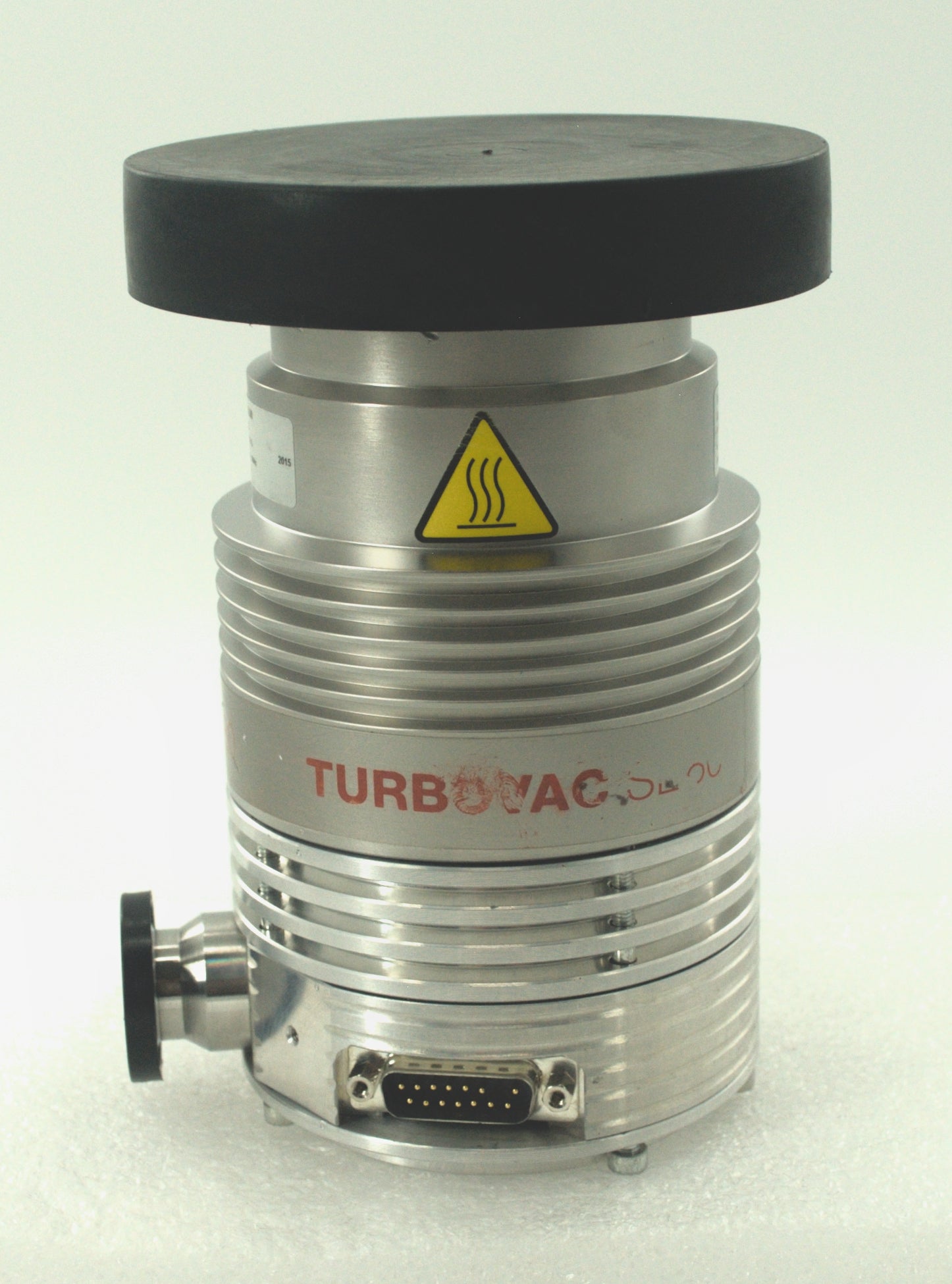

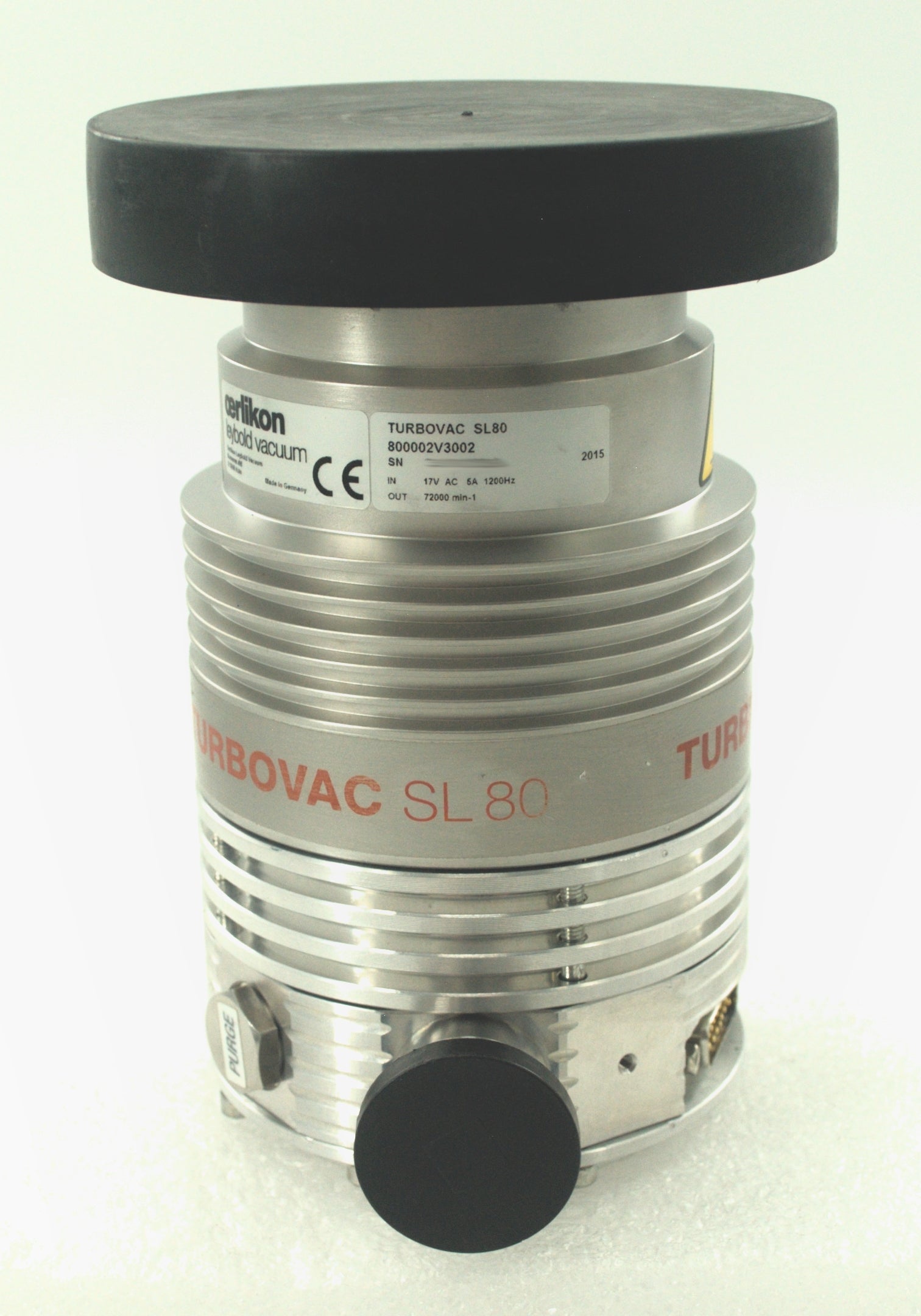

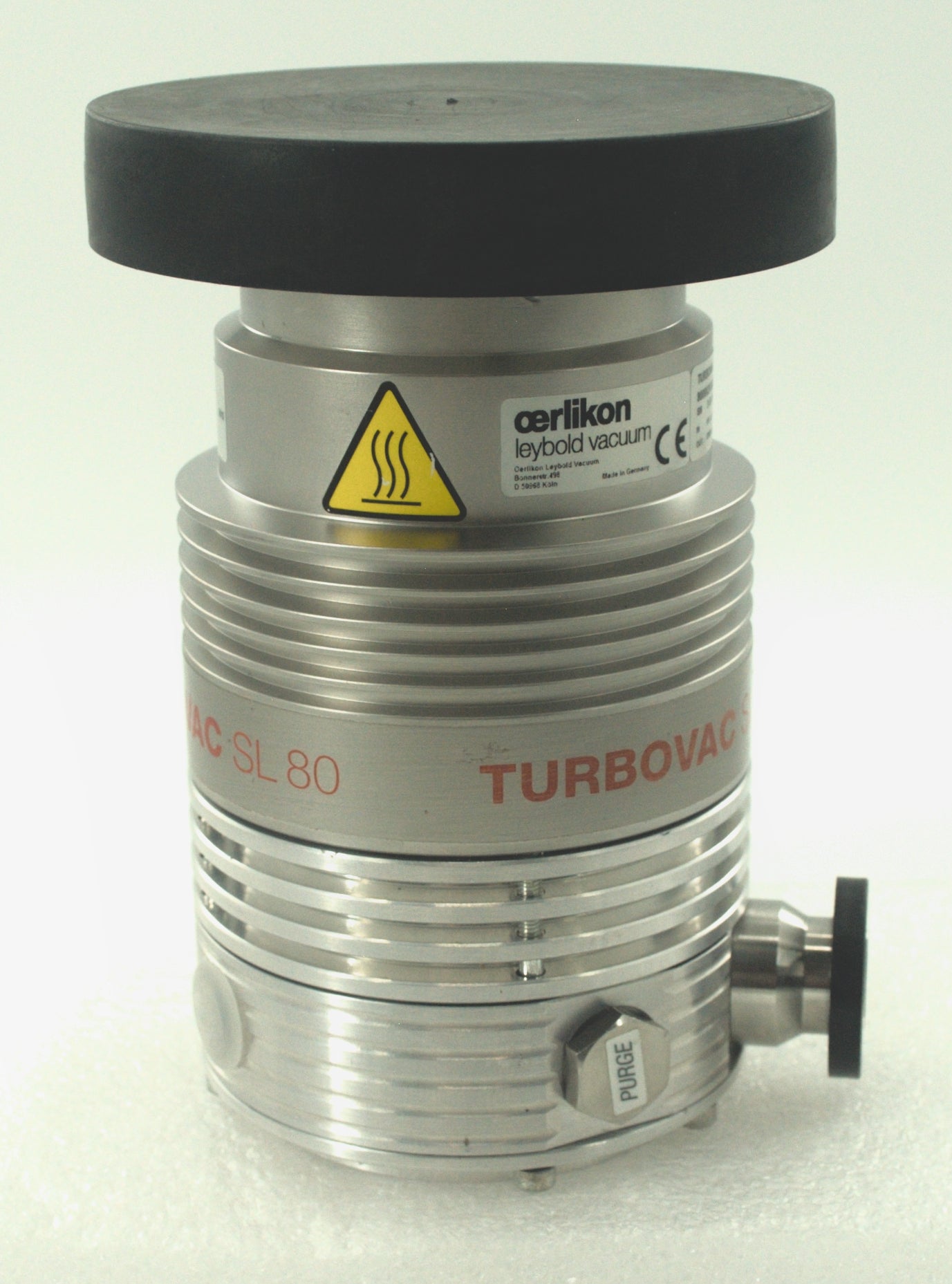

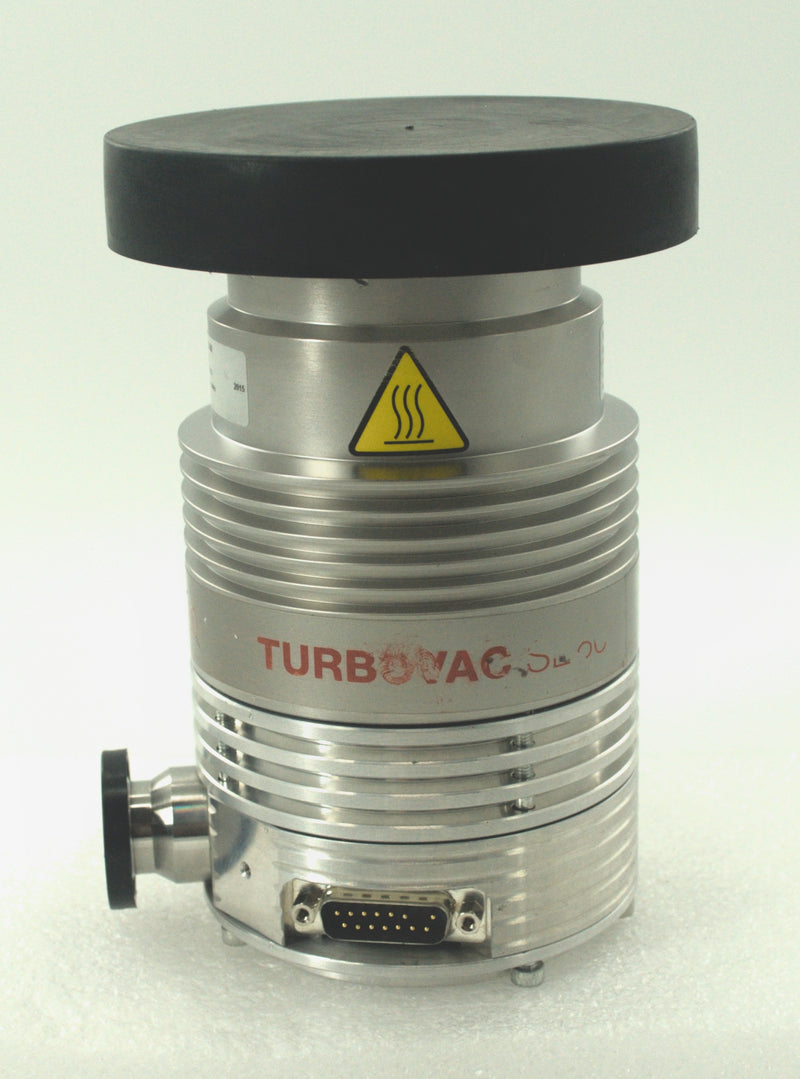

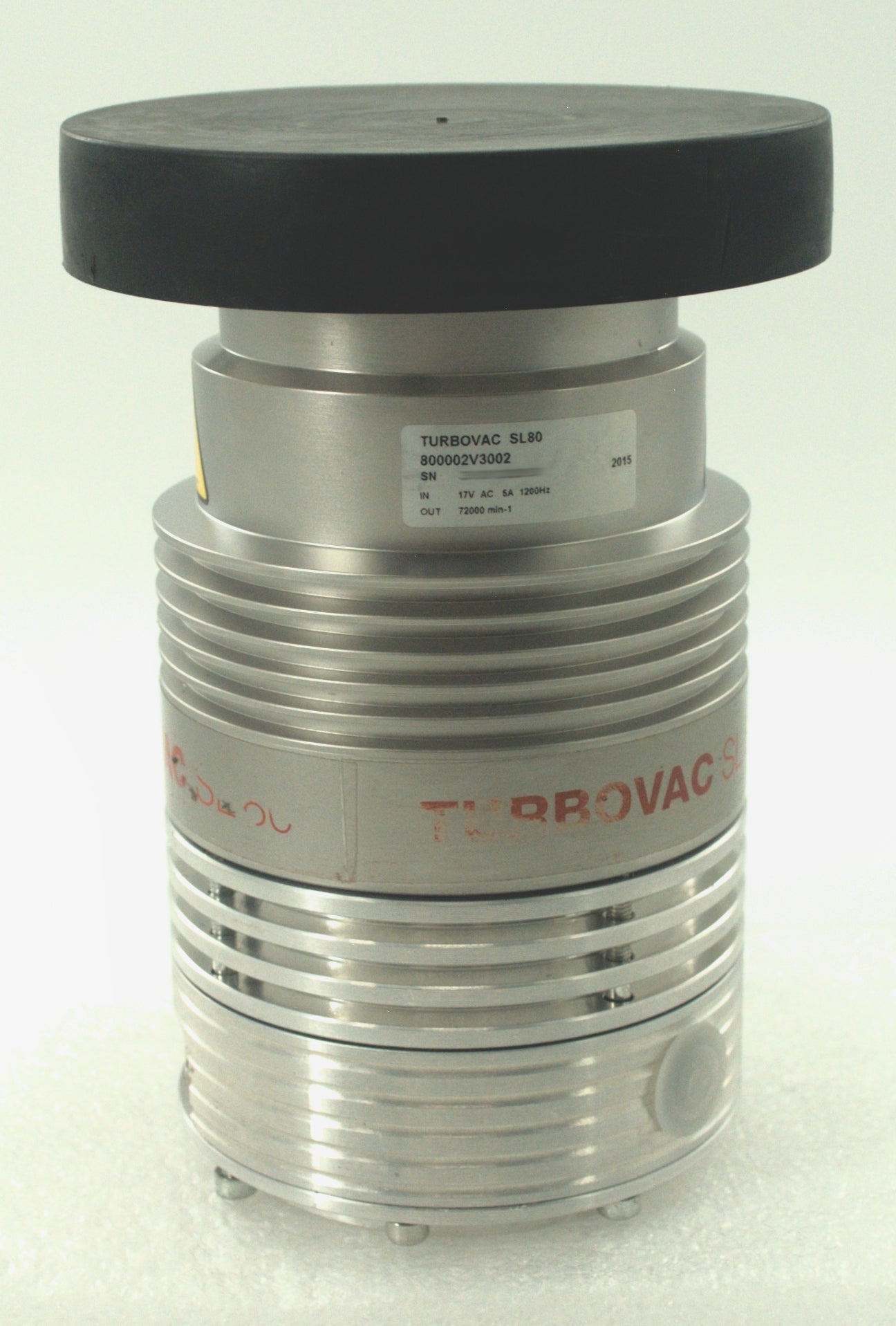

The Leybold TURBOVAC SL 80 is a compact, premium-line mechanical bearing turbomolecular pump engineered to deliver reliable, oil-free high and ultra-high vacuum (UHV) conditions. Designed with precision multi-stage rotor blade geometry and an integrated Holweck molecular drag stage, the SL 80 provides exceptional light-gas compression ratios and a high foreline pressure tolerance of up to 20 mbar.

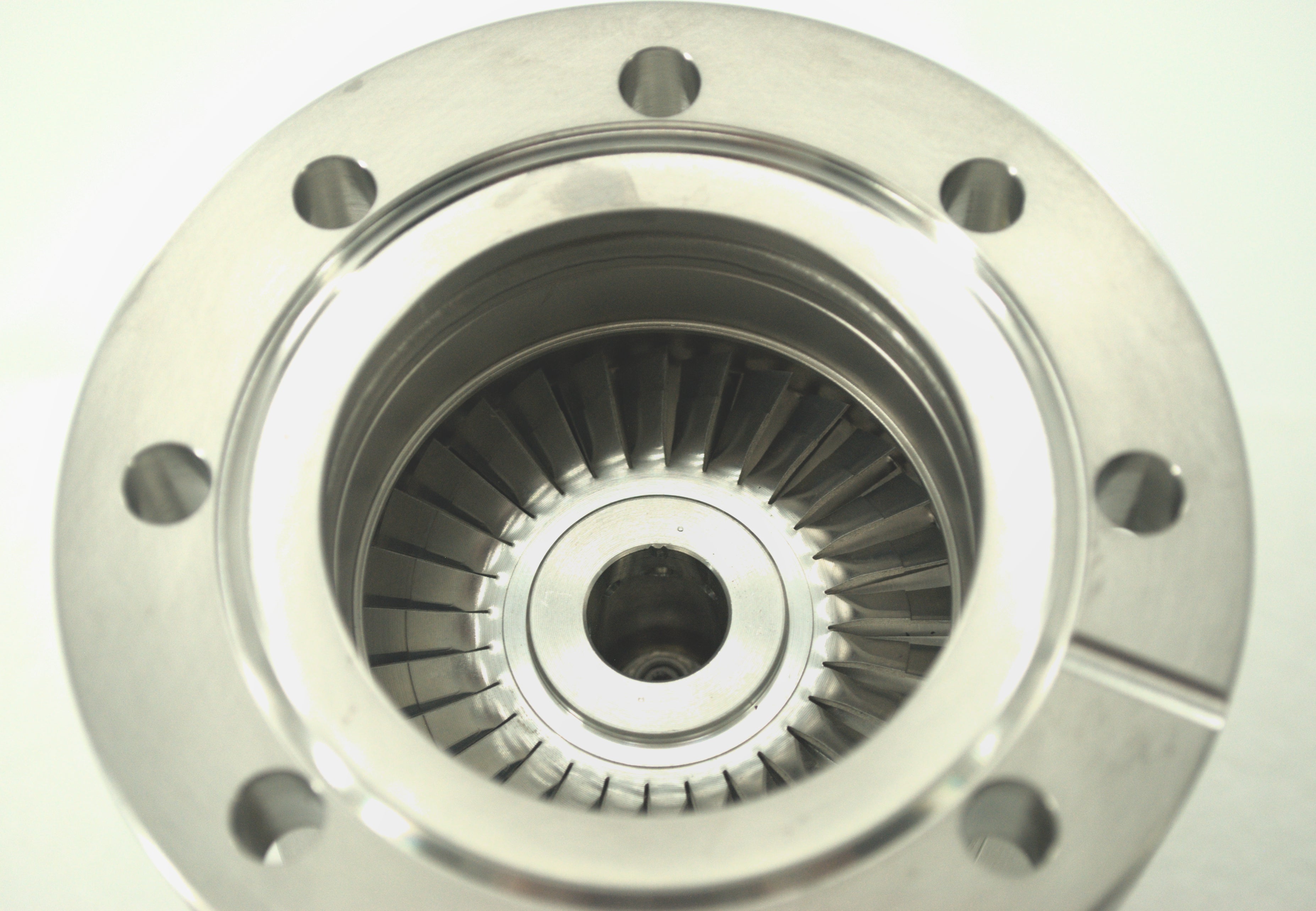

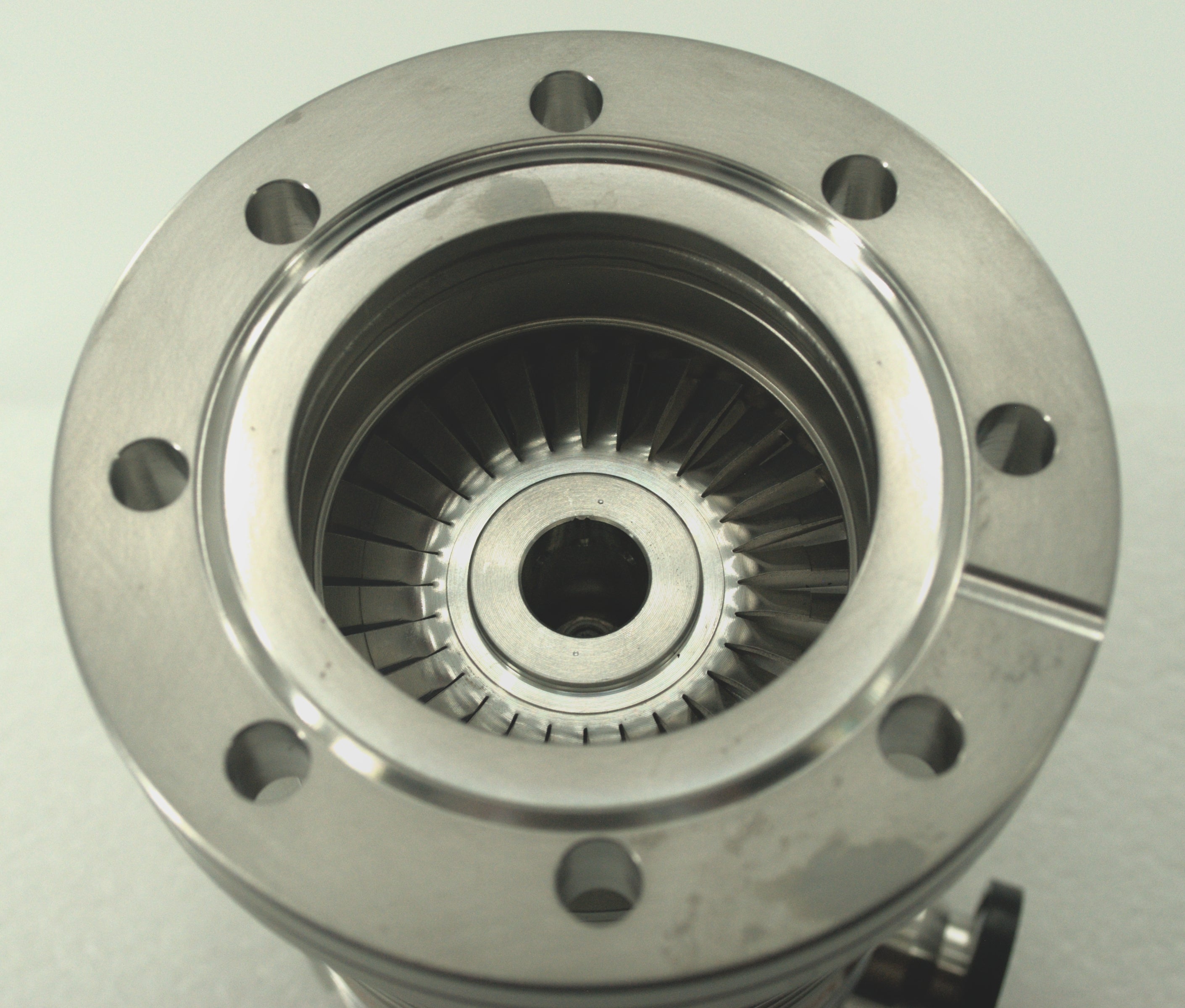

This specific configuration, Part Number 800002V3002, features a DN 63 CF (4.50" OD) ConFlat high-vacuum inlet flange. This metal-sealed, ultra-clean knife-edge flange allows the pump to be fully baked out, enabling the system to reach deep UHV pressures down into the $10^{-10}$ mbar range. The pump utilizes lifetime grease-lubricated ceramic ball bearings, allowing for vibration-free operation and highly flexible installation configurations.

Part Number (MPN): 800002V3002
Inlet Flange (High Vacuum): DN 63 CF (4.50" OD)
Outlet Flange (Fore-Vacuum): DN 16 ISO-KF
Lubrication System: Dry, lifetime-lubricated ceramic bearings
Required Controller: TURBO.DRIVE TD 400 series

Key Features & Benefits

True UHV Performance: Equipped with an all-metal ConFlat inlet flange, minimizing outgassing and enabling ultimate pressures as low as $2.0 \times 10^{-10}$ mbar ( $1.5 \times 10^{-10}$ Torr).
High Foreline Tolerance: The secondary Holweck drag stage accommodates backing line pressures up to 20 mbar(15 Torr), allowing it to work seamlessly with smaller backing pumps.
Arbitrary Orientation Mounting: Unique mechanical suspension design allows the pump to be operated in any installation angle or orientation without performance penalties.
Split-Cage DC Motor: Windings are separated from the vacuum zone by a vacuum-tight can wall, eliminating electrical feedthrough risks and preventing process contamination.
Purge & Vent Ready: Built-in purge gas facility allows the injection of a clean sealing gas stream to safeguard mechanical internals during sensitive operations.

Technical Specifications

Parameter	Specification
Pumping Speed ( $N_2$ )	65 l/s
Pumping Speed ( $Ar$ )	60 l/s
Pumping Speed ( $He$ )	55 l/s
Pumping Speed ( $H_2$ )	49 l/s
Ultimate Pressure (CF Flange)	$2.0 \times 10^{-10}$ mbar ( $1.5 \times 10^{-10}$ Torr)
Compression Ratio ( $N_2$ )	$1.0 \times 10^{11}$
Compression Ratio ( $H_2$ )	$4.0 \times 10^{4}$
Max Foreline Pressure ( $N_2$ )	20.0 mbar (15.0 Torr)
Nominal Frequency / Speed	1,200 Hz / 72,000 rpm
Ramp-Up / Start Time	90 seconds (1.5 min)
Max Total Rated Power	190 W
Cooling Profile	Forced Air / Convection / Optional Water
Sound / Noise Level	$\le$ 46 dB(A)
Weight	3.10 kg (6.82 lbs)

Typical Applications

Thanks to its small footprint, high backing tolerance, and clean ConFlat design, the SL 80 is heavily utilized across precision fields:

Analytical Instrumentation: High-end Mass Spectrometry architectures (GC-MS, LC-MS, Q-TOF) and portable analytical systems.
Gas Diagnostics: Residual Gas Analyzers (RGAs) and mobile helium leak detection carts.
Thin-Film R&D: Physical Vapor Deposition (PVD), desktop optical coating, and photovoltaic testing rigs.
Surface Science: Ultra-high vacuum transfer hubs, beamlines, and electron-beam microscopy instrumentation.
