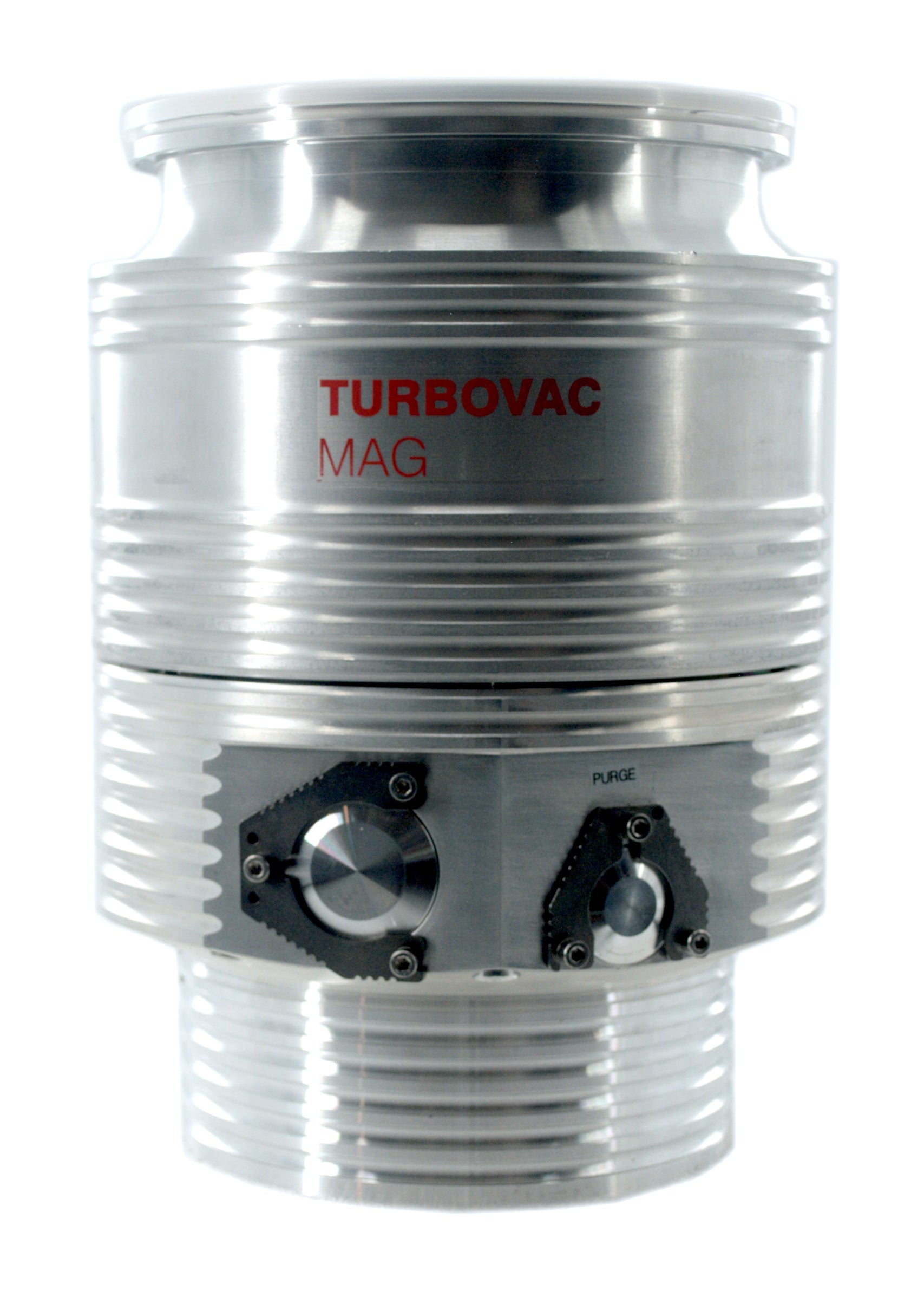

Leybold Turbovac MAG W 600 iP Turbomolecular Pump

Name: Leybold Turbovac MAG W 600 iP Turbomolecular Pump
Brand: Leybold
Price: 7795.00 USD
Availability: InStock

Part Number: 410600V0525

Condition: Refurbished

In Stock

The Leybold Turbovac MAG W 600 iP is an ultra-clean, high-capacity turbomolecular vacuum pump employing a advanced 5-axis active magnetic rotor suspension system. Engineered specifically for highly vibration-sensitive and high-throughput environments—such as electron microscopy, mass spectrometry, and semiconductor process lines—this pump delivers completely oil-free, hydrocarbon-free high to ultra-high vacuum (UHV).

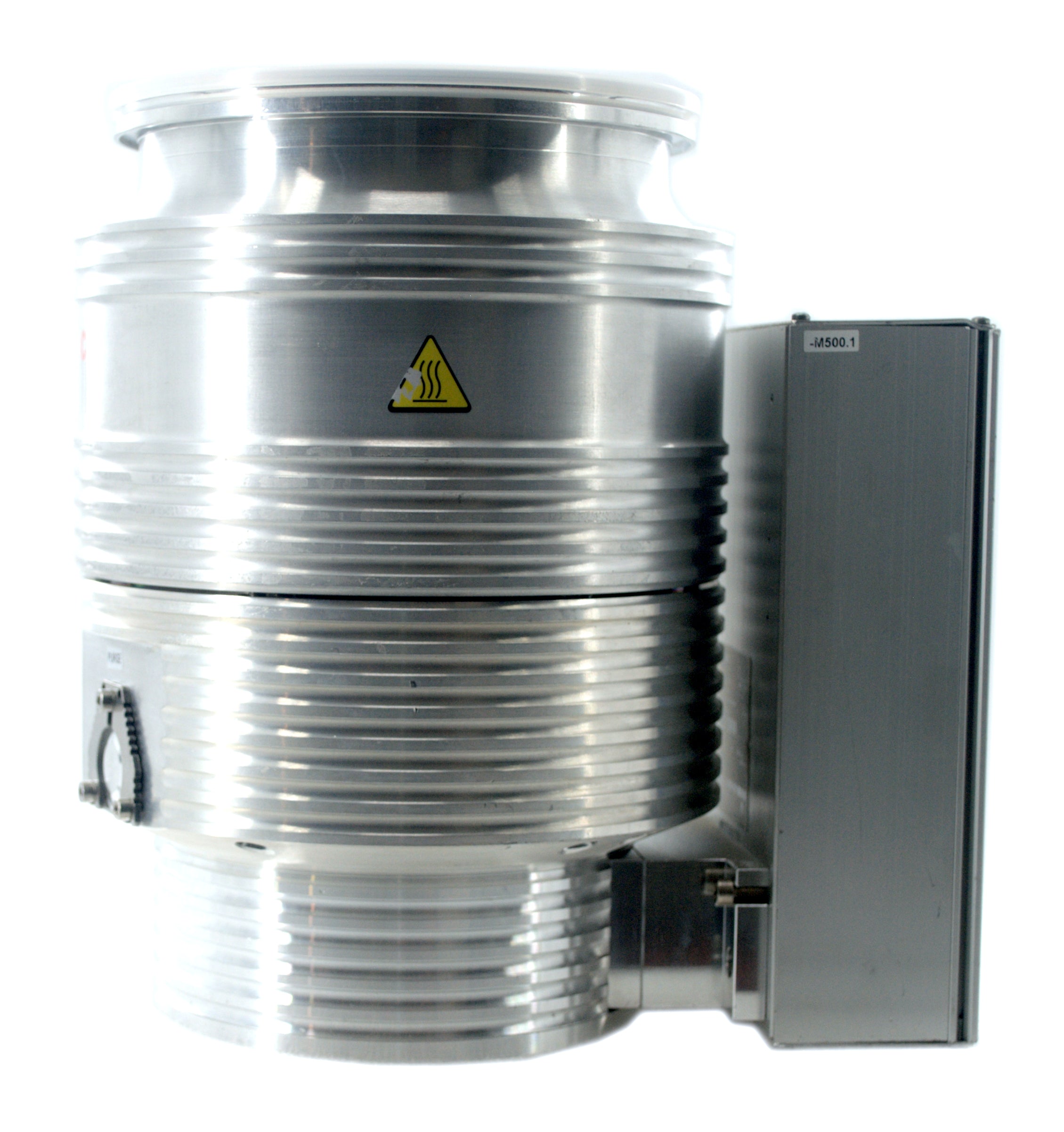

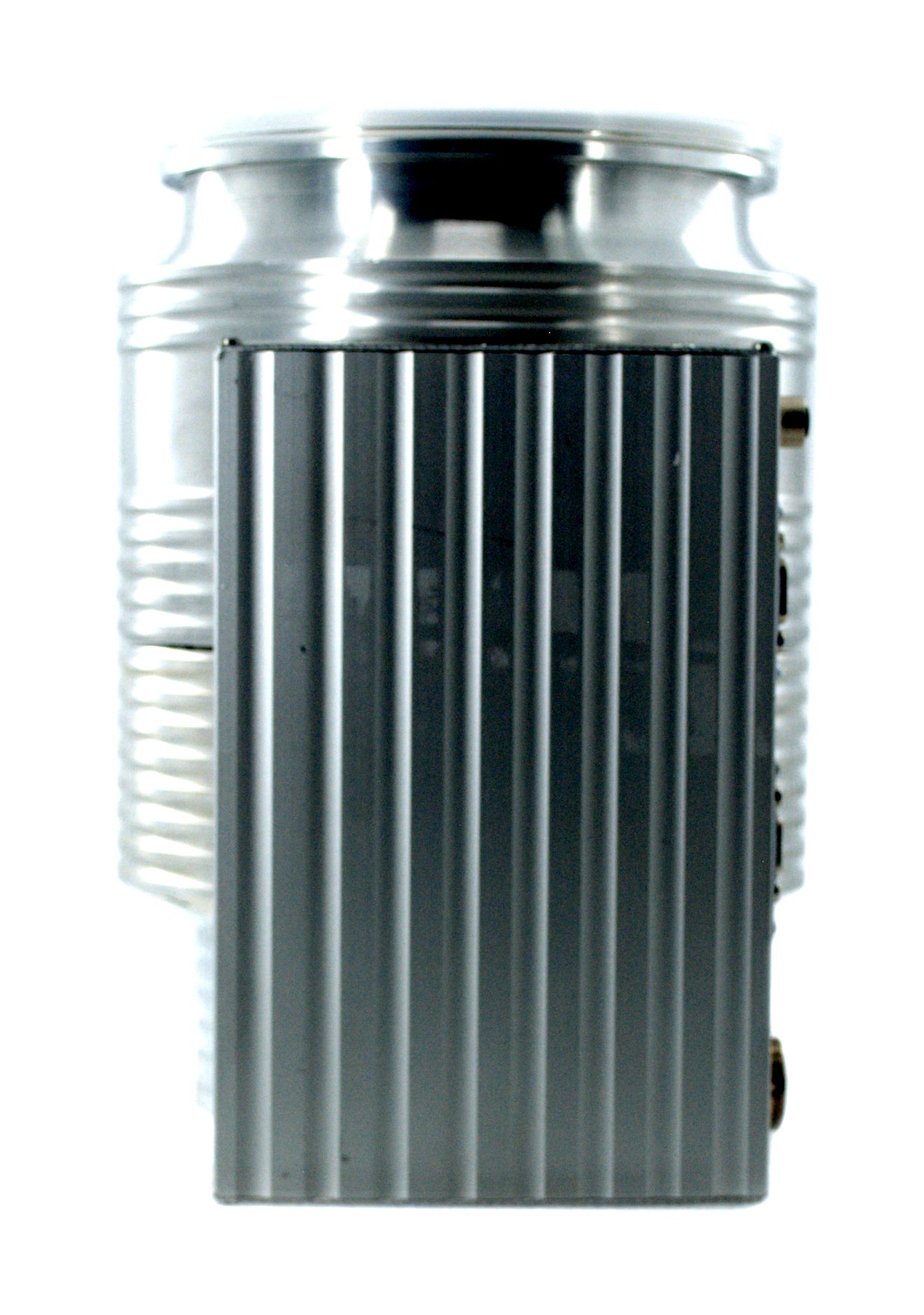

The "iP" designation marks this model as a member of Leybold's premier integrated platform, featuring a fully onboard frequency converter drive and integrated purge/vent ports built directly into the pump base. By packing all active electronics into the bottom footprint, the MAG W 600 iP entirely eliminates the need for external, rack-mounted controllers and thick, high-frequency interconnect umbilical lines.

Fully Integrated Frequency Converter: Space-saving, true plug-and-play architecture allows rapid installation and tool optimization without consuming rack room.
Active 5-Axis Magnetic Bearings: Zero mechanical contact friction guarantees maintenance-free operations and removes background vibration harmonics entirely.
Integrated Purge/Vent Valve Port: Features a built-in DN 16 KF connection for introducing inert barrier gases, safeguarding internal components during complex processes.
Modular Industrial Communication: Equipped with versatile communication slots accommodating multi-protocol industrial interfaces for simplified system integration.
Generator Safety Braking Mode: In the event of an abrupt facility power failure, the drive system automatically transitions into an inductive generator mode, using the rotor's kinetic deceleration to keep the magnetic bearing suspended safely down to a stop.

Technical Specifications

Parameter	Specification
Manufacturer	Leybold Vacuum (Germany)
Model	Turbovac MAG W 600 iP
Common Factory Part Numbers	410600V0505 (ISO-K 160) \| 410600V0506 (DN 160 CF) \| 410600V0525 (Water-Cooled variant)
High-Vacuum Inlet Flange	DN 160 ISO-K or DN 160 CF (8" ConFlat)
Foreline / Backing Connection	DN 25 ISO-KF (Clamped)
Integrated Purge/Vent Port	DN 16 ISO-KF (Clamped shoe layout)
Pumping Speed ( $N_2$ )	550 L/s
Pumping Speed ( $Ar$ / $He$ )	$520\text{ L/s}$ / $570\text{ L/s}$
Pumping Speed ( $H_2$ )	$410\text{ L/s}$
Compression Ratio ( $N_2$ )	$1.6 \times 10^{10}$
Ultimate Pressure (CF Flange)	$< 1.0 \times 10^{-10}\text{ mbar}$ ( $< 7.5 \times 10^{-11}\text{ Torr}$ )
Ultimate Pressure (ISO Flange)	$< 1.0 \times 10^{-8}\text{ mbar}$ ( $< 0.75 \times 10^{-8}\text{ Torr}$ )
Nominal Rotational Speed	$48,000\text{ RPM}$
Ramp-Up / Start-up Time	$\approx 6\text{ minutes}$
Max Power Consumption	$400\text{ W}$ ( $100\text{ W}$ at idle/ultimate base pressure)
Cooling Profile	Ambient Convection Base (Optional Air Fan or Integrated G 1/8" Water Block)
Communication Protocols	9-Pin 24V PLC I/O (Standard) \| Supports Ethernet, Profibus, RS-232, RS-485
Weight	$17\text{ kg}$ ( $37.5\text{ lbs}$ )
