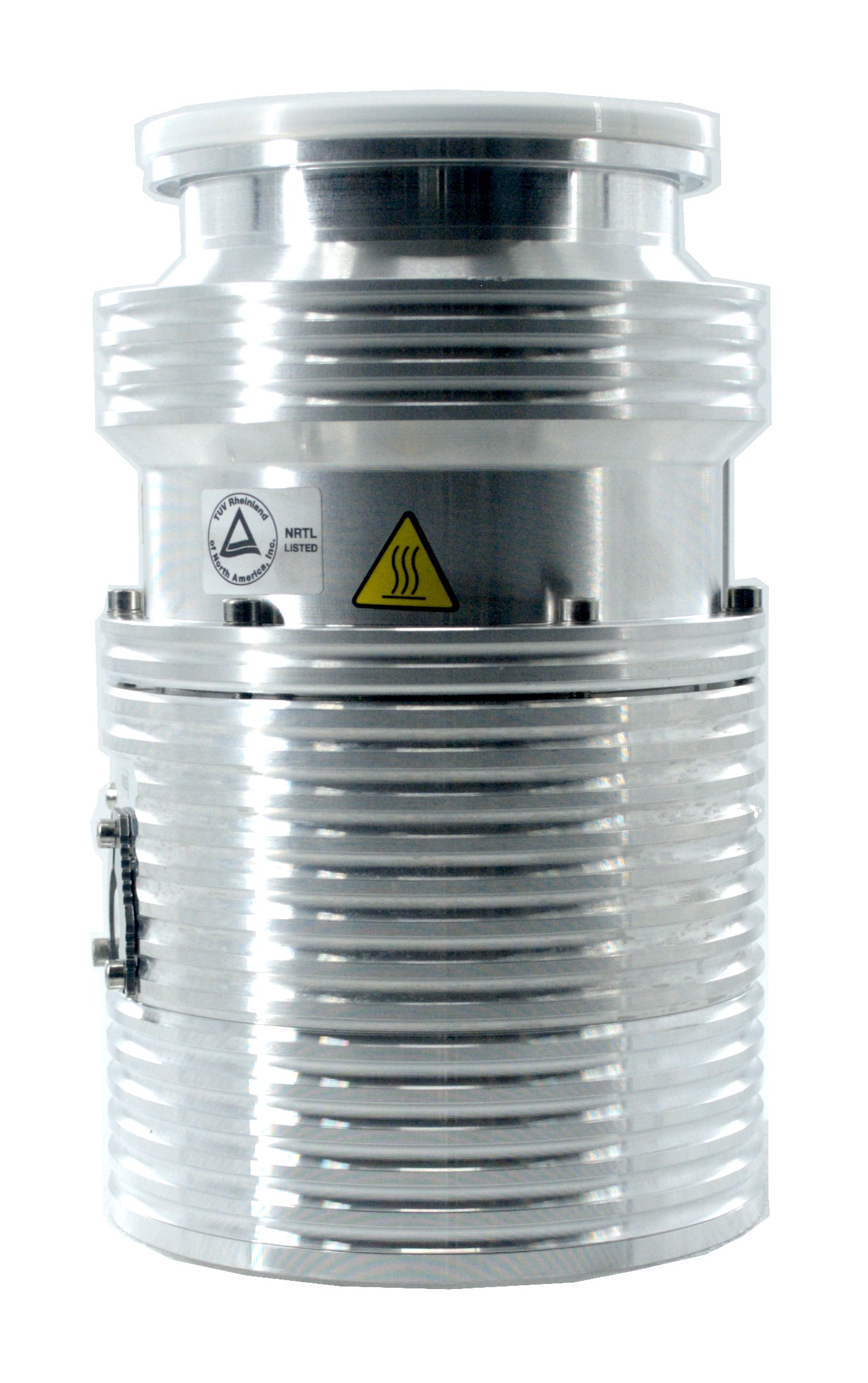

Leybold Turbovac MAG W 300 P Turbomolecular Pump

Name: Leybold Turbovac MAG W 300 P Turbomolecular Pump
Brand: Leybold
Price: 5999.00 USD
Availability: InStock

Part Number: 410300V0005

Condition: Refurbished

In Stock

The Leybold Turbovac MAG W 300 P is a premium, high-performance turbomolecular vacuum pump utilizing an active magnetic rotor suspension system. Engineered for highly sensitive, zero-vibration, and oil-free environments, the MAG W 300 P provides a clean, hydrocarbon-free high to ultra-high vacuum environment.

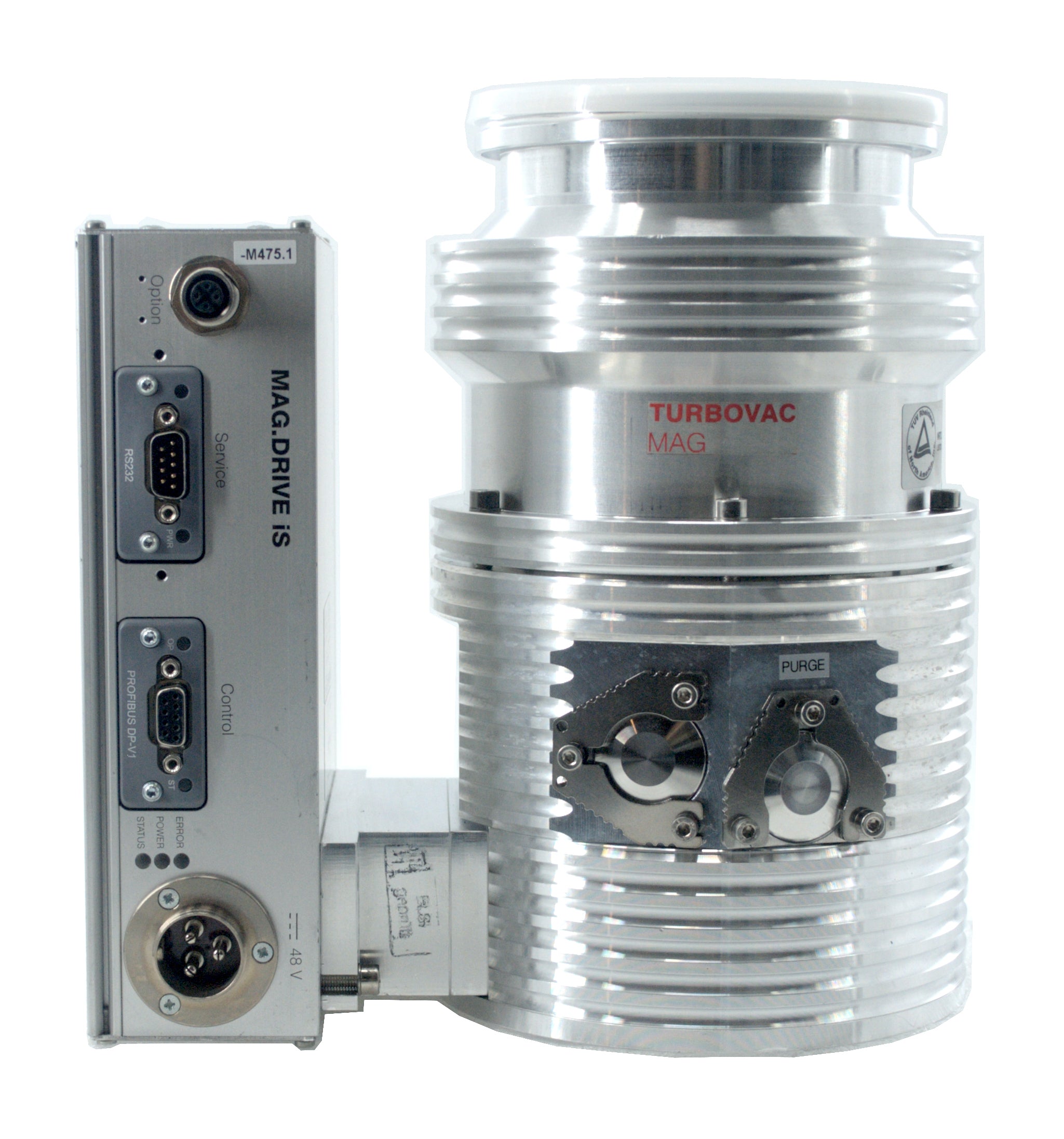

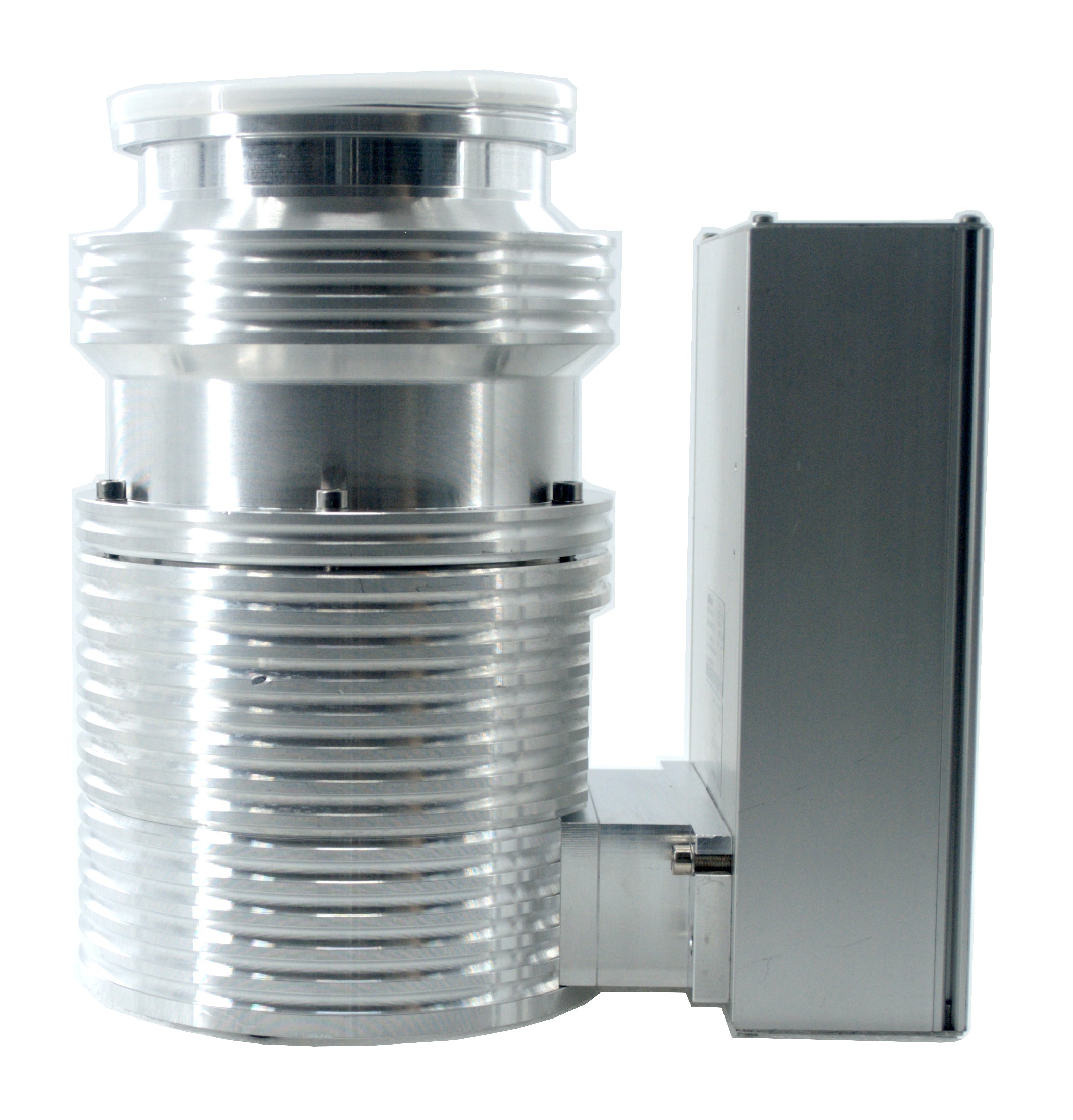

The "P" variant features an integrated frequency converter drive electronics system mounted directly to the pump base. This compact configuration completely eliminates the need for bulky, rack-mounted external controller enclosures and specialized, long interconnecting high-frequency cable harnesses, dramatically streamlining tool integration. Armed with an active 5-axis magnetic levitation system, the rotor experiences zero mechanical friction or bearing wear, keeping background vibration harmonics virtually non-existent.

Fully Integrated Frequency Converter: True plug-and-play architecture drastically reduces the installation footprint and system complexity.
Active Magnetic Levitation: 5-axis magnetic suspension guarantees zero mechanical contact, zero wear, and maintenance-free longevity.
Ultra-Clean, Oil-Free Vacuum: Complete elimination of mechanical bearing lubricants ensures absolute safety from hydrocarbon backstreaming.
Excellent Gas Throughput: Delivers exceptional compression ratios and sustained pumping speeds ideal for analytical tools and load-lock transfers.
Versatile Mounting Position: Can be operated safely at any physical angle or mounting orientation.

Technical Specifications

Parameter	Specification
Manufacturer	Oerlikon Leybold Vacuum (Germany)
Model	Turbovac MAG W 300 P
Common Factory Part Numbers	410300V0005 (ISO-K 100) \| 410300V0006 (DN 100 CF)

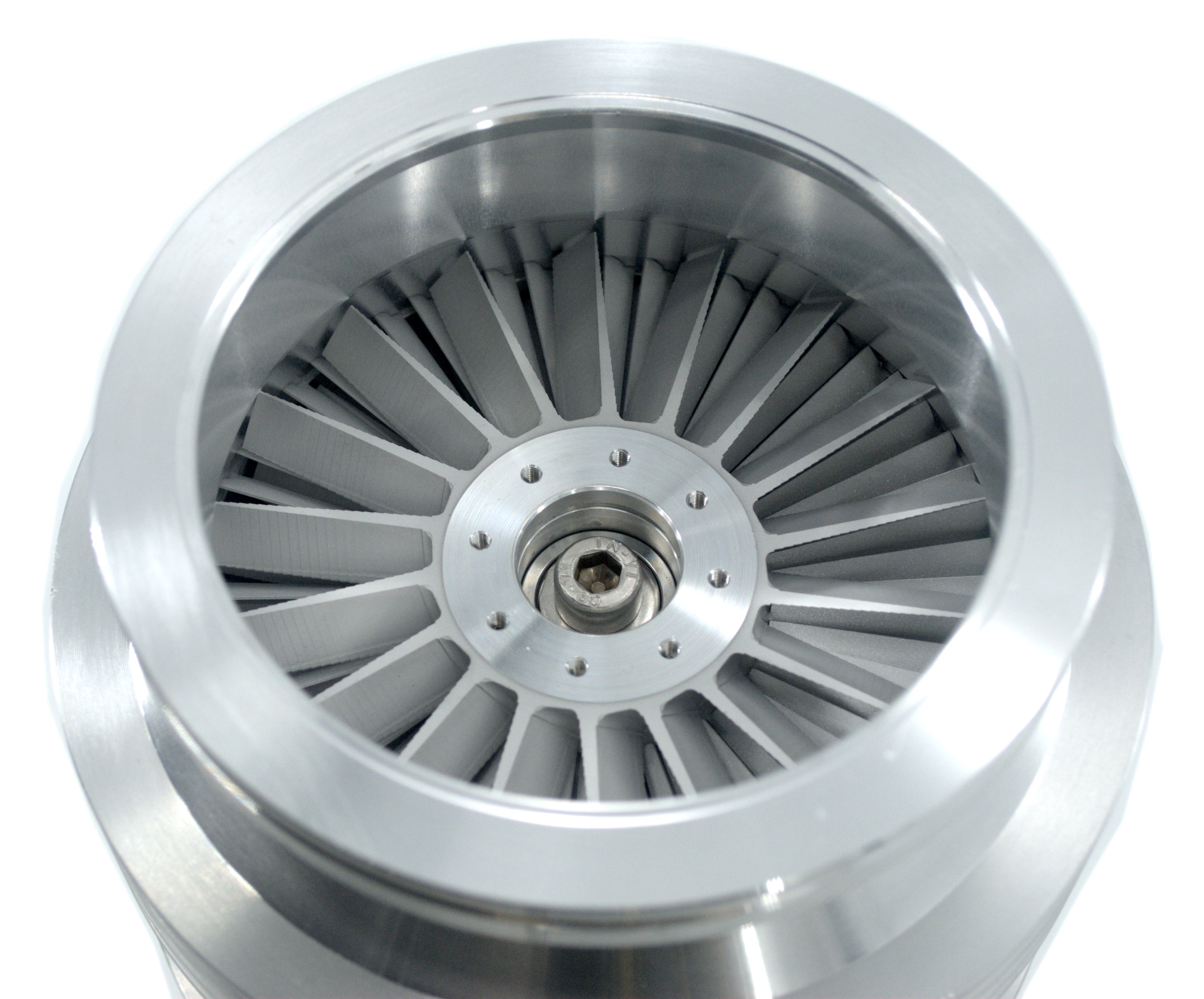

High-Vacuum Inlet Flange	DN 100 ISO-K or DN 100 CF
Foreline / Backing Connection	DN 16 ISO-KF
Pumping Speed ( $N_2$ )	300 L/s
Pumping Speed ( $Ar$ / $He$ )	$260\text{ L/s}$ / $260\text{ L/s}$
Pumping Speed ( $H_2$ )	$190\text{ L/s}$
Compression Ratio ( $N_2$ )	$1.0 \times 10^{10}$
Ultimate Pressure (CF Flange)	$< 1.0 \times 10^{-10}\text{ mbar}$
Ultimate Pressure (ISO Flange)	$< 1.0 \times 10^{-8}\text{ mbar}$
Nominal Rotational Speed	$58,800\text{ RPM}$
Ramp-Up / Start-up Time	$\le 5\text{ minutes}$
Max Power Consumption	$400\text{ W}$
Standard Cooling Topology	Ambient Convection (Supports optional forced air or water blocks)
Weight	$13\text{ kg}$ ( $28.6\text{ lbs}$ )
