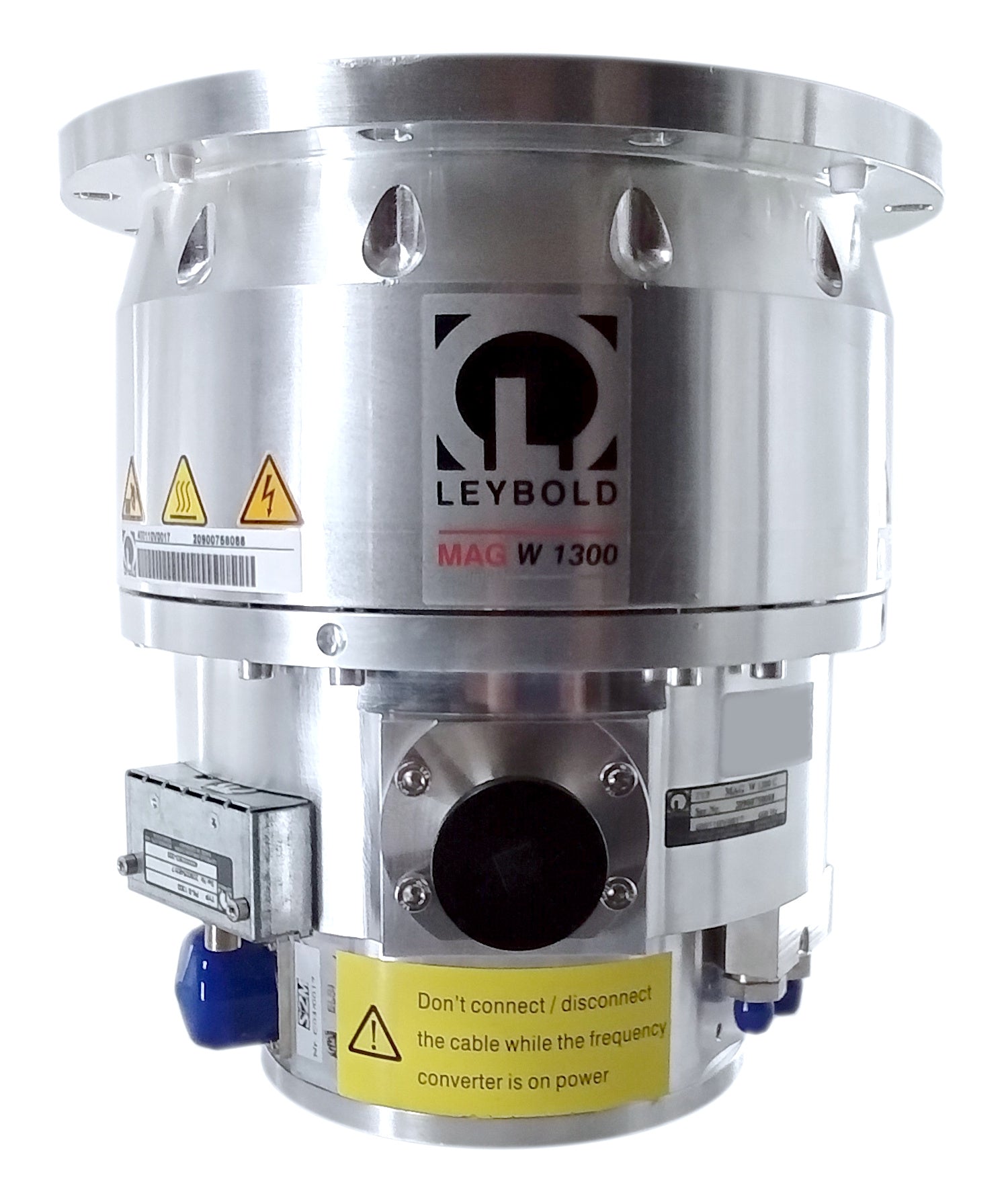

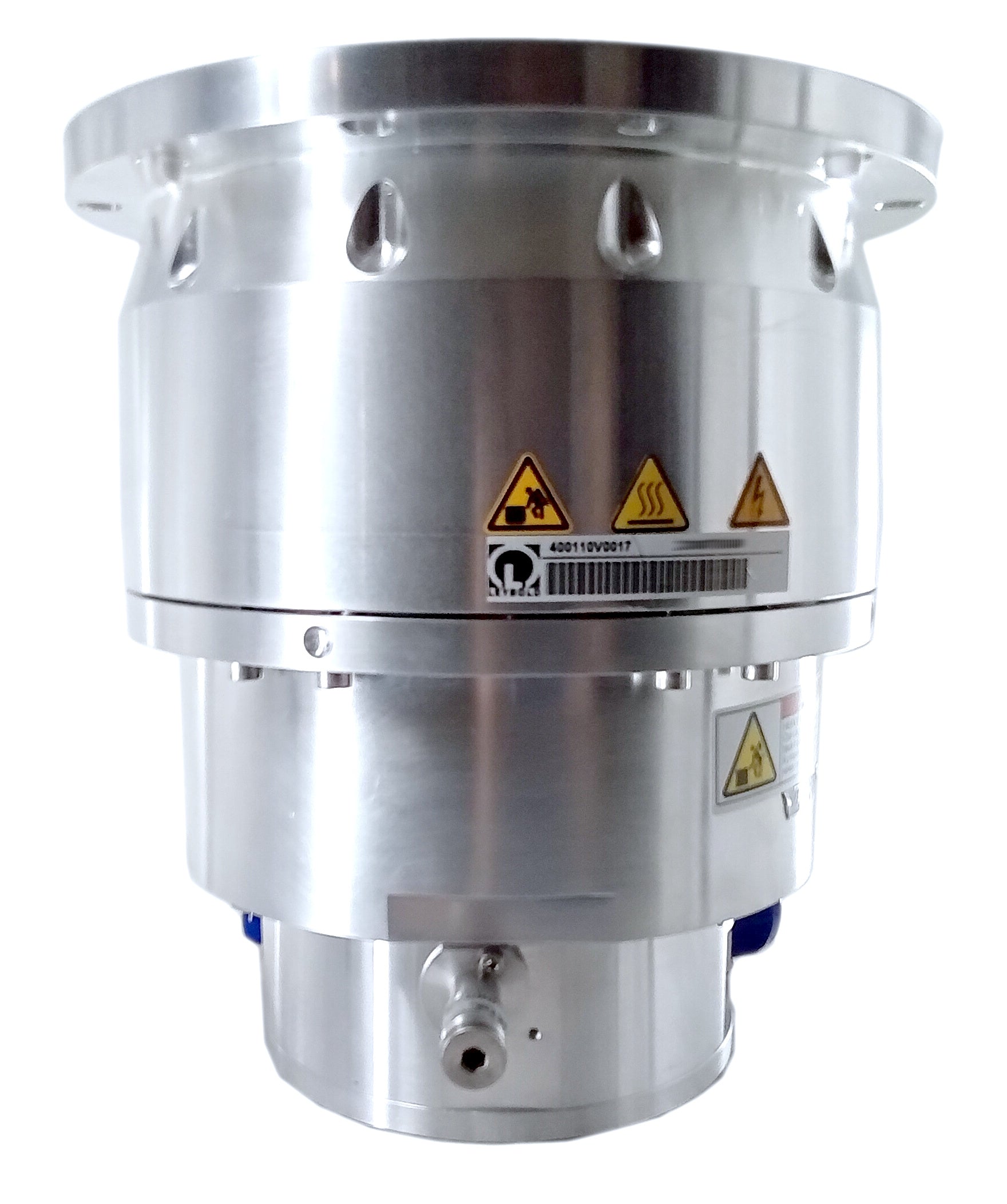

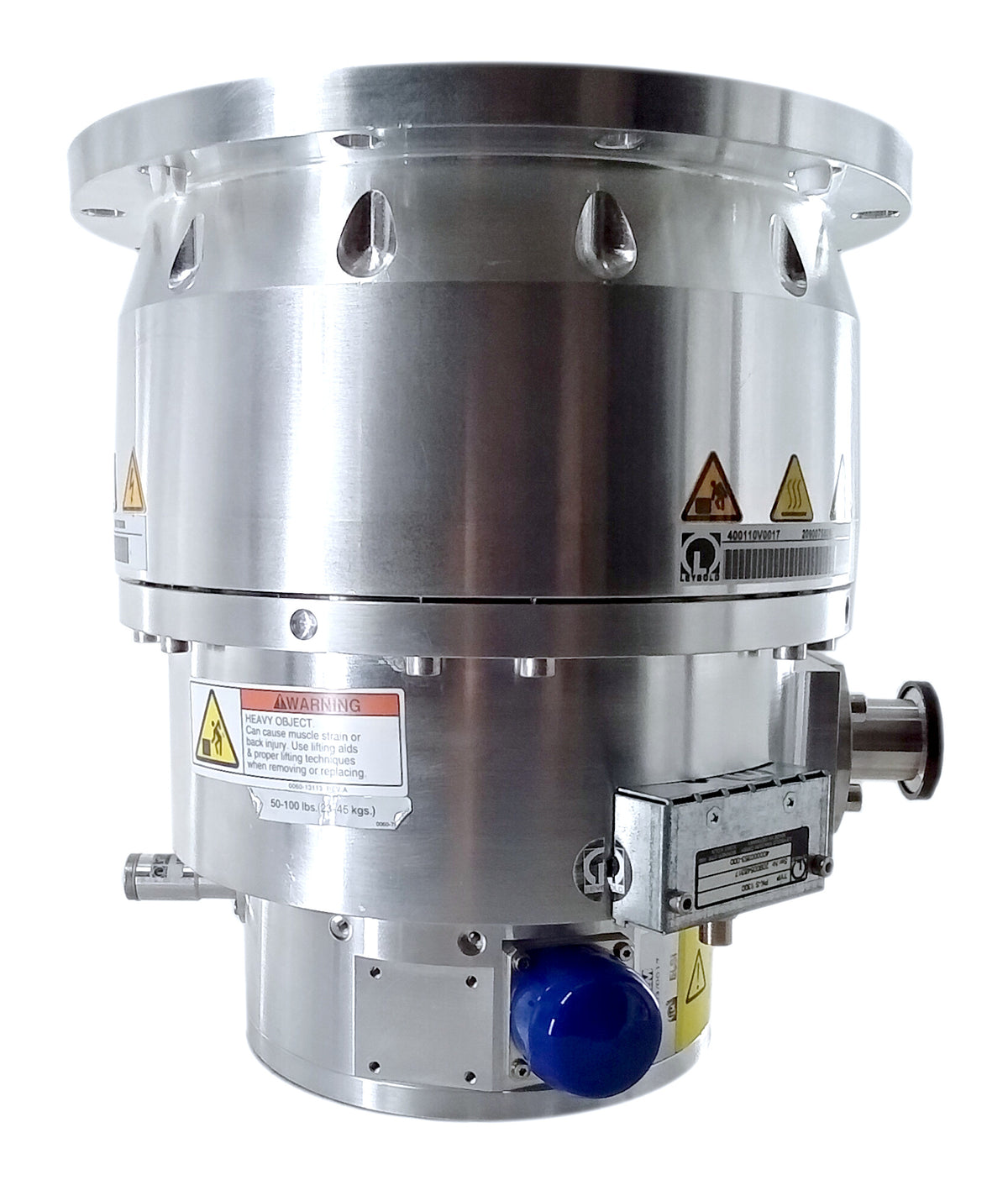

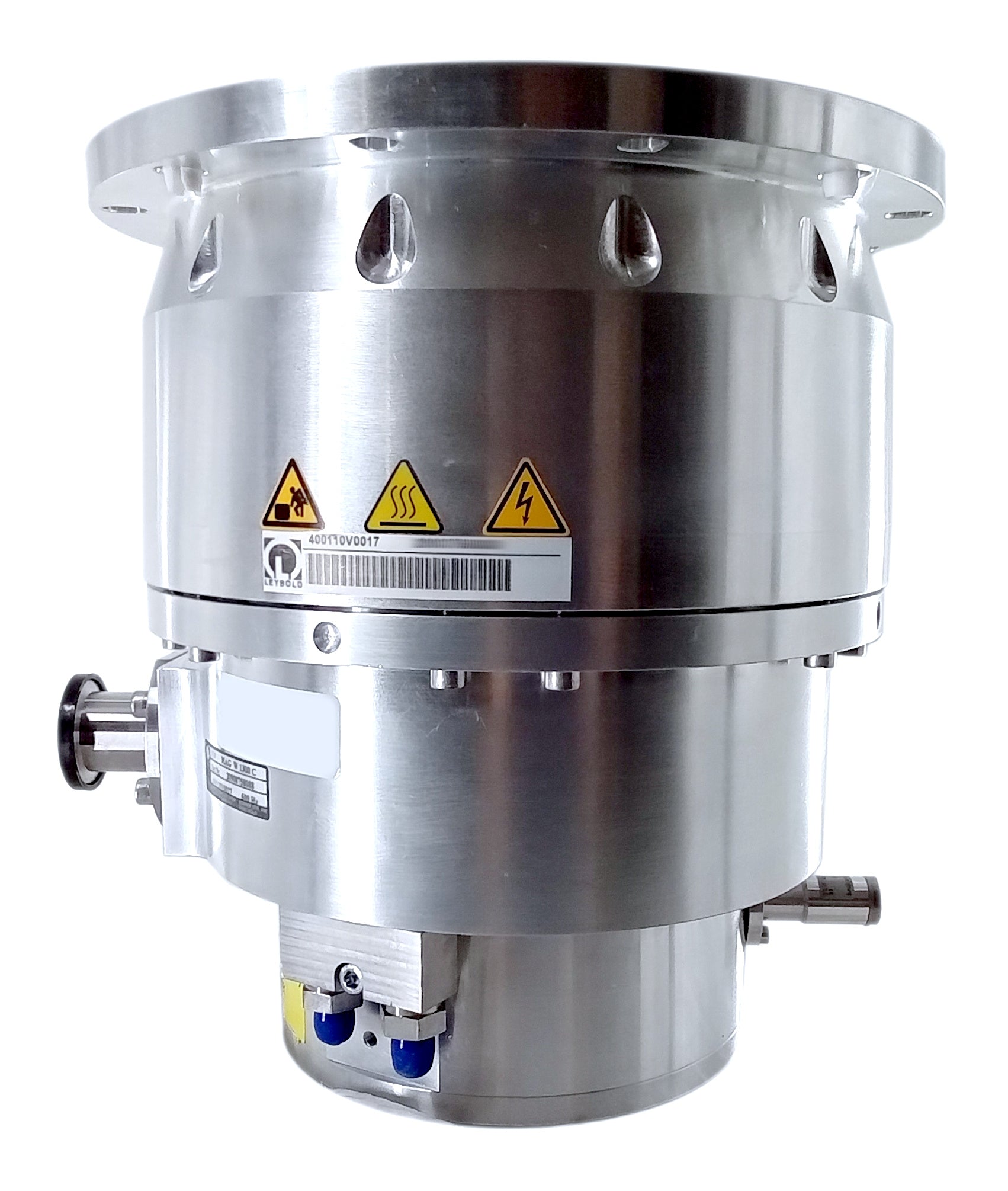

Leybold TURBOVAC MAG W 1300 C Turbomolecular Pump

Name: Leybold TURBOVAC MAG W 1300 C Turbomolecular Pump
Brand: Leybold
Price: 13749.00 USD
Availability: InStock

Part Number: 400110V0017

Condition: Refurbished

In Stock

The Leybold TURBOVAC MAG W 1300 C is a high-performance, magnetically levitated turbomolecular pump designed to deliver hydrocarbon-free, ultra-clean high vacuum for demanding semiconductor, industrial coating, and research applications. Equipped with a 5-axis active magnetic bearing system, it operates completely contact-free to eliminate mechanical wear, oil contamination, and operational vibration. The "C" series variant features specialized anti-corrosion protective coatings and gas-purge integration, making it ideal for aggressive process gas environments and continuous high-throughput duty cycles.

Technical Specifications

Parameter	Specification Details
Part Number	400110V0017
Model	TURBOVAC MAG W 1300 C
Inlet Flange	DN 200 CF / DN 200 ISO-F / ISO-200K Options
Outlet Flange	DN 40 ISO-KF (KF40)
Pumping Speed (N2)	1,300 L/s
Pumping Speed (Ar)	1,250 L/s
Pumping Speed (H2)	1,100 L/s
Ultimate Pressure	< 1.0 x 10⁻¹⁰ mbar (< 7.5 x 10⁻¹¹ Torr)
Bearing System	5-Axis Active Magnetic Levitation
Cooling Method	Water Cooled
Nominal Rotation Speed	33,000 RPM (550 Hz)
Compatible Controller	Leybold TURBOVAC MAG.DRIVE Digital / MAG.DRIVE IS Series
Dimensions	Approx. 14.8" H x 11.8" Outer Diameter (375 mm x 300 mm)
Weight	~92.5 lbs (42 kg)
