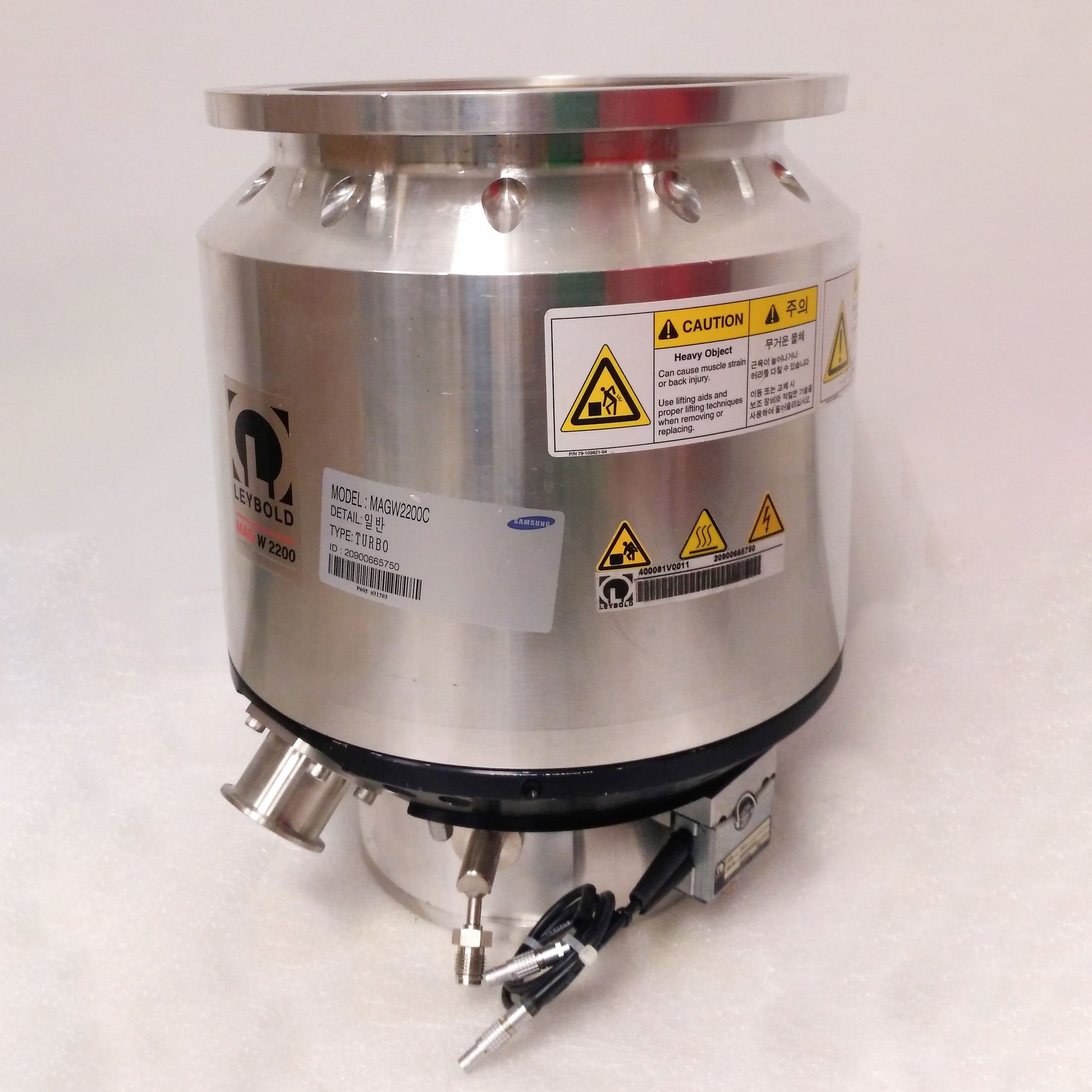

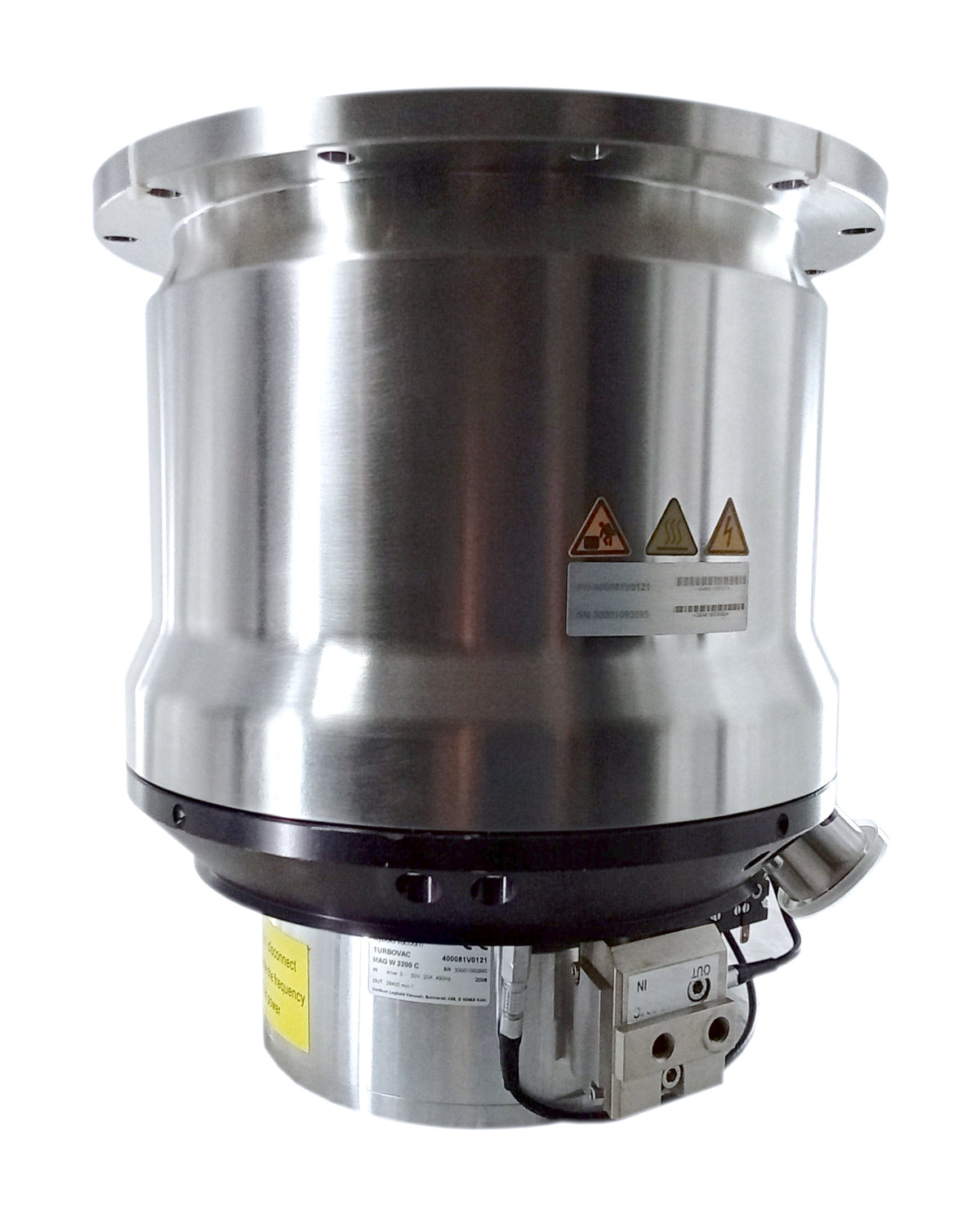

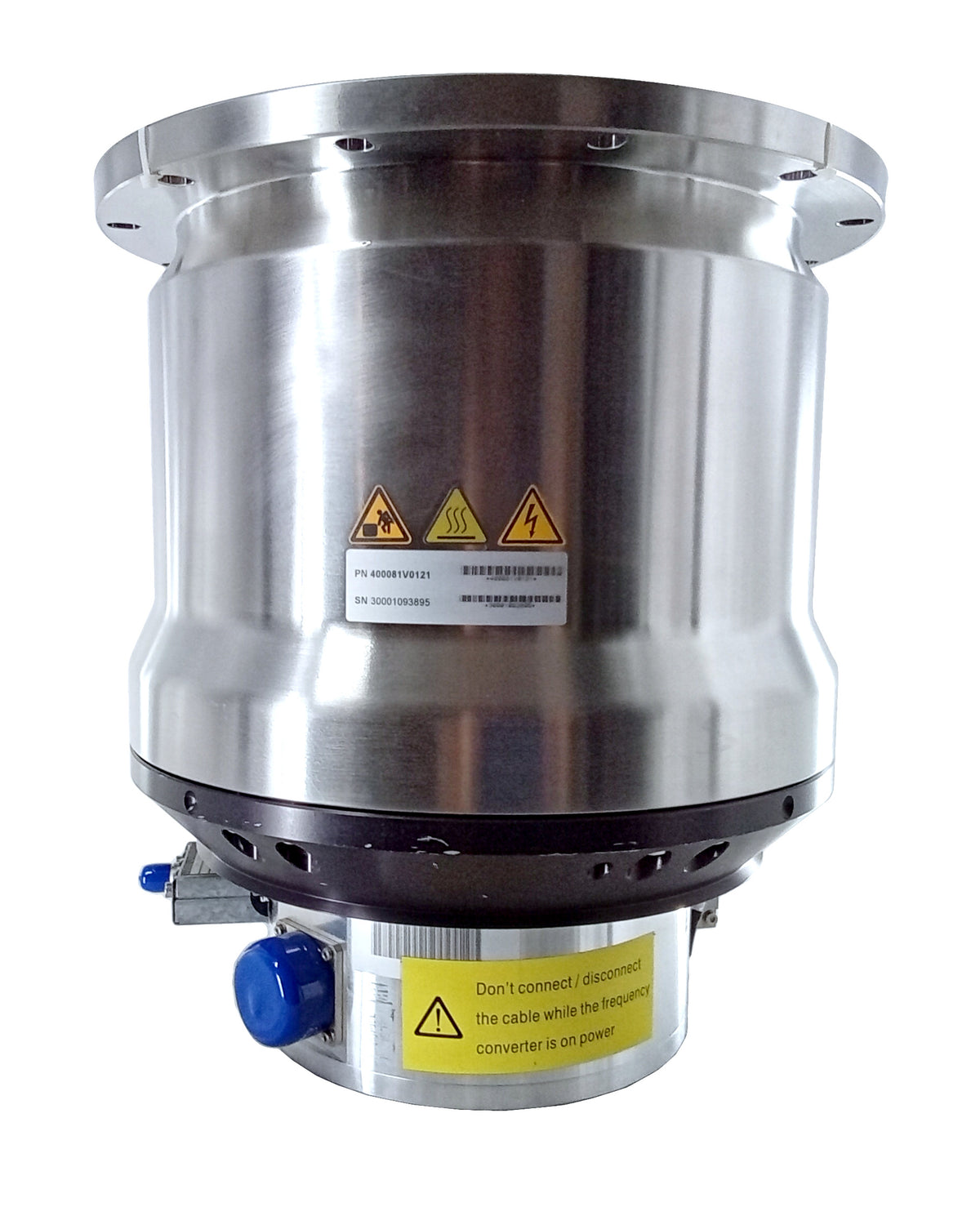

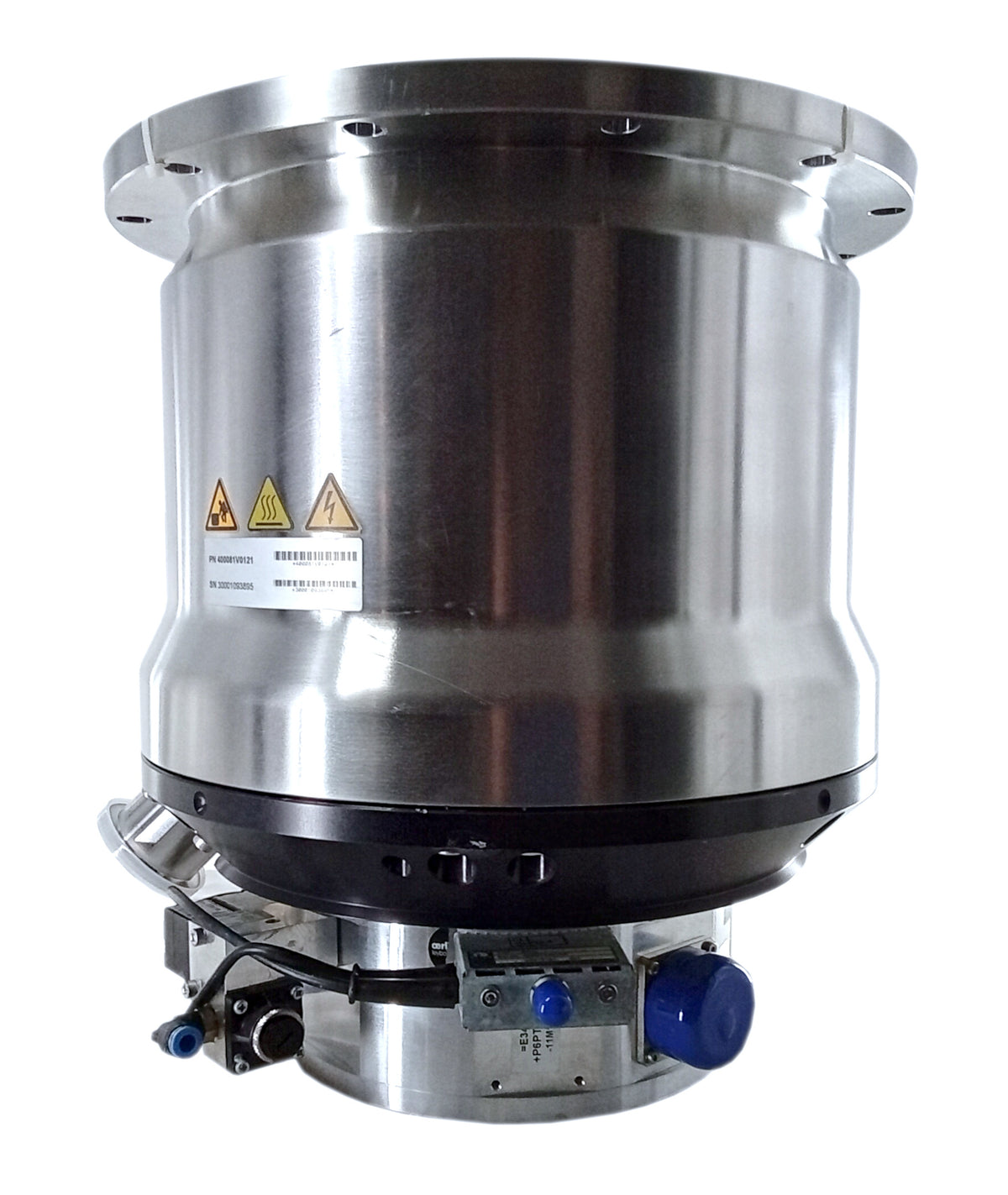

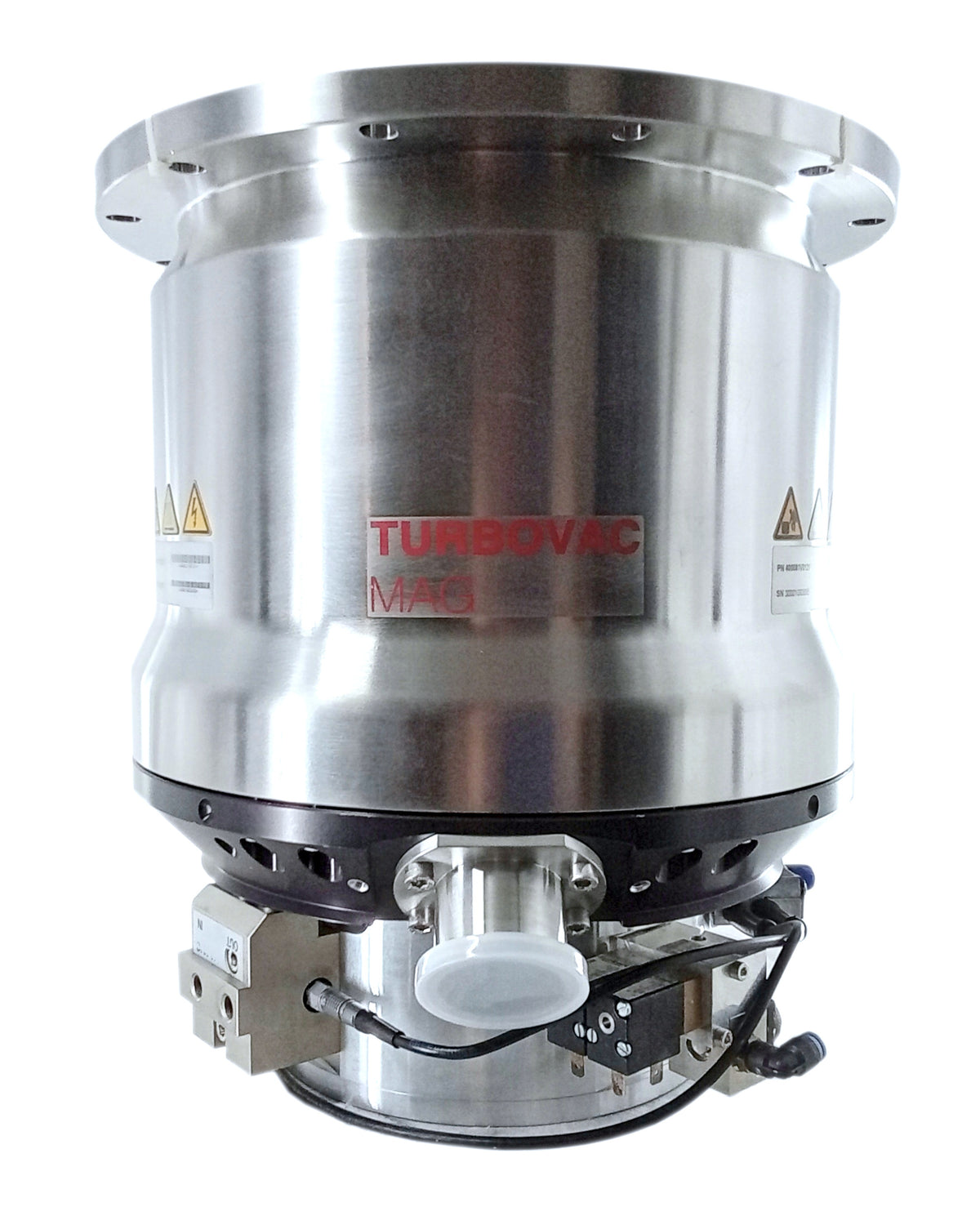

Leybold MAG W 2200 C Turbomolecular Pump

Name: Leybold MAG W 2200 C Turbomolecular Pump
Brand: Leybold
SKU: Leybold 400081V0121 Refurbished
Price: 21875.00 USD
Availability: InStock

Part Number: 400081V0121

Condition: Refurbished

In Stock

The Leybold TURBOVAC MAG W 2200 C is a high-capacity, magnetically levitated turbomolecular pump designed to deliver hydrocarbon-free, ultra-clean high vacuum for demanding semiconductor, thin-film coating, and research environments. Featuring a 5-axis active magnetic bearing system, it operates completely contact-free to eliminate mechanical wear, oil contamination, and vibration. The "C" series includes protective coatings and gas-purge capabilities engineered to handle aggressive process gases, while its high nitrogen compression ratios ensure fast chamber pump-down times and continuous process stability.

Technical Specifications

Parameter	Specification Details
Part Number	400081V0121
Model	TURBOVAC MAG W 2200 C

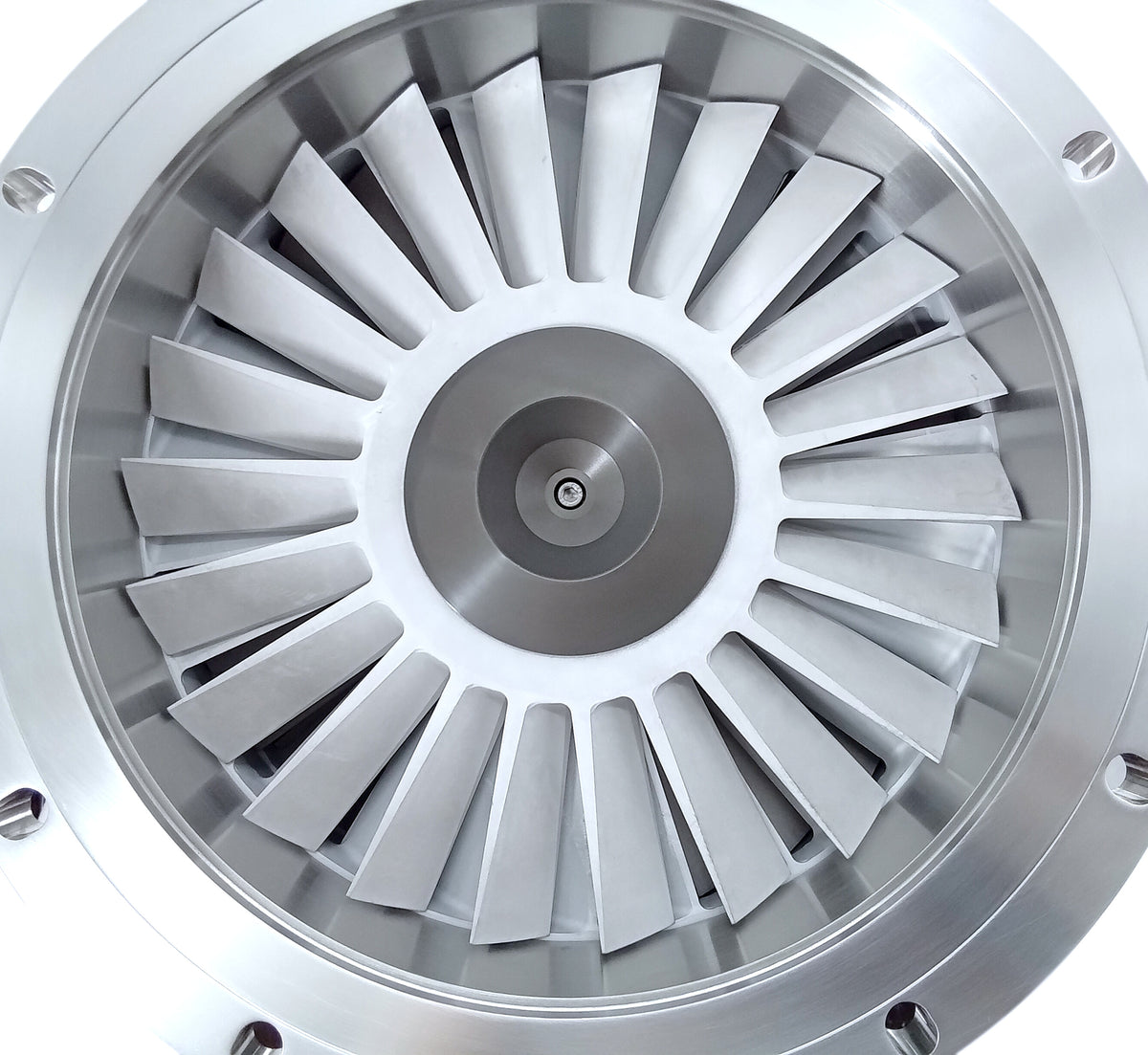

Inlet Flange	DN 250 CF / DN 250 ISO-F Options
Outlet Flange	DN 40 ISO-KF (KF40)
Pumping Speed (N2)	2,100 – 2,200 L/s
Ultimate Pressure	< 1.0 x 10⁻¹⁰ mbar (< 7.5 x 10⁻¹¹ Torr)
Bearing System	5-Axis Active Magnetic Levitation
Cooling Method	Water Cooled
Nominal Rotation Speed	29,400 RPM (490 Hz)
Compatible Controller	Leybold MAG.DRIVE Digital Series
Dimensions	Approx. 15.4" H x 13.8" Outer Diameter (392 mm x 350 mm)
Weight	132 lbs (60 kg)
