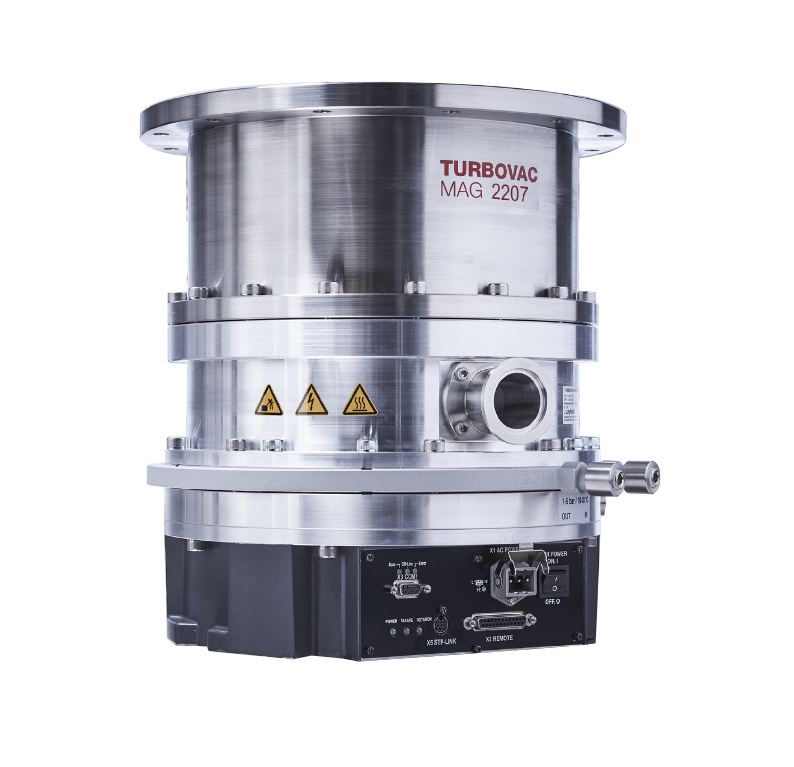

Leybold MAG 2207 iS

The Leybold MAG 2207 iS is a high-performance, magnetically levitated turbomolecular pump designed for applications requiring a completely hydrocarbon-free vacuum. This specific model (412200V7704) features a DN 250 ISO-K high-vacuum flange and the Profibus interface. As part of the "iS" (integrated Smart) series, the frequency converter and drive electronics are built directly into the pump body, significantly reducing the installation footprint and cabling complexity.

Key Features

• 5-Axis Magnetic Bearing System: Active magnetic levitation ensures the rotor is entirely suspended, resulting in zero mechanical wear, zero vibration, and no need for lubrication.

• Maintenance-Free: Because there are no ceramic bearings to wear out, this pump offers a significantly longer service life and lower total cost of ownership compared to mechanical turbo pumps.

• Integrated Drive Electronics: The onboard controller manages all pump functions and provides real-time monitoring via the digital interface.

• High Gas Throughput: Engineered for robust performance in semiconductor processing, thin-film coating, and high-energy physics research.

• Flexible Mounting: The magnetic bearing technology allows the pump to be mounted in any orientation, providing greater freedom in system design.

Technical Specifications
