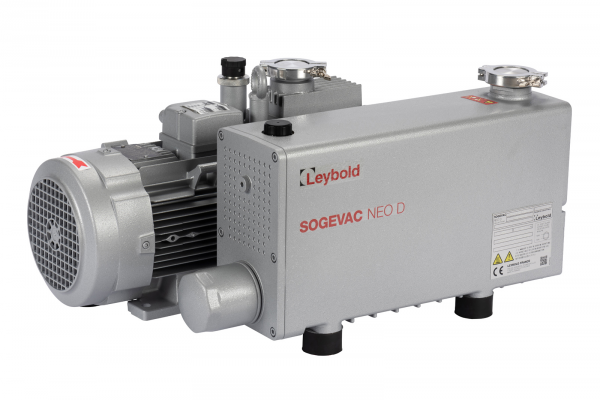

Leybold SOGEVAC NEO D65 Two-Stage Rotary Vane Vacuum Pump
The SOGEVAC NEO D65 represents the most powerful model in Leybold's next-generation vacuum technology lineup, delivering exceptional performance with innovative noise reduction technology. This advanced two-stage pump features an integrated exhaust demister and cutting-edge shaft seal technology, enabling up to three years of maintenance-free operation in clean applications. With its robust design and superior filtration system, the NEO D65 maintains whisper-quiet operation at just 58 dB(A) while delivering industry-leading pumping capacity.
|
Specification |
Details |
|
Nominal Pumping Speed |
89 m³/h (52.4 cfm) |
|
Operating Pumping Speed |
76 m³/h (44.7 cfm) |
|
Ultimate Pressure without Gas Ballast |
< 8 x 10⁻³ mbar (< 6 x 10⁻³ torr) |
|
Ultimate Pressure with Gas Ballast |
< 1 x 10⁻¹ mbar (< 0.75 x 10⁻¹ torr) |
|
Water Vapor Tolerance |
10 mbar (7.5 torr) |
|
Oil Capacity |
3.0 L (3.2 qt) |
|
Motor Power |
2.6 kW (3.5 HP) |
|
Noise Level |
58 dB(A) |
|
Weight |
88 kg (194 lbs) |
|
Voltage |
3-phase 230/460V |
|
Connection Flange |
DN 40 ISO-KF |
Engineered for continuous operation in demanding industrial environments, the NEO D65 excels in applications such as large-scale analytical instruments, industrial processes, and research laboratories. Its built-in filtration system eliminates the need for external exhaust filters while reducing oil loss by up to 100 times compared to conventional designs. The pump's innovative design ensures consistent performance from atmospheric pressure down to ultimate vacuum, making it ideal for applications requiring reliable high-capacity vacuum generation.
