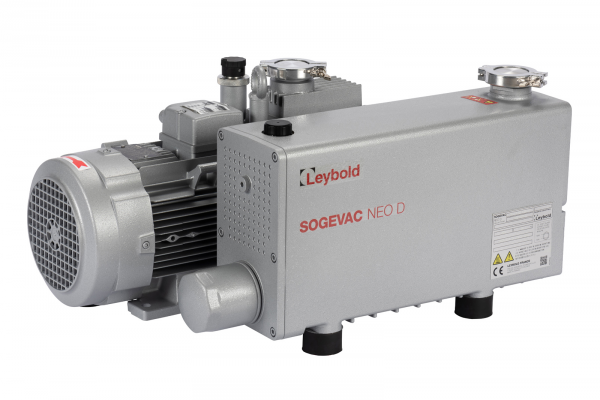

Leybold SOGEVAC NEO D40 Two-Stage Rotary Vane Vacuum Pump
The SOGEVAC NEO D40 sets a new standard in industrial vacuum technology with its innovative design and superior performance characteristics. This two-stage rotary vane pump combines exceptional pumping capacity with whisper-quiet operation at just 58 dB(A). Featuring advanced shaft seal technology and an integrated exhaust demister, the NEO D40 delivers up to three years of maintenance-free operation in clean applications, making it an ideal choice for demanding industrial environments.
|
Specification |
Details |
|
Nominal Pumping Speed |
56 m³/h (33.0 cfm) |
|
Operating Pumping Speed |
48 m³/h (28.3 cfm) |
|
Ultimate Pressure without Gas Ballast |
< 8 x 10⁻³ mbar (< 6 x 10⁻³ torr) |
|
Ultimate Pressure with Gas Ballast |
< 1 x 10⁻¹ mbar (< 0.75 x 10⁻¹ torr) |
|
Water Vapor Tolerance |
10 mbar (7.5 torr) |
|
Oil Capacity |
3.0 L (3.2 qt) |
|
Motor Power |
1.5 kW (2.0 HP) |
|
Noise Level |
58 dB(A) |
|
Weight |
80 kg (176 lbs) |
|
Voltage |
3-phase 230/460V |
|
Connection Flange |
DN 40 ISO-KF |
Engineered for continuous operation at any inlet pressure, the NEO D40 excels in applications such as analytical instruments, industrial processes, and research laboratories. Its built-in filtration system eliminates the need for external exhaust filters while reducing oil loss by up to 100 times compared to conventional designs. The pump's compact footprint and flexible interface options make it perfect for integration into complex vacuum systems requiring reliable medium vacuum generation.
