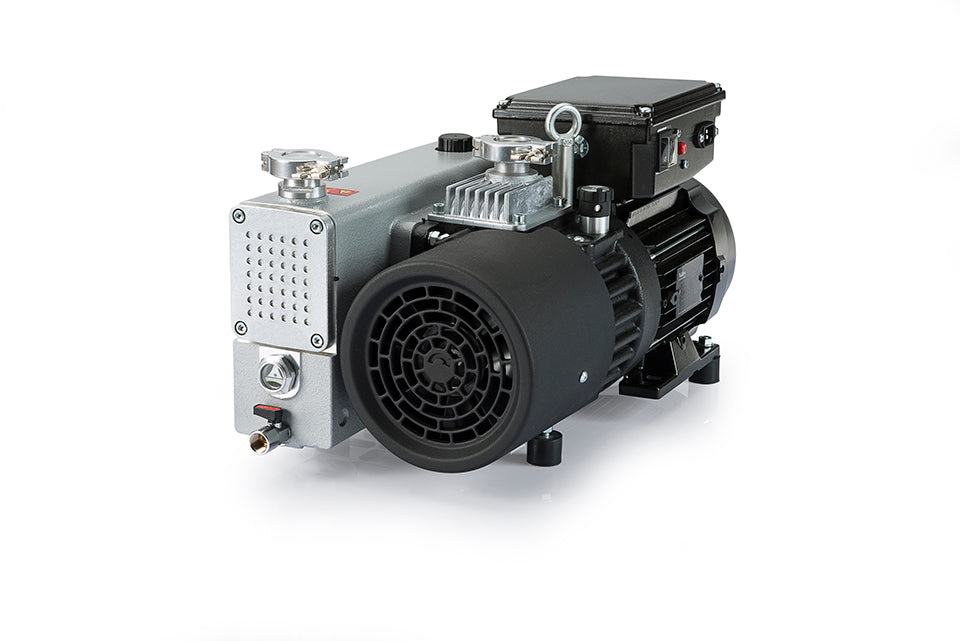

Leybold SOGEVAC NEO D25 Two-Stage Rotary Vane Vacuum Pump
The SOGEVAC NEO D25 represents the pinnacle of dual-stage vacuum technology, delivering exceptional performance with groundbreaking noise reduction technology at just 55 dB(A). This innovative pump features an integrated exhaust demister and advanced shaft seal technology, enabling up to three years of maintenance-free operation in clean applications. With its built-in filtration system and compact design, the NEO D25 provides superior vacuum performance while maintaining a clean, oil-smoke-free environment.
|
Specification |
Details |
|
Nominal Pumping Speed |
34 m³/h (20.0 cfm) |
|
Operating Pumping Speed |
29 m³/h (17.1 cfm) |
|
Ultimate Pressure without Gas Ballast |
< 8 x 10⁻³ mbar (< 6 x 10⁻³ torr) |
|
Ultimate Pressure with Gas Ballast |
< 1 x 10⁻¹ mbar (< 0.75 x 10⁻¹ torr) |
|
Water Vapor Tolerance |
10 mbar (7.5 torr) |
|
Oil Capacity |
1.5 L (1.6 qt) |
|
Motor Power |
1.1 kW (1.5 HP) |
|
Noise Level |
55 dB(A) |
|
Weight |
48 kg (106 lbs) |
|
Voltage |
180-264V Single-phase (C14 socket required) |
|
Connection Flange |
DN 25 ISO-KF |
Perfect for demanding applications in analytics, research laboratories, and industrial processes, this pump excels in applications such as mass spectrometry, glove boxes, and heat treatment systems. The NEO D25's built-in filtration system reduces oil loss up to 100 times compared to competitors' pumps, while its innovative design ensures consistent performance from atmospheric pressure down to ultimate vacuum.
