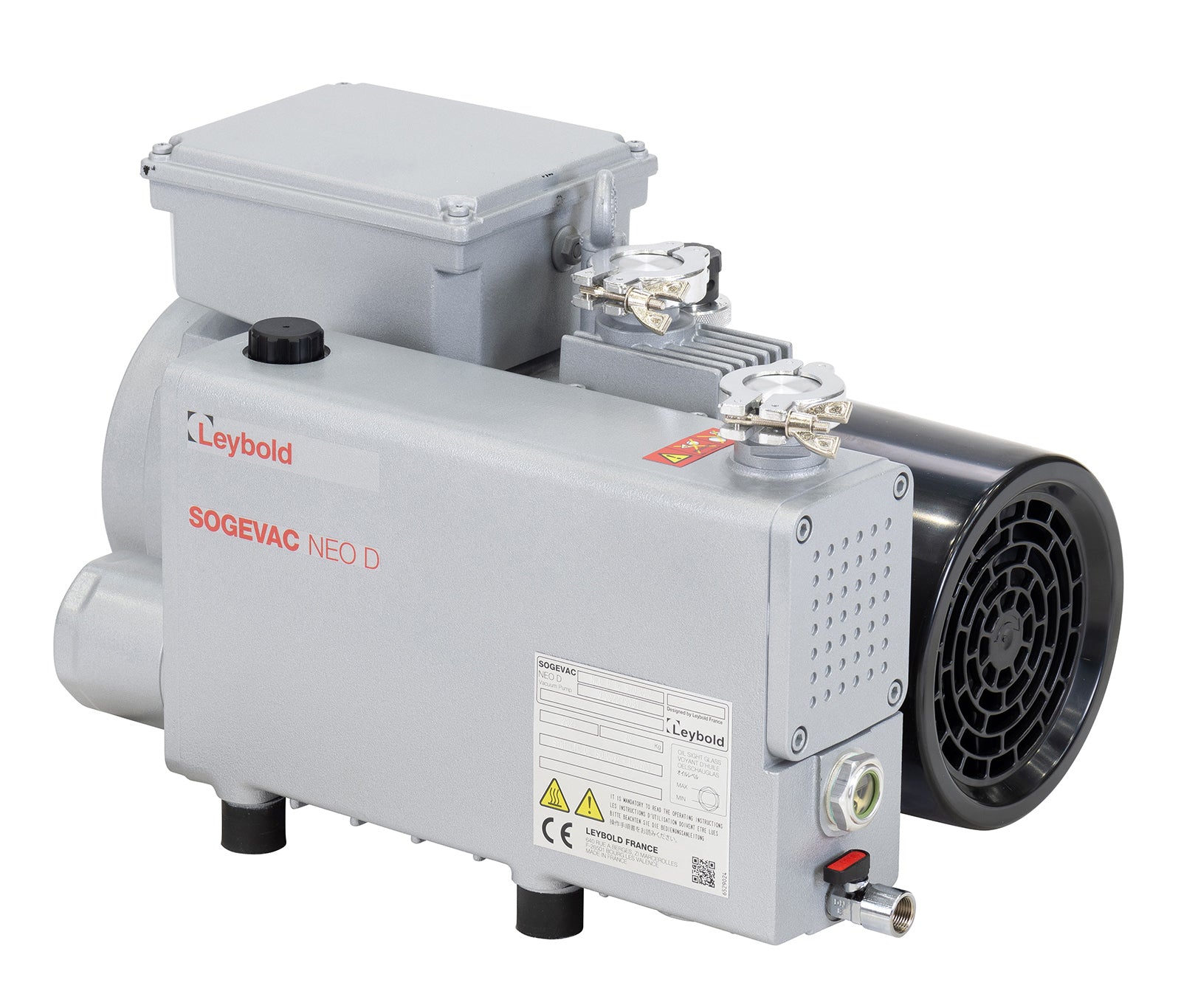

Leybold Sogevac Neo D16 Rotary Vane Vacuum Pump
The SOGEVAC NEO D16 represents the next generation of two-stage vacuum technology, combining superior performance with innovative design features. This advanced pump delivers exceptional reliability in demanding applications while maintaining a remarkably quiet 55 dB(A) operation. With its integrated exhaust demister and cutting-edge shaft seal technology, the NEO D16 offers up to three years of maintenance-free operation in clean applications.
|
Specification |
Details |
|
Nominal Pumping Speed |
23 m³/h (13.5 cfm) |
|
Operating Pumping Speed |
19 m³/h (11.2 cfm) |
|
Ultimate Pressure without Gas Ballast |
< 8 x 10⁻³ mbar (< 6 x 10⁻³ torr) |
|
Ultimate Pressure with Gas Ballast |
< 1 x 10⁻¹ mbar (< 0.75 x 10⁻¹ torr) |
|
Water Vapor Tolerance |
10 mbar (7.5 torr) |
|
Oil Capacity |
1.5 L (1.6 qt) |
|
Motor Power |
0.9 kW (1.2 HP) |
|
Noise Level |
55 dB(A) |
|
Weight |
48 kg (106 lbs) |
|
Voltage |
180-264V Single-phase (C14 socket required) |
|
Connection Flange |
DN 25 ISO-KF |
The pump features a compact design with a common shaft for motor and vacuum generator, providing 30% more space efficiency compared to competitive models. Its built-in anti-suckback valve with metal wire mesh filter protection ensures system safety during power interruptions. The integrated warm exhaust demister prevents condensation and enhances vapor handling performance, making it ideal for applications in analytics, research labs, and industrial processes
- Regular price
- $4,733.40
- Sale price
- $4,733.40
- Regular price
-
$6,762.00
