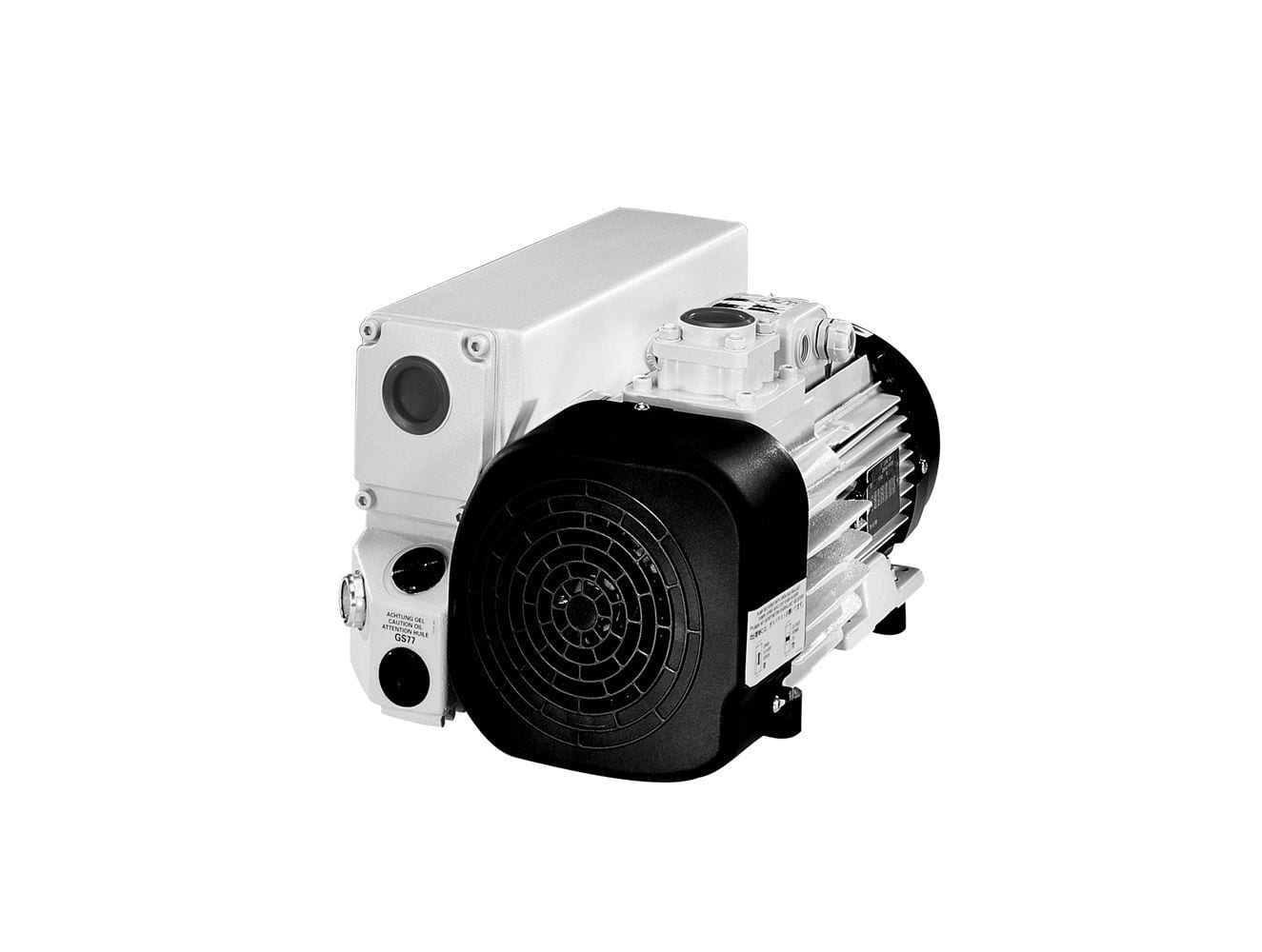

Leybold Sogevac SV65B Single-Stage Rotary Vane Vacuum Pump
The Leybold Sogevac SV65B represents advanced vacuum technology in a powerful single-stage rotary vane pump. Engineered for industrial applications requiring high pumping speeds and reliable performance, this pump delivers exceptional vacuum capabilities from atmosphere to ultimate pressure. Its robust design makes it ideal for demanding applications in vacuum packaging, thermal processing, freeze-drying, and industrial coating systems.
|
Specification |
Details |
|
Nominal Pumping Speed |
71 m³/h (41.8 cfm) |
|
Pumping Speed |
64 m³/h (37.7 cfm) |
|
Ultimate Total Pressure without Gas Ballast |
≤ 0.5 mbar |
|
Ultimate Total Pressure with Gas Ballast |
≤ 1.5 mbar |
|
Water Vapor Tolerance |
30 mbar |
|
Water Vapor Capacity |
1.25 kg/h |
|
Oil Capacity |
2.0 L (2.1 qt) |
|
Motor Power |
1.8 kW (3.0 HP) |
|
Nominal Speed |
1800 RPM |
|
Noise Level |
64 dB(A) |
|
Operating Temperature Range |
12-40°C (54-104°F) |
|
Weight (with oil) |
52 kg (114.8 lbs) |
|
Connection Ports |
NPT 1 1/4" |
|
Power Supply |
230/460V, 3-phase |
|
Protection Class |
IP55-F |
The SV65B features advanced oil circulation technology that ensures optimal lubrication and cooling. Its robust construction and reliable performance make it an excellent choice for applications requiring consistent vacuum levels and extended operation periods.
- Regular price
- $4,154.00
- Sale price
- $4,154.00
- Regular price
-
$5,934.00
