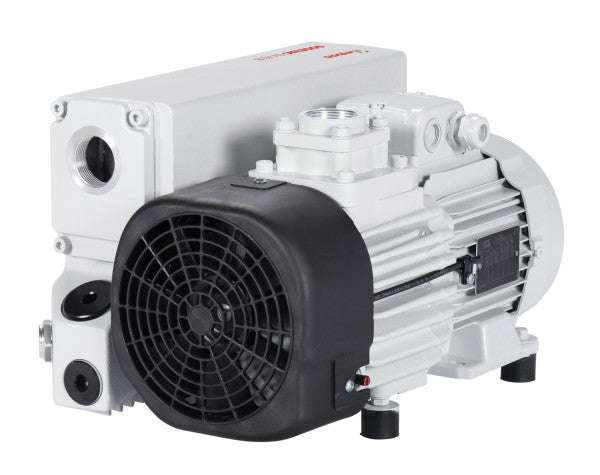

Leybold Sogevac SV40B Single-Stage Rotary Vane Vacuum Pump
The Leybold Sogevac SV40B is a powerful single-stage rotary vane pump engineered for heavy-duty industrial applications. With its superior pumping capacity and integrated oil filtration system, this pump delivers exceptional performance from atmosphere to ultimate vacuum. Ideal for applications in heat treatment, metallurgy, vacuum drying, and industrial coating processes where consistent, reliable vacuum levels are crucial.
|
Specification |
Details |
|
Nominal Pumping Speed |
53 m³/h (31.2 cfm) |
|
Pumping Speed |
47 m³/h (27.7 cfm) |
|
Ultimate Total Pressure without Gas Ballast |
≤ 0.5 mbar |
|
Ultimate Total Pressure with Gas Ballast |
≤ 1.5 mbar |
|
Water Vapor Tolerance |
30 mbar |
|
Water Vapor Capacity |
0.9 kg/h |
|
Oil Capacity |
1.0 L (1.05 qt) |
|
Motor Power |
1.5 kW (2.0 HP) |
|
Nominal Speed |
1800 RPM |
|
Noise Level |
60 dB(A) |
|
Operating Temperature Range |
12-40°C (54-104°F) |
|
Weight (with oil) |
45 kg (99.3 lbs) |
|
Connection Ports |
NPT 1 1/4" |
|
Power Supply |
230/460V, 3-phase |
|
Protection Class |
IP55-F |
The SV40B features advanced oil circulation technology with an integrated oil filter that ensures optimal lubrication and cooling. Its robust construction and reliable performance make it an excellent choice for demanding industrial applications requiring consistent vacuum performance and extended operation periods.
