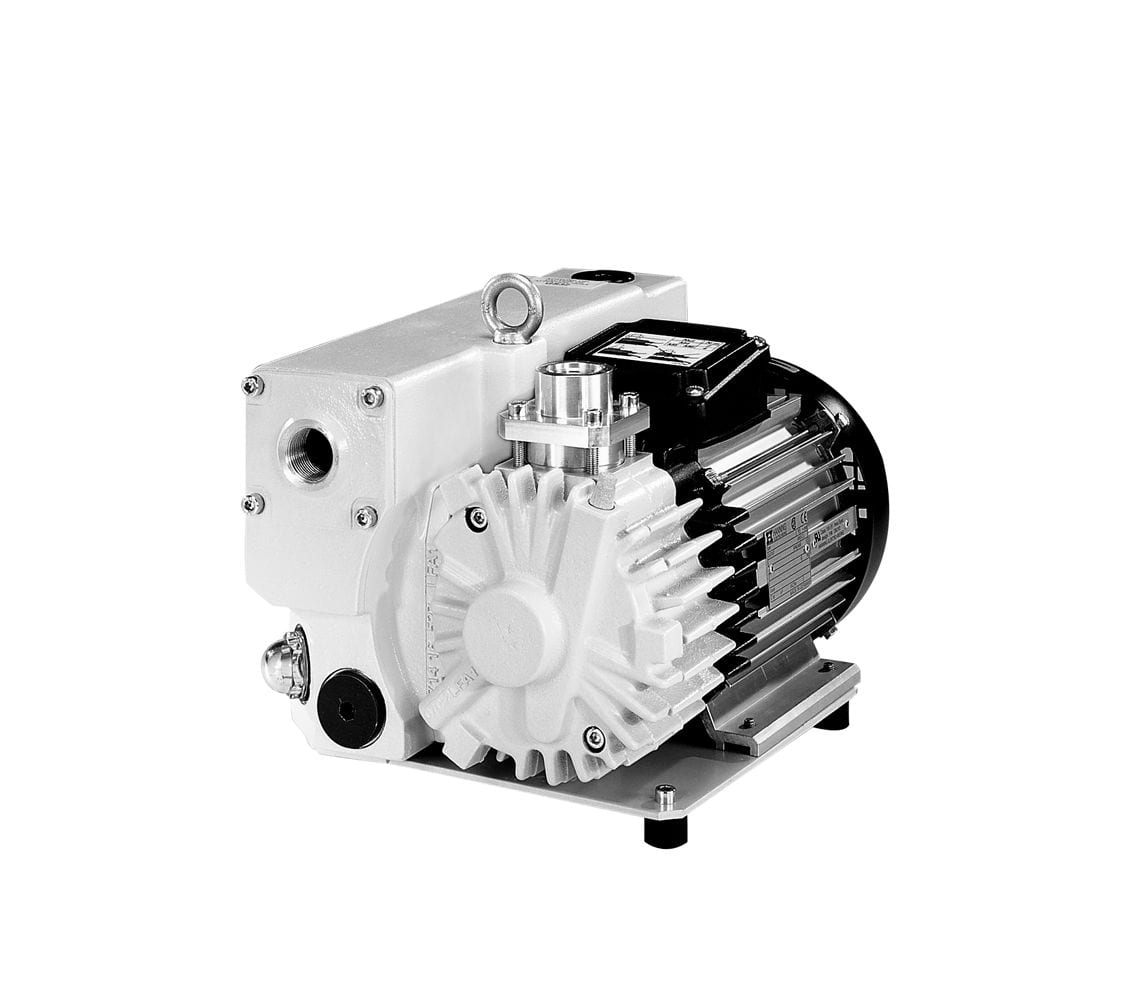

Leybold Sogevac SV25B Single-Stage Rotary Vane Vacuum Pump
The Leybold Sogevac SV25B represents the next generation of rotary vane vacuum technology, setting new standards in industrial vacuum applications. This robust single-stage pump delivers superior performance with a higher pumping speed and lower ultimate pressure, making it ideal for demanding processes in packaging, heat treatment, metallurgy, and industrial coating applications. Its optimized design ensures reliable continuous operation while maintaining excellent vapor handling capabilities.
|
Specification |
Details |
|
Nominal Pumping Speed |
31 m³/h (18.3 cfm) |
|
Pumping Speed |
25 m³/h (14.7 cfm) |
|
Ultimate Total Pressure without Gas Ballast |
≤ 0.5 mbar |
|
Ultimate Total Pressure with Gas Ballast |
≤ 0.8 mbar |
|
Water Vapor Tolerance |
10 mbar |
|
Water Vapor Capacity |
0.1 kg/h |
|
Oil Capacity |
0.5 L (0.53 qt) |
|
Motor Power |
1.1 kW (1.5 HP) |
|
Nominal Speed |
3600 RPM |
|
Noise Level |
67 dB(A) |
|
Operating Temperature Range |
12-40°C (54-104°F) |
|
Weight (with oil) |
26 kg (57.4 lbs) |
|
Connection Ports |
G½ - ¾ |
|
Power Supply |
230/460V, 3-phase |
|
Protection Class |
IP55-F |
The SV25B features advanced oil circulation technology that ensures optimal lubrication and cooling, while its integrated demisting system effectively separates oil from the exhaust gas. This pump is engineered for continuous operation in demanding industrial environments where consistent vacuum performance is essential.
