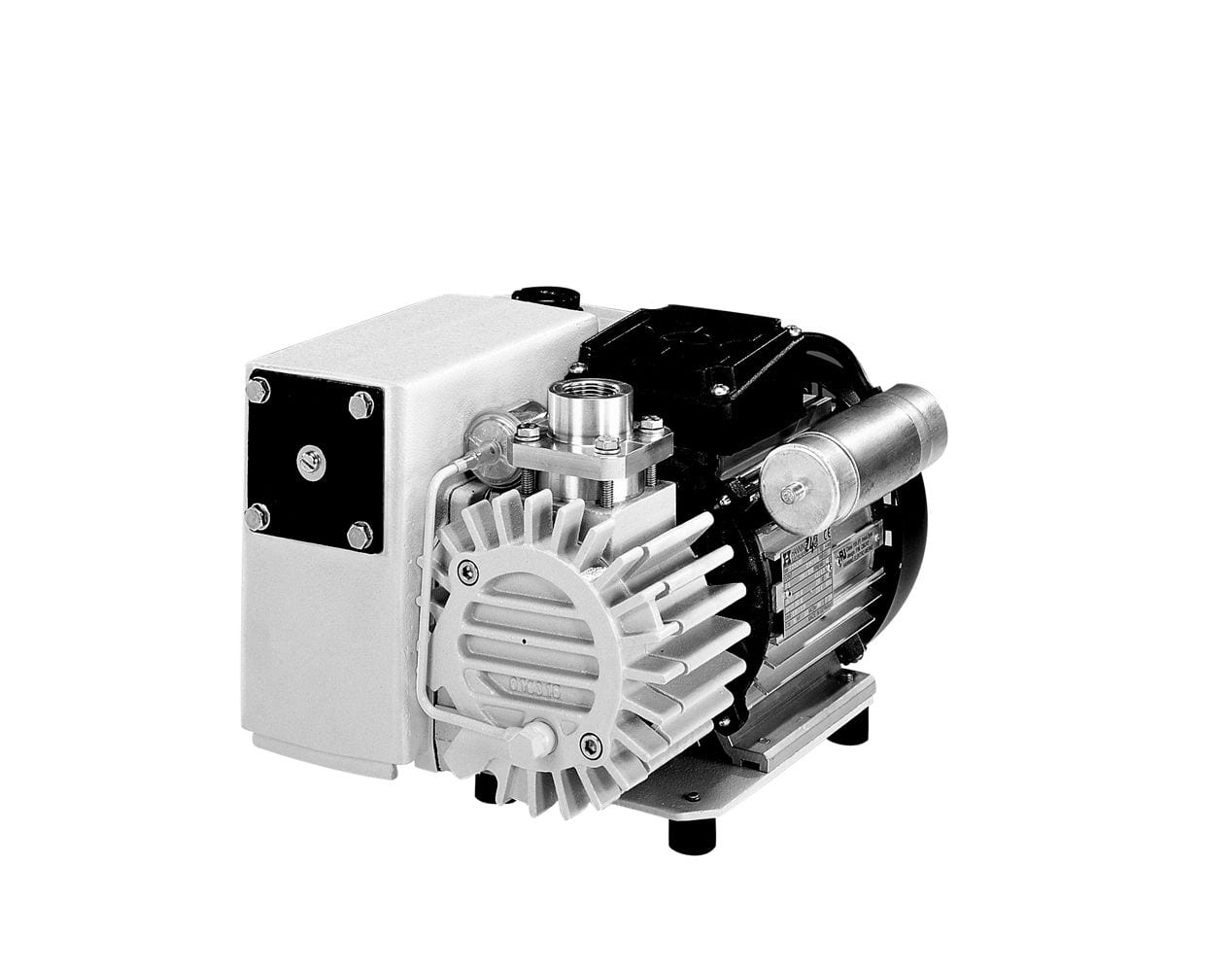

Leybold Sogevac SV16B Single-Stage Rotary Vane Vacuum Pump
Engineered for demanding industrial applications, the Leybold Sogevac SV16B is a high-performance single-stage rotary vane pump that delivers reliable vacuum performance from atmosphere down to ultimate pressure. With its enhanced pumping capacity and integrated oil demisting system, this pump excels in applications requiring consistent vacuum levels and efficient vapor handling. Perfect for vacuum packaging, thermal forming, freeze-drying, and general industrial processes.
|
Specification |
Details |
|
Nominal Pumping Speed |
19 m³/h (11.2 cfm) |
|
Pumping Speed |
17 m³/h (10 cfm) |
|
Ultimate Total Pressure without Gas Ballast |
≤ 1.5 mbar |
|
Ultimate Total Pressure with Gas Ballast |
≤ 2.5 mbar |
|
Water Vapor Tolerance |
15 mbar |
|
Water Vapor Capacity |
0.05 kg/h |
|
Oil Capacity |
0.5 L (0.53 qt) |
|
Motor Power |
0.75 kW (1.02 HP) |
|
Nominal Speed |
3600 RPM |
|
Noise Level |
66 dB(A) |
|
Operating Temperature Range |
12-40°C (54-104°F) |
|
Weight (with oil) |
20.5 kg (45.3 lbs) |
|
Connection Ports |
3/4" + 1/2" G thread |
|
Power Supply |
115V, single-phase |
|
Protection Class |
IP55-F |
The Sogevac SV16B features an integral demister in the oil casing that efficiently filters oil aerosols and returns coalesced oil to the fluid sump. The pump's robust construction and reliable performance make it an excellent choice for applications requiring consistent vacuum levels and extended operation periods.
- Regular price
- $1,830.40
- Sale price
- $1,830.40
- Regular price
-
$2,288.00
Please call (480) 263-9900 to order this product.
