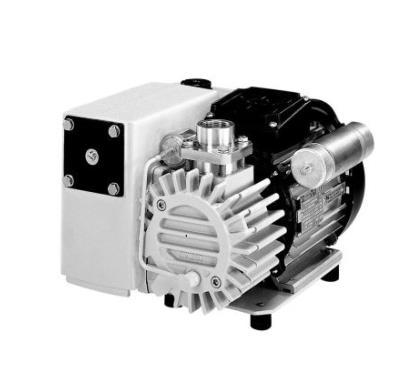

Leybold Sogevac SV10B Single-Stage Rotary Vane Vacuum Pump
The Leybold Sogevac SV10B is a robust single-stage rotary vane pump designed for continuous industrial operation. This compact yet powerful pump delivers reliable performance across a wide pressure range, from atmosphere down to ultimate pressure. With its integrated gas ballast valve and oil demisting system, the SV10B excels in applications requiring consistent vacuum levels and vapor handling capability, making it ideal for food packaging, metallurgy, vacuum coating, and general industrial processes.
|
Specification |
Details |
|
Nominal Pumping Speed |
13 m³/h (7.7 cfm) |
|
Pumping Speed |
11.5 m³/h (6.8 cfm) |
|
Ultimate Total Pressure without Gas Ballast |
≤ 1.5 mbar |
|
Ultimate Total Pressure with Gas Ballast |
≤ 2.5 mbar |
|
Water Vapor Tolerance |
15 mbar |
|
Water Vapor Capacity |
0.03 kg/h |
|
Oil Capacity |
0.5 L (0.53 qt) |
|
Motor Power |
0.75 kW (1.02 HP) |
|
Nominal Speed |
3600 RPM |
|
Noise Level |
66 dB(A) (1-phase) |
|
Operating Temperature Range |
12-40°C (54-104°F) |
|
Weight (with oil) |
20 kg (41.6 lbs) |
|
Connection Ports |
3/4" + 1/2" G thread |
|
Power Supply |
115V, single-phase |
|
Protection Class |
IP55-F |
The Sogevac SV10B comes equipped with an integral demister in the oil casing that filters oil aerosols and returns coalesced oil to the fluid sump. Its relief valve prevents pressure buildup in case of clogged filters, while the internal mounted fan provides efficient air-cooling. The pump's robust construction and reliable performance make it an excellent choice for applications requiring consistent vacuum levels and extended operation periods.
- Regular price
- $1,744.00
- Sale price
- $1,744.00
- Regular price
-
$2,180.00
Please call (480) 263-9900 to order this product.
