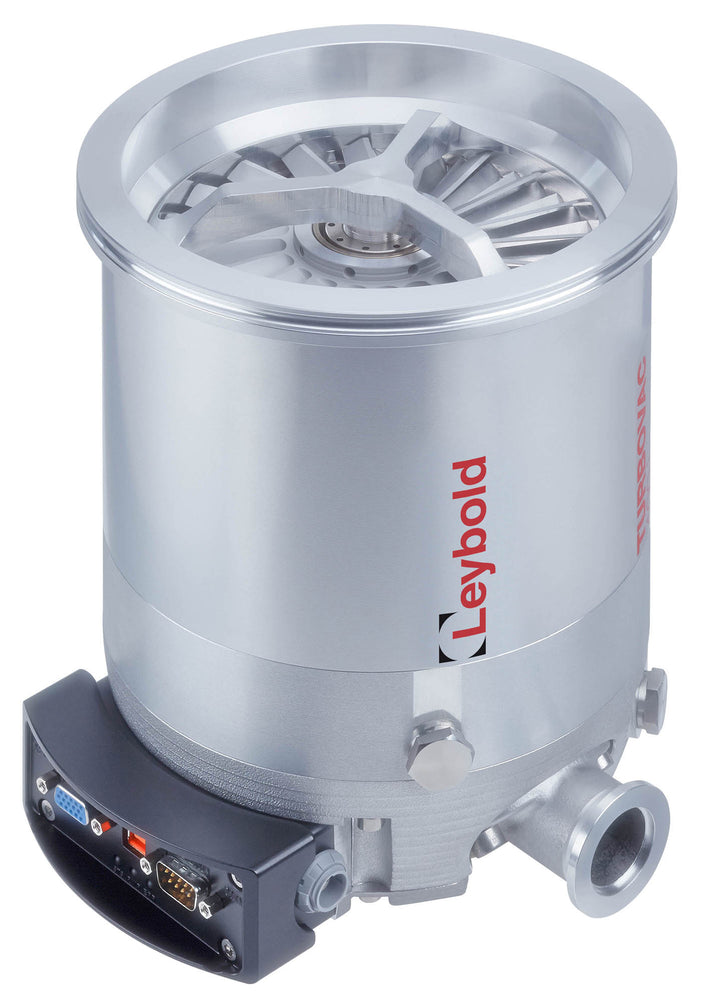

Leybold Turbovac 450i, 160 ISO-K Turbomolecular Vacuum Pump
The Leybold Turbovac 450i stands at the forefront of high-capacity turbomolecular pump technology, offering exceptional pumping performance for demanding vacuum applications. This advanced pump features a cutting-edge rotor and drag stage design, making it ideal for semiconductor processing, thin-film deposition, and advanced research facilities. Its superior light gas handling capabilities and robust construction ensure reliable performance in the most challenging industrial environments.
|
Specification |
Details |
|
Pumping Speed (N₂) |
430 l/s |
|
Pumping Speed (Ar) |
400 l/s |
|
Pumping Speed (He) |
440 l/s |
|
Pumping Speed (H₂) |
420 l/s |
|
Gas Throughput (N₂) |
4.5 mbar*l/s |
|
Ultimate Pressure |
< 8 x 10⁻⁸ mbar |
|
Max. Forevacuum Pressure |
10 mbar |
|
Operating Speed |
60,000 min⁻¹ |
|
Run-up Time |
5.5 minutes |
|
Power Consumption (max) |
240 W |
|
Power Consumption (ultimate pressure) |
20 W |
|
High-vacuum Connection |
160 ISO-K |
|
Forevacuum Connection |
25 KF |
|
Cooling |
Convection (standard), Air or water (optional) |
|
Maximum Bake-out Temperature |
100°C |
|
Purge Gas Connection |
G 1/8" |
|
Venting Connection |
G 1/8" |
The Turbovac 450i achieves outstanding compression ratios (1x10¹¹ for N₂ and Ar, 1x10⁸ for He) and delivers consistent performance across a wide range of gases. Its efficient design combines high pumping speeds with optimized power consumption, ensuring both superior vacuum performance and operational cost-effectiveness.
