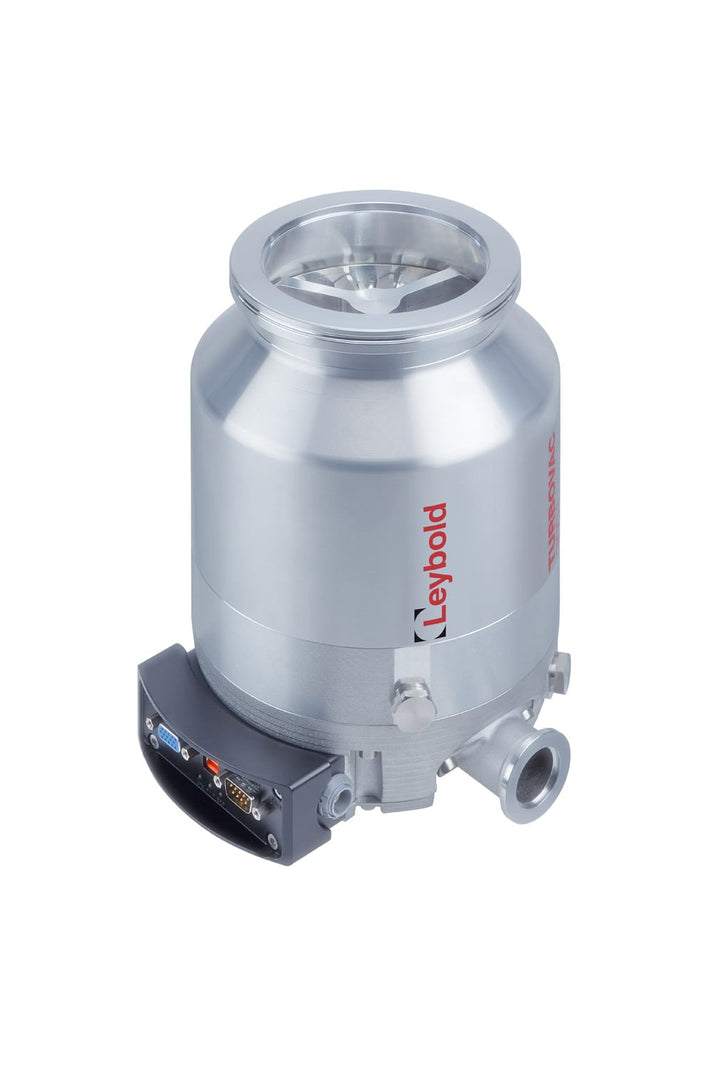

Leybold Turbovac 350i, 100 ISO-K Turbomolecular Vacuum Pump
The Leybold Turbovac 350i represents cutting-edge turbomolecular pump technology, engineered for maximum performance in high-throughput vacuum applications. This powerful pump delivers exceptional pumping capacity for semiconductor manufacturing, thin film coating, and advanced research facilities. Its innovative design combines robust construction with sophisticated control features, ensuring reliable operation even in demanding industrial environments.
|
Specification |
Details |
|
Pumping Speed (N₂) |
290 l/s |
|
Pumping Speed (Ar) |
260 l/s |
|
Pumping Speed (He) |
360 l/s |
|
Pumping Speed (H₂) |
350 l/s |
|
Gas Throughput (N₂) |
4.5 mbar*l/s |
|
Ultimate Pressure |
< 8 x 10⁻⁸ mbar |
|
Max. Forevacuum Pressure |
10 mbar |
|
Operating Speed |
60,000 min⁻¹ |
|
Run-up Time |
5.5 minutes |
|
Power Consumption (max) |
240 W |
|
Power Consumption (ultimate pressure) |
20 W |
|
High-vacuum Connection |
100 ISO-K |
|
Forevacuum Connection |
25 KF |
|
Cooling |
Convection (standard), Air or water (optional) |
|
Maximum Bake-out Temperature |
100°C |
|
Purge Gas Connection |
G 1/8" |
|
Venting Connection |
G 1/8" |
The Turbovac 350i achieves superior compression ratios across multiple gas types (1x10¹¹ for N₂ and Ar, 1x10⁸ for He), making it exceptionally versatile for various process applications. Its advanced thermal management system and efficient power consumption characteristics ensure optimal performance while maintaining cost-effective operation.
