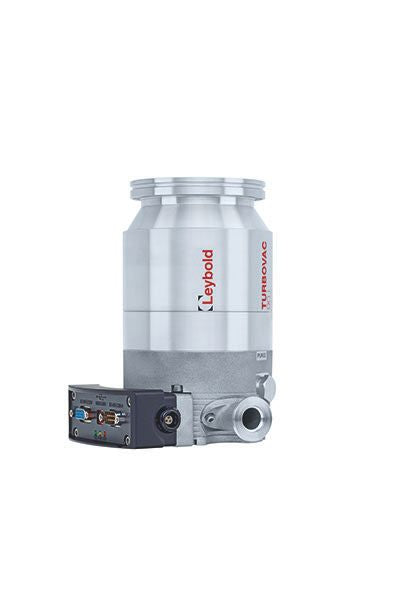

Leybold Turbovac 90i Turbomolecular Vacuum Pump
The Leybold Turbovac 90i represents the pinnacle of compact turbomolecular pump technology, delivering exceptional performance for demanding high-vacuum applications. This versatile pump excels in semiconductor manufacturing, research laboratories, and analytical instruments where consistent, clean vacuum conditions are essential. With its advanced design and robust construction, the Turbovac 90i provides reliable operation and maintains stable vacuum levels even under challenging conditions.
|
Specification |
Details |
|
Pumping Speed (N₂) |
90 l/s |
|
Pumping Speed (Ar) |
83 l/s |
|
Pumping Speed (He) |
90 l/s |
|
Pumping Speed (H₂) |
78 l/s |
|
Gas Throughput (N₂) |
10 mbar*l/s |
|
Ultimate Pressure |
< 8 x 10⁻⁸ mbar |
|
Max. Forevacuum Pressure |
14 mbar |
|
Operating Speed |
72,000 min⁻¹ |
|
Run-up Time |
1.5 minutes |
|
Power Consumption (max) |
240 W |
|
Power Consumption (ultimate pressure) |
7 W |
|
High-vacuum Connection |
63 ISO-K/CF |
|
Forevacuum Connection |
16 KF |
|
Cooling |
Convection (standard), Air or water (optional) |
|
Maximum Bake-out Temperature |
100°C |
|
Purge Gas Connection |
G 1/8" |
|
Venting Connection |
G 1/8" |
The pump combines high pumping speeds with exceptional compression ratios (1x10¹¹ for N₂ and Ar), making it ideal for applications requiring precise vacuum control. Its efficient design allows for quick start-up times and low power consumption during operation, ensuring both productivity and energy efficiency.
- Regular price
- $6,963.45
- Sale price
- $6,963.45
- Regular price
-
$10,713.00
