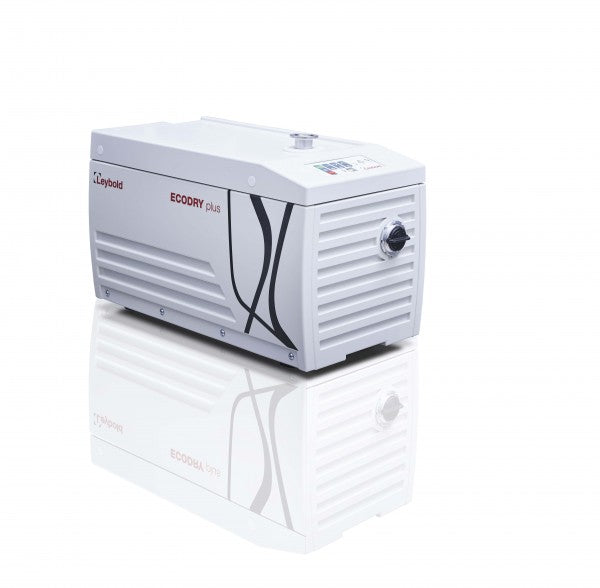

Leybold ECODRY 35 Plus Multi-Stage Roots Vacuum Pump - Dual Voltage 100-127V/200-240V
The Leybold ECODRY 35 Plus is a highly efficient multi-stage Roots vacuum pump tailored for demanding applications in the semiconductor industry, research facilities, and analytical laboratories. Compact and lightweight, this innovative pump is designed to deliver exceptional performance and reliability, ensuring efficient operation across various environments.
With a maximum pumping speed of 35 m³/h, the ECODRY 35 Plus offers rapid pump-down capabilities, achieving an ultimate pressure of < 0.01 mbar without gas ballast. Its oil-free operation not only provides clean vacuum generation but also minimizes downtime, making it an ideal choice for sensitive applications such as electron microscopy and mass spectrometry.
|
Specification |
Details |
|
Pumping Speed |
35 m³/h |
|
Ultimate Pressure (without gas ballast) |
< 0.01 mbar |
|
Ultimate Pressure (with gas ballast) |
< 0.1 mbar |
|
Leak Rate |
< 10⁻⁶ mbar l/s |
|
Water Vapor Tolerance |
20 mbar |
|
Water Vapor Capacity |
300 g/h |
|
Maximum Inlet Pressure |
1013 mbar |
|
Permissible Ambient Temperature |
+5 to +40°C |
|
Maximum Installation Height |
3000 m |
|
Cooling |
Air |
|
Power Supply |
100-127V / 200-240V (switchable) ±10% |
|
Frequency |
50/60 Hz |
|
Phases |
1-ph |
|
Maximum Power Consumption |
1000 W |
|
Power at Ultimate Pressure |
600 W |
|
Protection Class |
IP21 |
|
Intake Flange |
DN 25 ISO-KF |
|
Outlet Flange |
DN 25 ISO-KF |
|
Weight |
28 kg |
|
Dimensions (L x W x H) |
495 x 248 x 293 mm |
Equipped with a user-friendly control interface and integrated vacuum gauges, this pump allows for instant monitoring and easy adjustments based on your requirements. With low noise emissions and minimal vibration, the ECODRY 35 Plus promotes a quieter working environment while enhancing overall process efficiency.
