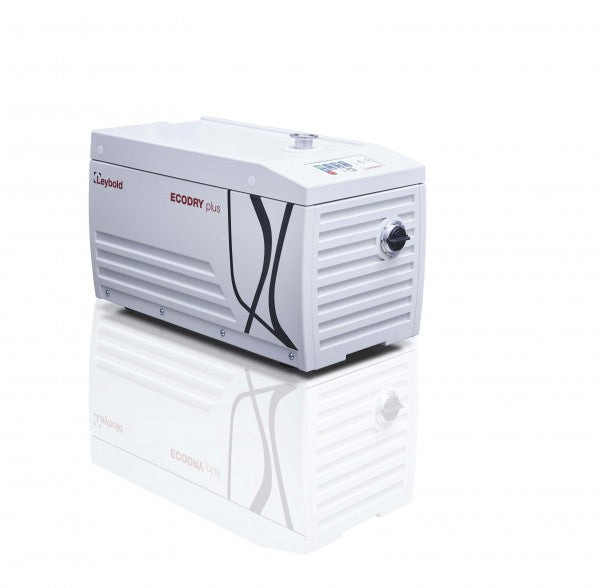

Leybold ECODRY 25 Plus Multi-Stage Roots Vacuum Pump - Dual Voltage 100-127V/200-240V
The Leybold ECODRY 25 plus is a cutting-edge multi-stage Roots vacuum pump designed for clean applications requiring precise vacuum control. This compact, lightweight pump delivers exceptional performance in semiconductor manufacturing, research facilities, and analytical laboratories. With its oil-free operation and innovative design, the ECODRY 25 plus stands out for its remarkably low noise levels and energy-efficient operation.
|
Specification |
Details |
|
Pumping Speed |
25 m³/h |
|
Ultimate Pressure (without gas ballast) |
< 0.01 mbar |
|
Ultimate Pressure (with gas ballast) |
< 0.1 mbar |
|
Leak Rate |
< 10⁻⁶ mbar l/s |
|
Water Vapor Tolerance |
20 mbar |
|
Water Vapor Capacity |
200 g/h |
|
Maximum Inlet Pressure |
1013 mbar |
|
Ambient Temperature Range |
+5 to +40°C |
|
Maximum Installation Height |
3000 m |
|
Cooling |
Air |
|
Power Supply |
100-127V/200-240V (switchable) ±10% |
|
Frequency |
50/60 Hz |
|
Phases |
1-ph |
|
Maximum Power Consumption |
1000 W |
|
Power at Ultimate Pressure |
600 W |
|
Protection Class |
IP21 |
|
Intake/Outlet Flanges |
DN 25 ISO-KF |
|
Weight |
28 kg |
|
Dimensions (L x W x H) |
495 x 248 x 293 mm |
Engineered with air cooling technology and integrated wheels, this versatile pump offers exceptional mobility and flexibility across various working environments. Its adaptive speed control and eco-mode features ensure optimal energy efficiency while maintaining consistent performance. The ECODRY 25 plus represents the perfect balance of power and precision for demanding applications requiring clean, oil-free vacuum generation.
