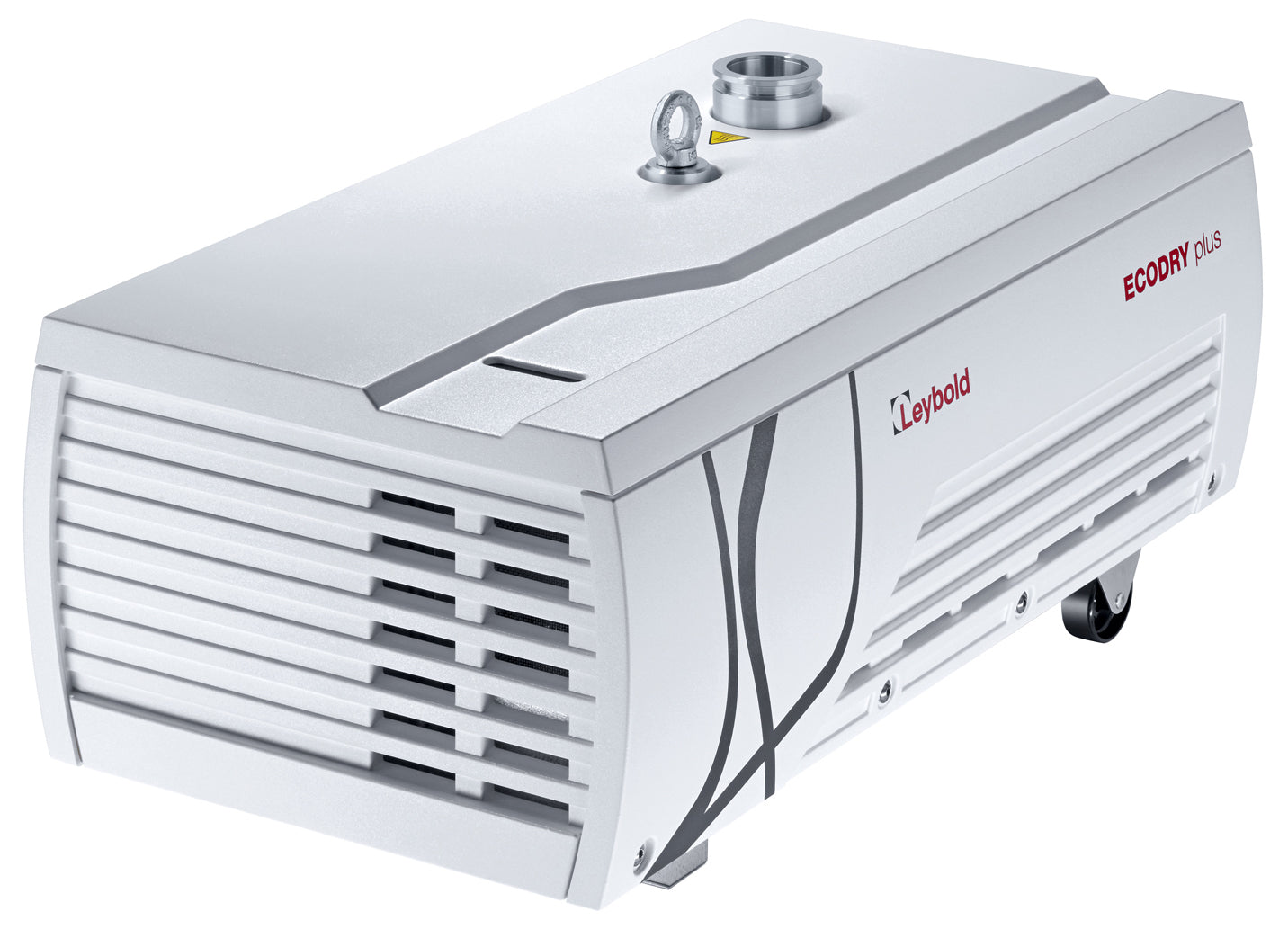

Leybold ECODRY 65 Plus Multi-Stage Roots Vacuum Pump - 120V Single Phase
The Leybold ECODRY 65 Plus sets a new standard in dry vacuum technology, delivering exceptional performance with whisper-quiet operation at less than 52 dB(A). This advanced multi-stage roots pump combines powerful vacuum capabilities with sophisticated acoustic engineering, making it perfect for noise-sensitive laboratory environments and precision applications.
|
Specification |
Details |
|
Pumping Speed |
55 m³/h |
|
Ultimate Pressure (without gas ballast) |
< 0.03 mbar |
|
Ultimate Pressure (with gas ballast) |
< 0.1 mbar |
|
Leak Rate |
< 10⁻⁵ mbar l/s |
|
Water Vapor Tolerance |
20 mbar |
|
Water Vapor Capacity |
500 g/h |
|
Maximum Inlet Pressure |
1050 mbar |
|
Permissible Ambient Temperature |
+5 to +40°C |
|
Maximum Installation Height |
2000 m (up to 3000 m at reduced inlet pressure) |
|
Cooling |
Air |
|
Power Supply |
200-240V ±10% |
|
Frequency |
50/60 Hz |
|
Phases |
1-ph |
|
Maximum Power Consumption |
1200 W |
|
Power at Ultimate Pressure |
600 W |
|
Protection Class |
IP42 |
|
Intake Flange |
DN 40 ISO-KF |
|
Outlet Flange |
DN 16 ISO-KF |
|
Weight |
43 kg |
|
Dimensions (L x W x H) |
623 x 320 x 298 mm |
Featuring seven compression stages and advanced vibration dampening technology, this pump is specifically engineered for applications requiring ultra-stable conditions, such as electron microscopy and mass spectrometry. The integrated air cooling system eliminates the need for water cooling, while built-in wheels provide easy mobility. With its user-friendly interface and flexible control options, including remote digital I/O and RS485 connectivity, the ECODRY 65 Plus delivers reliable, oil-free vacuum generation with minimal maintenance requirements.
