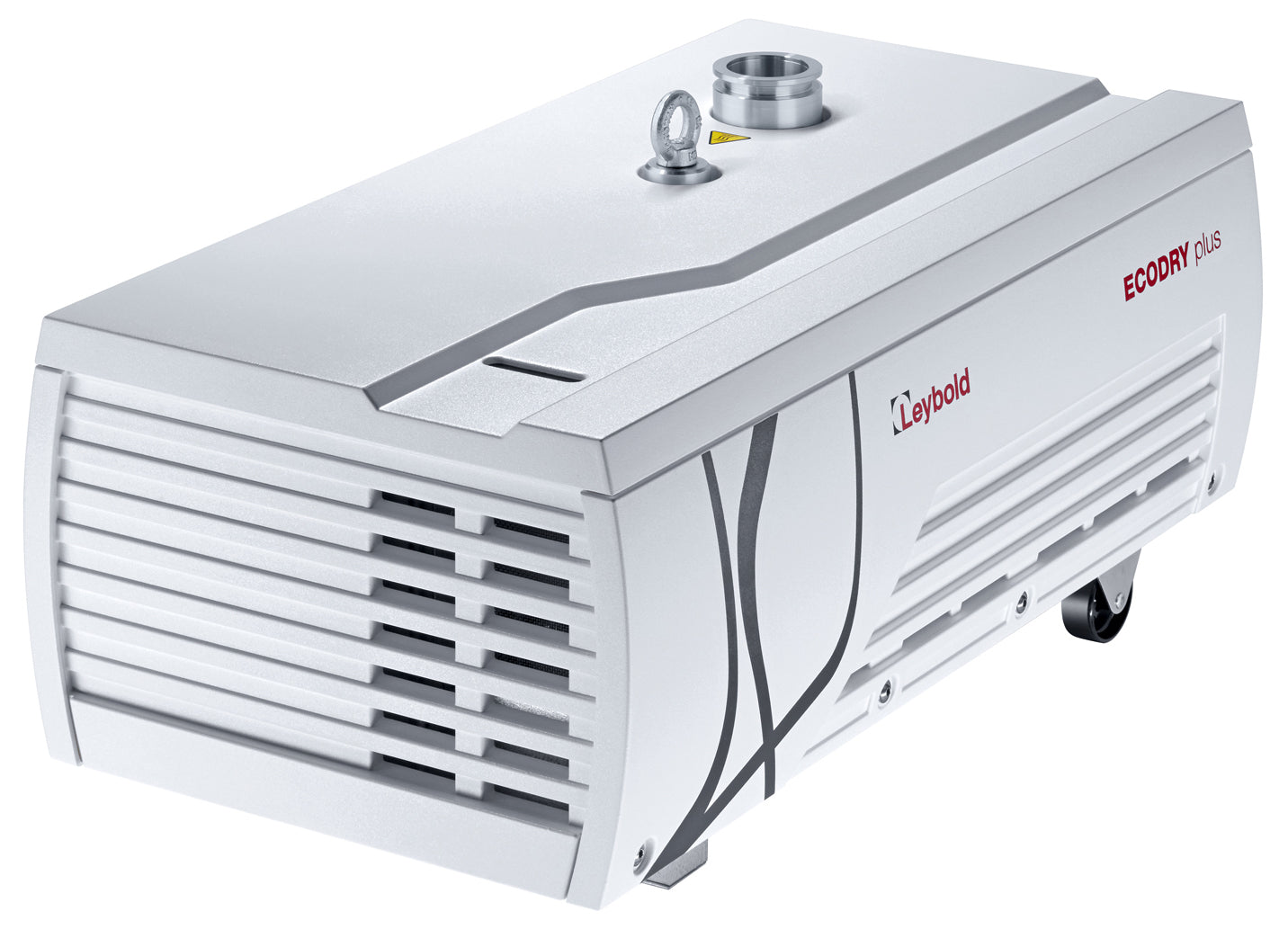

Leybold ECODRY 40 Plus Multi-Stage Roots Vacuum Pump - 120V Single Phase
The Leybold ECODRY 40 Plus represents the next generation of dry vacuum technology, delivering superior performance for demanding applications in analytical laboratories and research facilities. This innovative pump combines powerful vacuum generation with whisper-quiet operation at less than 52 dB(A), making it ideal for noise-sensitive environments.
|
Specification |
Details |
|
Pumping Speed |
40 m³/h |
|
Ultimate Pressure (without gas ballast) |
< 0.03 mbar |
|
Ultimate Pressure (with gas ballast) |
< 0.1 mbar |
|
Leak Rate |
< 10⁻⁵ mbar l/s |
|
Water Vapor Tolerance |
20 mbar |
|
Water Vapor Capacity |
300 g/h |
|
Maximum Inlet Pressure |
1050 mbar |
|
Permissible Ambient Temperature |
+5 to +40°C |
|
Maximum Installation Height |
2000 m (up to 3000 m at reduced inlet pressure) |
|
Cooling |
Air |
|
Power Supply |
200-240V ±10% |
|
Frequency |
50/60 Hz |
|
Phases |
1-ph |
|
Maximum Power Consumption |
1200 W |
|
Power at Ultimate Pressure |
600 W |
|
Protection Class |
IP42 |
|
Intake Flange |
DN 25 ISO-KF |
|
Outlet Flange |
DN 16 ISO-KF |
|
Weight |
43 kg |
|
Dimensions (L x W x H) |
623 x 320 x 298 mm |
Engineered with seven compression stages and advanced acoustic enclosure technology, this pump delivers exceptional performance while maintaining minimal vibration levels - crucial for electron microscopy and mass spectrometry applications. The air-cooled design eliminates the need for water cooling, while integrated wheels provide mobility and flexibility in laboratory setups. With its robust construction and maintenance-free operation, the ECODRY 40 Plus ensures reliable, oil-free vacuum generation for your most critical processes.
