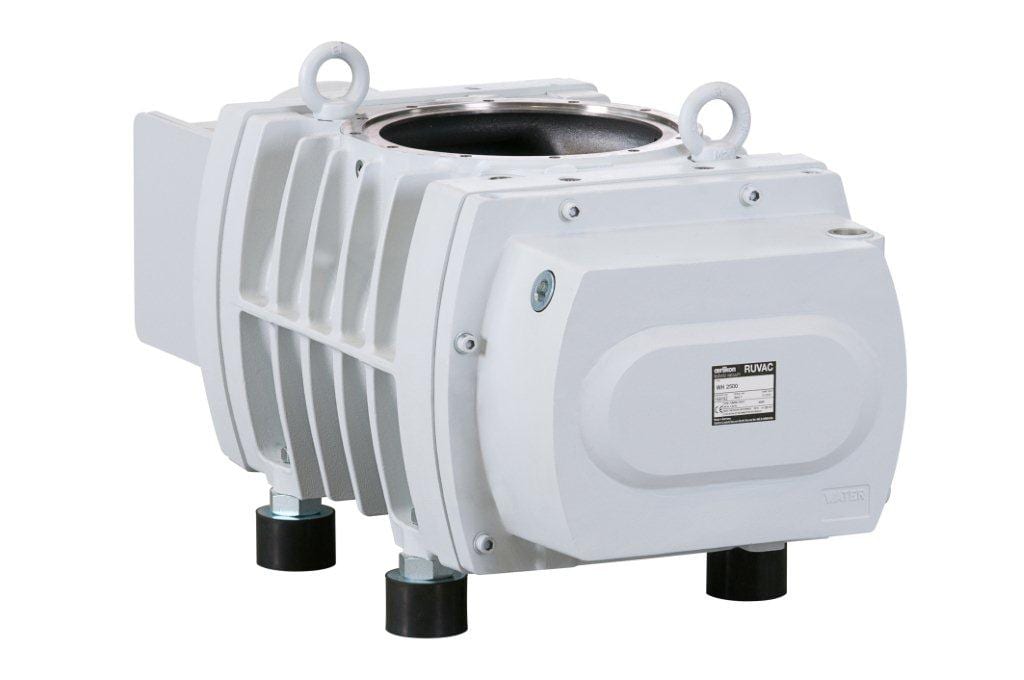

Leybold RUVAC WH 2500 Roots Vacuum Pump
The RUVAC WH 2500 stands as a premier roots vacuum pump, combining advanced engineering with exceptional performance capabilities. This water-cooled pump features a hermetically sealed design that excels in demanding industrial applications, from solar technology to high-precision coating processes. With its impressive pumping speed and innovative cooling system, the WH 2500 delivers superior vacuum performance while maintaining low noise and heat emissions, making it perfectly suited for cleanroom environments.
|
Specification |
Details |
|
Nominal Pumping Speed |
5000 m³/h (2945 cfm) |
|
Max Effective Pumping Speed (with DRYVAC DV 650) |
3900 m³/h (2297 cfm) |
|
Max Permissible Pressure Difference |
20 mbar (15 Torr) |
|
Mains Voltage |
340 to 530 V |
|
Nominal Power Consumption |
11 kW (14.8 hp) |
|
Idle Mode Power Consumption |
1.7 kW (2.3 hp) |
|
Energy Efficiency Class |
IE 2 |
|
Nominal Speed |
6000 rpm |
|
Water Connection |
1/4" female |
|
Cooling Water Flow |
1 to 3 L/min |
|
Cooling Water Temperature |
5 to 35°C (41 to 95°F) |
|
Connection Flanges |
ISO-K 250 (inlet) / ISO-K 100 (outlet) |
|
Weight |
430 kg (946 lbs) |
|
Dimensions (W x D x H) |
1015 x 428 x 354 mm (39.96 x 16.85 x 13.94 in) |
|
Noise Level |
< 63 dB(A) |
The pump's innovative design eliminates the need for shaft seals, ensuring safe operation with sensitive, toxic, or corrosive media. When equipped with a frequency converter, the WH 2500 can initiate operation at atmospheric pressure and optimize its rotational speed as pressure decreases, resulting in enhanced pumping efficiency and faster process times. This versatile pump combines minimal maintenance requirements with maximum reliability, making it an ideal choice for applications in semiconductor manufacturing, industrial coating, research facilities, and advanced manufacturing processes.
- Regular price
- $37,600.00
- Sale price
- $37,600.00
- Regular price
-
$47,000.00
Please call (480) 263-9900 to order this product.
