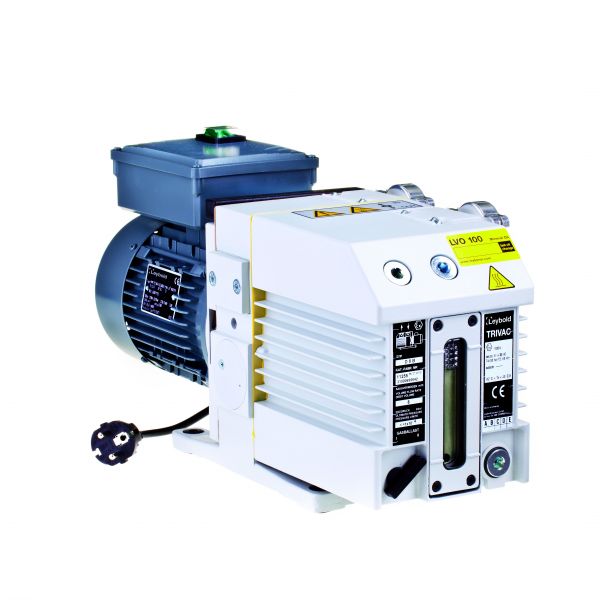

Leybold Trivac D8B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D8B is a versatile dual-stage rotary vane vacuum pump designed for demanding applications in semiconductor manufacturing, analytical instrumentation, and research laboratories. With its superior pumping capacity and robust construction, this pump delivers consistent performance in continuous operation. The D8B features an efficient dual-voltage motor and integrated gas ballast valve, making it adaptable to various process requirements while maintaining excellent water vapor handling capabilities.
|
Specification |
Details |
|
Pumping Speed |
10.2 m³/h (6 CFM) at 60 Hz |
|
Ultimate Total Pressure |
< 5 x 10⁻³ mbar with gas ballast |
|
Ultimate Partial Pressure |
1 x 10⁻⁴ mbar |
|
Water Vapor Tolerance |
25 mbar (18.8 torr) |
|
Water Vapor Capacity |
190 g/h |
|
Oil Filling (Min/Max) |
0.3 / 0.9 L |
|
Motor Power |
0.66 kW |
|
Rotational Speed |
1800 RPM |
|
Noise Level |
50/52 dB(A) |
|
Weight |
21.2 kg (46.7 lbs) |
|
Voltage |
Single-phase 50/60 Hz Dual Voltage |
|
Flanges |
DN 16 KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C (+54 to +104°F) |
This pump excels in applications requiring reliable vacuum generation, from backing turbomolecular pumps to vacuum furnace evacuation and mass spectrometry. Its dual-voltage capability and efficient cooling system ensure consistent performance across various operating conditions, while the integrated gas ballast valve provides superior vapor handling for demanding processes.
