Leybold

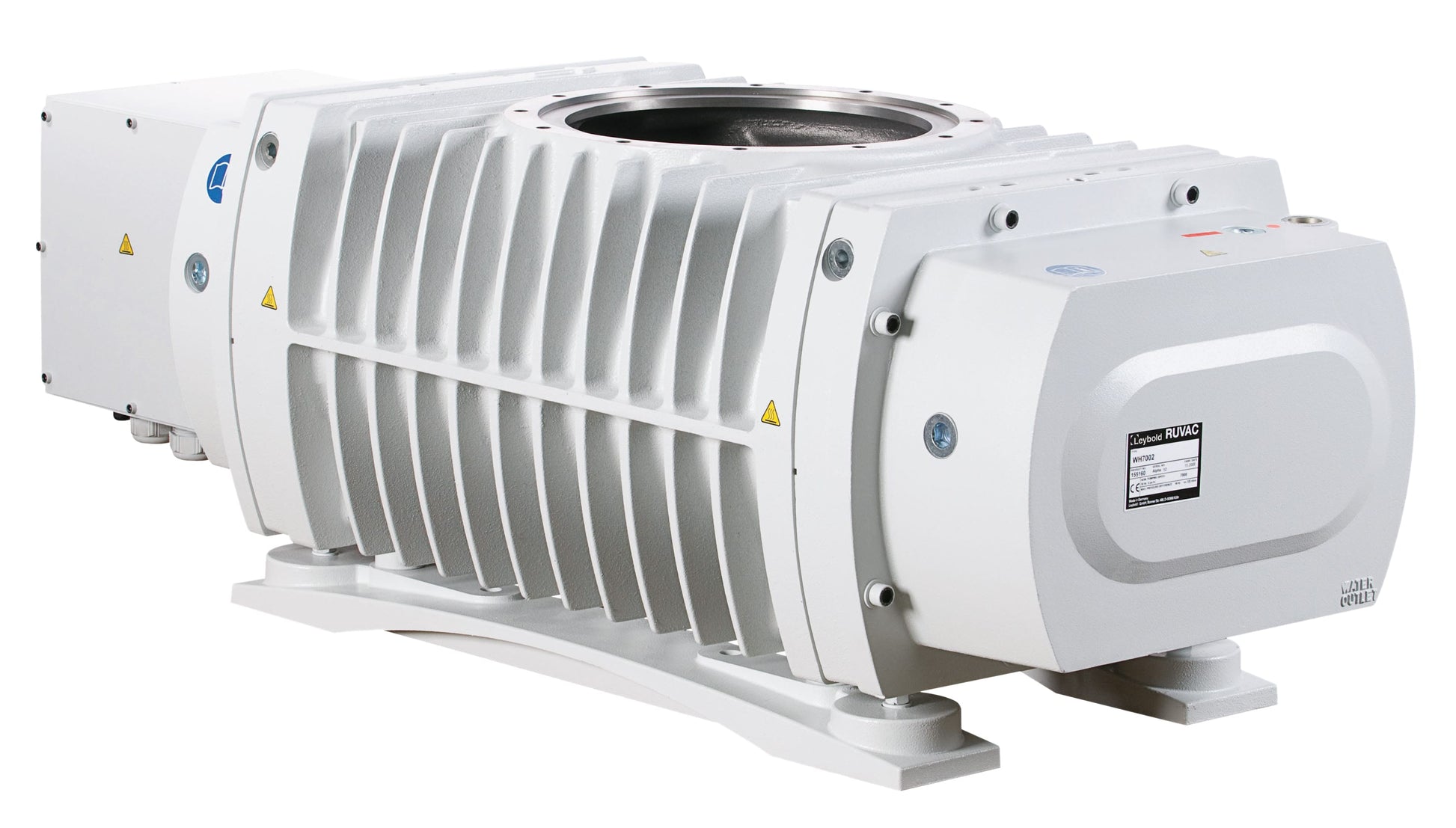

Leybold RUVAC WH 7000 Roots Vacuum Pump

Part Number: 127700V14
Condition: New

The RUVAC WH 7000 represents the pinnacle of high-capacity roots vacuum technology, engineered for demanding industrial processes that require exceptional pumping performance. This advanced pump combines superior throughput with innovative water-cooling technology, making it ideal for large-scale vacuum applications. Its hermetically sealed design and state-of-the-art motor technology deliver outstanding reliability and efficiency while maintaining minimal noise and heat emissions.

Specification

Details

Nominal Pumping Speed

9800 m³/h (5772 cfm)

Max Effective Pumping Speed (with DRYVAC DV 650)

5800 m³/h (3416 cfm)

Max Effective Pumping Speed (with RUVAC WH 2500)

7800 m³/h (4594 cfm)

Max Permissible Pressure Difference

11 to 14 mbar (8.25 to 10.5 Torr)

Mains Voltage

340 to 530 V

Nominal Power Consumption

11.0/15.0 kW (14.75/20.12 hp)

Idle Mode Power Consumption

1.2 kW (1.6 hp)

Energy Efficiency Class

IE 2

Nominal Speed

4200 rpm

Water Connection

1/4" female

Cooling Water Flow

1 to 3 L/min

Cooling Water Temperature

5 to 35°C (41 to 95°F)

Connection Flanges

ISO-K 320 (inlet) / ISO-K 160 (outlet)

Weight

650 kg (1433 lbs)

Dimensions (W x D x H)

1433 x 540 x 415 mm (56.42 x 21.26 x 16.34 in)

Noise Level

< 63 dB(A)

The WH 7000's sophisticated design features an integrated water cooling system that ensures optimal temperature control and reliable performance in continuous operation. Its hermetically sealed construction eliminates the need for shaft seals, making it particularly well-suited for applications involving corrosive or toxic gases. This high-capacity pump excels in demanding applications such as large-scale coating systems, semiconductor manufacturing, and industrial process automation where consistent, high-volume vacuum performance is critical.

Regular price
$44,932.00
Sale price
$44,932.00
Regular price
$56,165.00
Shipping calculated at checkout.

Please call (480) 263-9900 to order this product.
