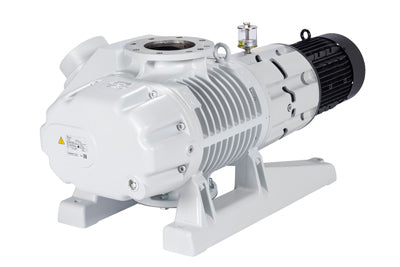

Leybold RUVAC WAU 2001 Roots Vacuum Booster Pump
The RUVAC WAU 2001 stands as Leybold's premium high-capacity roots vacuum booster, delivering exceptional performance with an impressive nominal pumping speed of 2460 m³/h. This industrial powerhouse is engineered for large-scale semiconductor manufacturing processes and advanced vacuum systems where maximum throughput is essential. Its sophisticated design combines superior pumping capacity with energy-efficient operation through its advanced IE3 class motor.
|
Specification |
Details |
|
Nominal Pumping Speed |
2460 m³/h (1449 cfm) |
|
Maximum Effective Pumping Speed |
2100 m³/h (1236 cfm) |
|
Ultimate Total Pressure |
< 4 x 10⁻² mbar (< 3 x 10⁻² Torr) |
|
Maximum Permissible Pressure Difference |
50 mbar (37.5 Torr) |
|
Leak Rate |
< 5 x 10⁻⁴ mbar x l/s |
|
Motor Power |
7.5 kW (10.0 hp) |
|
Voltage |
200-240 / 380-400 V |
|
Thermal Class |
F |
|
Operating Temperature Range |
+5 to +40°C (+41 to +104°F) |
|
Nominal Speed |
3600 rpm |
|
Protection Class |
IP 55 |
|
Connection Flanges |
160 ISO-K |
|
Weight |
400/406 kg (882.0/895.2 lbs) |
|
Noise Level |
< 77 dB(A) |
|
Compatible Backing Pump |
SOGEVAC SV 630 BF |
|
Materials |
Carbon Steel, Stainless Steel, Cast Iron, FPM |
The WAU 2001 features an advanced thermal management system and precision-engineered rotor assembly designed for continuous operation in demanding industrial environments. Its robust construction and sophisticated sealing technology ensure reliable performance while minimizing maintenance requirements. This pump excels in applications requiring high throughput and consistent vacuum levels, making it the ideal choice for critical industrial processes where performance and reliability are paramount.
- Regular price
- $27,840.00
- Sale price
- $27,840.00
- Regular price
-
$34,799.00
Please call (480) 263-9900 to order this product.
