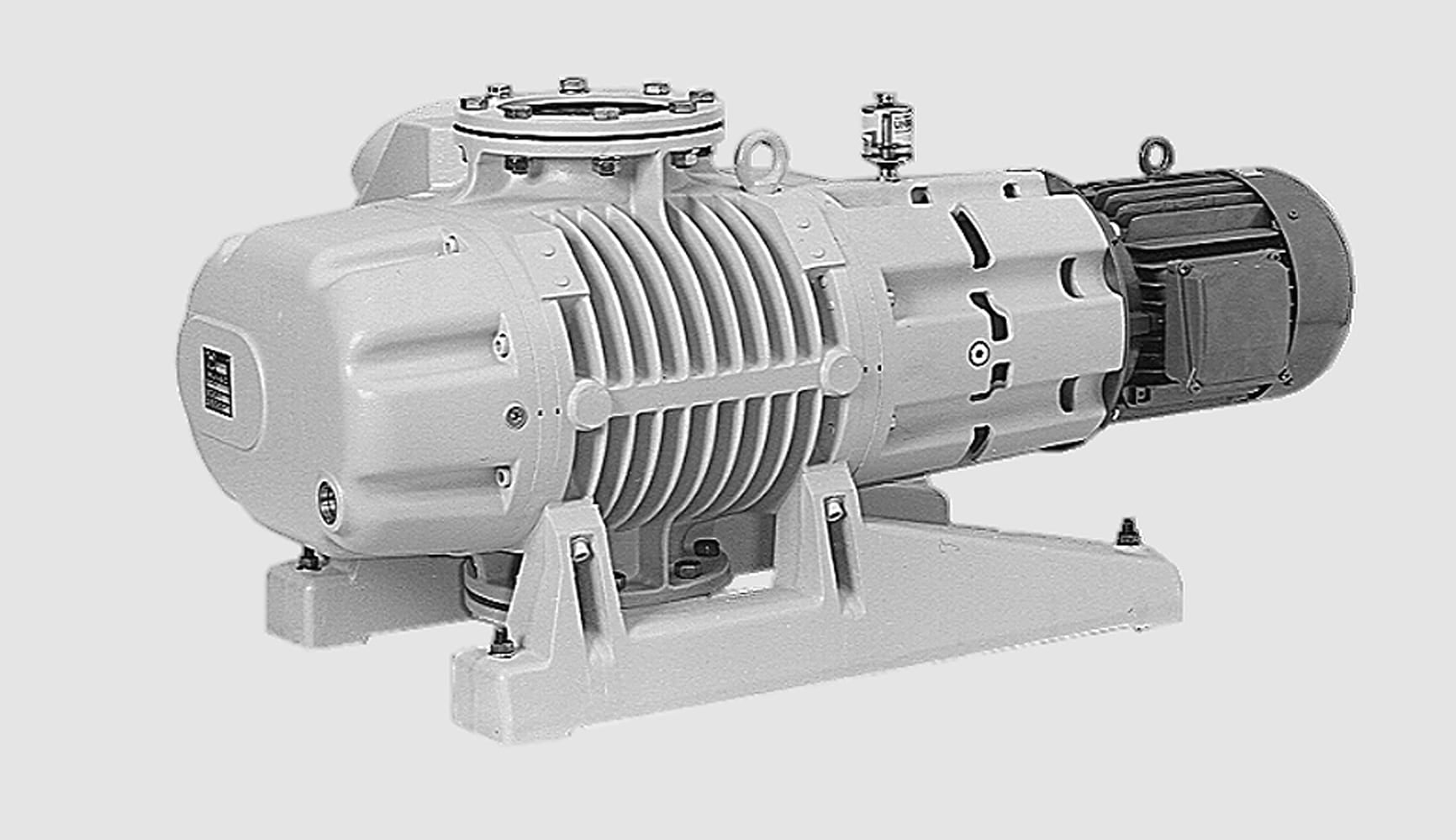

Leybold RUVAC WAU 1001 Roots Vacuum Booster Pump
The RUVAC WAU 1001 is a high-capacity roots vacuum booster pump that sets the standard for industrial vacuum performance. With an impressive nominal pumping speed of 1200 m³/h, this powerhouse is engineered for large-scale semiconductor manufacturing and advanced industrial coating systems. Its robust design combines exceptional pumping capacity with reliable operation, making it ideal for demanding continuous processes.
|
Specification |
Details |
|
Nominal Pumping Speed |
1200 m³/h (707 cfm) |
|
Maximum Effective Pumping Speed |
1000 m³/h (588 cfm) |
|
Ultimate Total Pressure |
< 4 x 10⁻² mbar (< 3 x 10⁻² Torr) |
|
Maximum Permissible Pressure Difference |
80 mbar (60 Torr) |
|
Leak Rate |
< 5 x 10⁻⁴ mbar x l/s |
|
Motor Power |
4.0 kW (5.4 hp) |
|
Voltage |
200-240 / 380-400 V |
|
Thermal Class |
F |
|
Operating Temperature Range |
+5 to +40°C (+41 to +104°F) |
|
Nominal Speed |
3600 rpm |
|
Protection Class |
IP 55 |
|
Connection Flanges |
100 ISO-K |
|
Weight |
220/225 kg (485.1/496.1 lbs) |
|
Noise Level |
< 73 dB(A) |
|
Compatible Backing Pump |
SOGEVAC SV 300 B |
|
Materials |
Carbon Steel, Stainless Steel, Cast Iron, FPM |
The WAU 1001 features an IE3 energy-efficient motor and sophisticated thermal management system for optimal performance in demanding environments. Its precision-engineered rotor assembly and industrial-grade construction ensure exceptional durability and minimal maintenance requirements. The pump's advanced sealing technology and robust design make it particularly well-suited for critical processes in semiconductor manufacturing where consistent, high-throughput vacuum performance is essential.
- Regular price
- $21,654.40
- Sale price
- $21,654.40
- Regular price
-
$27,068.00
Please call (480) 263-9900 to order this product.
