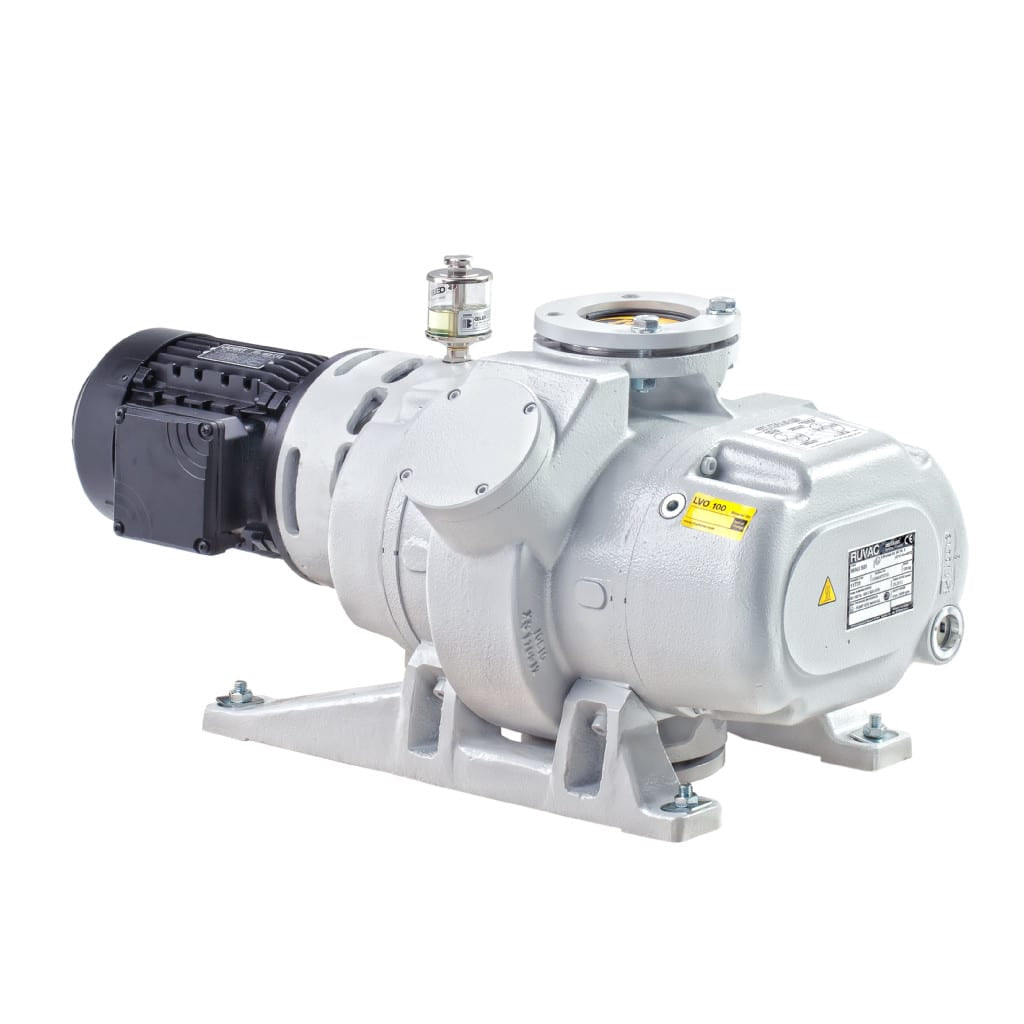

Leybold RUVAC WAU 501 Roots Vacuum Booster Pump
The RUVAC WAU 501 is a high-capacity roots vacuum booster pump designed for demanding industrial applications in semiconductor manufacturing and advanced coating processes. This powerful unit delivers exceptional pumping performance with a nominal speed of 606 m³/h, making it ideal for large-scale vacuum systems where reliable, continuous operation is essential. Its advanced design ensures optimal performance while maintaining energy efficiency and low noise levels.
|
Specification |
Details |
|
Nominal Pumping Speed |
606 m³/h (357 cfm) |
|
Maximum Effective Pumping Speed |
530 m³/h (312 cfm) |
|
Ultimate Total Pressure |
< 4 x 10⁻² mbar (< 3 x 10⁻² Torr) |
|
Maximum Permissible Pressure Difference |
80 mbar (60 Torr) |
|
Leak Rate |
< 1 x 10⁻⁴ mbar x l/s |
|
Motor Power |
2.4 kW (3.3 hp) |
|
Voltage |
200-208 / 265 / 460 V |
|
Thermal Class |
F |
|
Operating Temperature Range |
+5 to +40°C (+41 to +104°F) |
|
Nominal Speed |
3600 rpm |
|
Maximum Speed |
6000 rpm |
|
Protection Class |
IP 20 |
|
Connection Flanges |
63 ISO-K |
|
Weight |
128/133 kg (282.2/293.2 lbs) |
|
Noise Level |
< 56 dB(A) |
|
Compatible Backing Pump |
SOGEVAC SV 200 |
The WAU 501 features an industrially-proven design optimized for thermal management and operational stability. Its precision-engineered rotor system and robust construction ensure exceptional reliability and minimal maintenance requirements. With its remarkably low noise level of less than 56 dB(A), this pump provides a more comfortable working environment while maintaining the high performance standards required for critical vacuum processes.
- Regular price
- $15,439.20
- Sale price
- $15,439.20
- Regular price
-
$19,299.00
Please call (480) 263-9900 to order this product.
