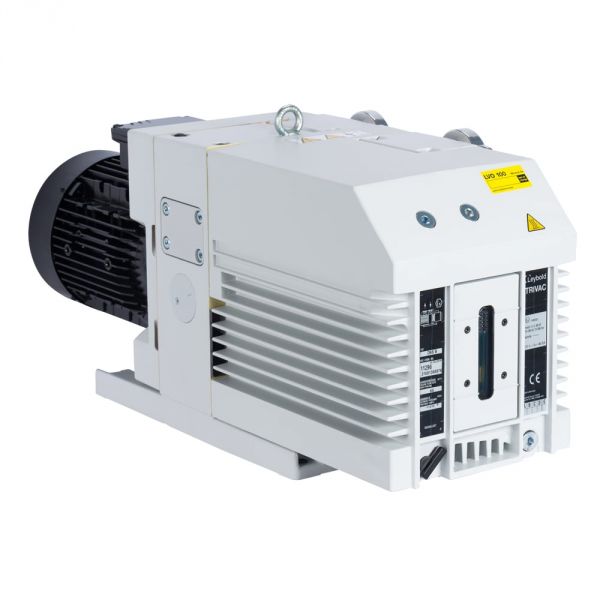

Leybold Trivac D65B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D65B is a high-capacity dual-stage rotary vane vacuum pump designed for demanding industrial applications and research environments. This powerful pump combines exceptional pumping speed with superior vapor handling capabilities, making it ideal for large-scale vacuum systems in semiconductor manufacturing, vacuum coating, and analytical instrumentation. Its robust construction and efficient oil-sealed design ensure reliable performance in continuous operation scenarios.
|
Specification |
Details |
|
Nominal Pumping Speed |
90 m³/h (53 CFM) |
|
Pumping Speed |
78 m³/h (46 CFM) |
|
Ultimate Partial Pressure |
10⁻⁴ mbar (0.75 x 10⁻⁴ torr) |
|
Ultimate Total Pressure |
< 2 x 10⁻³ mbar without gas ballast |
|
Ultimate Total Pressure with Gas Ballast |
< 5 x 10⁻³ mbar |
|
Water Vapor Tolerance |
40 mbar (30 torr) |
|
Water Vapor Capacity |
2310 g/h (5.09 lbs/h) |
|
Oil Filling (Min/Max) |
2.0 / 3.3 L (2.1 / 3.5 qt) |
|
Motor Power |
2.2 kW (3 HP) |
|
Rotational Speed |
1760 RPM |
|
Noise Level |
57/59 dB(A) |
|
Weight |
84.5 kg (186.3 lbs) |
|
Voltage |
Three-phase 50/60 Hz |
|
Flanges |
DN 40 KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C (+54 to +104°F) |
Built for industrial-scale operations, this pump features an integrated oil pump system and positively lubricated bearings, ensuring consistent performance in applications such as freeze-drying, vacuum distillation, and backing pump systems. The D65B's high leak-tightness and exceptional vapor handling capacity make it particularly suitable for processes requiring reliable, high-throughput vacuum generation in demanding environments.
