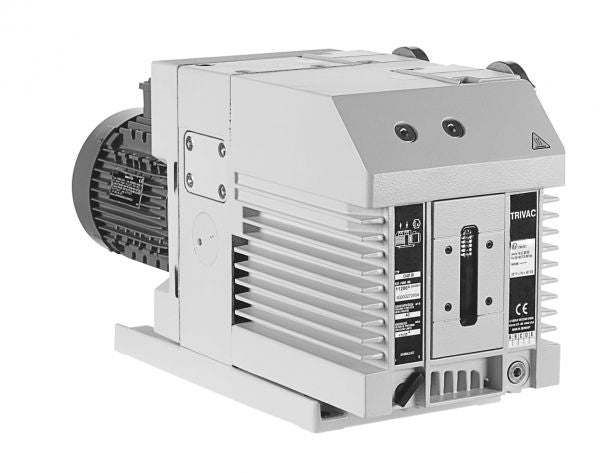

Leybold Trivac D40B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D40B is a powerful dual-stage rotary vane vacuum pump engineered for heavy-duty industrial and research applications. This robust pump combines exceptional pumping capacity with superior vapor handling capabilities, making it ideal for demanding processes in semiconductor manufacturing, vacuum coating, and analytical instrumentation. With its oil-sealed design and efficient cooling system, the D40B delivers reliable performance even in continuous operation.
|
Specification |
Details |
|
Pumping Speed |
48 m³/h (28 CFM) at 60 Hz |
|
Ultimate Total Pressure |
< 2 x 10⁻³ mbar without gas ballast |
|
Ultimate Partial Pressure |
1 x 10⁻⁴ mbar |
|
Water Vapor Tolerance |
40 mbar (30 torr) |
|
Water Vapor Capacity |
1420 g/h |
|
Oil Filling (Min/Max) |
1.7 / 2.6 L |
|
Motor Power |
2.2 kW (3 HP) |
|
Rotational Speed |
1760 RPM |
|
Noise Level |
57/59 dB(A) |
|
Weight |
75.3 kg (166 lbs) |
|
Voltage |
Three-phase 50/60 Hz |
|
Flanges |
DN 40 KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C (+54 to +104°F) |
Built for industrial-scale operations, this pump features an integrated oil pump system and positively lubricated bearings, ensuring consistent performance in applications such as vacuum distillation, pharmaceutical freeze-drying, and backing pump systems. The D40B's high leak-tightness and excellent vapor handling make it particularly suitable for processes requiring reliable, high-throughput vacuum generation.
- Regular price
- $10,602.40
- Sale price
- $10,602.40
- Regular price
-
$13,253.00
Please call (480) 263-9900 to order this product.
