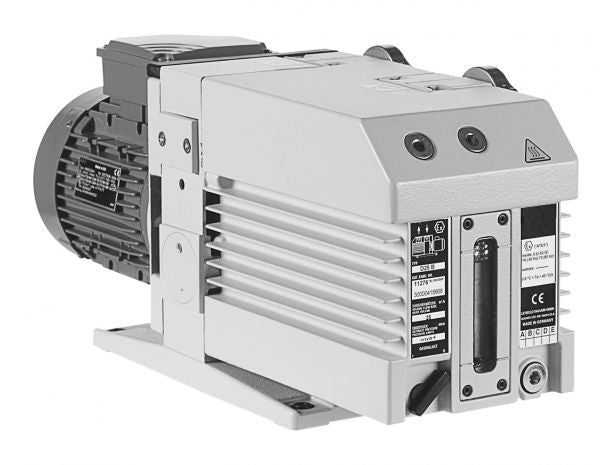

Leybold Trivac D25B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D25B is a high-performance dual-stage rotary vane vacuum pump engineered for demanding industrial and research applications. This powerful pump delivers exceptional pumping capacity and superior vapor handling capabilities, making it ideal for vacuum furnace operations, mass spectrometry, and turbomolecular pump backing. With its oil-sealed design and efficient cooling system, the D25B maintains consistent performance even in continuous operation scenarios.
|
Specification |
Details |
|
Pumping Speed |
30.8 m³/h (18.2 CFM) at 60 Hz |
|
Ultimate Total Pressure |
< 2 x 10⁻³ mbar without gas ballast |
|
Ultimate Partial Pressure |
1 x 10⁻⁴ mbar |
|
Water Vapor Tolerance |
25 mbar (18.8 torr) |
|
Water Vapor Capacity |
570 g/h |
|
Oil Filling (Min/Max) |
0.6 / 1.4 L |
|
Motor Power |
0.75 kW (1 HP) |
|
Rotational Speed |
1730 RPM |
|
Noise Level |
54/56 dB(A) |
|
Weight |
32.3 kg (71.2 lbs) |
|
Voltage |
Three-phase 50/60 Hz |
|
Flanges |
DN 25 KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C (+54 to +104°F) |
Featuring an integrated oil pump system and positively lubricated bearings, this pump excels in applications requiring precise vacuum levels. The D25B's robust construction and reliable performance make it particularly suitable for research laboratories, vacuum distillation processes, and industrial vacuum systems where consistent, high-quality vacuum generation is essential.
