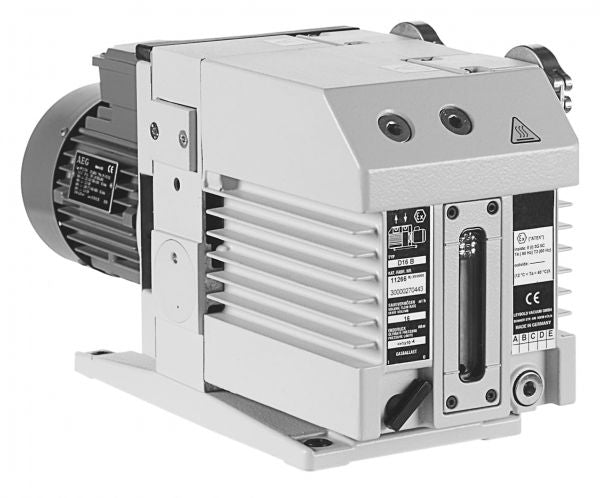

Leybold Trivac D16B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D16B is a robust dual-stage rotary vane vacuum pump designed for demanding industrial and research applications. This versatile pump combines superior vapor handling capabilities with reliable performance, making it ideal for vacuum furnace evacuation, backing turbomolecular pumps, and mass spectrometry systems. Its oil-sealed design and vibration-free operation ensure consistent vacuum levels while maintaining remarkably quiet operation.
|
Specification |
Details |
|
Pumping Speed |
19.8 m³/h (11.7 CFM) at 60 Hz |
|
Ultimate Total Pressure |
< 2 x 10⁻³ mbar without gas ballast |
|
Ultimate Partial Pressure |
1 x 10⁻⁴ mbar |
|
Water Vapor Tolerance |
25 mbar (18.8 torr) |
|
Water Vapor Capacity |
370 g/h |
|
Oil Filling (Min/Max) |
0.5 / 1.0 L |
|
Motor Power |
0.75 kW (1 HP) |
|
Rotational Speed |
1730 RPM |
|
Noise Level |
54/56 dB(A) |
|
Weight |
28 kg (61.7 lbs) |
|
Voltage |
Three-phase 50/60 Hz |
|
Flanges |
DN 25 KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C (+54 to +104°F) |
Built for continuous operation, this pump features an integrated oil pump system with positively lubricated bearings, ensuring long-term reliability. The D16B's efficient cooling system and low heat emission design make it particularly suitable for applications requiring consistent vacuum levels, such as vacuum distillation, freeze drying, and space research applications.
- Regular price
- $8,941.00
- Sale price
- $8,941.00
- Regular price
-
$7,863.00
