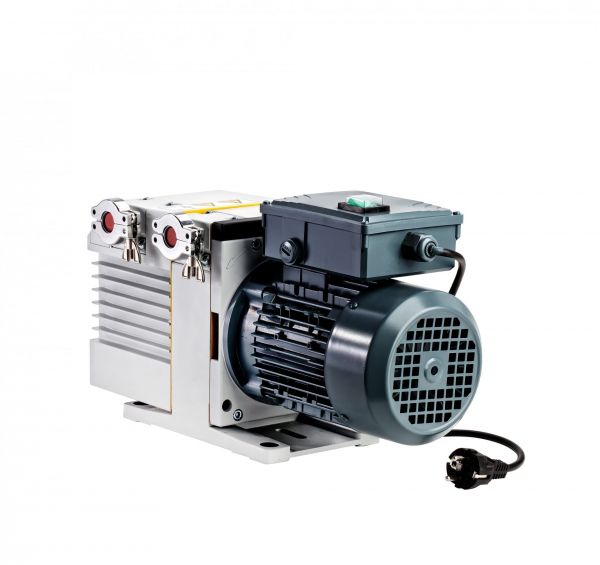

Leybold Trivac D4B Dual-Stage Rotary Vane Vacuum Pump
The Leybold Trivac D4B is a high-performance dual-stage rotary vane vacuum pump engineered for precision applications in semiconductor manufacturing, research laboratories, and industrial processes. This compact yet powerful pump delivers reliable performance with low noise operation and exceptional vapor handling capabilities. Its robust design features an integrated oil pump system and positively lubricated bearings, ensuring consistent operation even in demanding continuous-use scenarios.
|
Specification |
Details |
|
Pumping Speed |
4.2 m³/h (50 Hz) / 4.76 m³/h (60 Hz) |
|
Ultimate Total Pressure |
2 x 10⁻³ mbar without gas ballast |
|
Ultimate Partial Pressure |
1 x 10⁻⁴ mbar |
|
Water Vapor Tolerance |
30 mbar |
|
Water Vapor Capacity |
93 g/h |
|
Oil Filling (Min/Max) |
0.3 / 0.8 L |
|
Motor Power |
0.37 kW |
|
Rotational Speed |
1500/1800 RPM (50/60 Hz) |
|
Noise Level |
50/52 dB(A) |
|
Weight |
18.7 kg (41.2 lbs) |
|
Voltage |
Three-phase 230/400V, 50/60 Hz |
|
Flanges |
DN 16 ISO-KF (Inlet/Exhaust) |
|
Operating Temperature |
+12 to +40°C |
Perfect for applications requiring medium to high vacuum levels, this pump excels in backing turbomolecular pumps, mass spectrometry systems, and vacuum furnaces. Its efficient cooling system and low heat emission design ensure reliable performance while maintaining minimal power consumption. The D4B's high leak tightness and integrated anti-suckback valve provide additional protection for your vacuum processes.
- Regular price
- $4,141.20
- Sale price
- $4,141.20
- Regular price
-
$4,872.00
Please call (480) 263-9900 to order this product.
