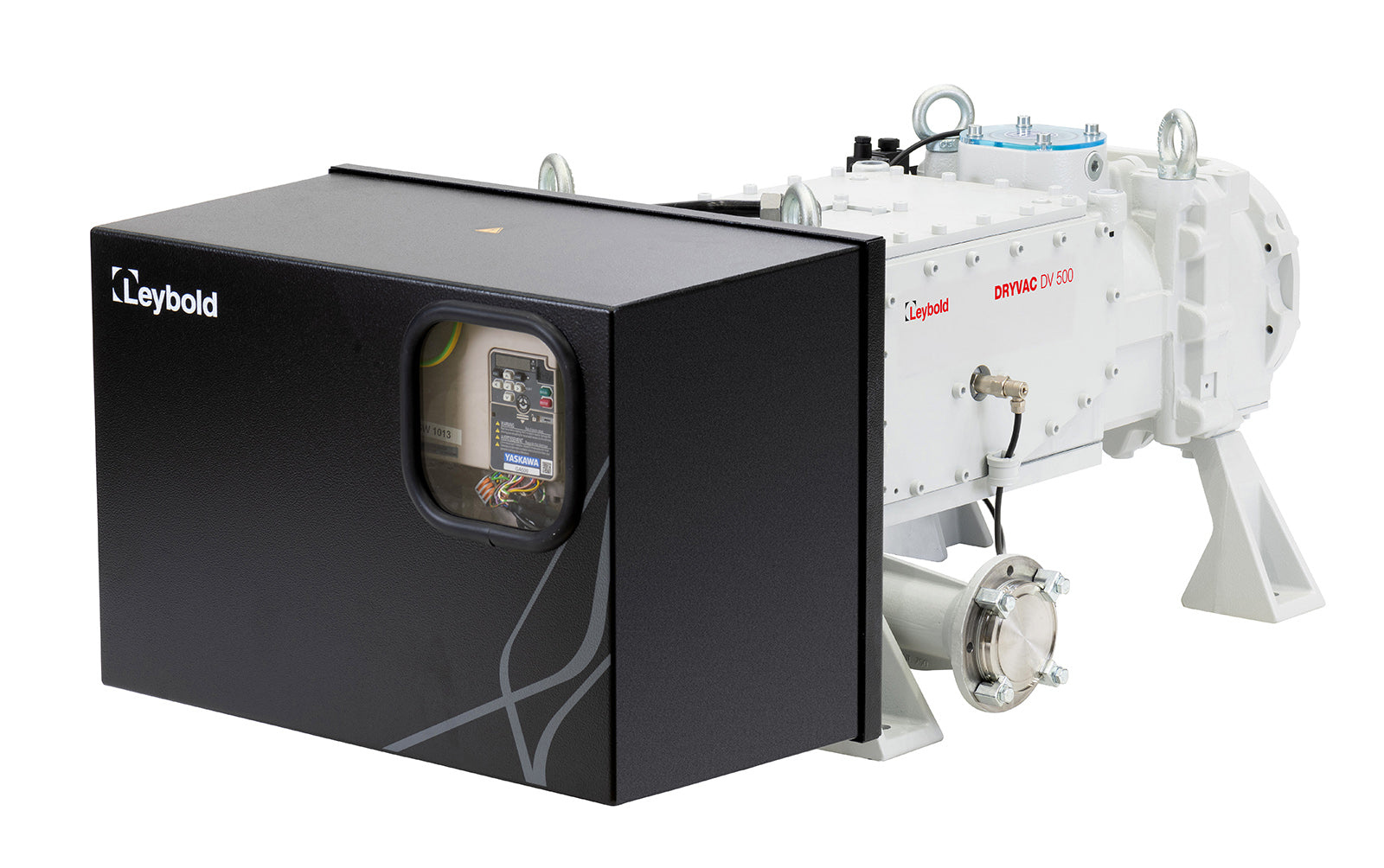

Leybold DRYVAC DV 500 Water-Cooled Dry Screw Pump
The DRYVAC DV 500 sets a new standard in industrial vacuum technology with its powerful 460 m³/hr pumping capacity and exceptional ultimate pressure of < 0.01 mbar. This robust dry screw pump combines high performance with energy-efficient operation, making it ideal for demanding semiconductor manufacturing, coating systems, and industrial processing applications. Its whisper-quiet 65 dB(A) operation ensures a comfortable working environment.
|
Specification |
Details |
|
Max. Pumping Speed |
460 m³/hr (270 CFM) |
|
Ultimate Pressure |
< 0.01 mbar (< 0.08 torr) |
|
Rated Power |
11 kW (15 HP) |
|
Power Consumption |
4.4 kW at ultimate pressure |
|
Cooling Method |
Water-cooled |
|
Cooling Water Flow |
8 L/min |
|
Cooling Water Temperature |
5 to 35°C (41 to 95°F) |
|
Noise Level |
65 dB(A) |
|
Intake Connection |
DN 63 ISO-K |
|
Discharge Flange |
DN 63 ISO-K |
|
Protection Class |
IP54 |
|
Weight |
490 kg (1078 lbs) |
|
Dimensions (W x D x H) |
1225 x 612 x 478 mm (48.23 x 24.1 x 18.82 in) |
|
Mains Voltage |
380-460 or 200-240V ± 10%, 50/60 Hz |
|
Operating Temperature |
5 to 50°C (41 to 122°F) |
|
Bearing Lubricant |
LVO 210 synthetic oil |
The DV 500's hermetically sealed design and advanced dry screw technology eliminate the risk of process contamination while ensuring consistent performance. Its integrated frequency converter provides intelligent monitoring capabilities and seamless network connectivity. Built with industrial durability in mind, this pump features robust IP54 protection and efficient water cooling, making it a reliable cornerstone for continuous industrial processes.
- Regular price
- $38,016.00
- Sale price
- $38,016.00
- Regular price
-
$42,240.00
Please call (480) 263-9900 to order this product.
