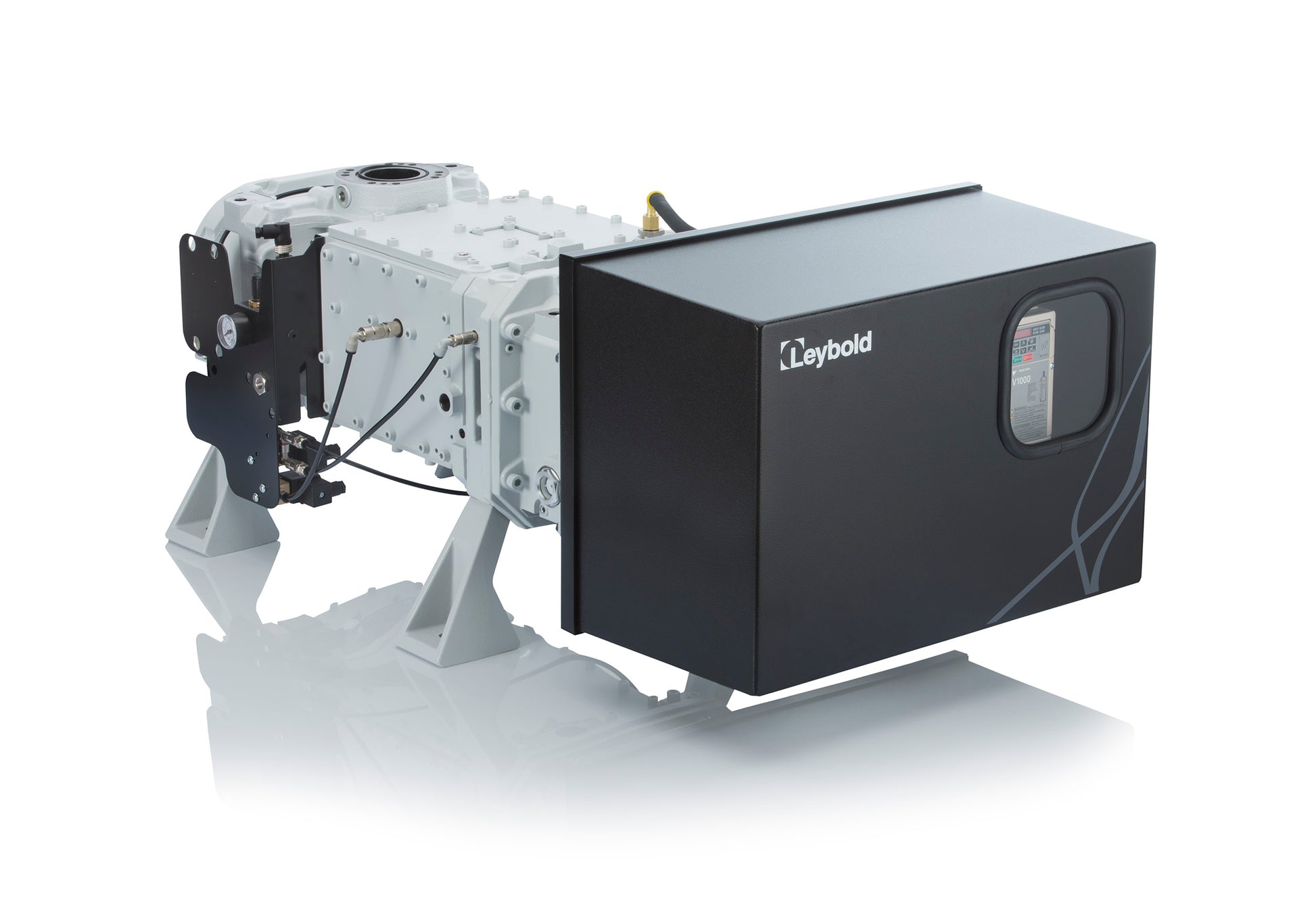

Leybold DRYVAC DV 300 Water-Cooled Dry Screw Pump
The DRYVAC DV 300 delivers superior vacuum performance with its advanced dry screw technology, making it an essential component for demanding semiconductor and industrial applications. This hermetically sealed pump achieves an impressive ultimate pressure of < 0.01 mbar while maintaining whisper-quiet operation at just 65 dB(A). Its intelligent design combines robust reliability with energy-efficient operation, perfect for continuous industrial processes.
|
Specification |
Details |
|
Max. Pumping Speed |
280 m³/hr (165 CFM) |
|
Ultimate Pressure |
< 0.01 mbar (< 0.08 torr) |
|
Rated Power |
7.5 kW (10.0 HP) |
|
Power Consumption |
4.5 kW at ultimate pressure |
|
Cooling Method |
Water-cooled |
|
Cooling Water Flow |
8 L/min |
|
Cooling Water Temperature |
5 to 35°C (41 to 95°F) |
|
Noise Level |
65 dB(A) |
|
Intake Connection |
DN 63 ISO-K |
|
Discharge Flange |
DN 40 ISO-KF |
|
Protection Class |
IP54 |
|
Weight |
370 kg (814 lbs) |
|
Dimensions (W x D x H) |
1115 x 612 x 478 mm (43.9 x 24.1 x 18.82 in) |
|
Mains Voltage |
380-460 or 200-240V ± 10%, 50/60 Hz |
|
Operating Temperature |
5 to 50°C (41 to 122°F) |
|
Bearing Lubricant |
LVO 210 synthetic oil |
The DV 300's oil-free pumping chamber ensures contamination-free operation, while its integrated frequency converter enables precise control and monitoring capabilities. The water-cooled design and IP54 protection rating ensure reliable performance in demanding industrial environments. With its compact footprint and smart engineering, this pump delivers exceptional vacuum performance while minimizing energy consumption and maintenance requirements.
- Regular price
- $31,229.10
- Sale price
- $31,229.10
- Regular price
-
$34,699.00
Please call (480) 263-9900 to order this product.
