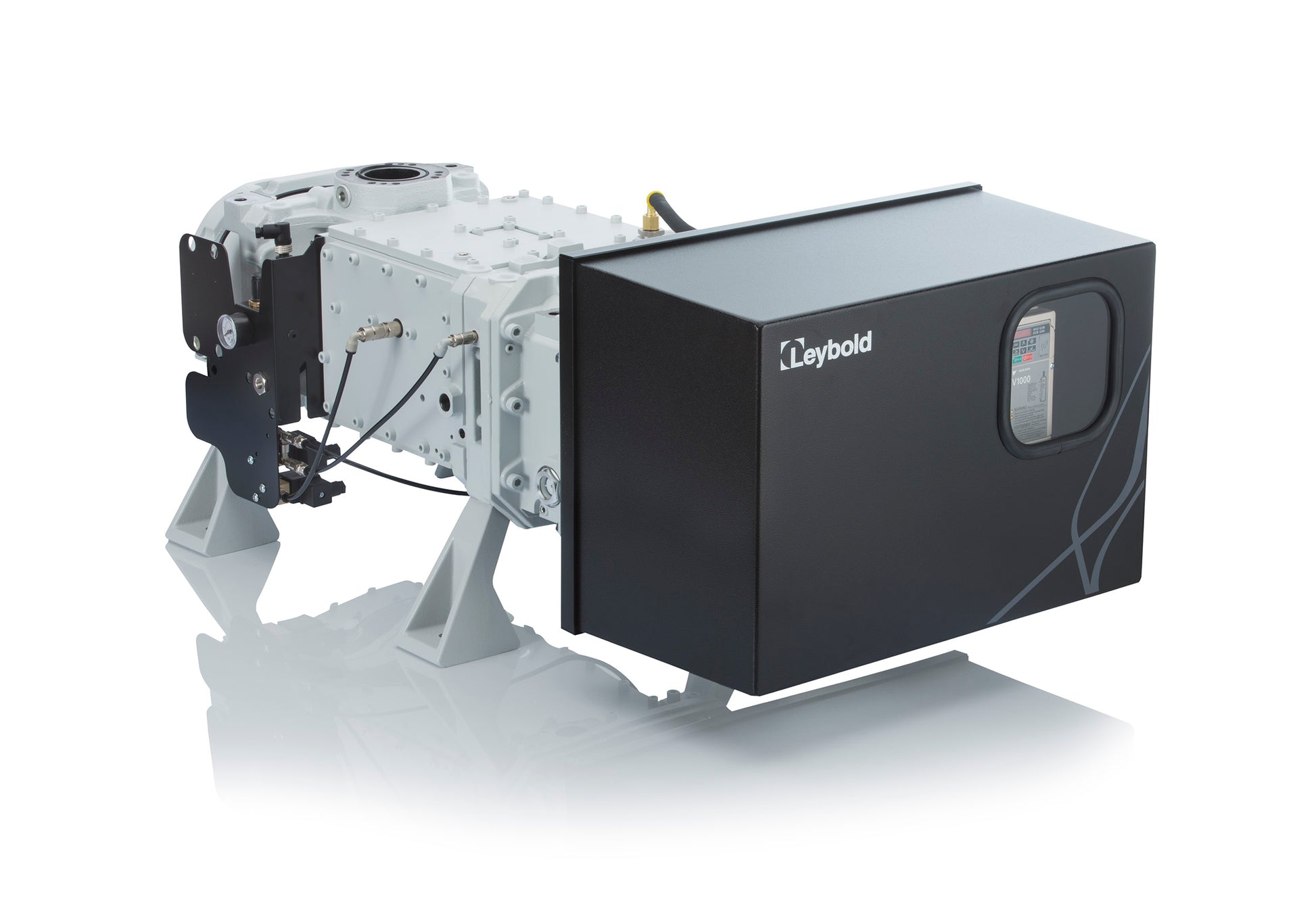

Leybold DRYVAC DV 200 Water-Cooled Dry Screw Pump
The DRYVAC DV 200 represents the pinnacle of dry screw vacuum technology, engineered specifically for demanding semiconductor and industrial processing applications. This hermetically sealed pump delivers exceptional performance with an impressively low noise level of 65 dB(A), making it ideal for clean room environments. Its water-cooled design and robust construction ensure consistent, reliable operation even in the most challenging conditions.
|
Specification |
Details |
|
Max. Pumping Speed |
210 m³/hr (124 CFM) |
|
Ultimate Pressure |
< 0.05 mbar (< 0.04 torr) |
|
Rated Power |
7.5 kW (10.0 HP) |
|
Power Consumption |
4.1 kW at ultimate pressure |
|
Cooling Method |
Water-cooled |
|
Cooling Water Flow |
8 L/min |
|
Cooling Water Temperature |
5 to 35°C (41 to 95°F) |
|
Noise Level |
65 dB(A) |
|
Intake Connection |
DN 63 ISO-K |
|
Discharge Flange |
DN 40 ISO-KF |
|
Protection Class |
IP54 |
|
Weight |
370 kg (814 lbs) |
|
Dimensions (W x D x H) |
1115 x 612 x 478 mm (43.9 x 24.1 x 18.82 in) |
|
Mains Voltage |
380-460 or 200-240V ± 10%, 50/60 Hz |
|
Operating Temperature |
5 to 50°C (41 to 122°F) |
|
Bearing Lubricant |
LVO 210 synthetic oil |
The DRYVAC DV 200 features advanced dry screw technology that eliminates the need for oil in the pumping chamber, ensuring contamination-free operation critical for semiconductor manufacturing processes. Its hermetically sealed design and robust IP54 protection make it exceptionally reliable in demanding industrial environments. The integrated water cooling system maintains optimal operating temperatures, while the sophisticated control system enables precise vacuum management for consistent process results.
- Regular price
- $27,835.20
- Sale price
- $27,835.20
- Regular price
-
$30,928.00
Please call (480) 263-9900 to order this product.
